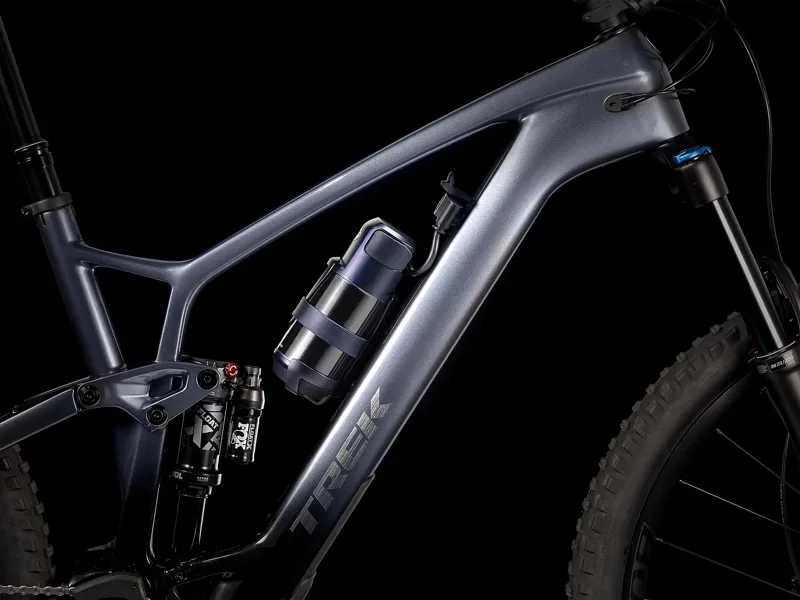

Frame

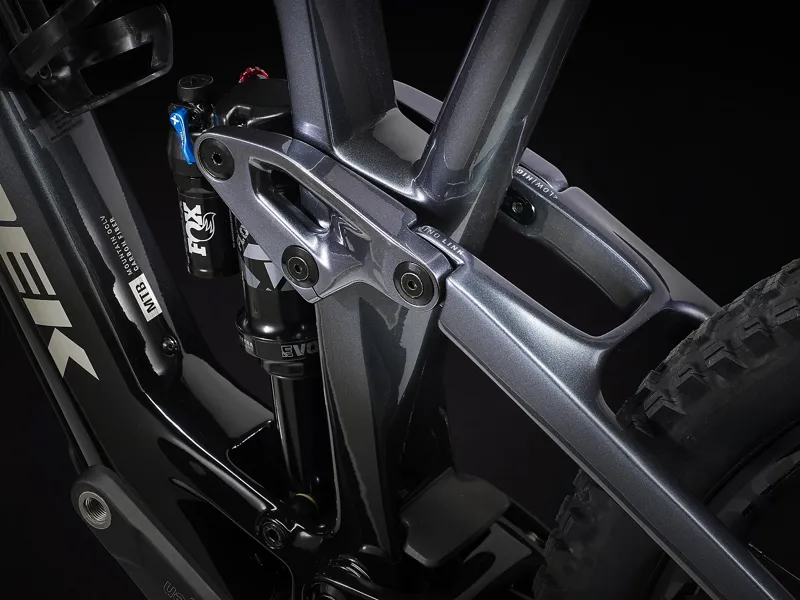

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

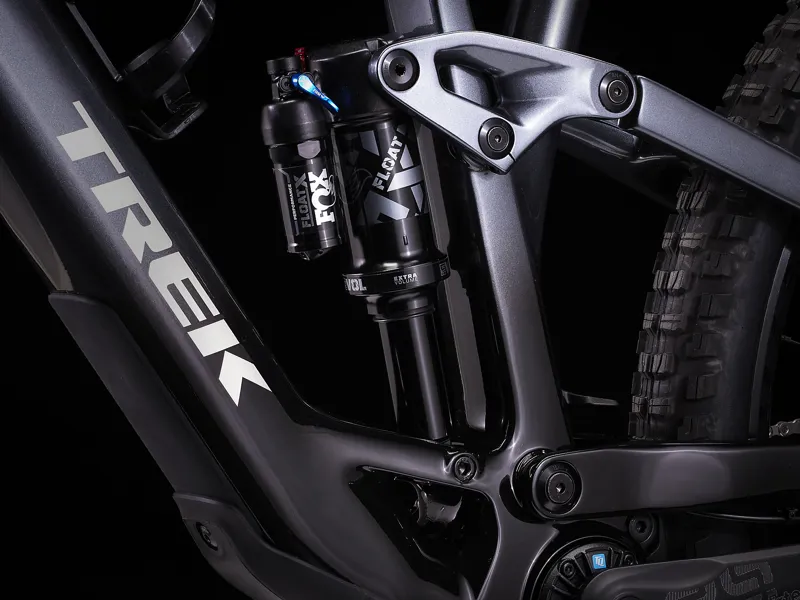

Shock
Fox Performance Float X, 2-position damper, 205mm x 60mm
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
Tyre
Size: S, M, L, XL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Size:S, M, L, XL
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR

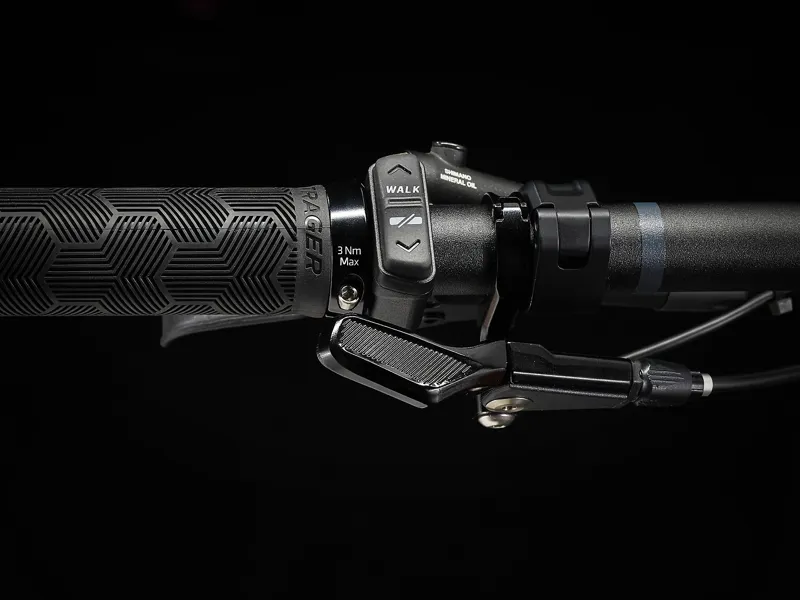

Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank arm
Size: S, M, L, XL
E*thirteen E*spec Plus, 165 mm length
Size:S, M, L, XL
E*thirteen E*spec Plus, 170 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size:S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size:M
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size:L, XL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper

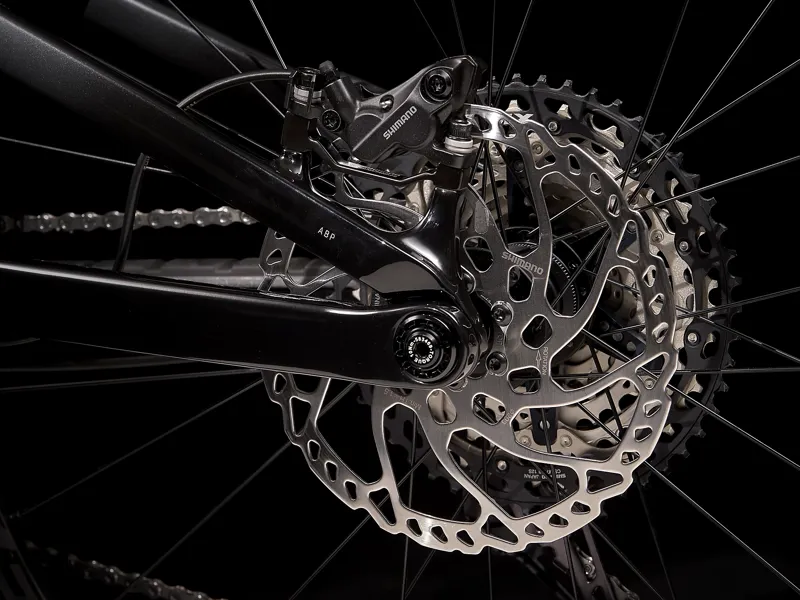

Brake rotor
Size: S, M, L, XL
SRAM CenterLine, 6-bolt, round edge, 200 mm
Size:S, M, L, XL
Shimano RT66, 6-bolt, 203 mm
Brake Set
SRAM Code R 4-piston hydraulic disc

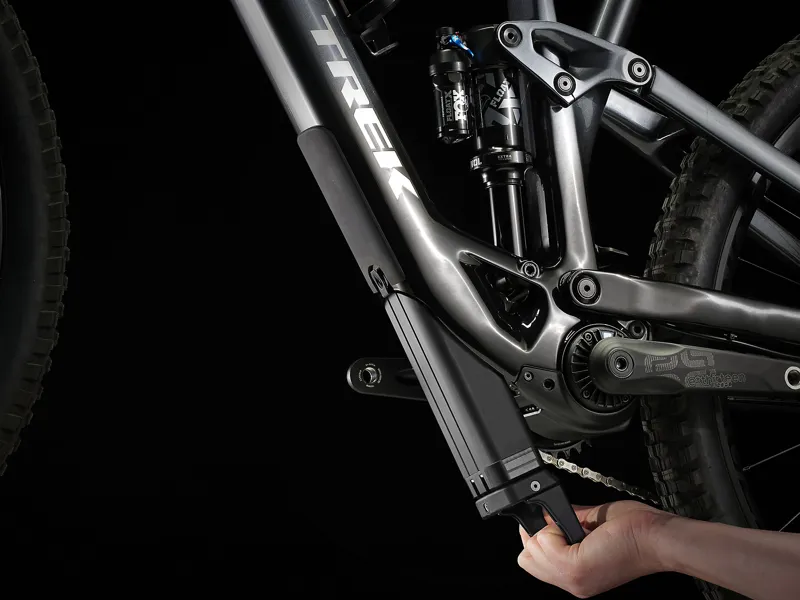

Battery
TQ 360Wh

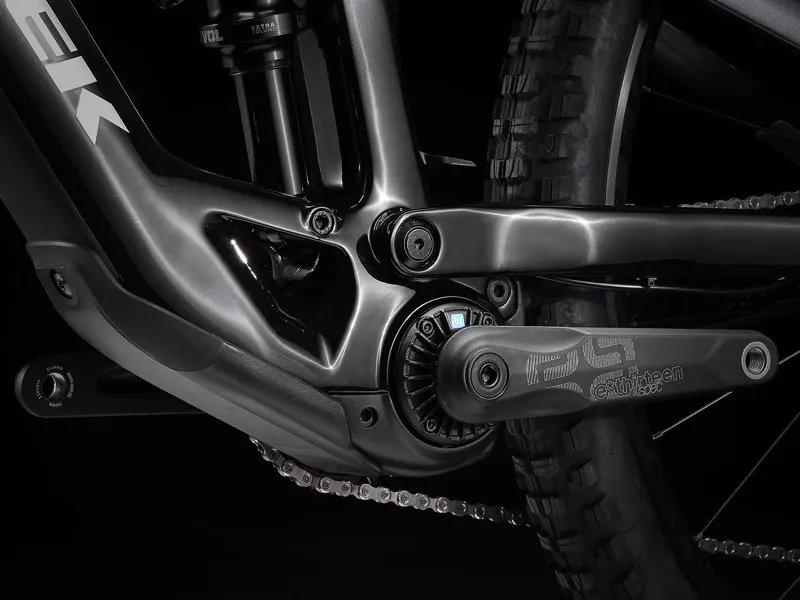

Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

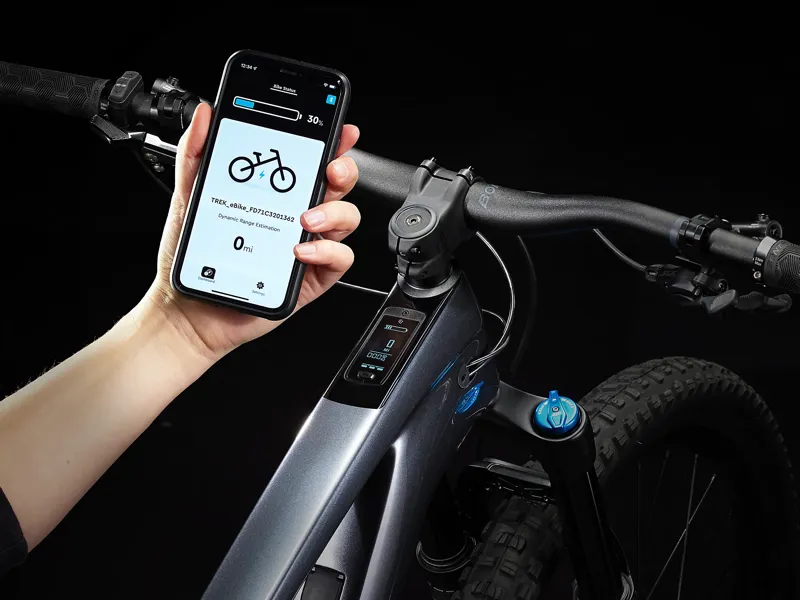

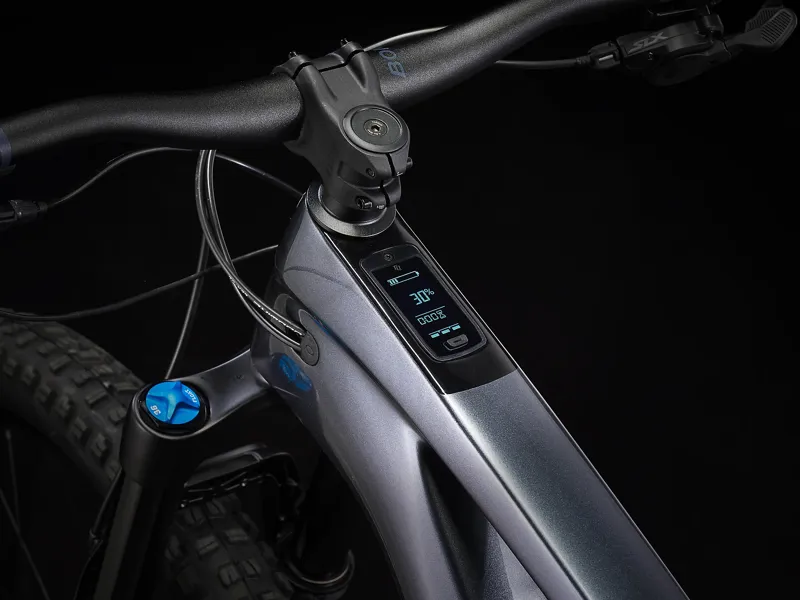

Computer
TQ LED display with Bluetooth & ANT+ connectivity
Electronics
TQ 4A charger
Weight
M - 19.05 kg / 42 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
