Frame
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Shock
RockShox Super Deluxe Select+ RT, 205 mm x 60 mm
Wheel front
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz

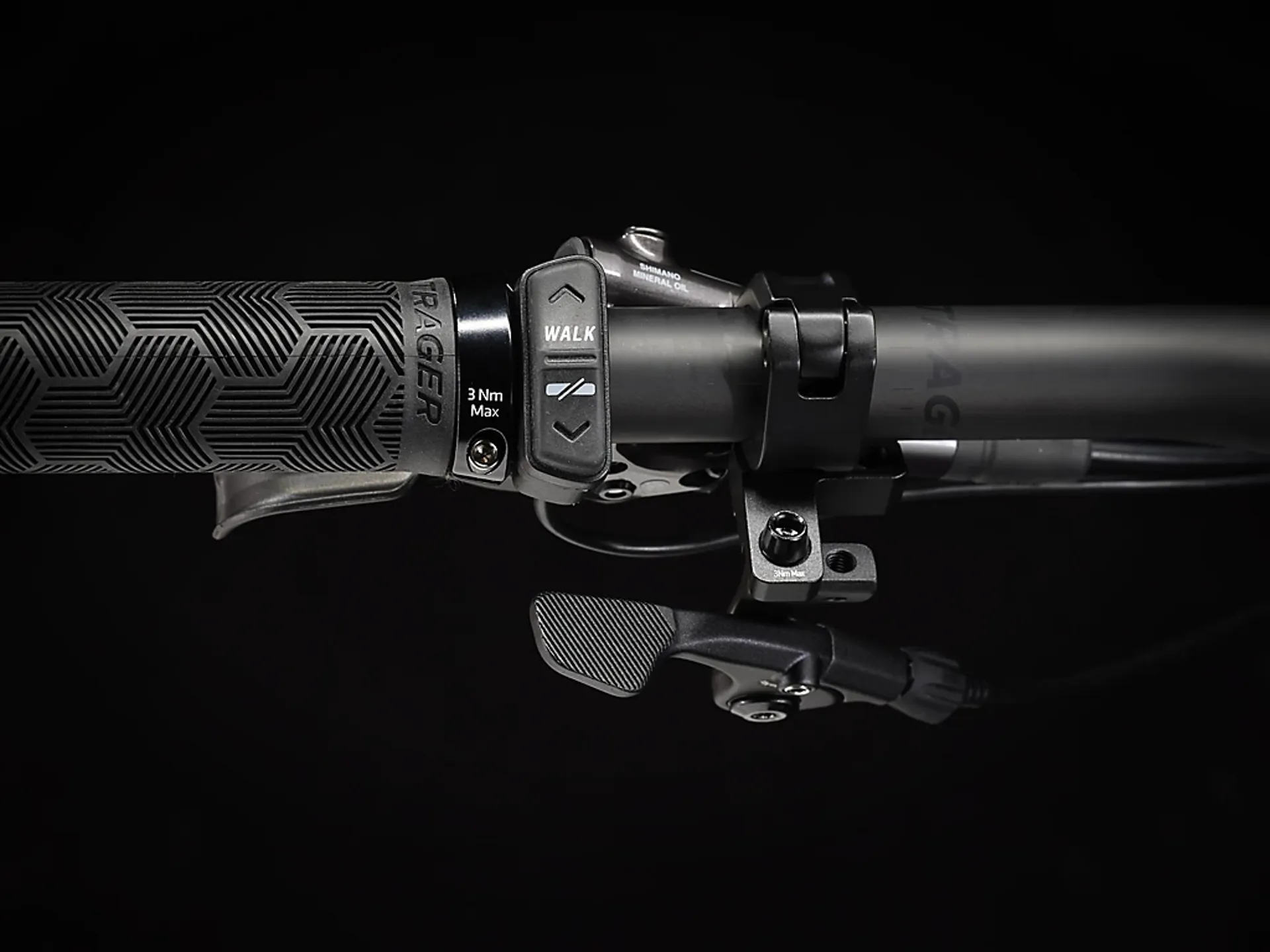

Shifter
Shimano XT M8100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank arm
Size: S, M, L, XL
E*thirteen E*spec Plus, 165 mm length
Size:S, M, L, XL
E*thirteen E*spec Race carbon, 34T, 165 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
Shimano XT M8100, 10-51, 12 speed
Chain
Shimano XT M8100, 12-speed
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size:M
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size:L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size:XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Handlebar/stem (integrated)
Size: S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Size:M, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips
Bontrager XR Trail Elite, nylon lock-on
Brake
Shimano XT M8120 4-piston hydraulic disc
Brake rotor
Shimano RT76, 6-bolt, 203 mm

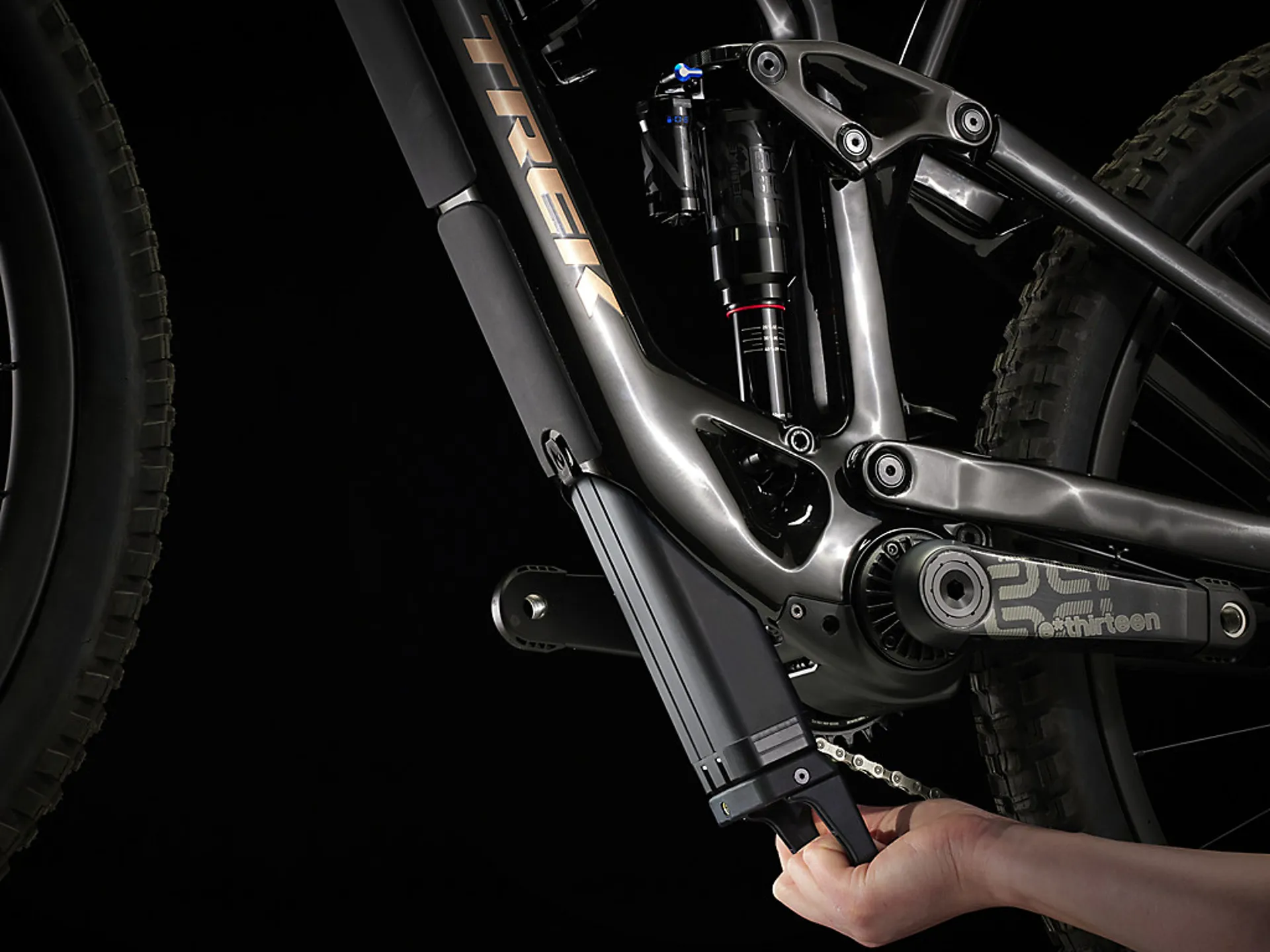

Battery
TQ 360Wh
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

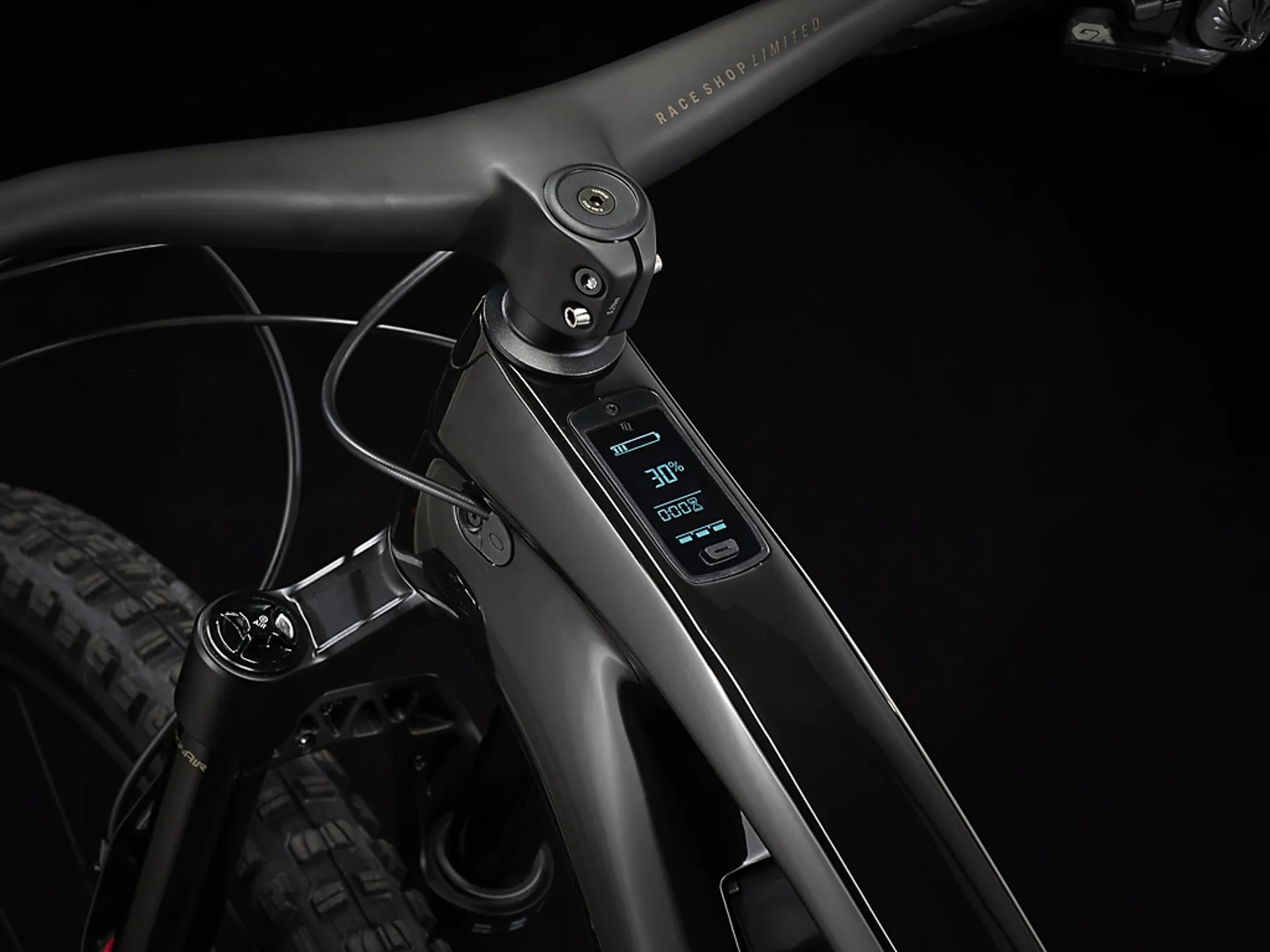

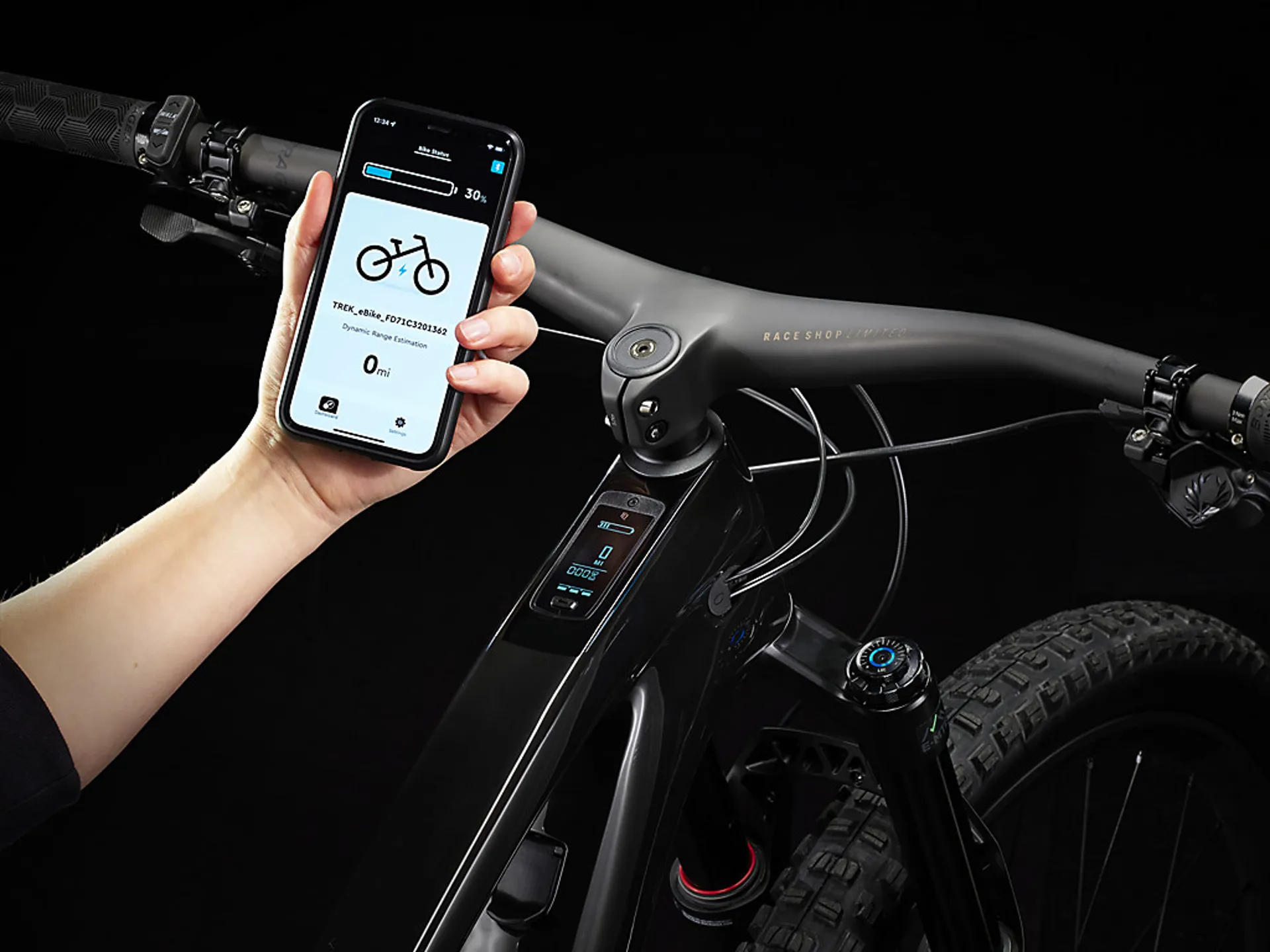

Computer
TQ LED display with Bluetooth & ANT+ connectivity
Electronics
TQ 4A charger
Weight
M - 18.10 kg / 39.91 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
