The Fuel EXe 9.9 XTR redefines next level mountain biking with a package that ticks every box – and then some.
The Fuel EXe 9.9 XTR redefines next level mountain biking with a package that ticks every box – and then some.
Trek

TREK Fuel EXe 9.9 XTR 360Wh Full Suspension Electric Mountain Bike in Smoke

£4,899.00 £12,500.00 61% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Online Returns Policy

If you are not happy with any items purchased via our website, under Consumer Contracts Regulations you have the right to return any unused products for a refund or exchange within 30 days.

When the customer sends an item back to the company (or, when the company arranges for collecting from the customer), the company will process the returned item then notify the customer via email of the refund. The refund will be issued within 3 - 5 working days of the product being received by us, it may then take an additional 3 - 5 working days for the refund to be paid into the customers account.

For items returned within the cooling off period...

  • By law, customers have the right to withdraw from the purchase of an item within 14 working days of the date on which the item is delivered.
  • Where you are withdrawing from your purchase within the cooling-off period, and there has been no error on our part, we will refund the cost of the item.
  • The company will not refund the cost of delivery or other services provided to the customer in connection with the purchase.
  • The cost of delivery back to the company is the responsibility of the customer.
  • Where we collect an item from you, we reserve the right to recover the costs of collection from you.
TERMS AND CONDITIONS
  • Returned goods should be unused, in a saleable condition and in their original packaging with all labels still attached. Team Cycles is entitled to refuse the return or deduct from a refund as a result of the product not being in the above condition.
  • We are only able to exchange like for like products. If you require a different item, you will need to opt for a refund and place a new order. All returns must have a completed returns form.
  • We will refund you to your original payment method.
  • We make no charge for returns, there is no restocking fee.
  • Customised items cannot be returned. *
  • Please do not send your purchase back to the manufacturer unless you have been advised to.
  • Team Cycles customers have 30 days from date of delivery to return their orders.
  • Once we have received the returned goods we will refund you, by the method you used to pay for your order. This may take 5-7 working days to appear as cleared funds.

*Faulty customised goods (or goods that have been altered in any way) will need to be returned for inspection as customisation may void your warranty and therefore faults may not be covered.

WARRANTY

All products ordered from Team Cycles come with a full warranty which covers manufacturing faults and defects in workmanship. If you feel that your purchase has developed a fault, please contact our store for an assessment. To do this you will need proof of purchase.

If taking your product in store is not an option then please email our team on [email protected]. Please include photographs of your product (please keep below 20mb), your web order number (or copy of receipt) so we can immediately start to assess the issue.

PLEASE NOTE:

In some cases, the manufacturer/supplier may require to see the item(s) before repair or replacement can take place. If this is the case, we will inform you and arrange how to do this. All used items being returned to us must be cleaned for hygiene purposes.

On receipt of your goods we will carry out a full inspection and contact you within three working days of receipt.

Finance

Team Cycles (North East) Limited acts as a broker and not the lender and offers finance from Secure Trust Bank PLC T/A V12 Retail Finance. Team Cycles (North East) Limited is authorised and regulated by the Financial Conduct Authority, Registration Number 623982. Not all products offered by Secure Trust Bank T/A V12 Retail Finance are regulated by the FCA. Subject to age, status and affordability, minimum spend applies.

TREK Fuel EXe 9.9 XTR 360Wh Full Suspension Electric Mountain Bike in Smoke

Season:2024

Brand:Trek

Code:36368SMK

It's right for you if...

High performance isn't enough – you want the best the industry has to offer. From the carbon frame and wheels to XTR drivetrain and titular RockShox suspension that soars over boulders and roots, you want a bike that's ready for it all, and will help you get back to the top to take on lap after lap with a whisper-quiet motor that feels nearly invisible under you.

The tech you get

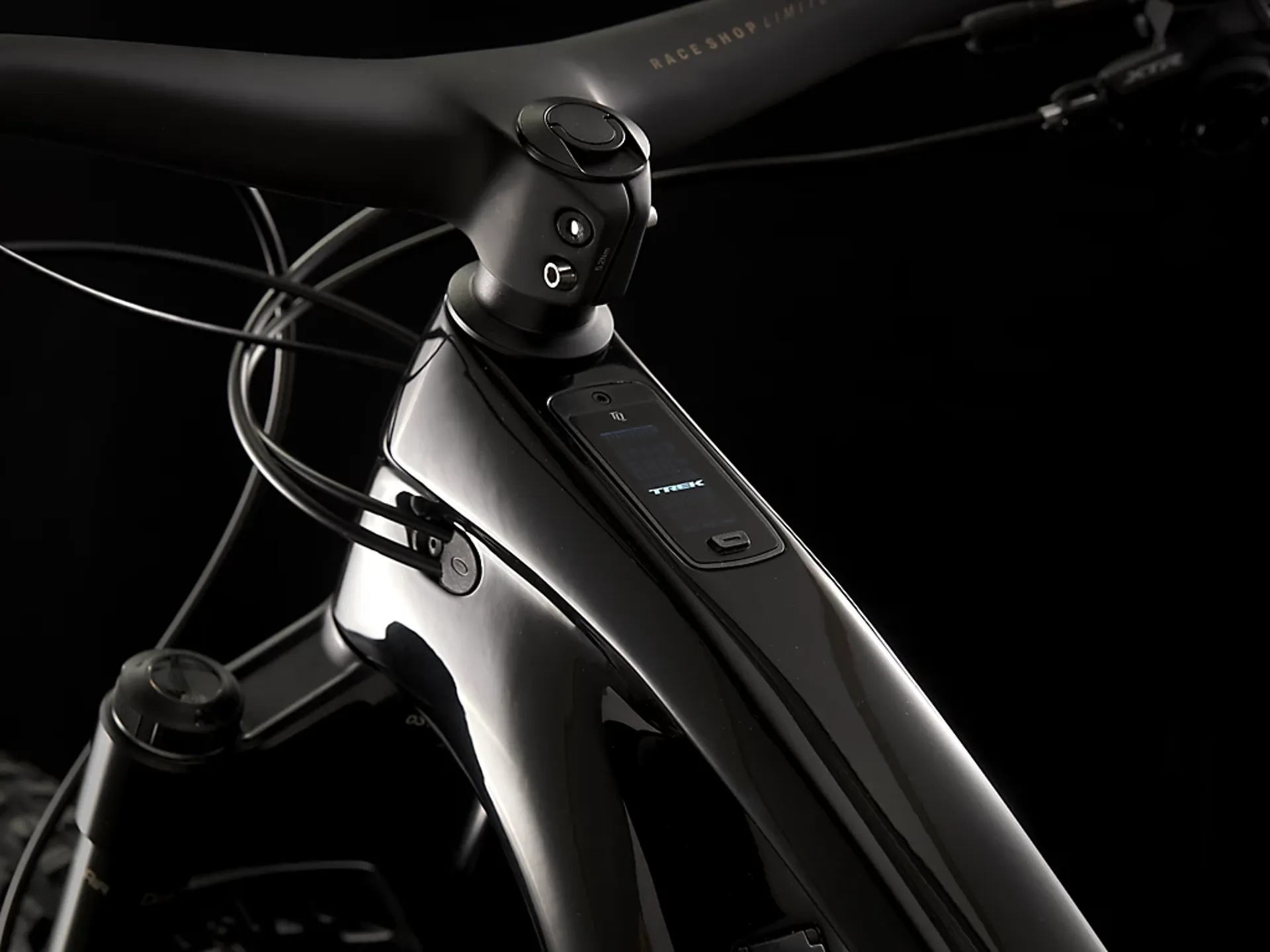

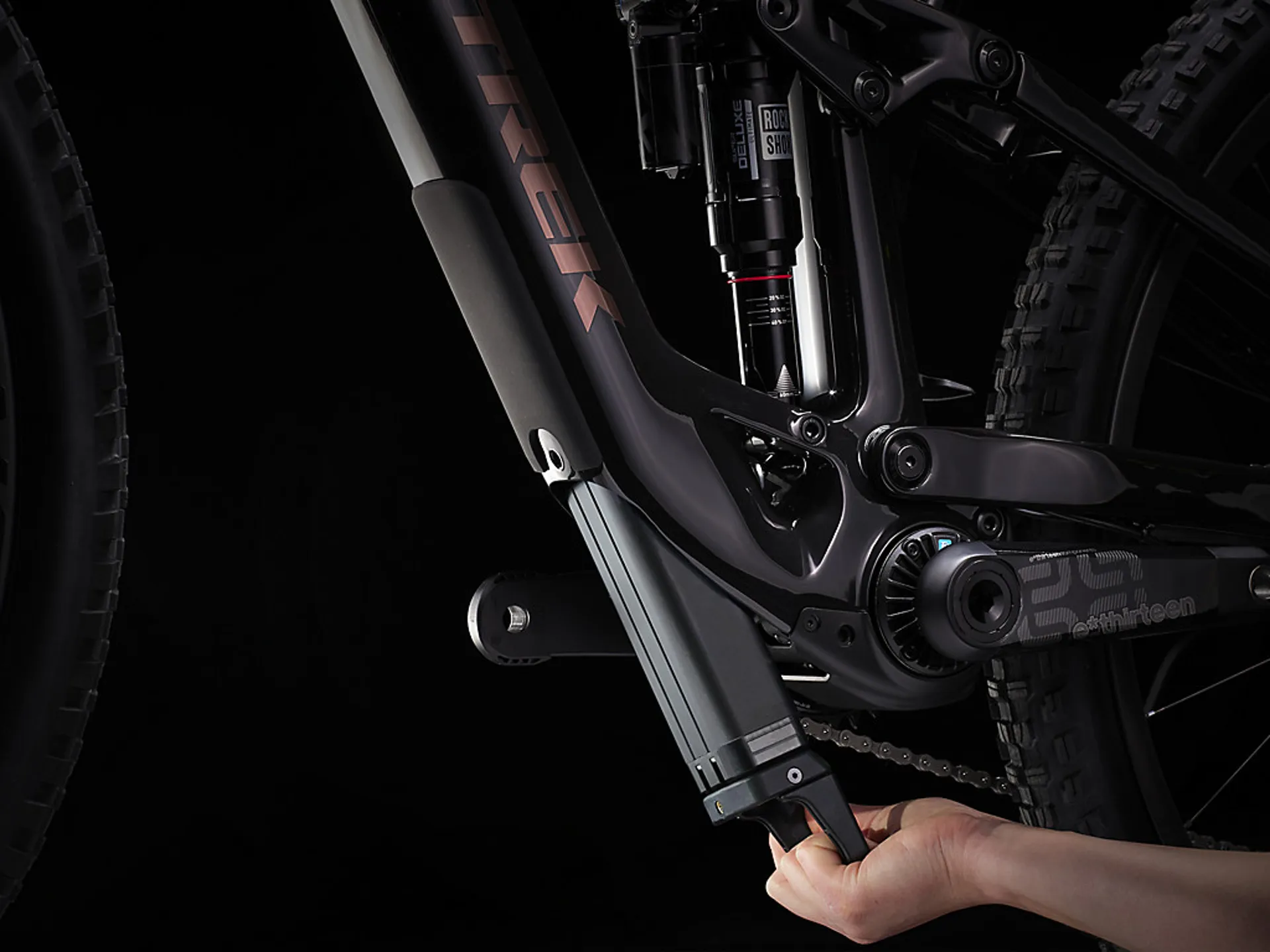

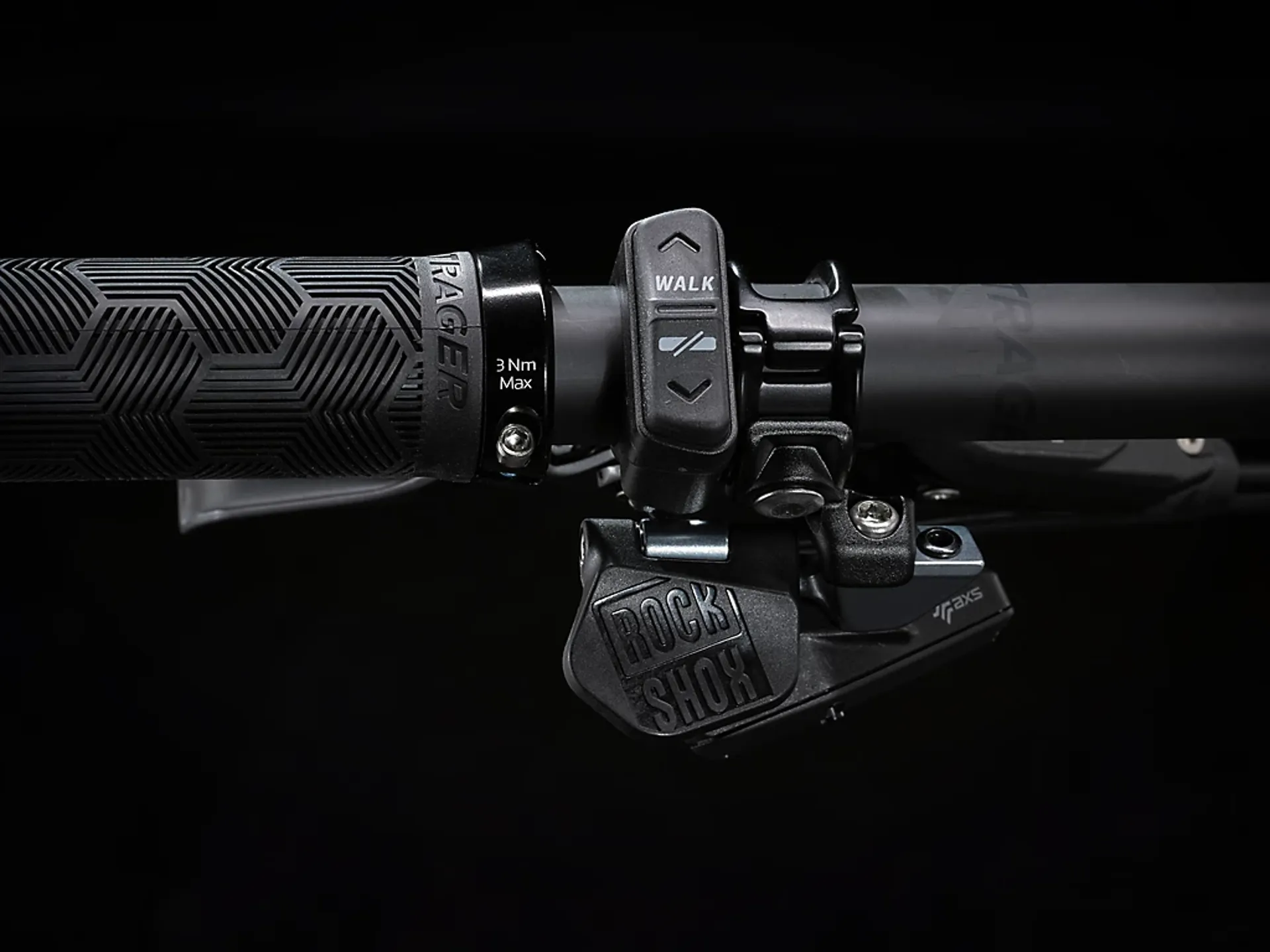

An OCLV Mountain Carbon frame with a fully encased 360 Wh battery, and space-age TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm of RockShox Lyrik Ultimate fork with AirWiz, DebonAir spring and Charger 3 RC2 damper, and 140 mm of RockShox Super Deluxe Ultimate rear suspension. Plus, light and stiff carbon wheels set up tubeless, and Shimano's finest XTR drivetrain.

The final word

The Fuel EXe 9.9 is an e-bike that redefines categories and is spec'd to meet the needs of riders with top taste. It eases steep climbs without pulling you out of your element with a quiet and ultra-durable TQ transmission without looking like a bulky e-bike, and offers a wealth of cream-of-the-crop components, from the carbon wheels to Shimano's lightest and best performing XTR group set.

Shimano clipless pedals
DON'T FORGET YOUR PEDALS! Take your trail game up a notch with high-performance MTB pedals—built for grip, control, and confidence on every ride SHOP PEDALS
Technical Information

Frame

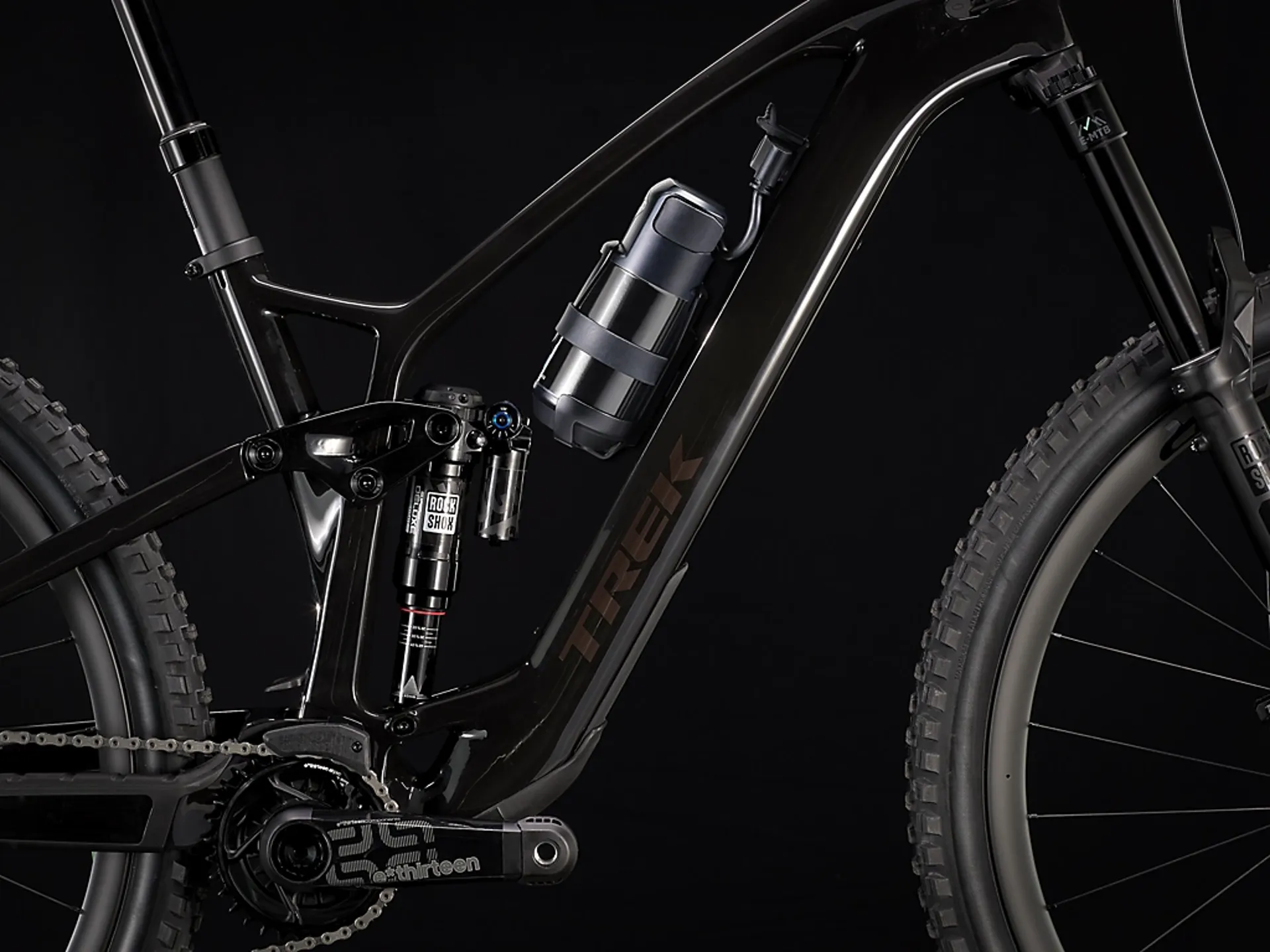

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel

Fork
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel

Shock
RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 mm x 60 mm

Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle

Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12mm thru axle

Rim
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready

Tyre
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

Tyre part
Bontrager TLR sealant, 180 ml/6 oz

Rim strip
Bontrager TLR

Shifter
Shimano XTR M9100, 12 speed

Rear derailleur
Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

Crank arm
E*thirteen E*spec Race carbon, 34T, 165 mm length

Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline

Cassette
Shimano XTR M9101, 10-51, 12-speed

Chain
Shimano Dura-Ace/XTR M9100, 12 speed

Saddle
Bontrager Arvada Pro, carbon rails, 138 mm width

Seatpost
Size:S

Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length

Size:M
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length

Size:L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length

Size:XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length

Handlebar/stem (integrated)
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length

Grips
Bontrager XR Trail Elite, nylon lock-on

Brake
Shimano XTR M9120 4-piston hydraulic disc

Brake rotor
Size: S, M, L, XL

Shimano RT86, 6-bolt, 180 mm

Size:S, M, L, XL
Shimano RT86, 6-bolt, 203 mm

Battery
TQ 360Wh

Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Computer

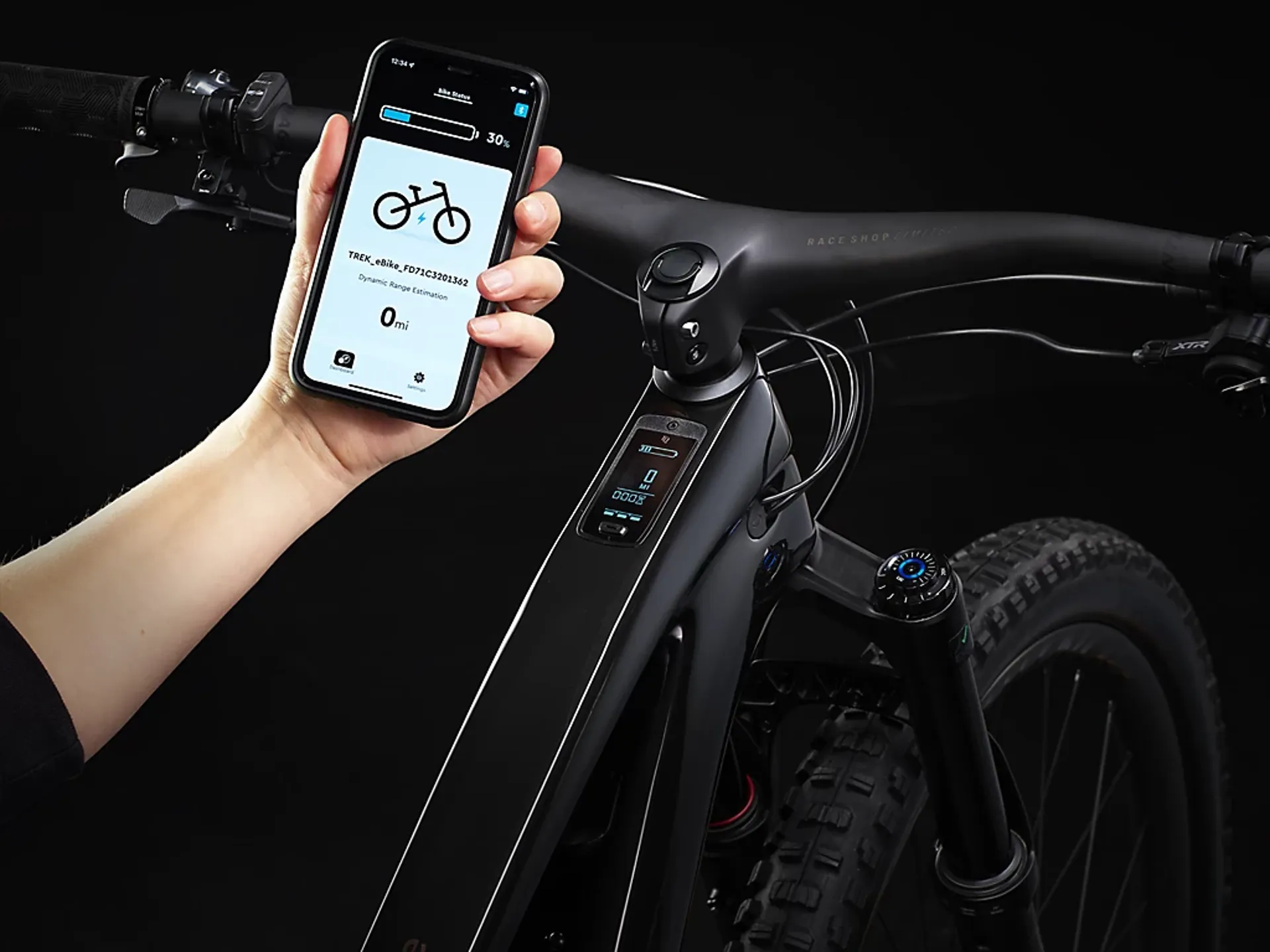

TQ LED display with Bluetooth & ANT+ connectivity

Weight
M - 17.47 kg / 38.52 lbs (with TLR sealant, no tubes)

Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing Information
S

153 - 166.5 cm

5'0.2" - 5'5.6"

72 - 79 cm

28.3" - 31.1"

M

161 - 175 cm

5'3.4" - 5'8.9"

76 - 82 cm

29.9" - 32.3"

L

174 - 188 cm

5'8.5" - 6'2.0"

82 - 88 cm

32.3" - 34.6"

XL

186 - 196 cm

6'1.2" - 6'5.2"

87 - 92 cm

34.3" - 36.2"
