Frame
Size: S

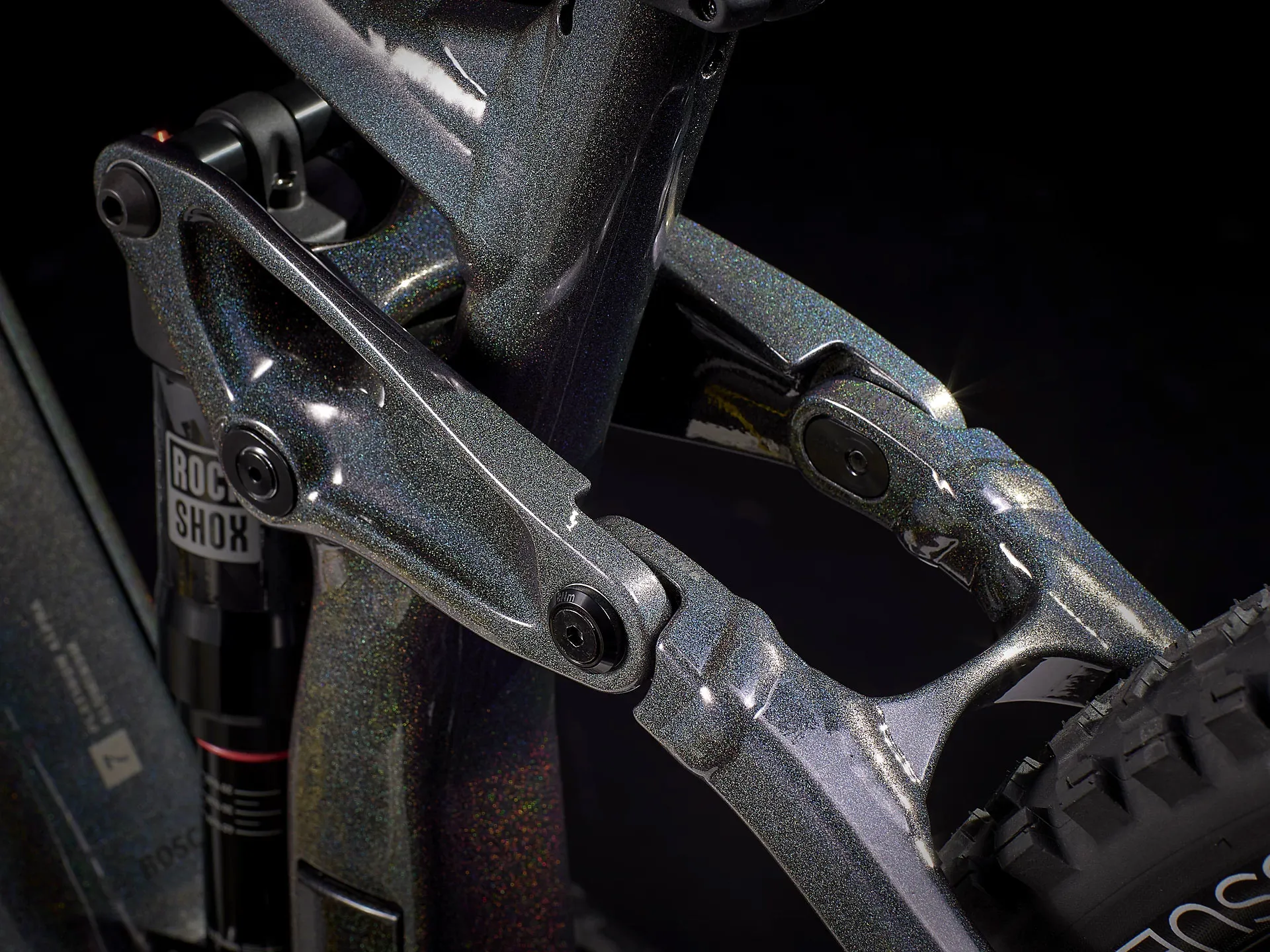

Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Size:M, L, XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

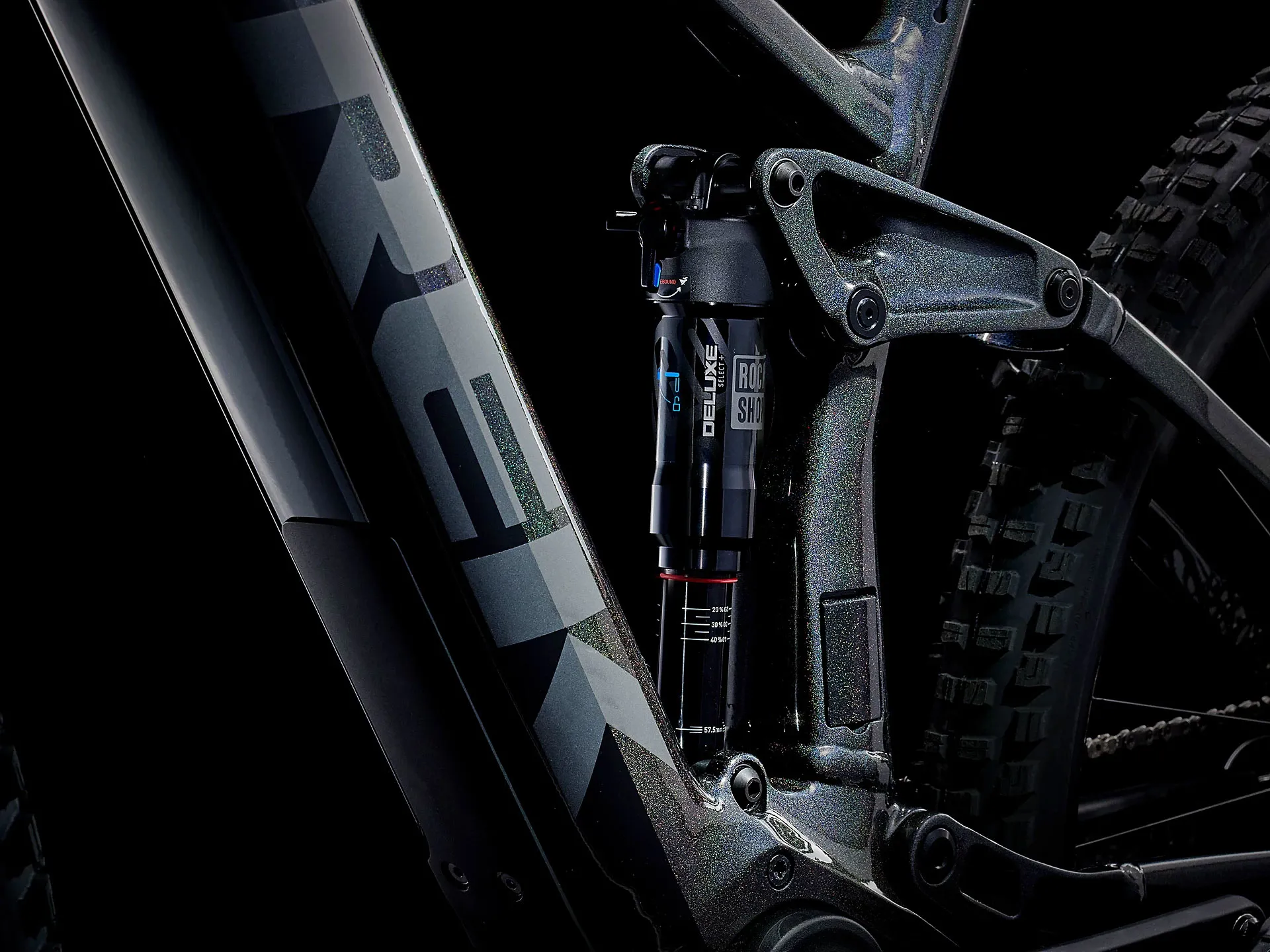

Shock
RockShox Deluxe Select+ RT, 230mm x 57.5mm
Max compatible fork travel
170 mm (580 mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

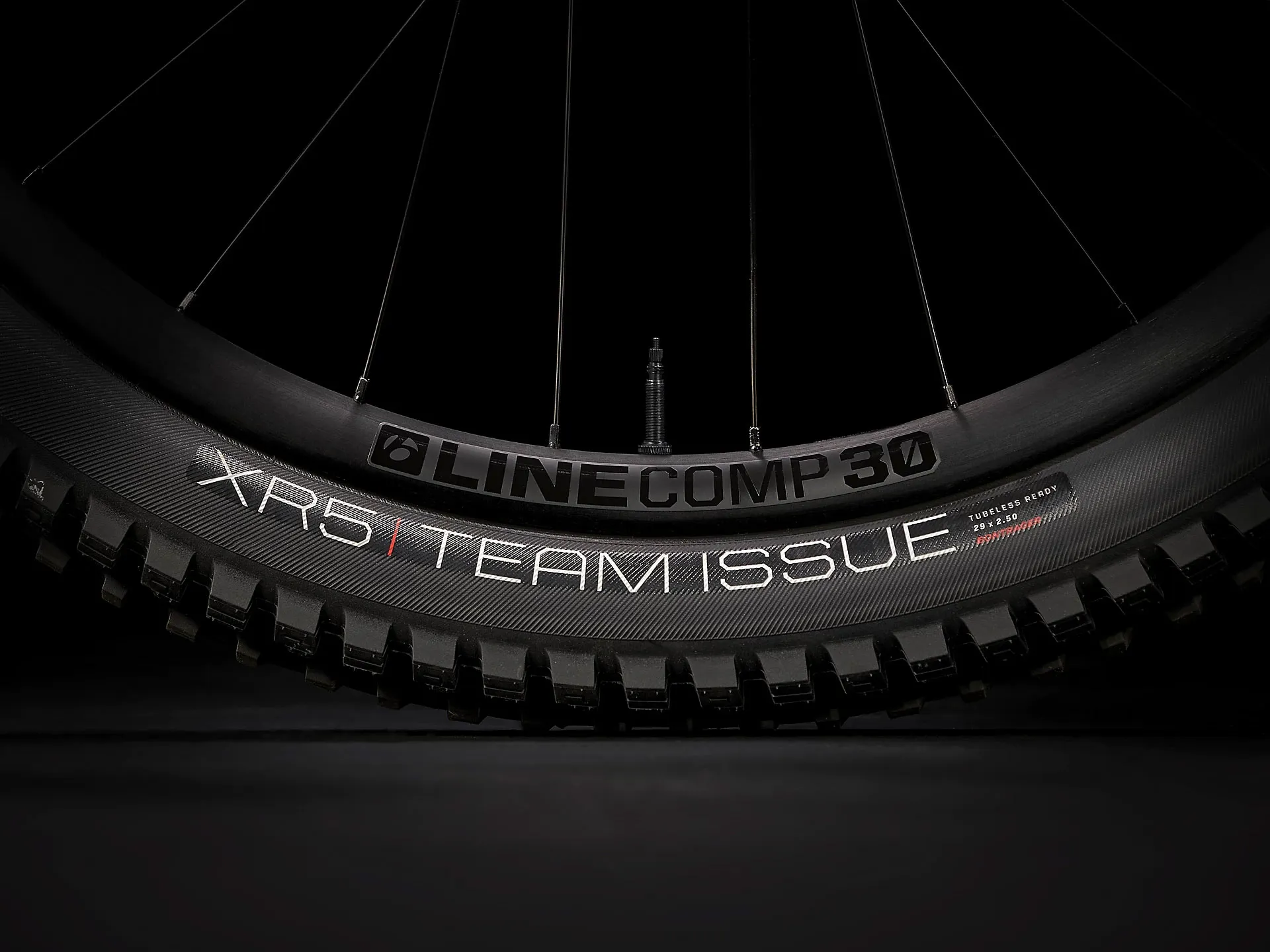

Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed

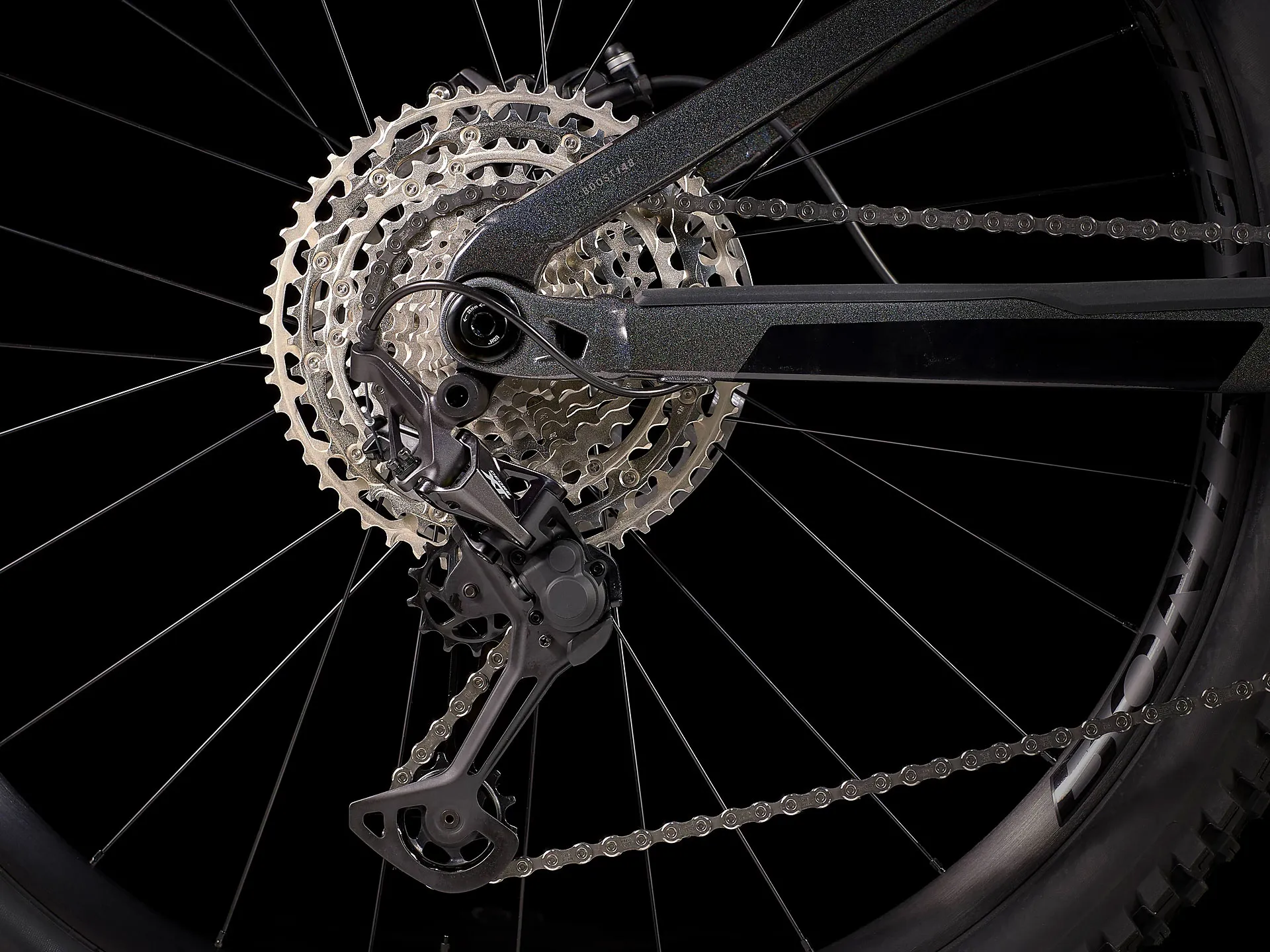

Rear derailleur
Shimano XT M8100, long cage
Crank arm
E*thirteen E*spec Plus, 34T, 165 mm length
Chainring
E*thirteen E*spec, 34T alloy, 55 mm chainline
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100
Pedal
Wellgo VPE-536
Max. chainring size
34T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on

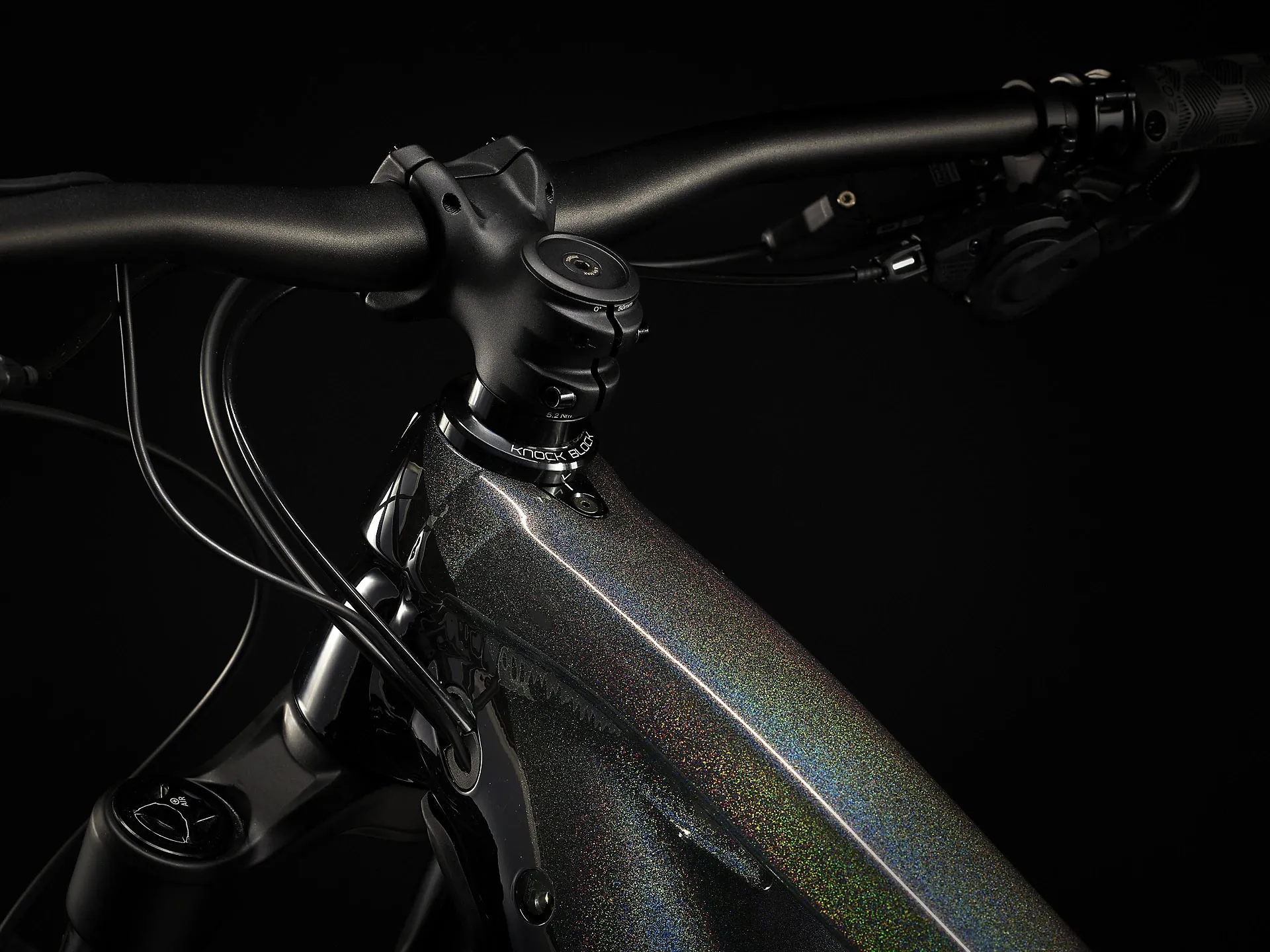

Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Brake
SRAM Code R 4-piston hydraulic disc
Brake rotor
SRAM CenterLine, 6-bolt, round edge, 200 mm
Brake Set
SRAM Code R 4-piston hydraulic disc
Rotor size
Max brake rotor sizes: Front see fork manufacturer, rear 200 mm

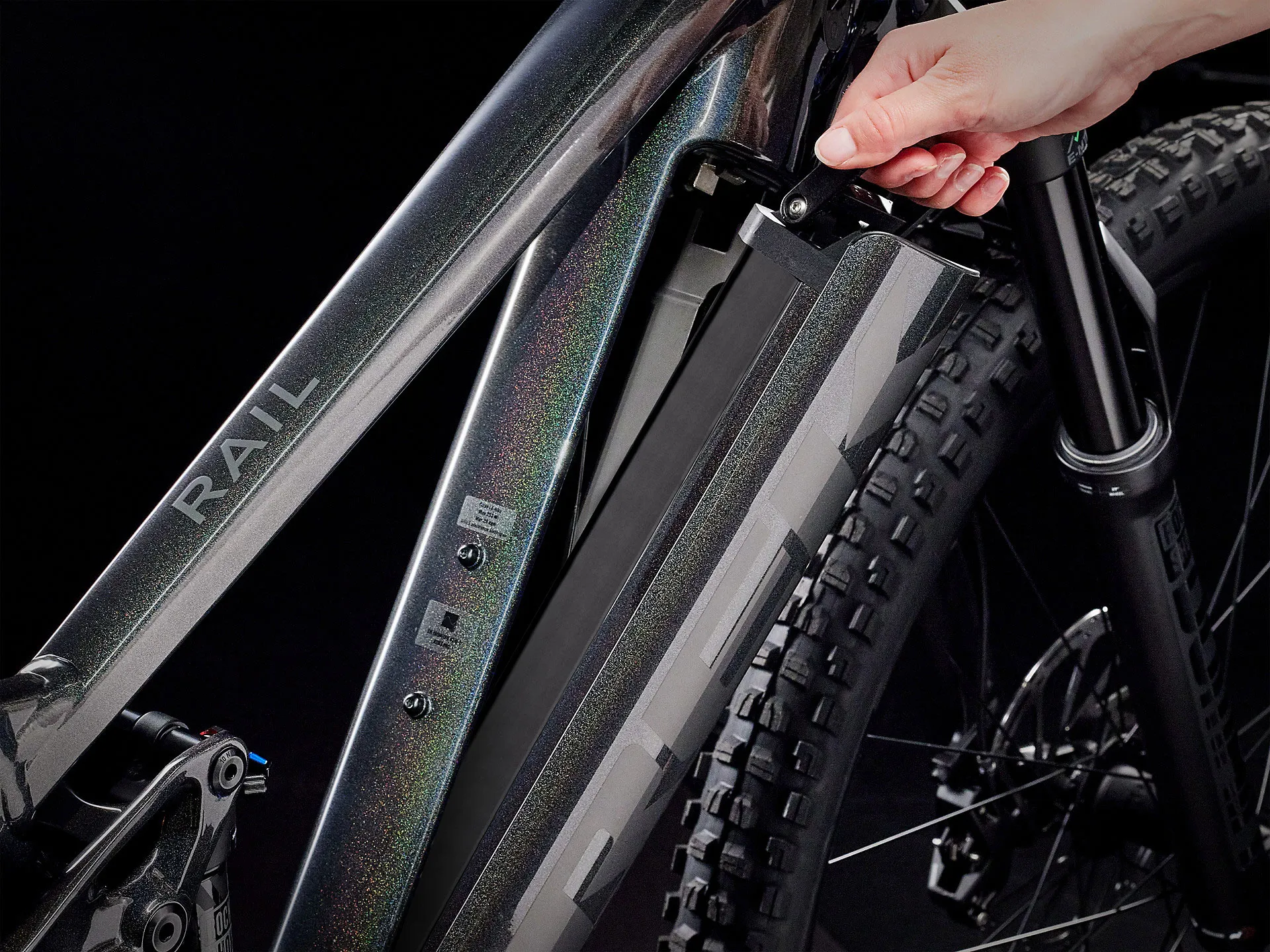

Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 230V, smart system

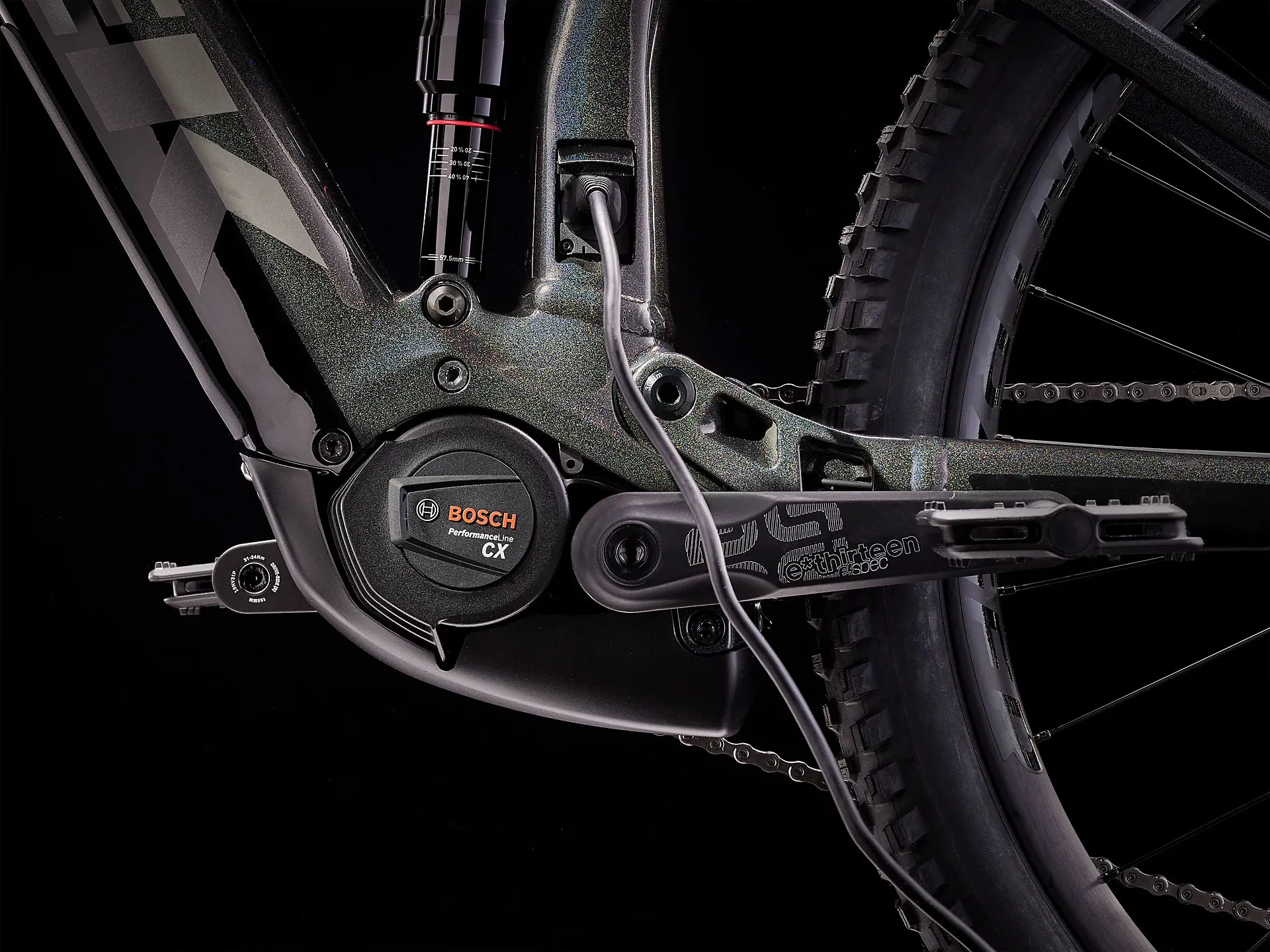

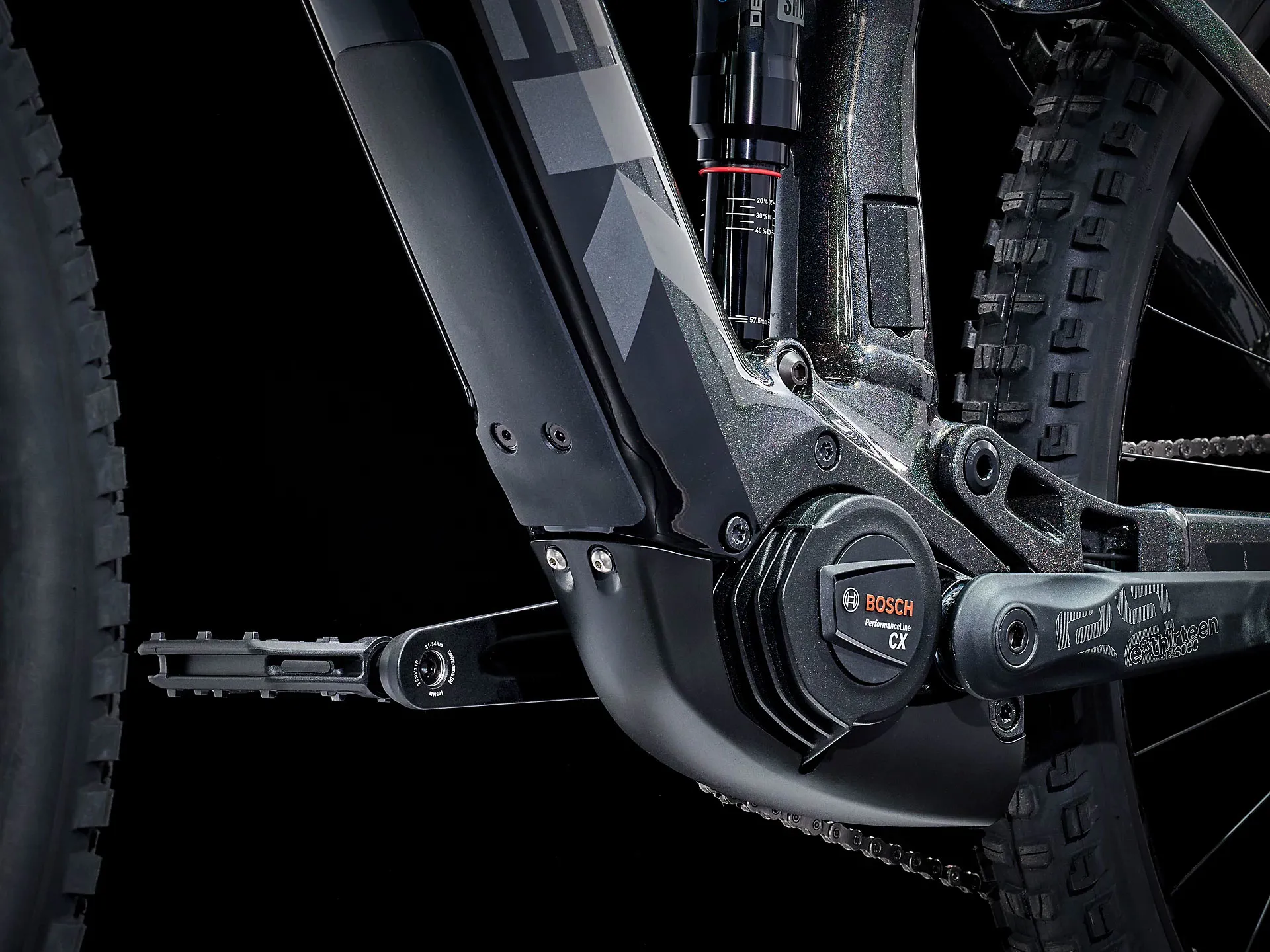

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
Light
Size: S, M, L, XL
Supernova E3 Mini-2 rear light, LED
Size:S, M, L, XL
Supernova Mini 2, 5-21V LED headlight

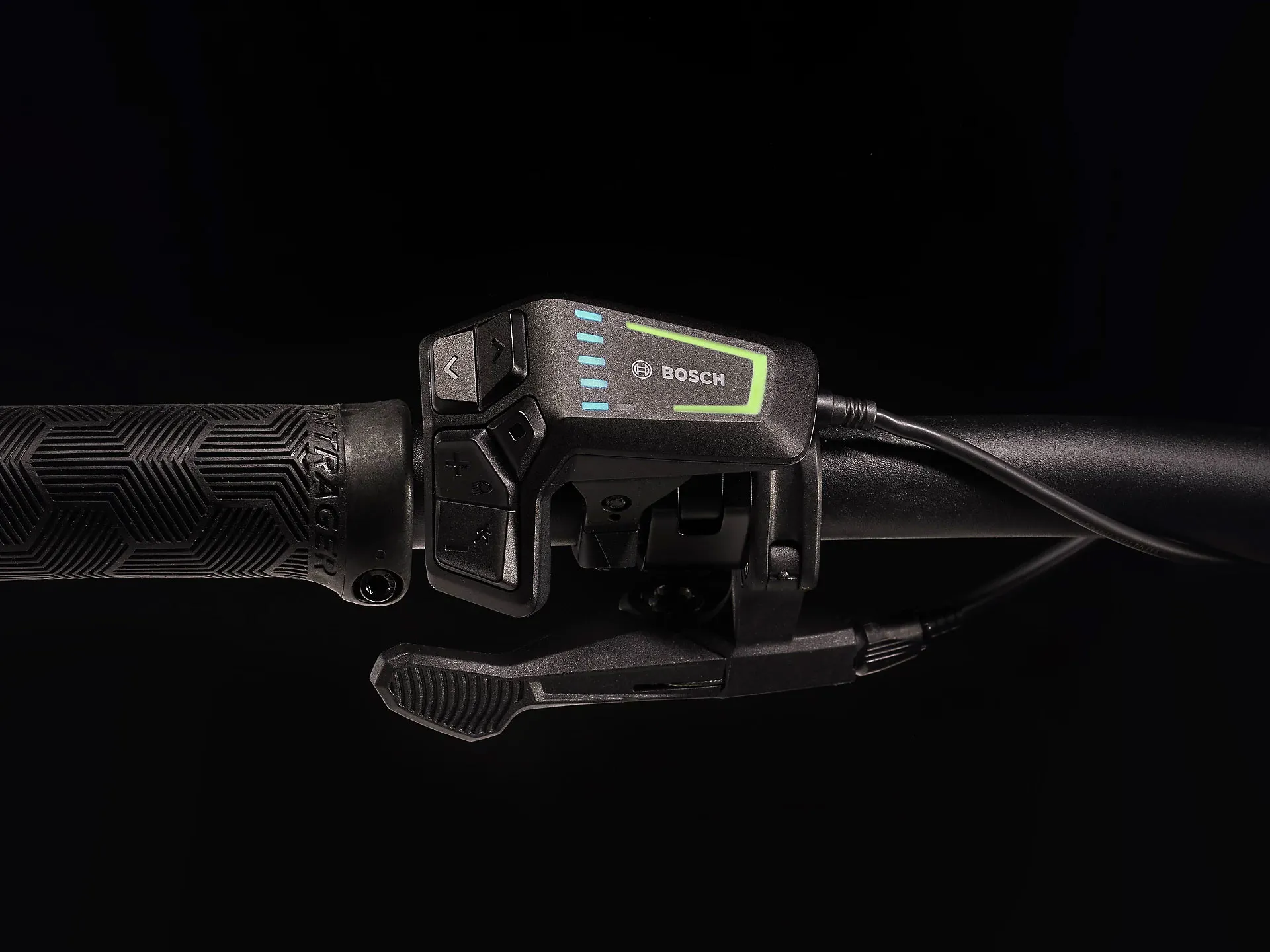

Computer
Bosch LED remote, smart system
Weight
M - 24.73 kg / 54.53 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
