Frame
Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
Fork
Size: XS
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100x5 mm QR, 80 mm travel
Size:S
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100x5 mm QR, 100 mm travel
Size:M, M/L, L, XL, XXL
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 46 mm offset, 100x5 mm QR, 100 mm travel
Max compatible fork travel
120mm (XS: 100mm)
Hub front
Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub rear
Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel
Tyre
Size: XS, S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size:M, M/L, L, XL, XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max tyre size
Frame: 27.5x2.80" or 29x2.40" Fork: See manufacturer
Shifter
Shimano Deore M4100, 10 speed
Rear derailleur
Shimano Deore M5120, long cage
Crank
Size: XS, S, M
Shimano Deore M5100, 30T steel ring, Boost, 170 mm length
Size:M/L, L, XL, XXL
Shimano Deore M5100, 30T steel ring, Boost, 175 mm length

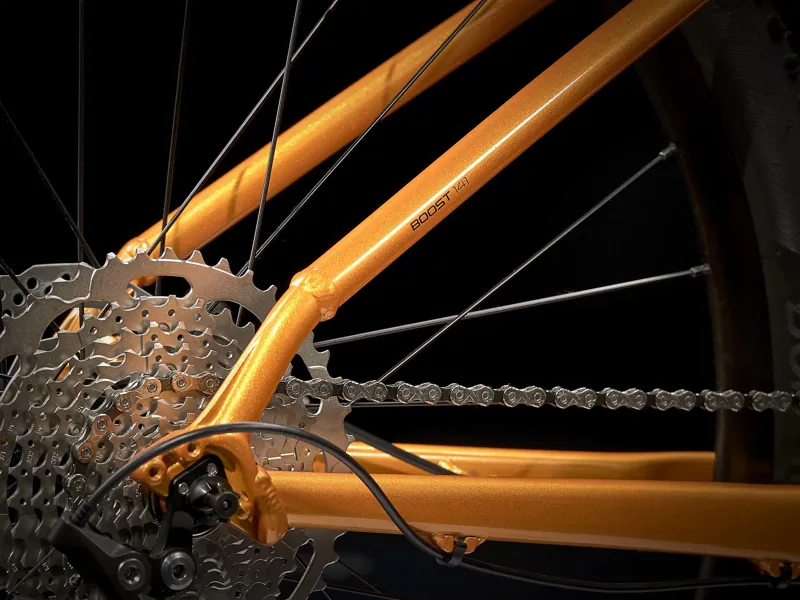

Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
VP-536 nylon platform
Max. chainring size
32T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS, S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size:M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size:M/L, L, XL, XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size:S, M, M/L, L, XL, XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XS, S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:M/L, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:XL, XXL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Head set
Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom

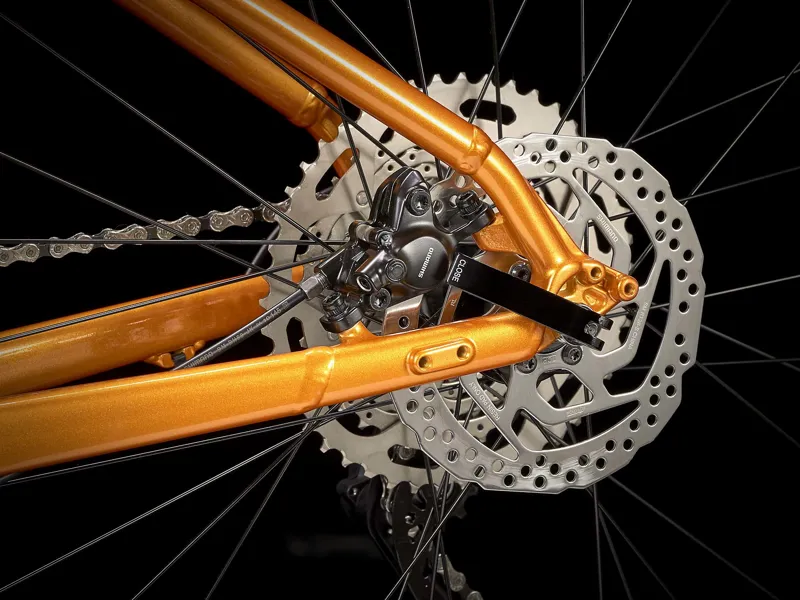

Brake
Shimano MT200 hydraulic disc
Brake rotor
Size: XS, S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,160 mm
Size:L, XL, XXL
Shimano RT26, 6-bolt,180 mm
Brake Set
Shimano MT200 hydraulic disc
Weight
M - 13.39 kg / 29.53 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
