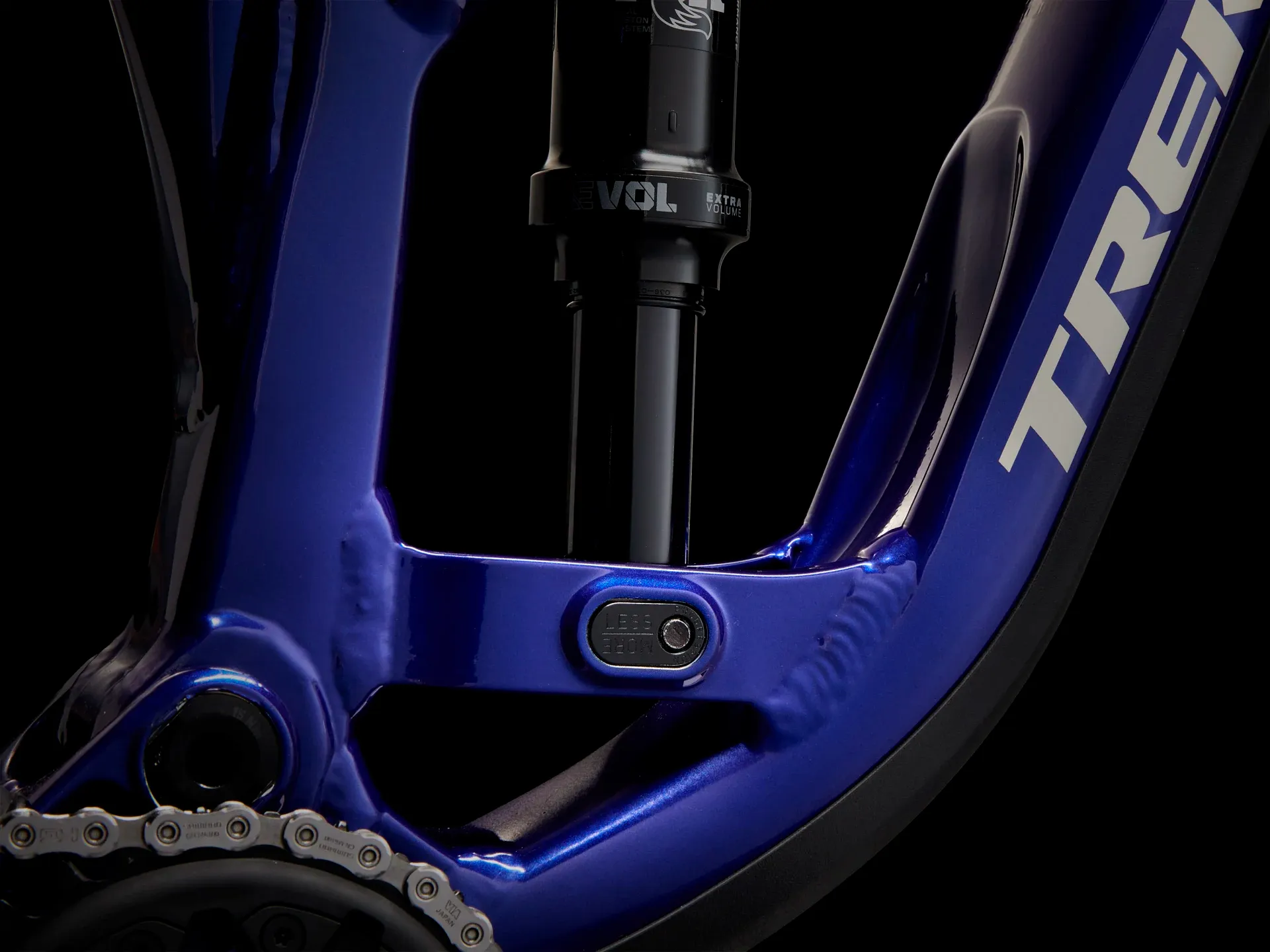

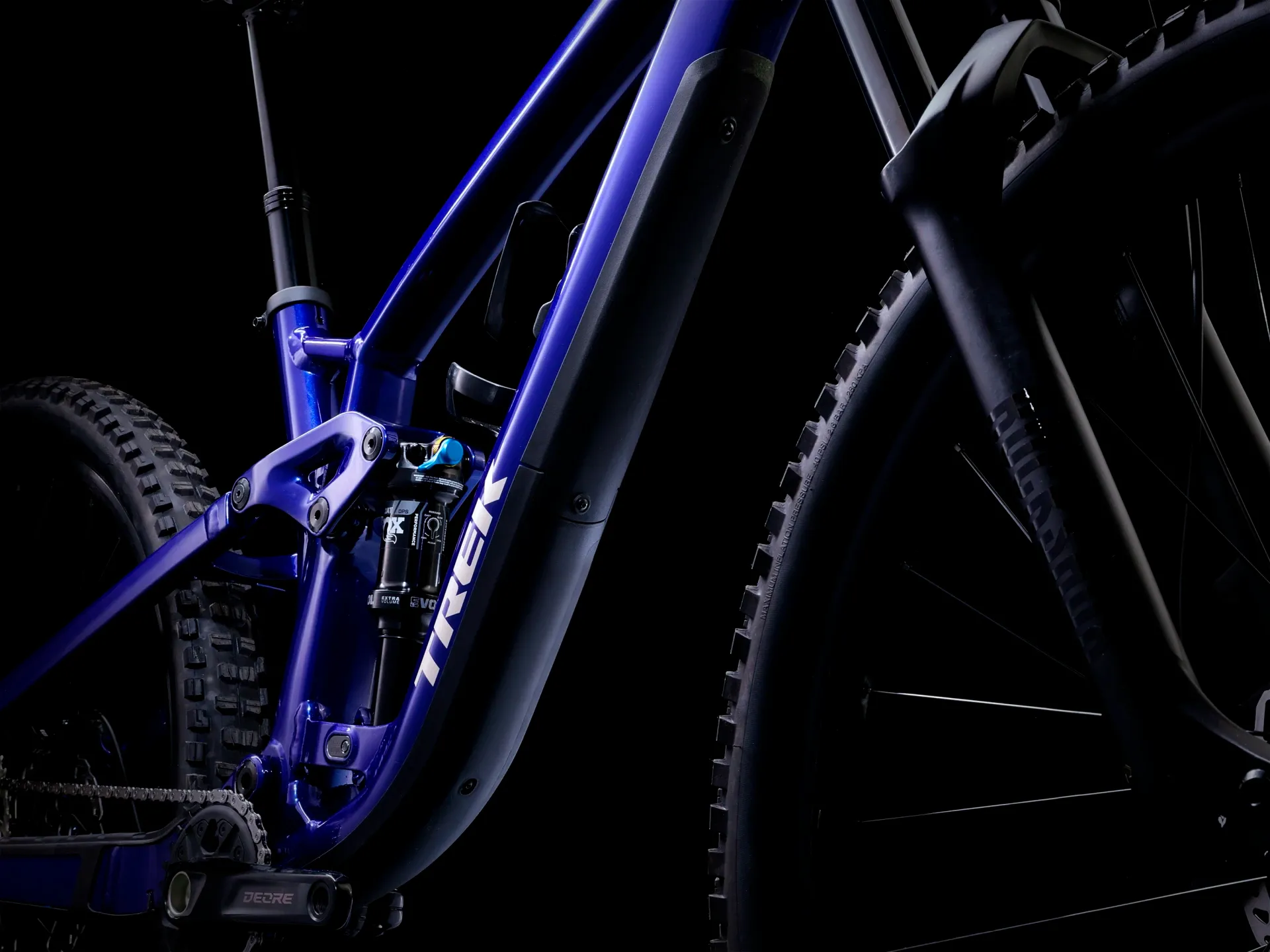

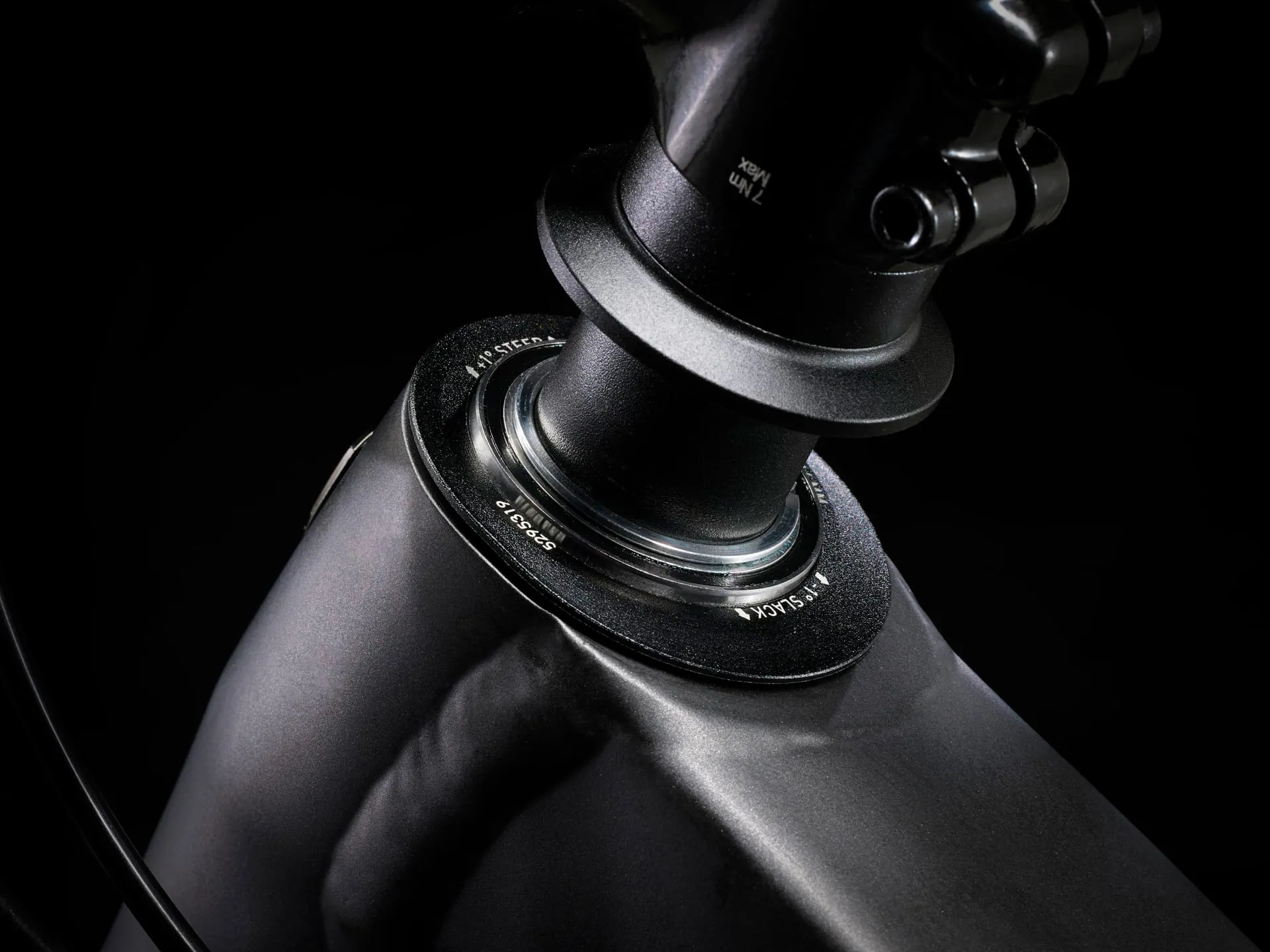

Frame

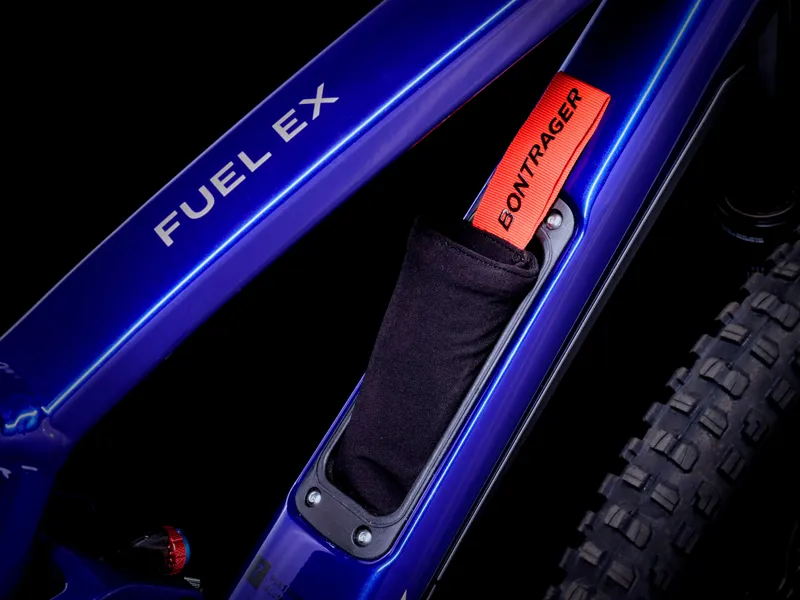

Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

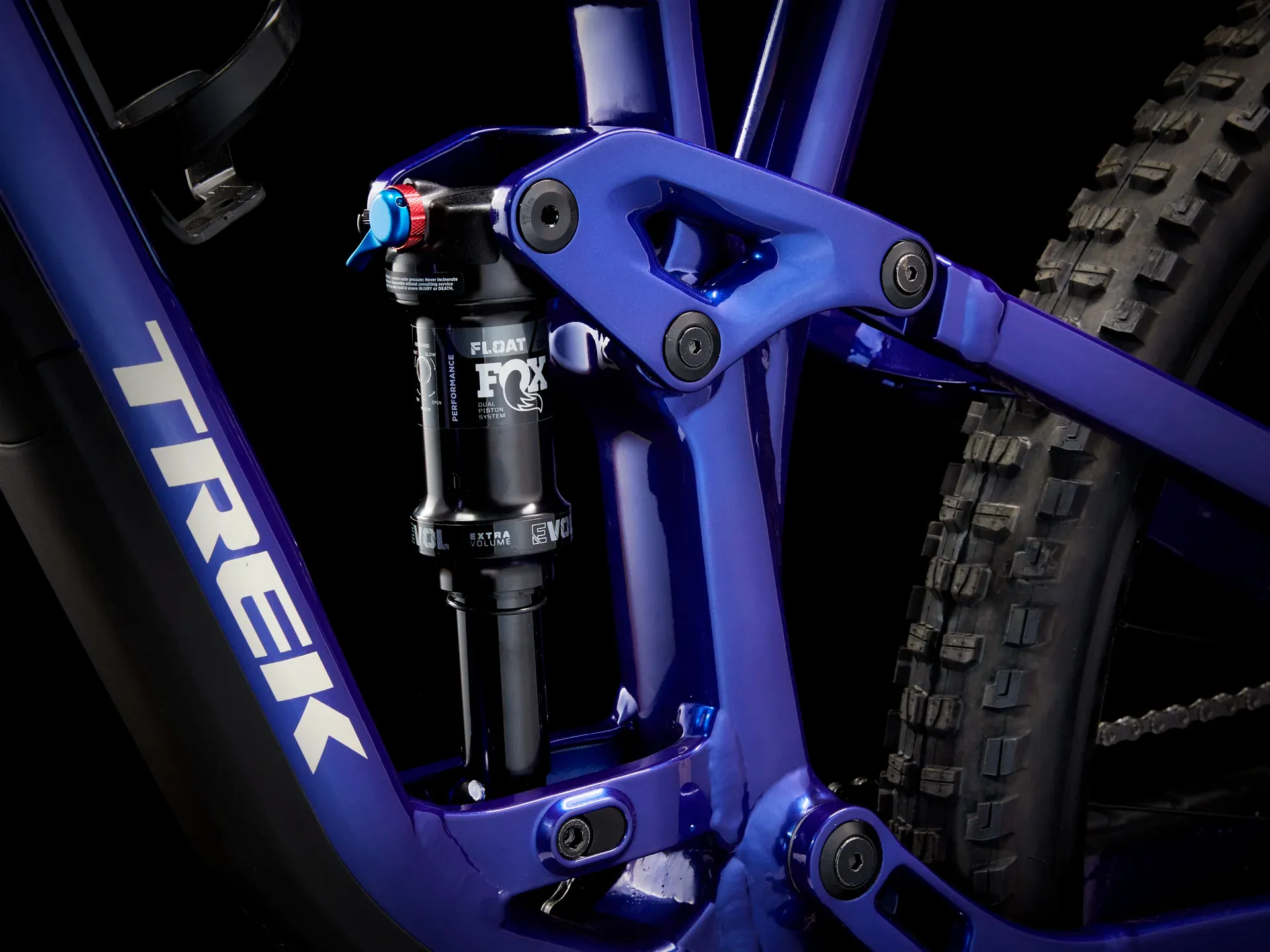

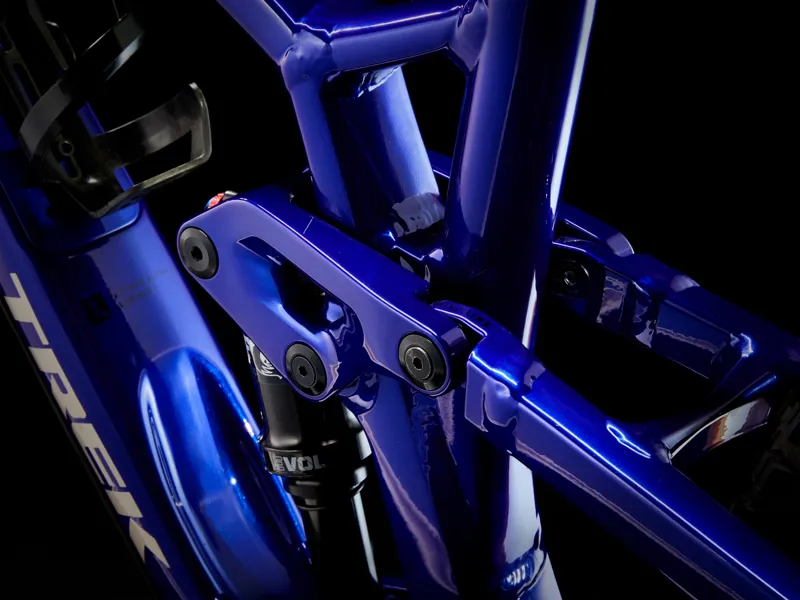

Shock
Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

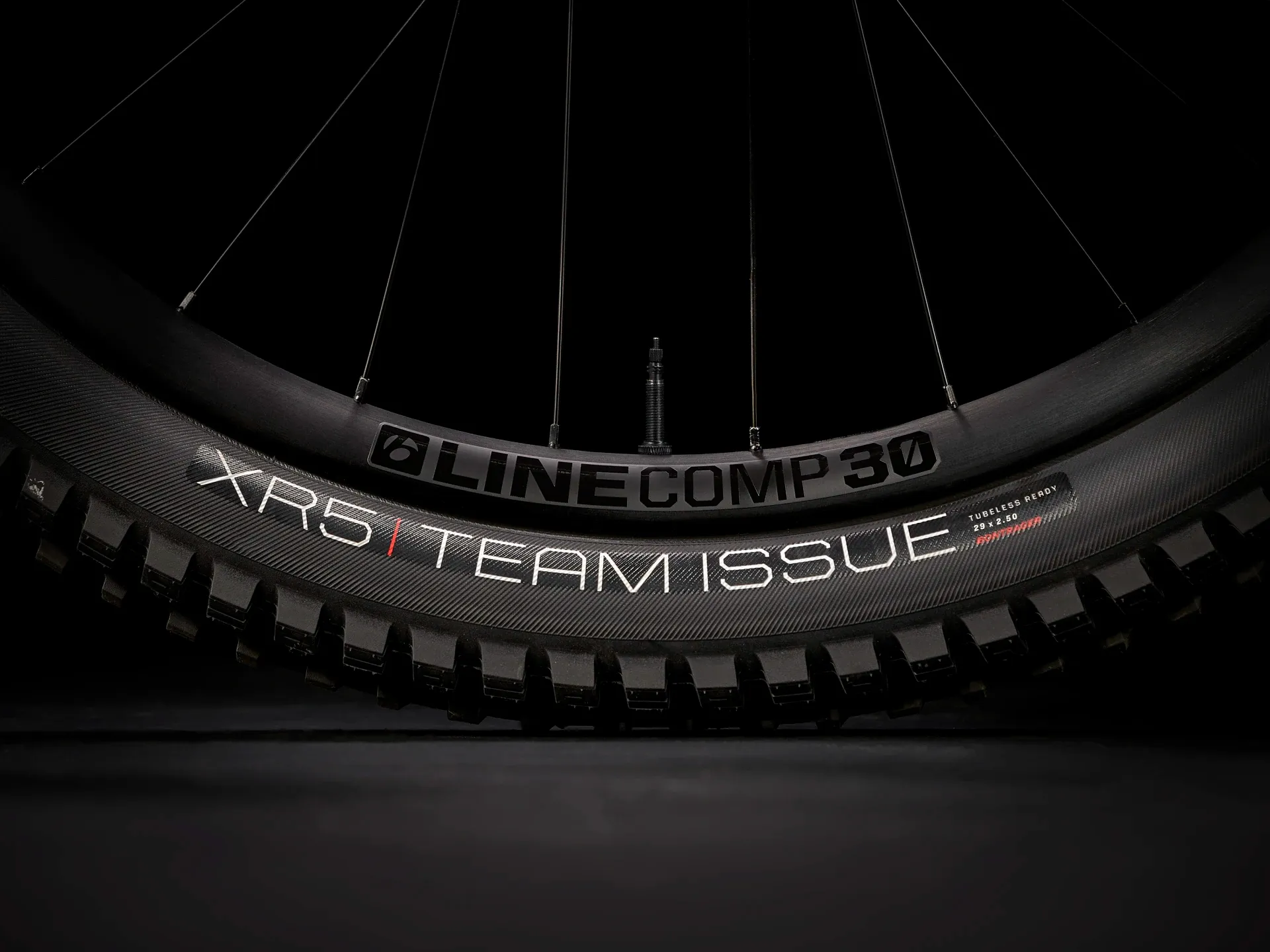

Rim
Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
Tyre
Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"
Size:S , M , ML , L , XL , XXL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29 x 2.50"
Max tyre size
Frame: 29x2.5" (XS & S: 27.5x2.5") Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed

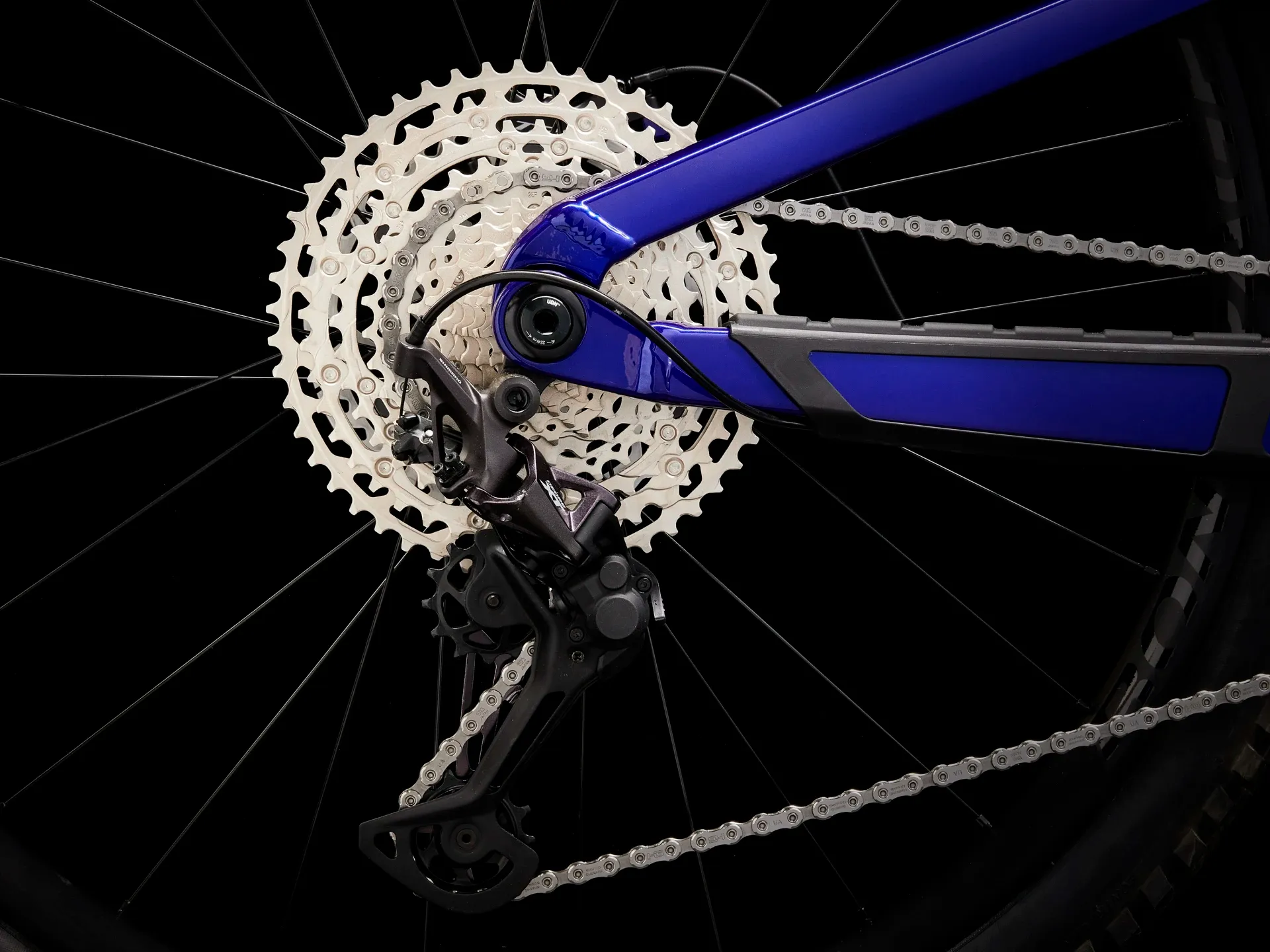

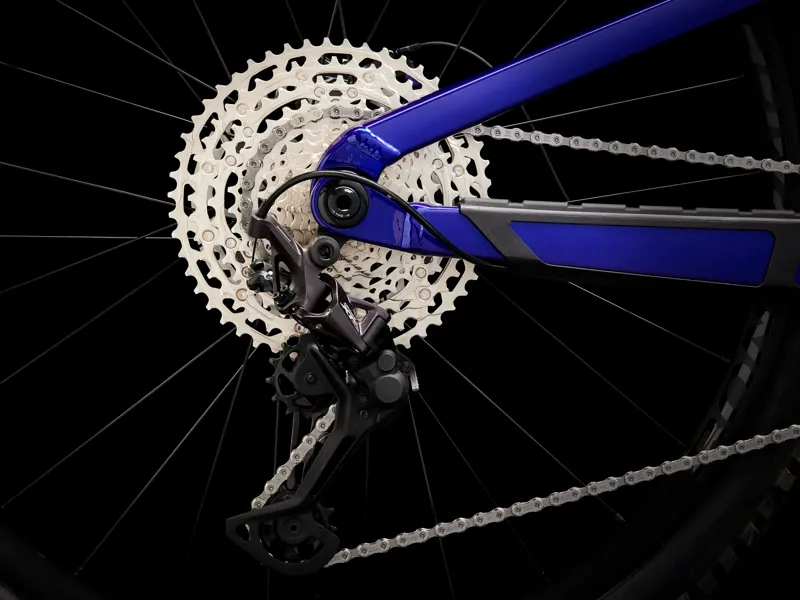

Rear derailleur
Shimano XT M8100, long cage
Crank
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100
Max. chainring size
Max: 34T (oval – 32T) Min: 28T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS , S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size:M , ML
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size:L , XL , XXL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XS , S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
Size:M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length

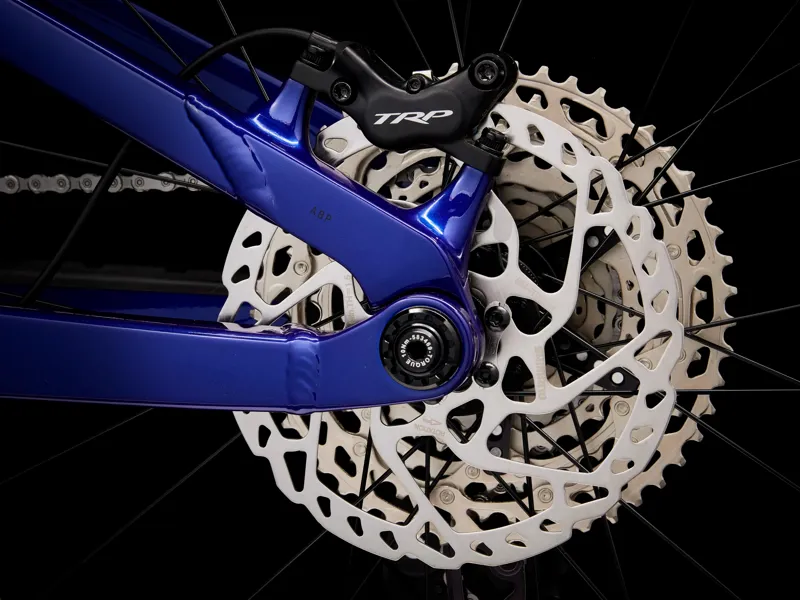

Brake
TRP Slate EVO hydraulic disc
Brake rotor
Size: XS , S , M , ML , L , XL , XXL
TRP, 6-bolt, 180 mm
Size:XS , S , M , ML , L , XL , XXL
TRP, 6-bolt, 203 mm
Weight
M – 15.97 kg/35.21 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
