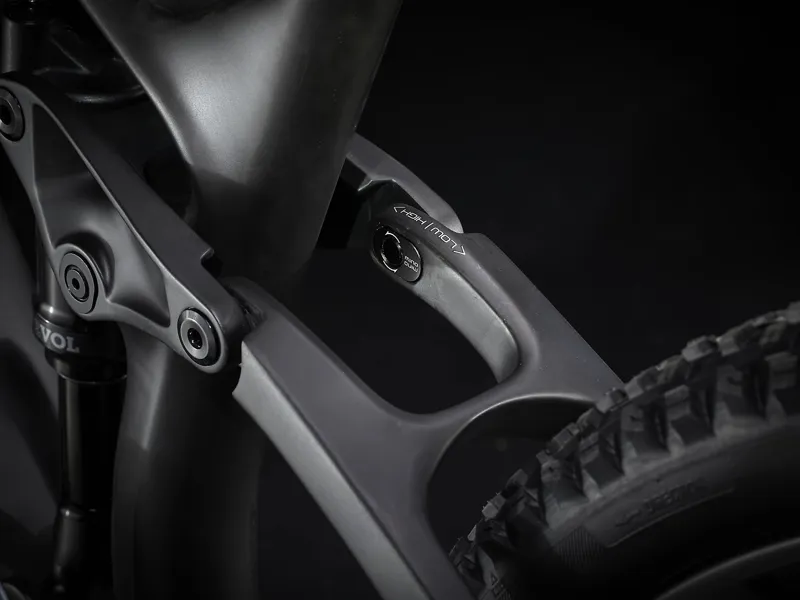

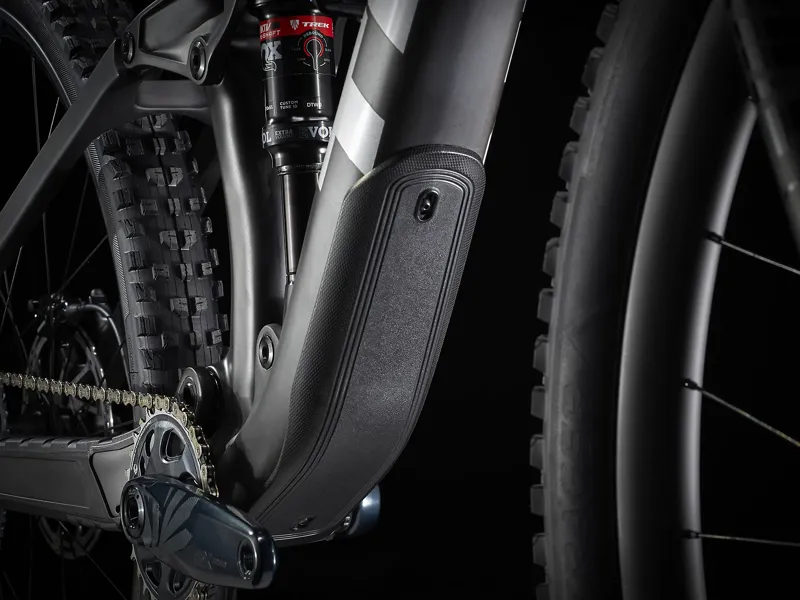

Frame
OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork
Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
Shock
Size: XS , S
Fox Performance Float EVOL, RE:aktiv with ThruShaft 3-position damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm
Size:S , M , ML , L , XL
Fox Performance Float EVOL, RE:aktiv with ThruShaft 3-position damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel
150mm (561mm axle-to-crown)
Wheel front
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Elite 30, Tubeless-Ready
Tyre
Size: XS , S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
Size:XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
Size:S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" Fork: See manufacturer
Shifter
SRAM GX Eagle AXS, 12 speed

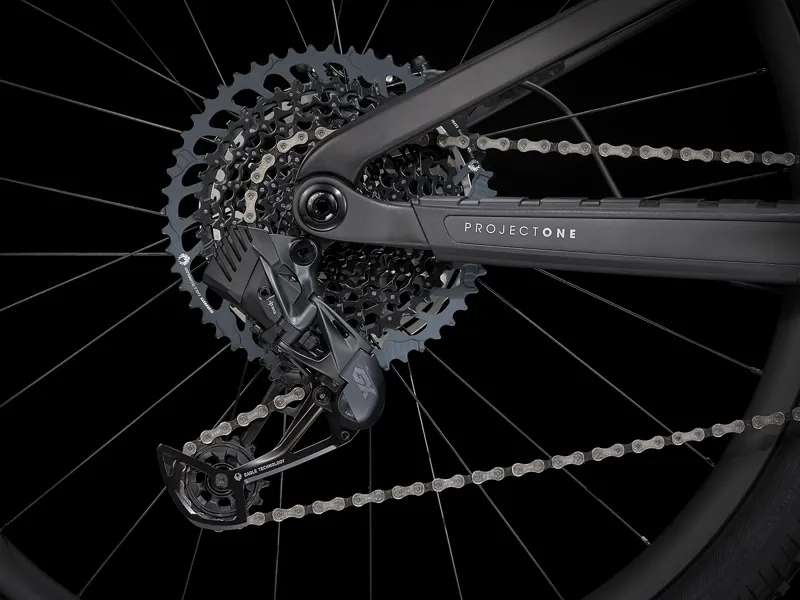

Rear derailleur
SRAM GX Eagle AXS

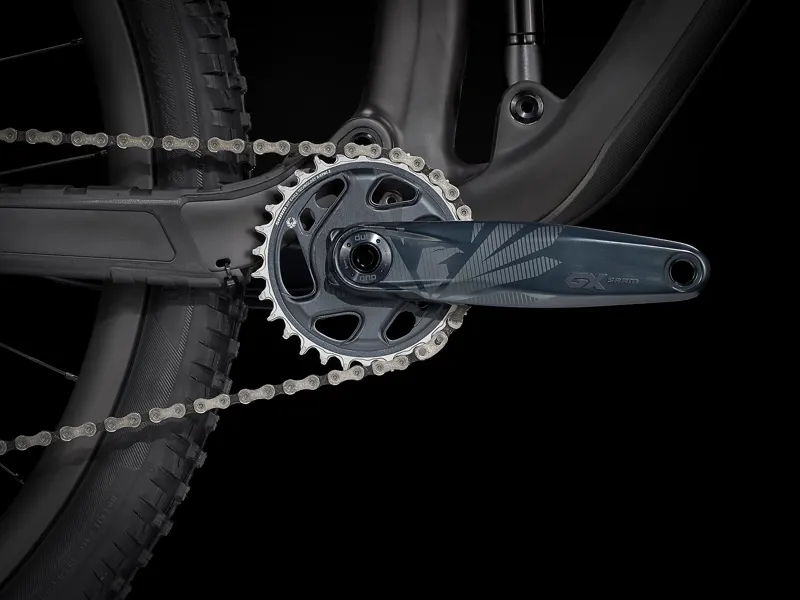

Crank
Size: XS , S
SRAM GX Eagle, DUB, 30T alloy ring, Boost, 170 mm length
Size:M , ML , L , XL
SRAM GX Eagle, DUB, 30T alloy ring, Boost, 175 mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Max. chainring size
34T
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: XS , S
Bontrager Line Elite, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
Size:M , ML
Bontrager Line Elite, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
Size:L , XL
Bontrager Line Elite, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on

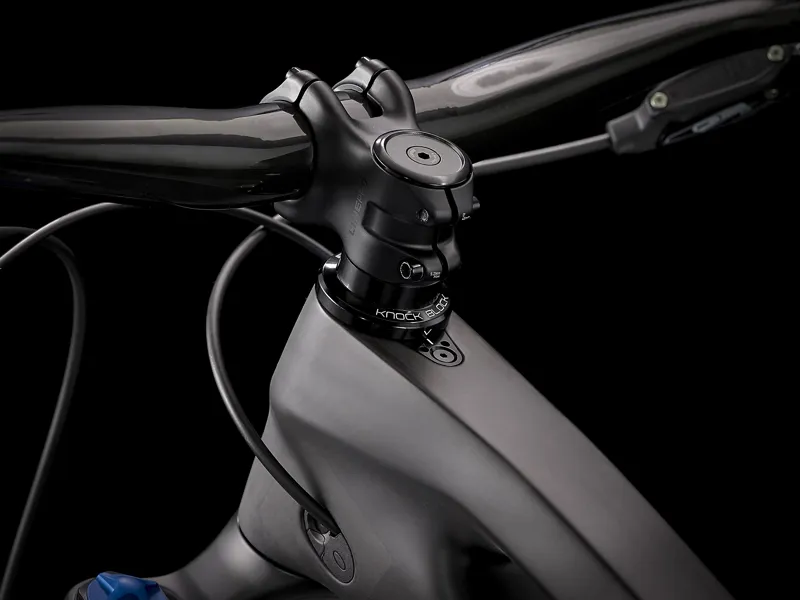

Stem
Size: XS , S
Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
Size:M , ML , L , XL
Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
Head set
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

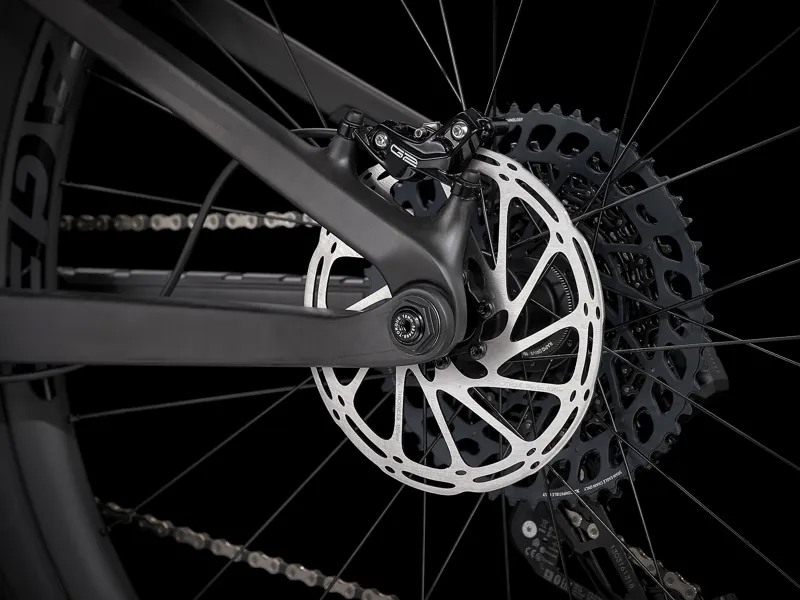

Brake
SRAM G2 RS hydraulic disc
Brake rotor
Size: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180 mm
Size:M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200 mm
Bag
Bontrager BITS Internal Frame Storage Bag
Weight
M - 13.21 kg/29.13 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
