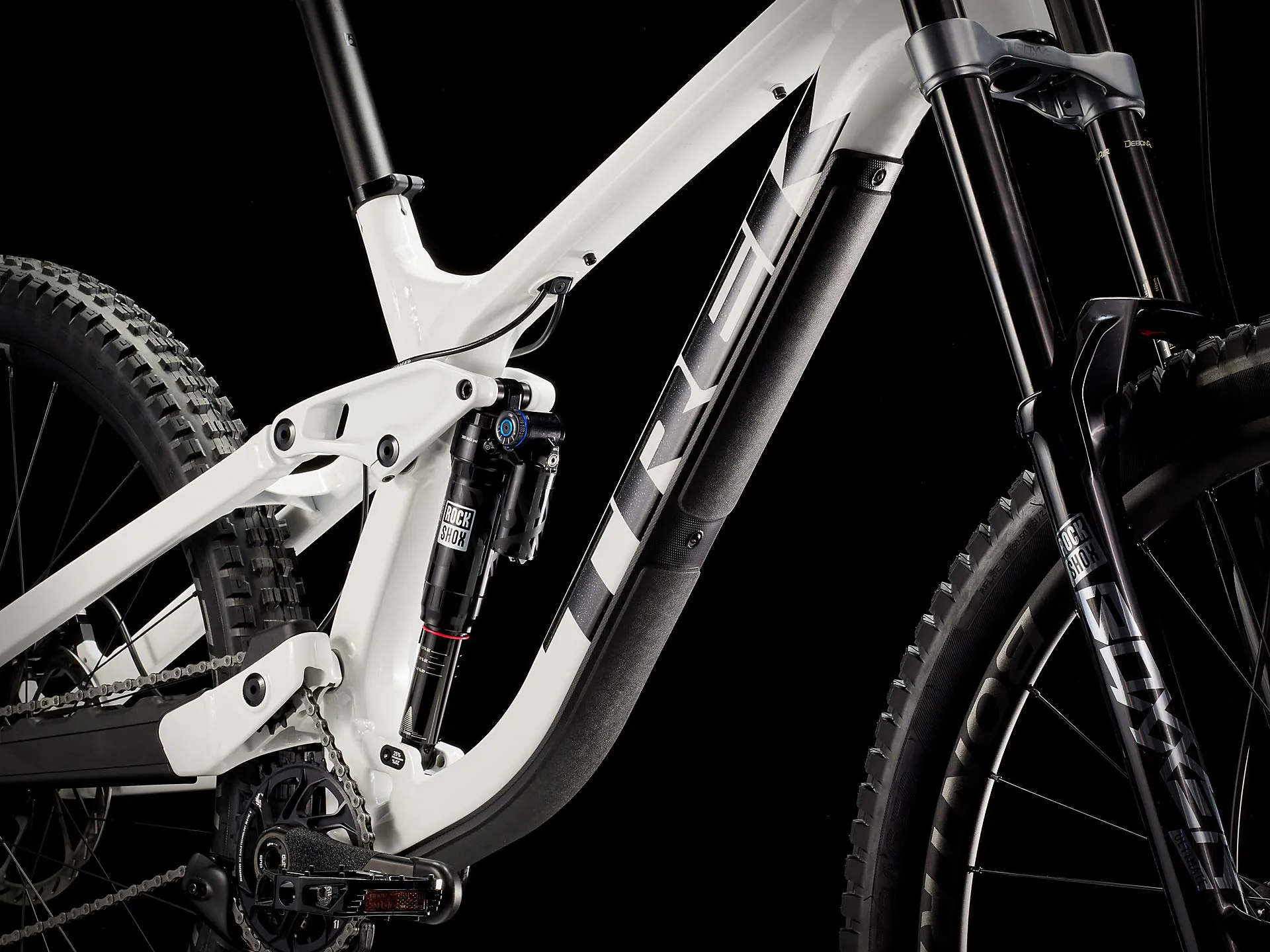

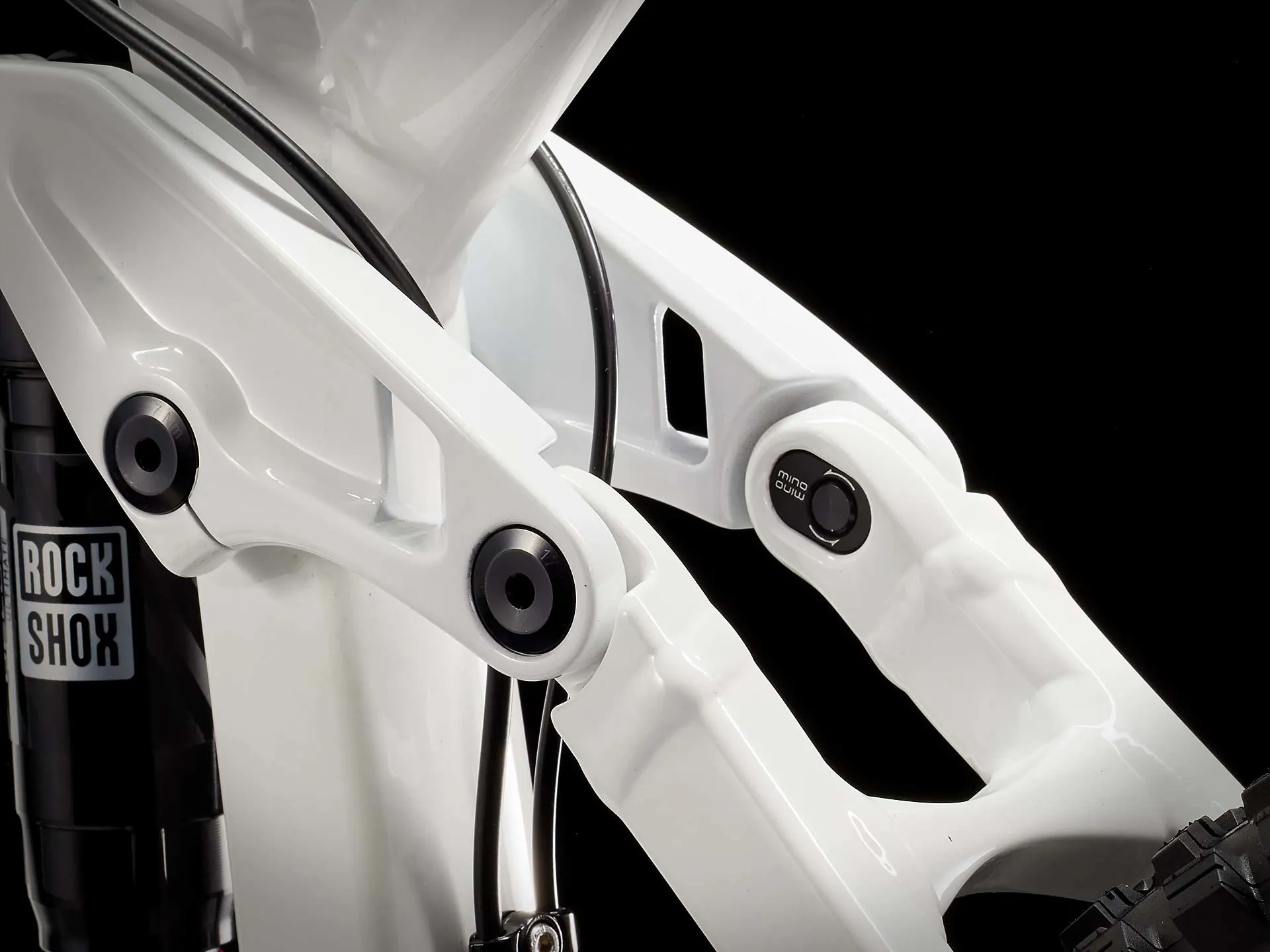

Frame
Alpha Platinum Aluminium, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12 mm thru-axle, 200 mm travel
Fork
RockShox Boxxer Ultimate, DebonAir spring, Charger 2 RC2 damper, straight steerer, 46 mm offset, Boost, 110x20 mm Maxle Stealth, 200 mm travel

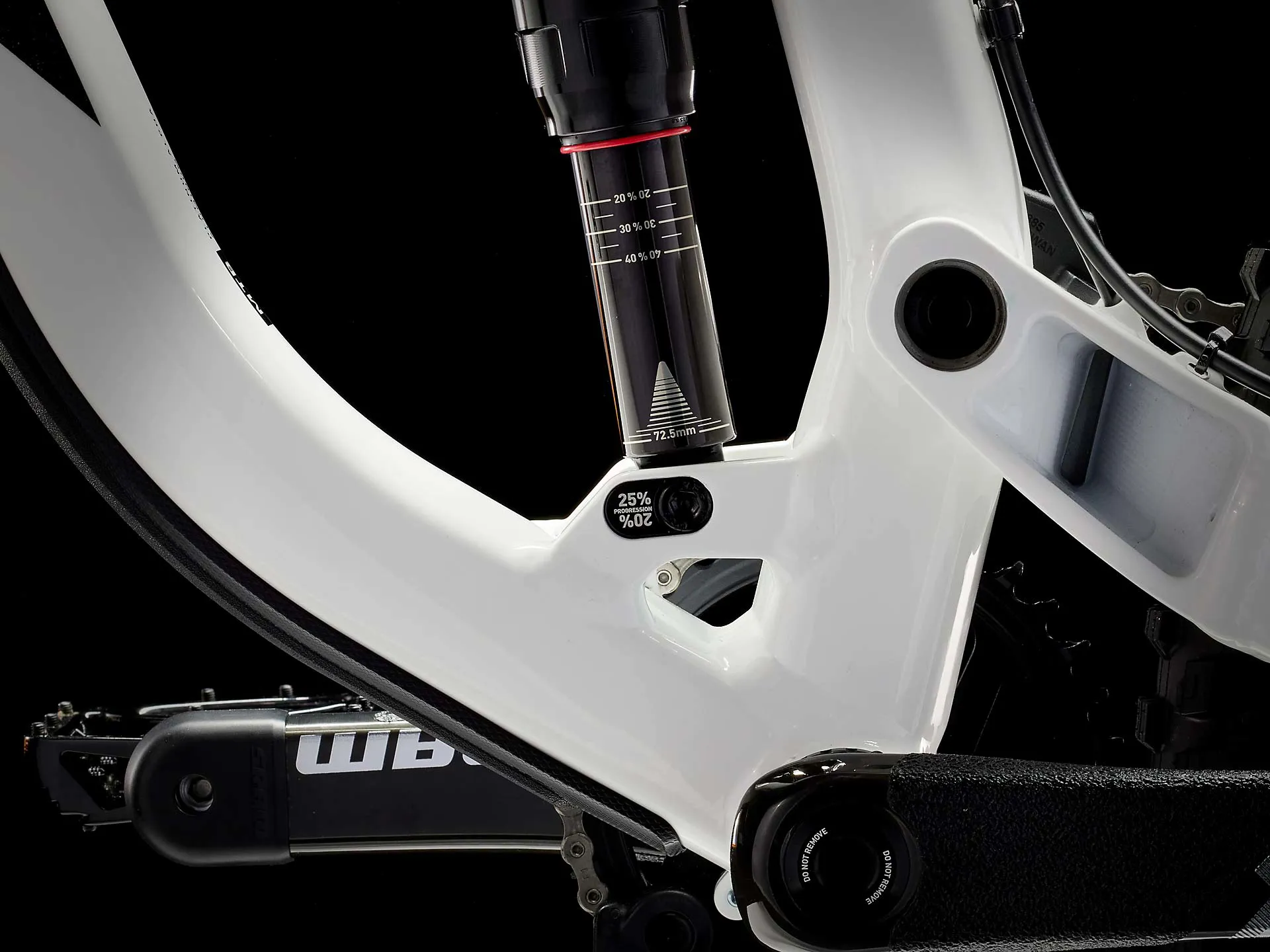

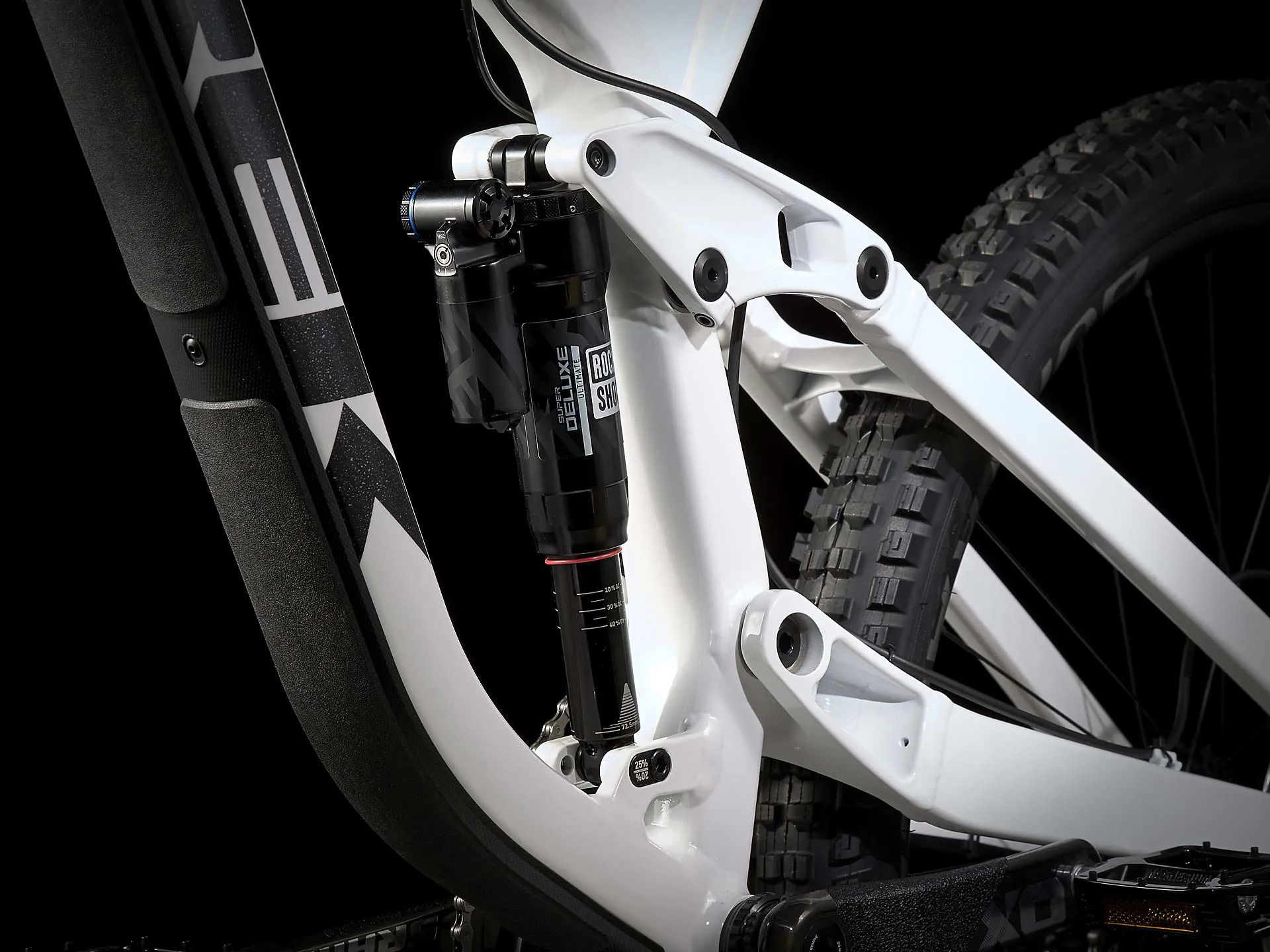

Shock
RockShox Super Deluxe Ultimate DH RC2, 250mm x 72.5mm
Wheel front
Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20 mm Boost thru axle
Wheel rear
Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line DH 30, Tubeless-Ready
Tyre
Bontrager G5 Team Issue, wire bead, 2-ply 60tpi, 29x2.50"
Rim strip
Bontrager TLR
Shifter
SRAM X01 DH, 7 speed

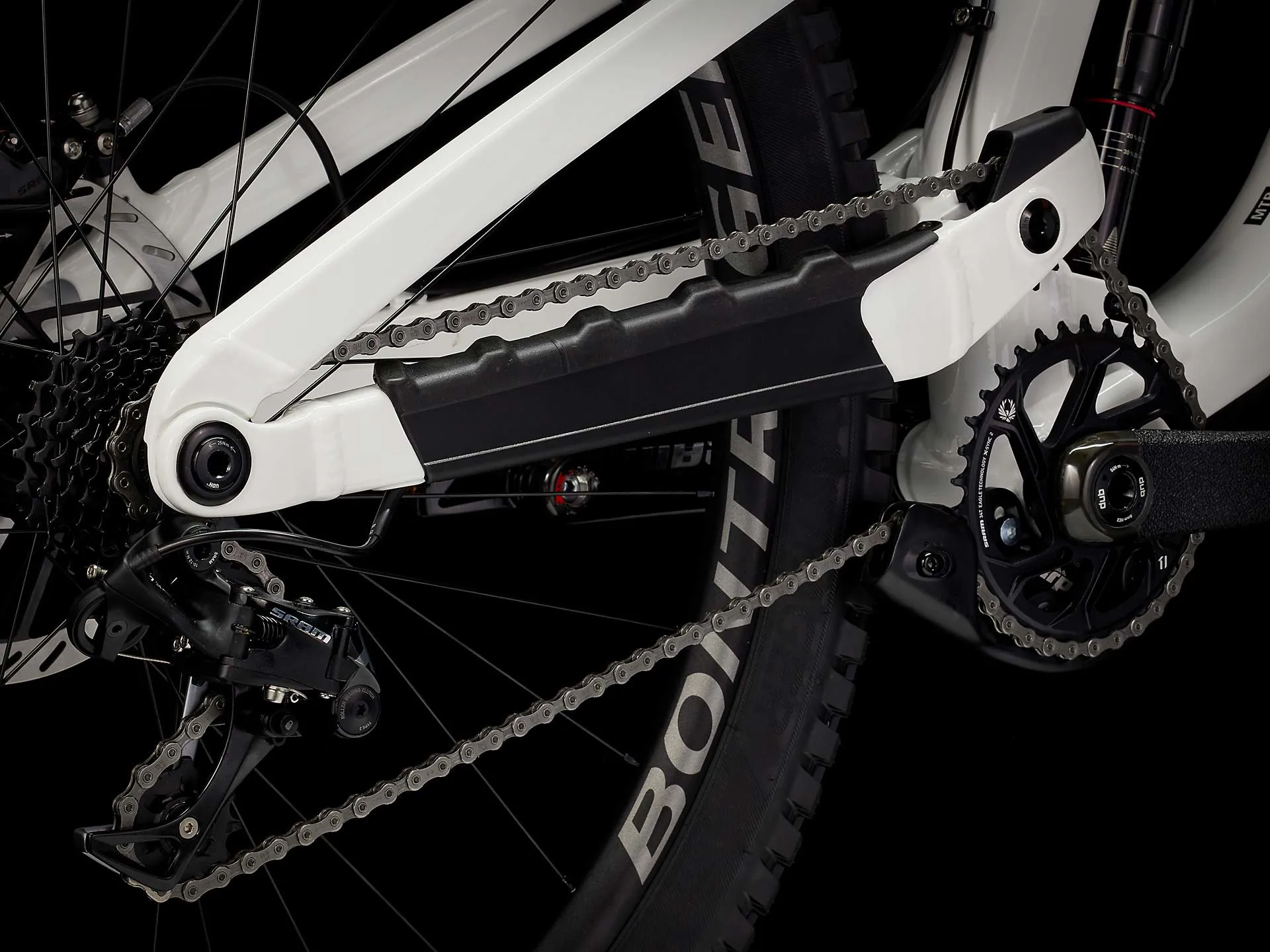

Rear derailleur
SRAM X01 DH, medium cage
Crank
SRAM X01 DH, DUB 83, 34T alloy ring, 165 mm length
Bottom bracket
SRAM DUB, 83 mm, BSA threaded
Cassette
SRAM PG-720, 11-25, 7-speed
Chain
SRAM PC-1110, 11-speed
Pedal
Wellgo MG-1, magnesium body, Cro-Mo axle, replaceable pins
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Bontrager Rhythm Elite, 31.6 mm, 0 mm offset, 330 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Line Pro, 35 mm, Direct Mount, 50 mm length
Head set
FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom (includes geometry-adjust angled cups)
Brake
Size: R1, R2, R3
SRAM Code RSC hydraulic disc
Size:R1, R2, R3
SRAM Code RSC 4-piston hydraulic disc
Brake rotor
Size: R1, R2, R3
SRAM 6-bolt, 200mm

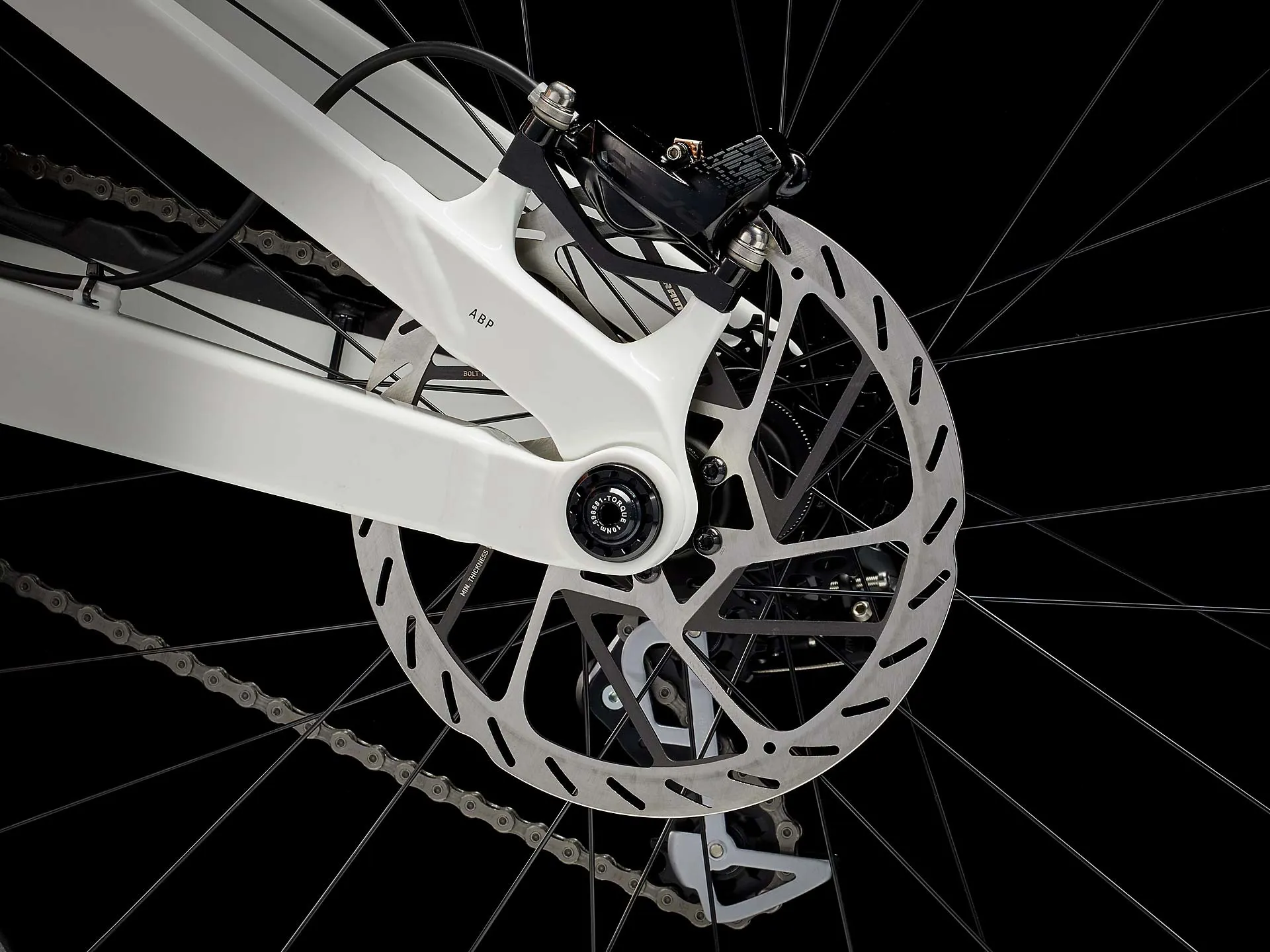

Size:R1, R2, R3
SRAM HS2, 6-bolt, 220 mm
Weight
M - 17.70 kg / 39.03 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
