Size: XXS , XS , S , M , ML , L , XL , XXL

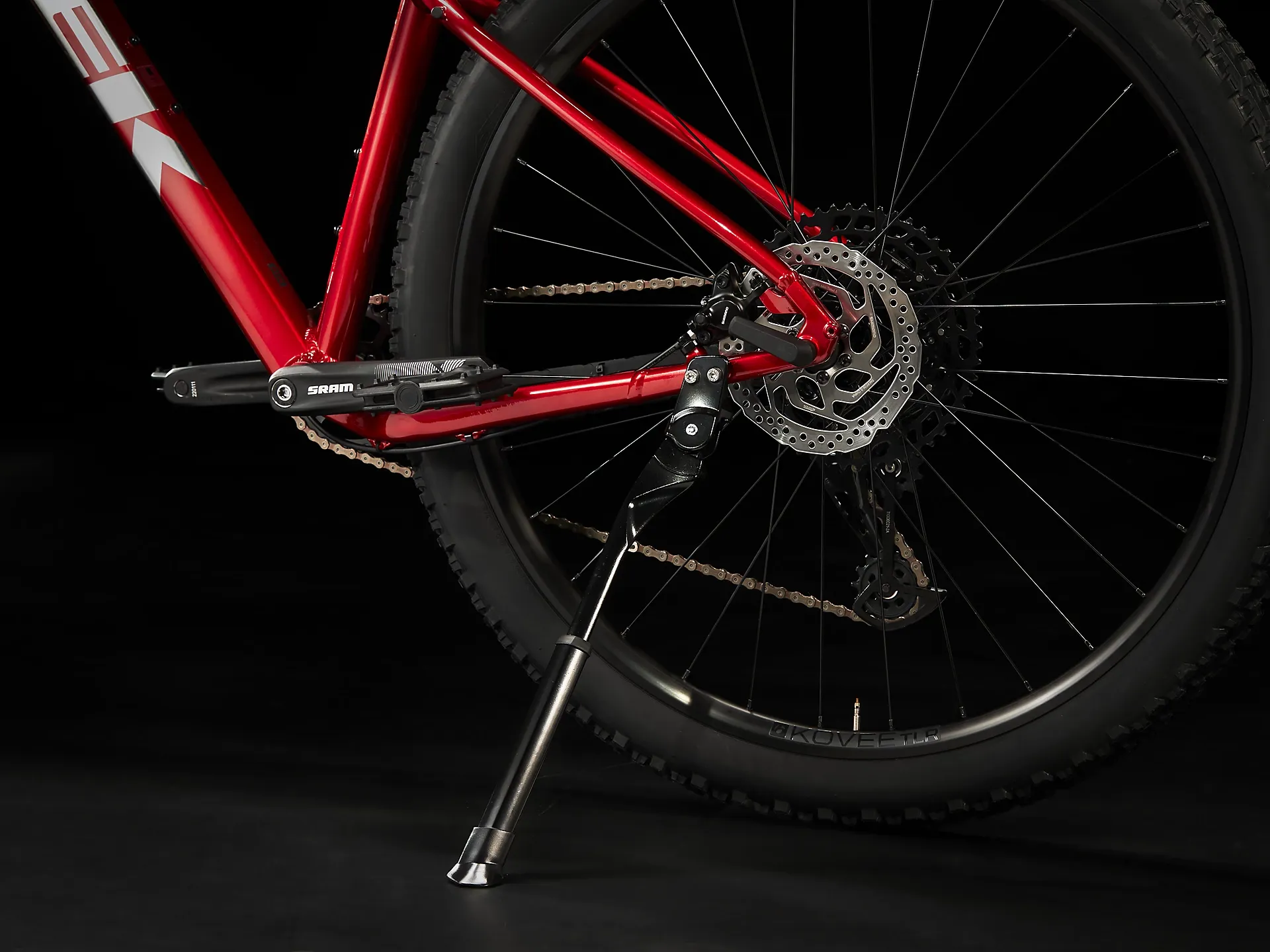

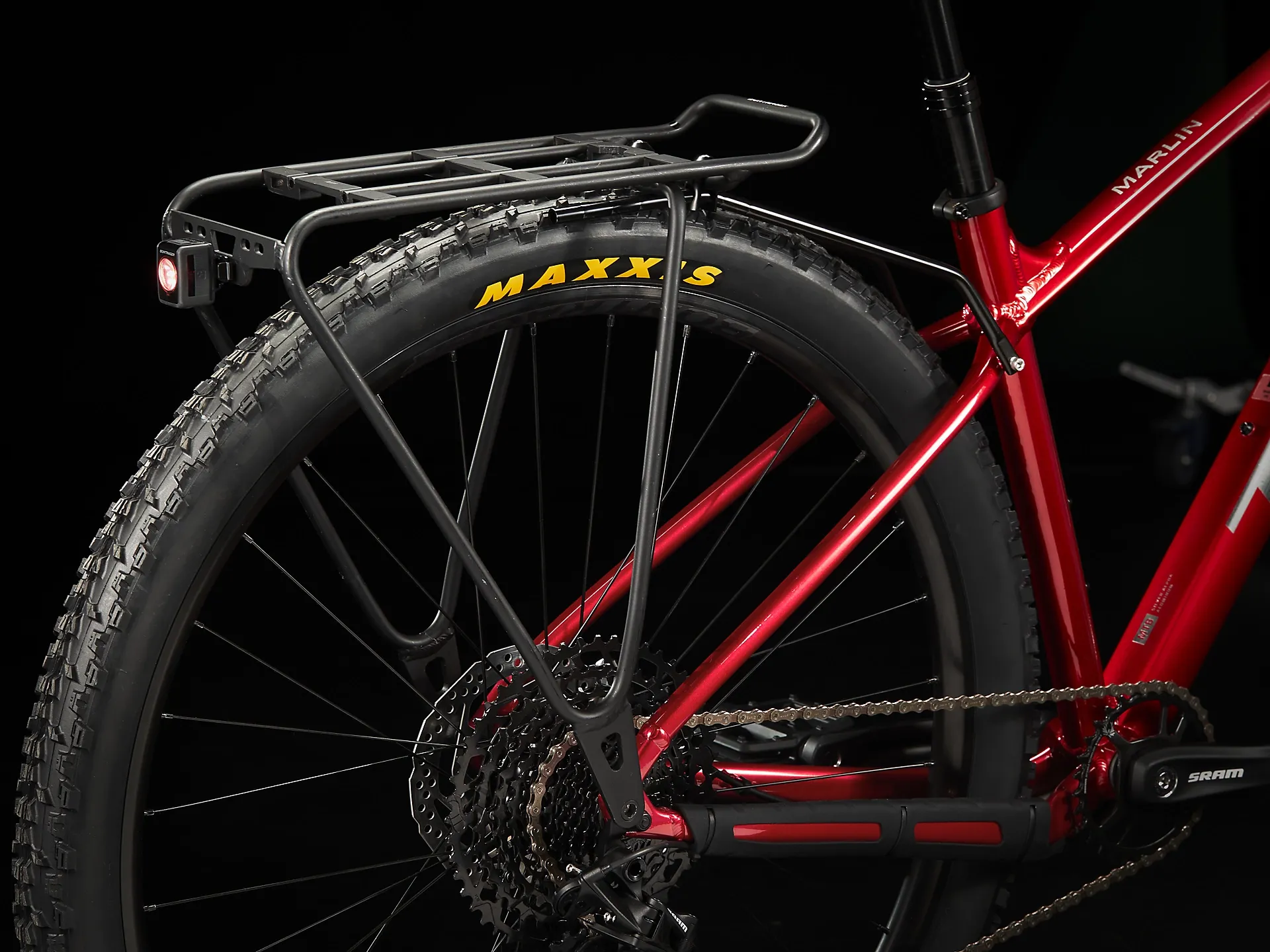

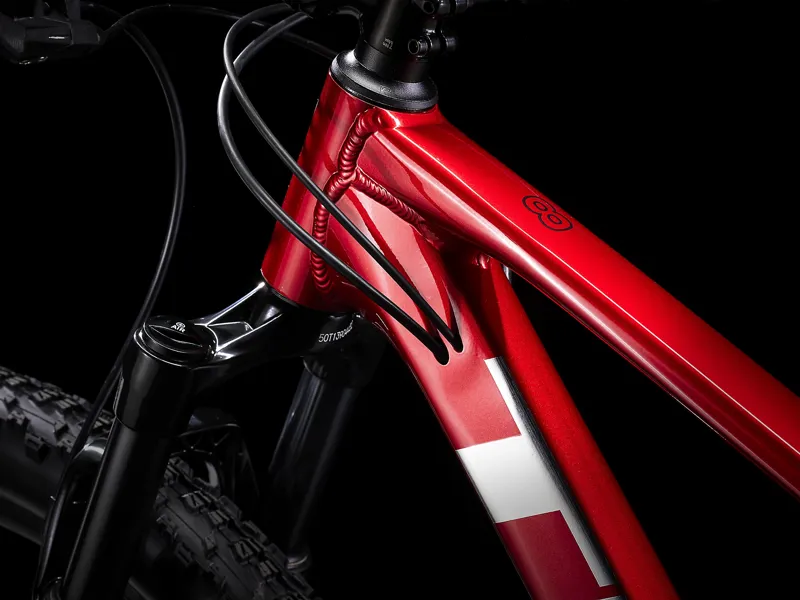

Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size:XXS , XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork
Size: XXS

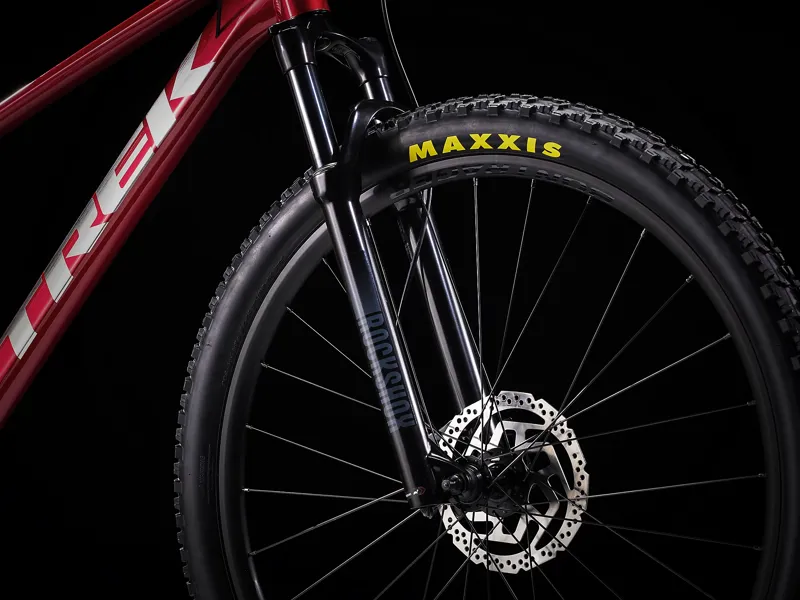

RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
Size:XS , S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
Size:M , ML , L , XL , XXL

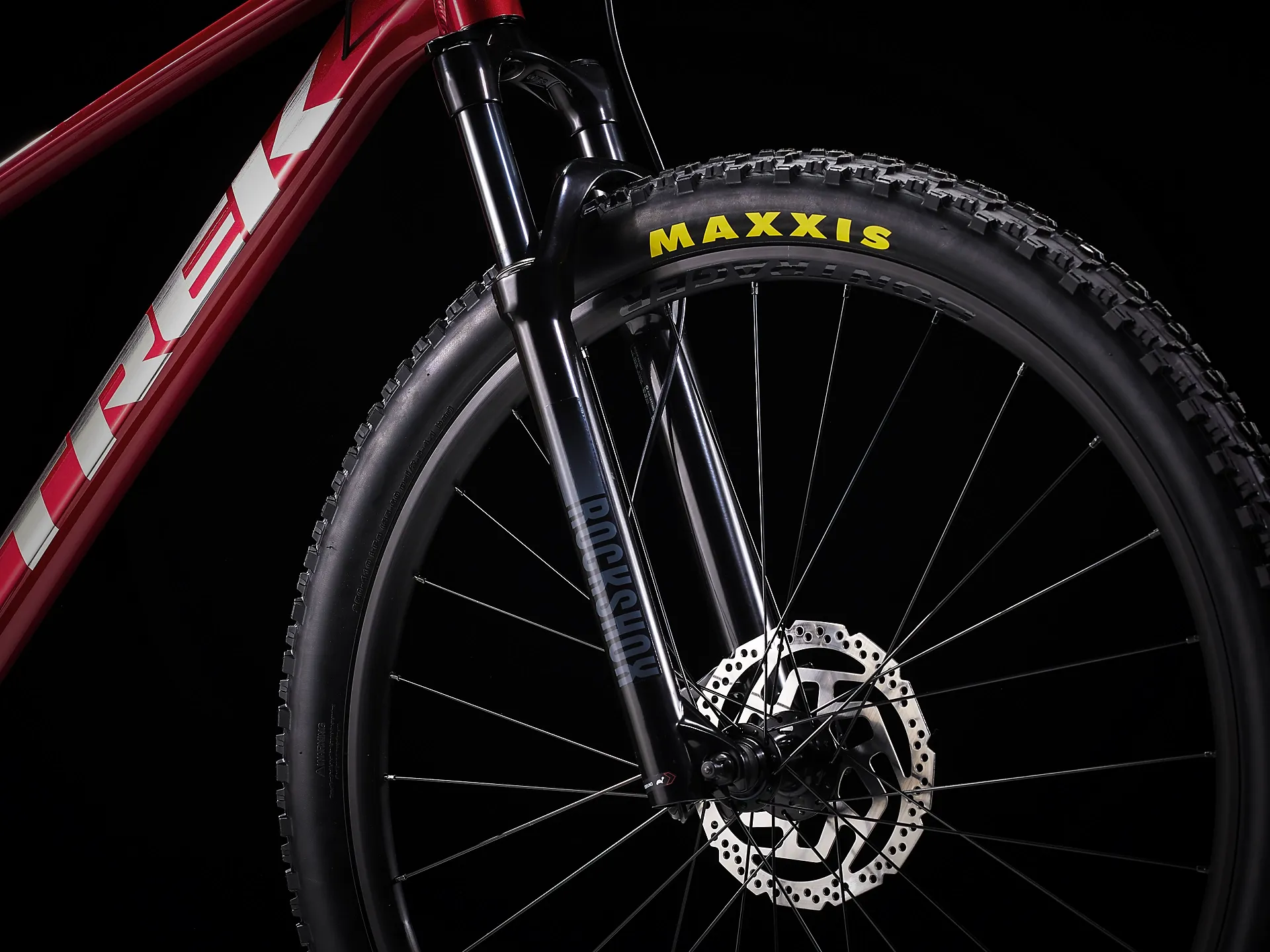

RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Hub front
Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
Bontrager Switch thru axle
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Size: XXS
Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 26x2.40"
Size:XS , S
Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.40"
Size:M , ML , L , XL , XXL

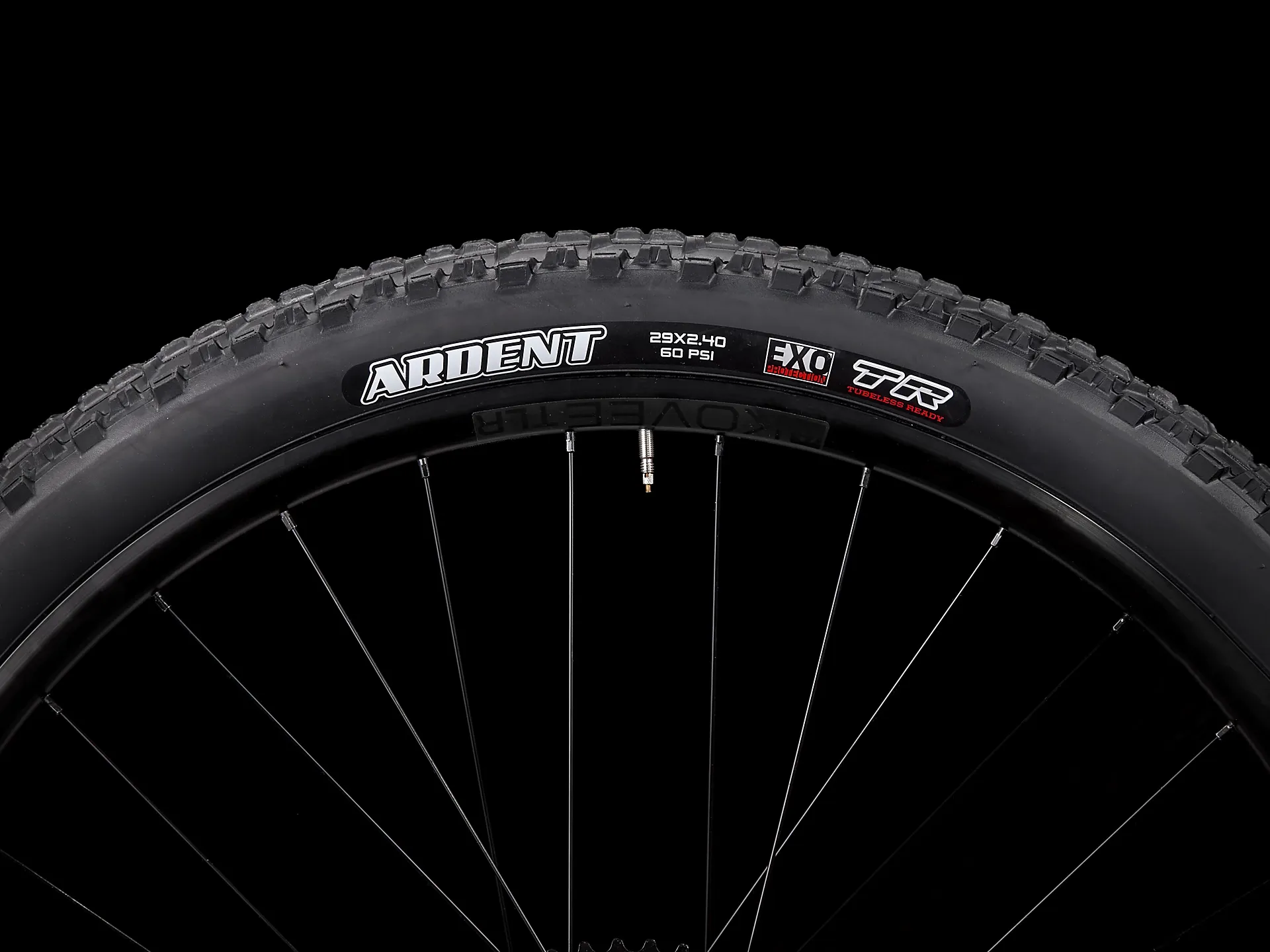

Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 29x2.40"
Shifter
SRAM SX Eagle, 12-speed
Rear derailleur

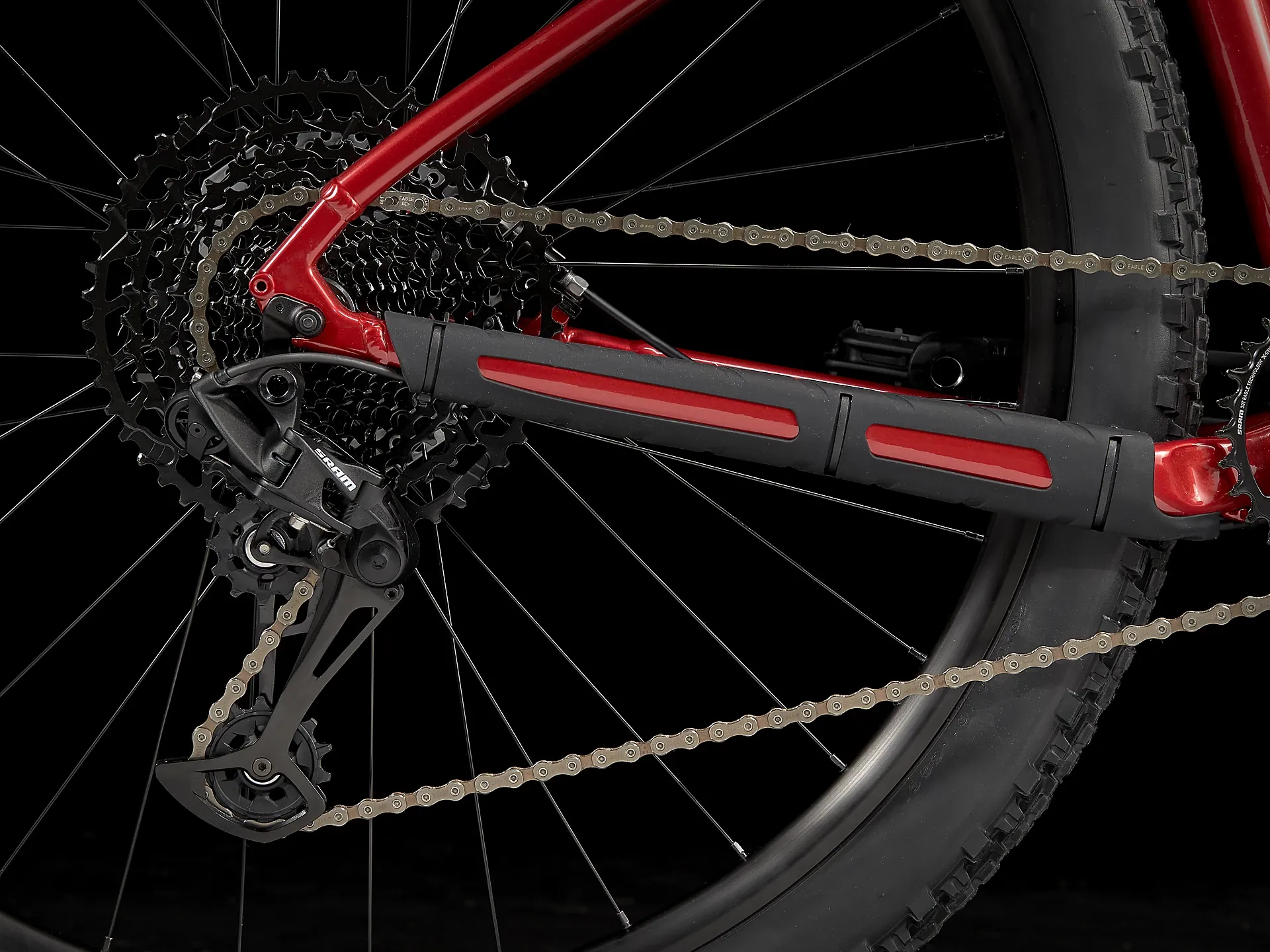

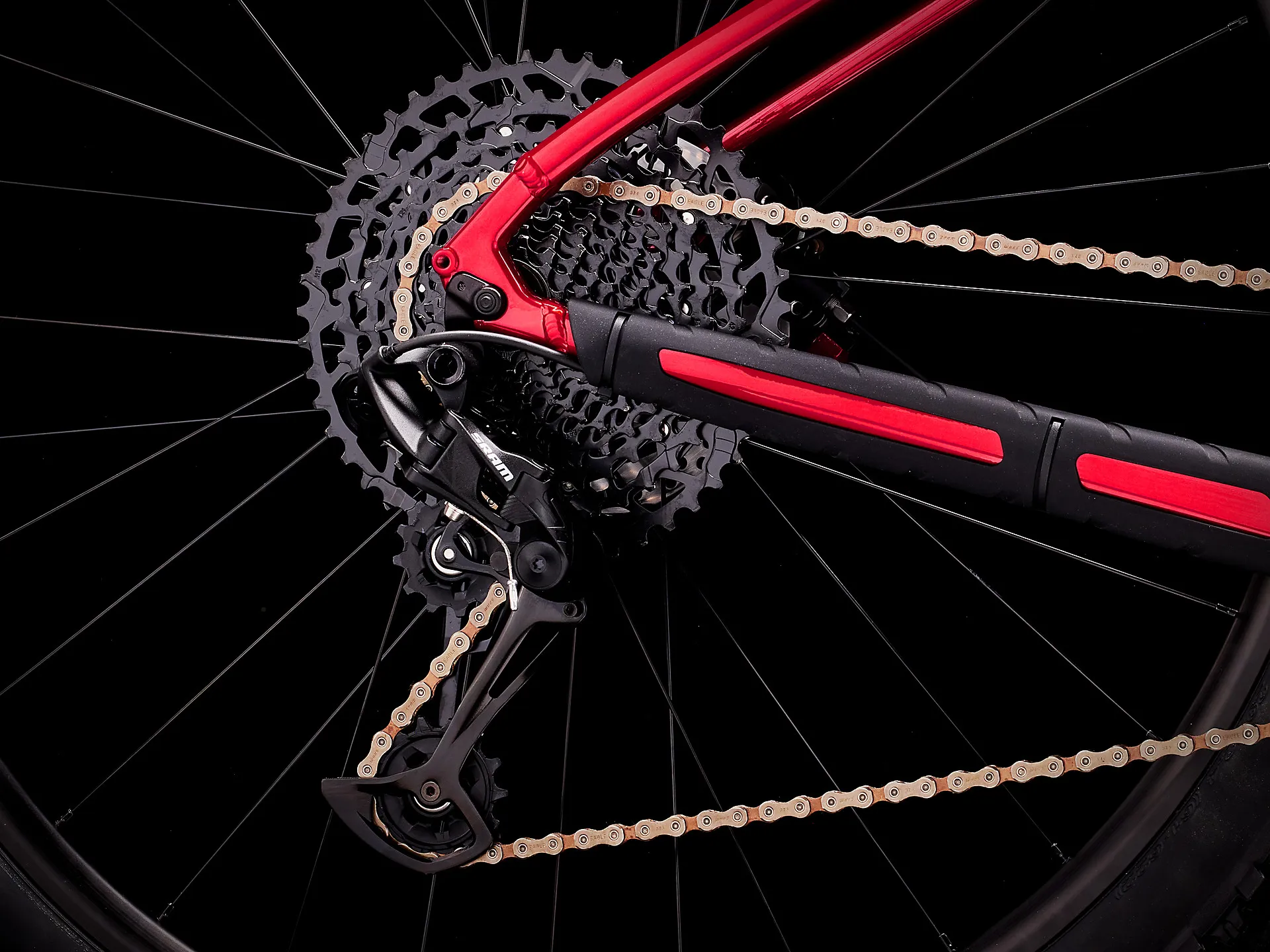

SRAM SX Eagle

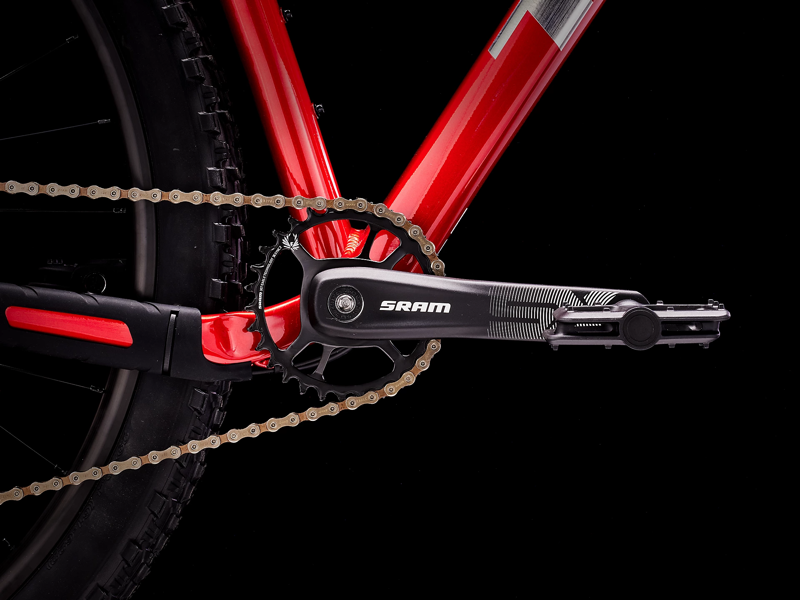

Crank
Size: XXS
SRAM SX Eagle, 30T steel ring, 49mm chainline, 155mm length
Size:XS , S , M
SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm length
Size:ML , L , XL , XXL
SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length
Bottom bracket
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette
SRAM PG-1210 Eagle, 11-50, 12-speed
Chain
SRAM SX Eagle, 12-speed
Pedal
Wellgo VPE-536
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XXS , XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Size:ML , L , XL , XXL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size:S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XXS , XS , S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length
Size:M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size:XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size:XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set
Semi-integrated, 1-1/8"
Brake
Shimano MT200 hydraulic disc
Brake rotor
Size: XXS , XS , S , M , ML , L , XL , XXL

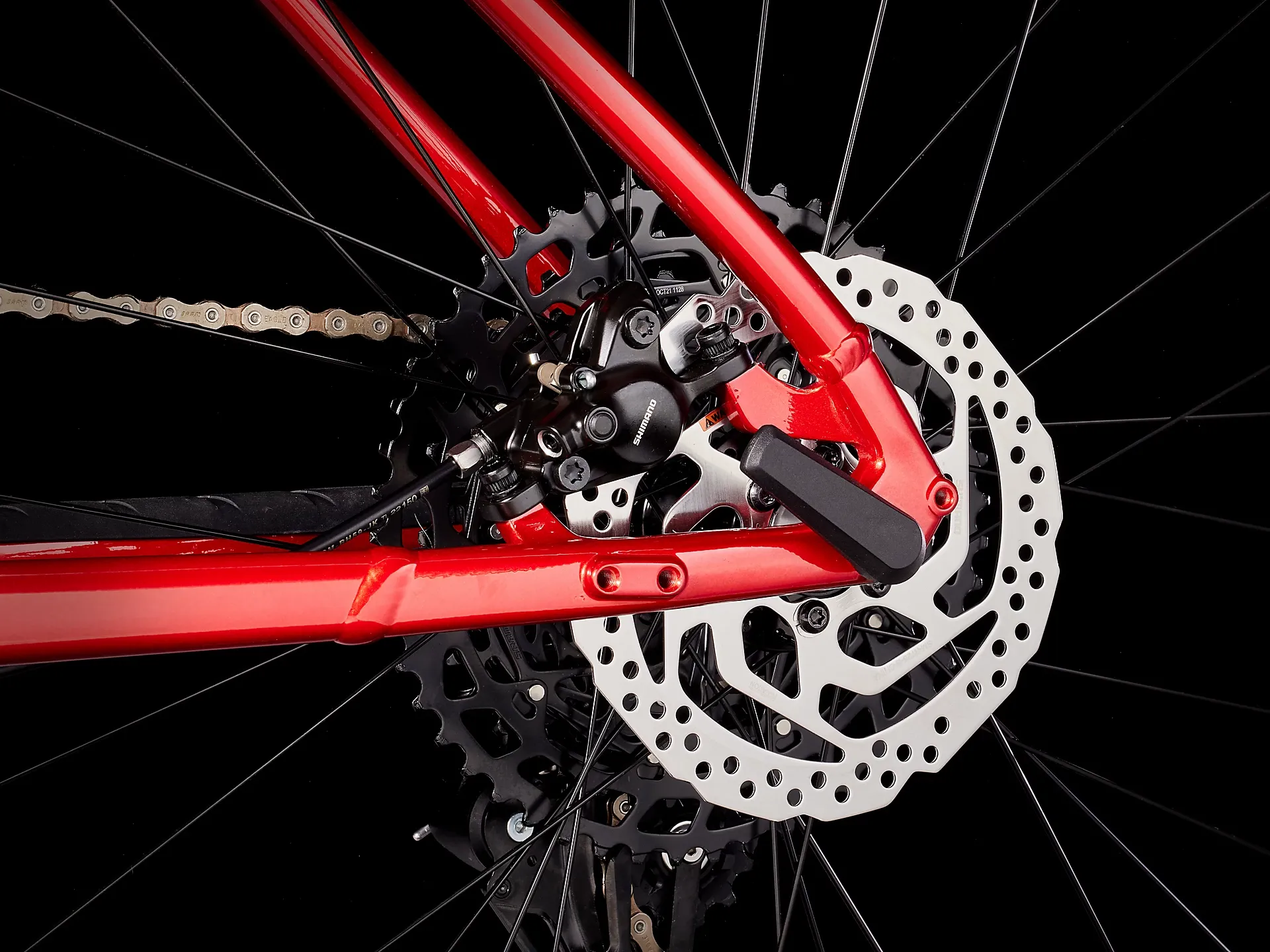

Shimano RT26, 6-bolt,160 mm
Size:M , ML , L , XL , XXL
Shimano RT26, 6-bolt,180 mm
Brake Set
Shimano MT200 hydraulic disc
Weight
M – 14.29kg/31.51lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136kg (300lbs).
