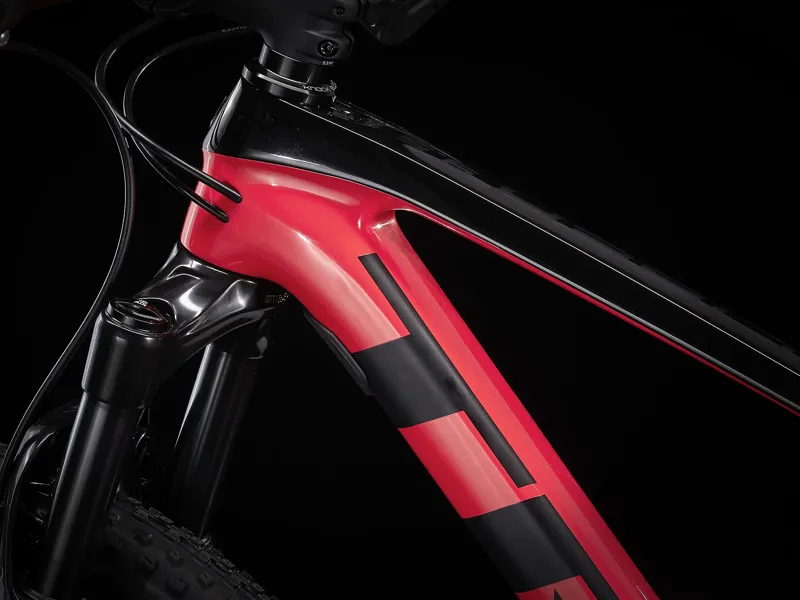

Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148
Fork
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 100 mm travel
Max compatible fork travel
120mm (533 axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Size: S, M, M/L, L, XL, XXL
Bontrager sealed bearing, Boost148
Size:S, M, M/L, L, XL, XXL
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.40" Fork: See manufacturer
Shifter
Shimano Deore M6100, 12 speed

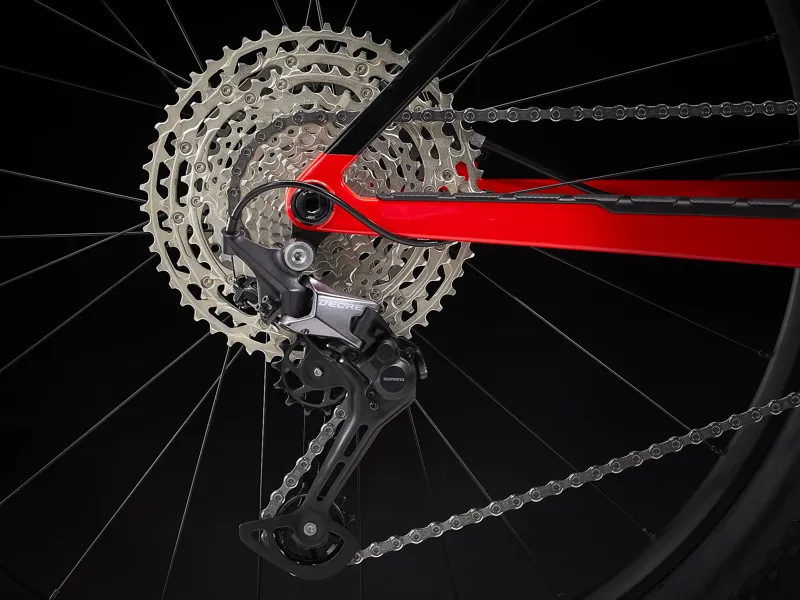

Rear derailleur
Shimano Deore M6100, long cage

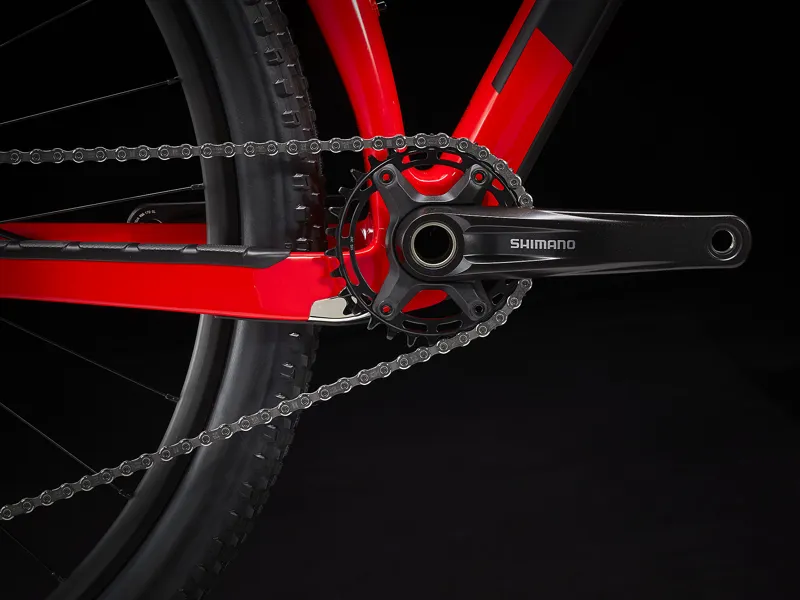

Crank
Size: S, M
Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
Size:M, M/L, L, XL, XXL
Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom bracket
Shimano MT500, 92 mm, PressFit
Cassette
Size: S, M, M/L, L, XL, XXL
Shimano Deore M6100, 10-51, 12-speed
Size:S, M, M/L, L, XL, XXL
SunRace CSMZ800 11-51, 12 speed
Chain
Shimano Deore M6100
Max. chainring size
36T, Min 30T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size:S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size:M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size:M/L, L, XL, XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

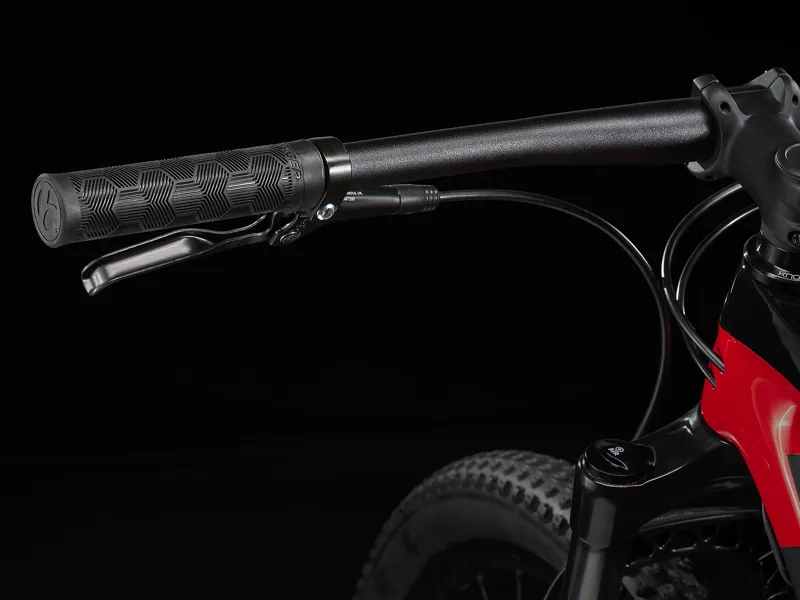

Handlebar
Size: S, M, M/L
Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size:L, XL
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Size:XXL
Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: S
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Size:M, M/L
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Size:L, XL
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 80 mm length
Size:XXL
Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 90 mm length
Size:XXL
Bontrager Elite, 35 mm, 0-degree, 90 mm length
Brake
Shimano MT200 hydraulic disc

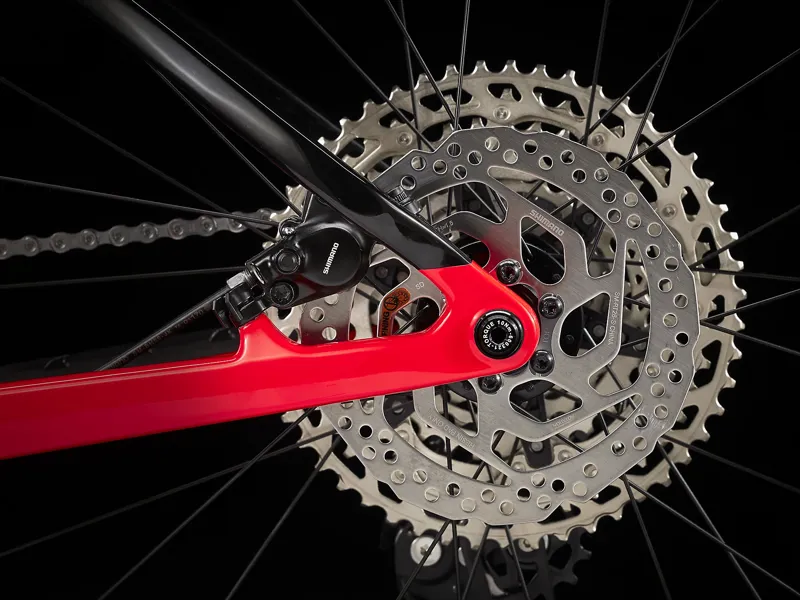

Brake rotor
Size: S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,160 mm
Size:L, XL, XXL
Shimano RT26, 6-bolt,180 mm
Brake Set
Shimano MT200 hydraulic disc
Weight
M - 11.88 kg / 26.21 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
