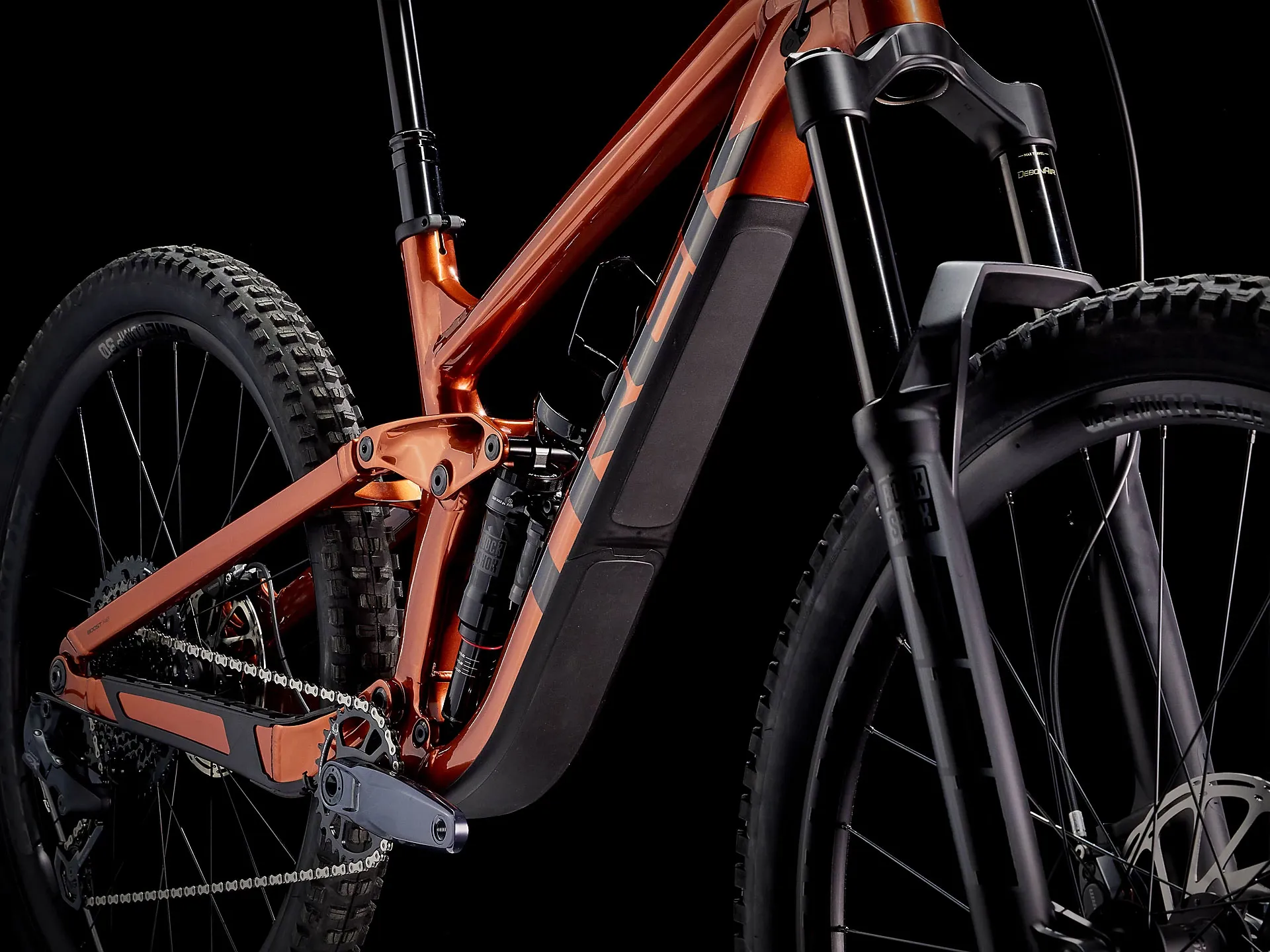

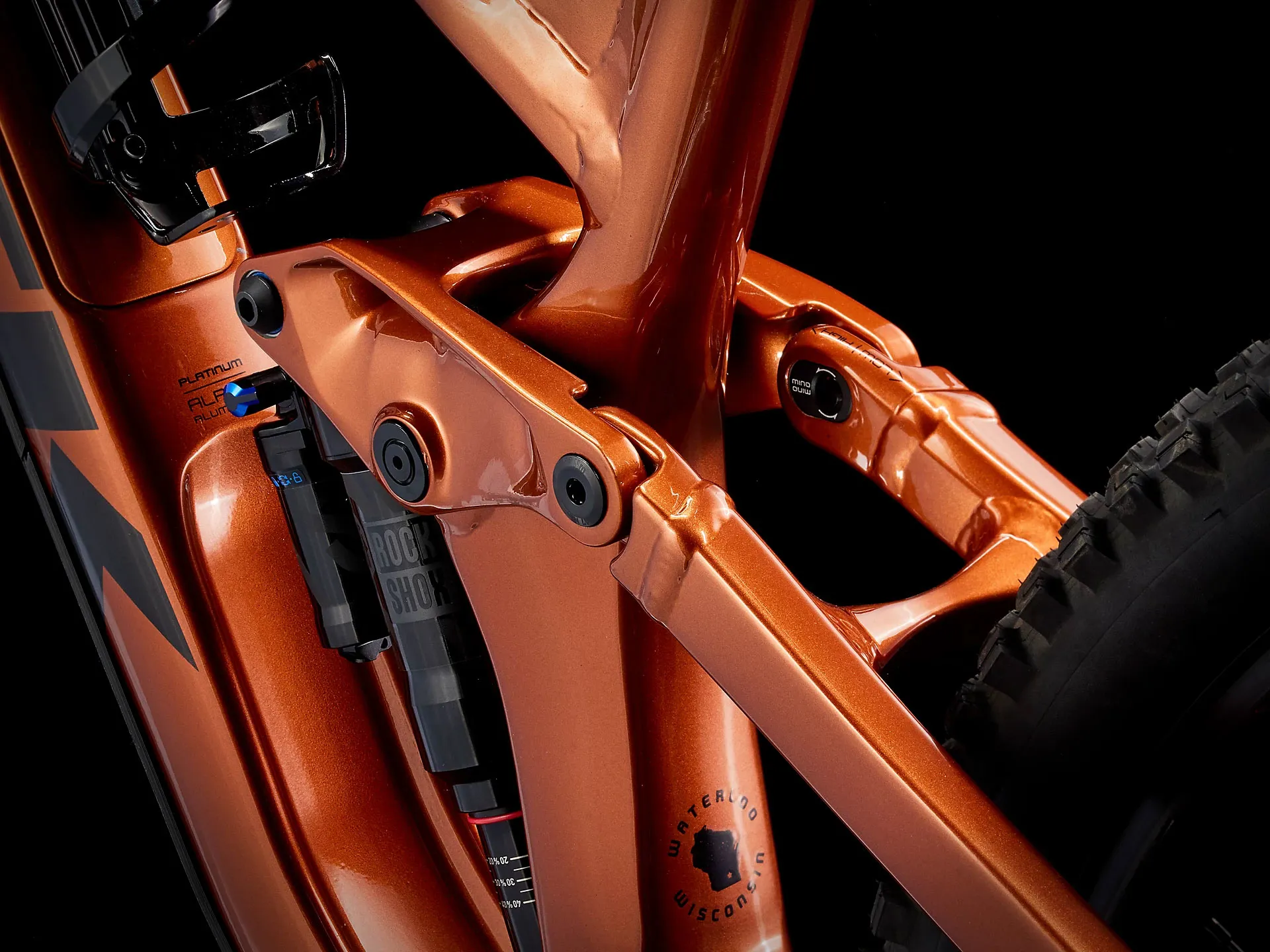

Frame

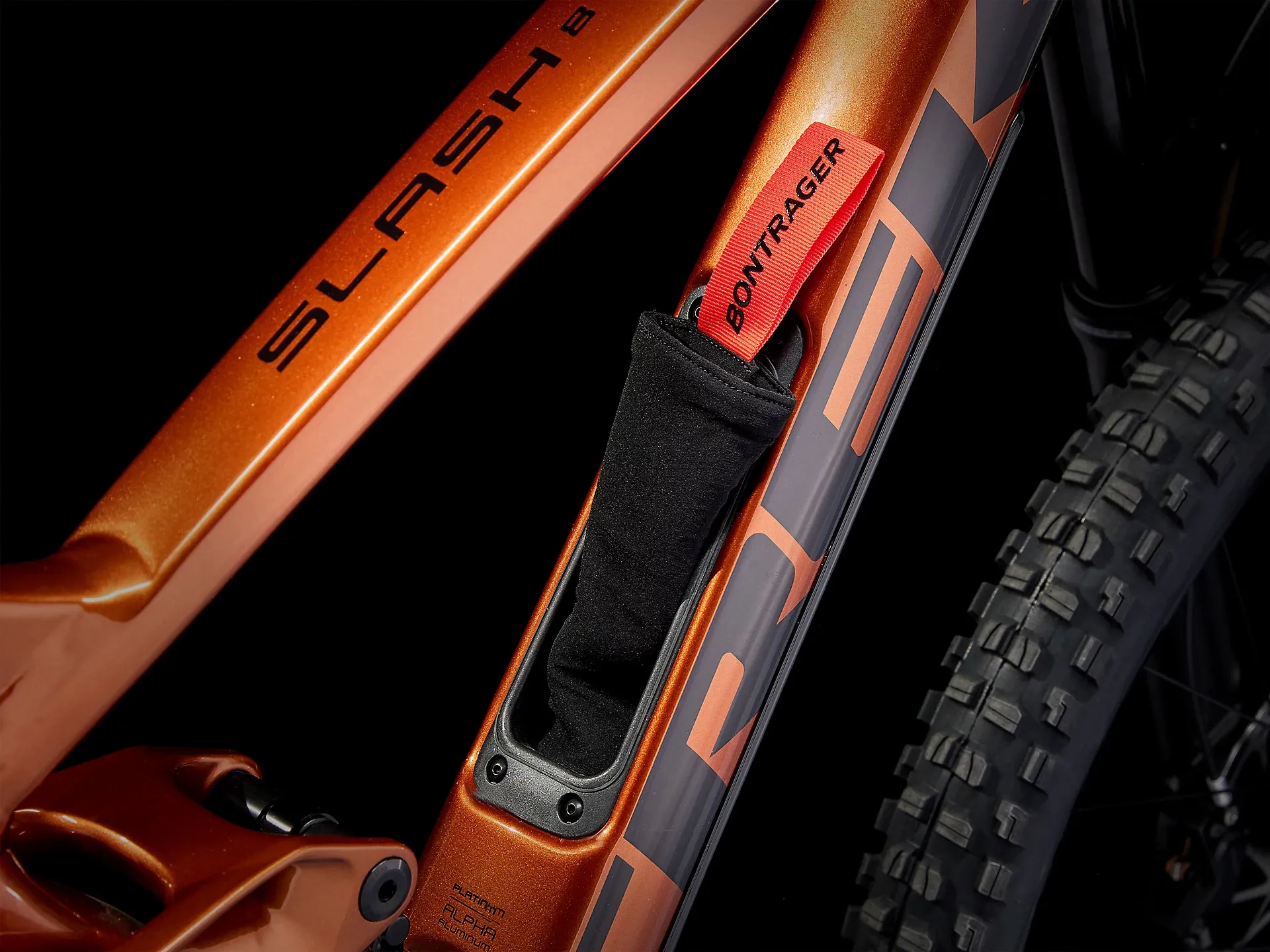

Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, down tube guard, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel
Fork
RockShox ZEB Select, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel

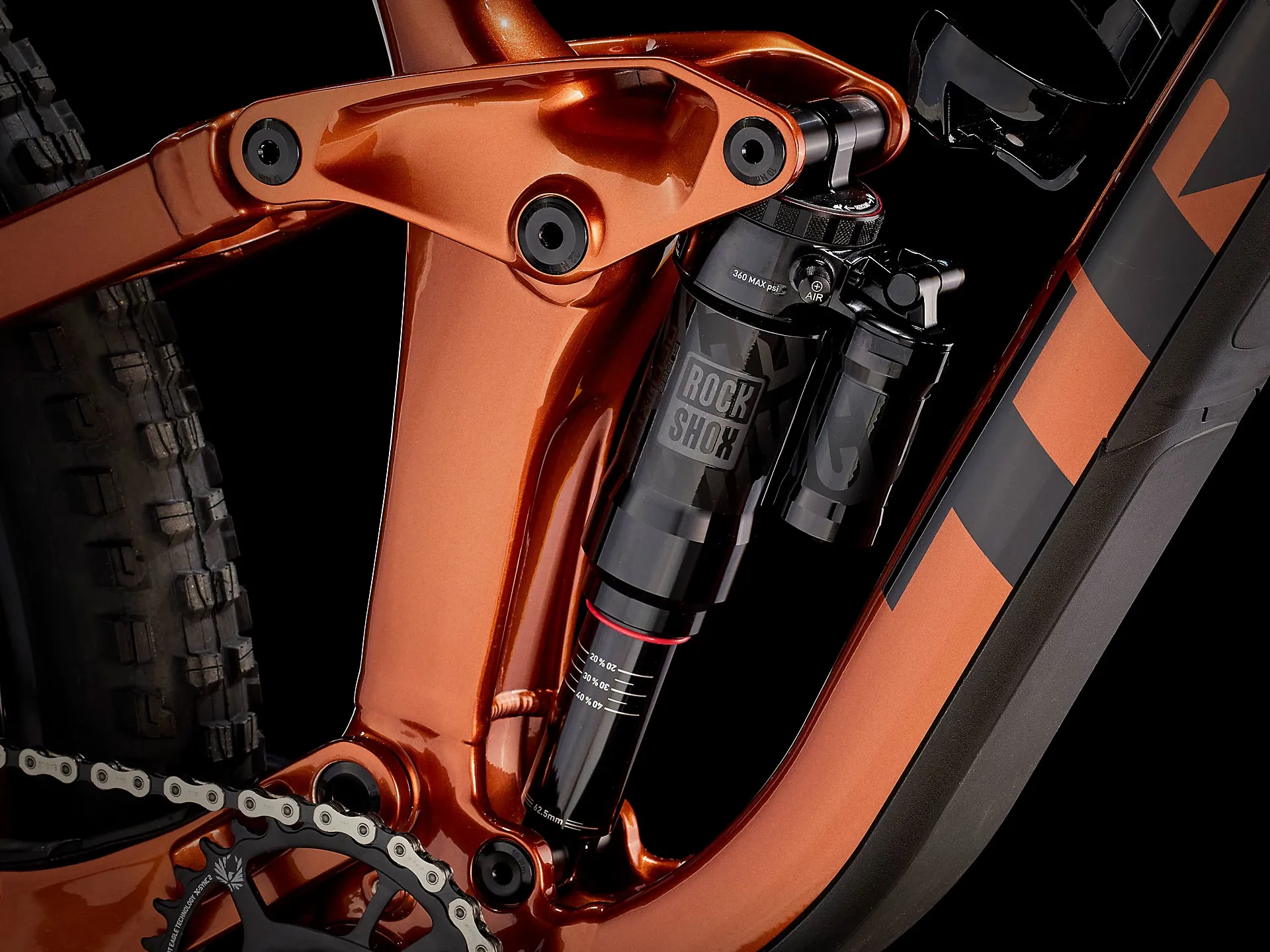

Shock
RockShox Super Deluxe Select+ RT, 230mm x 62.5mm
Max compatible fork travel
180 mm (596 mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

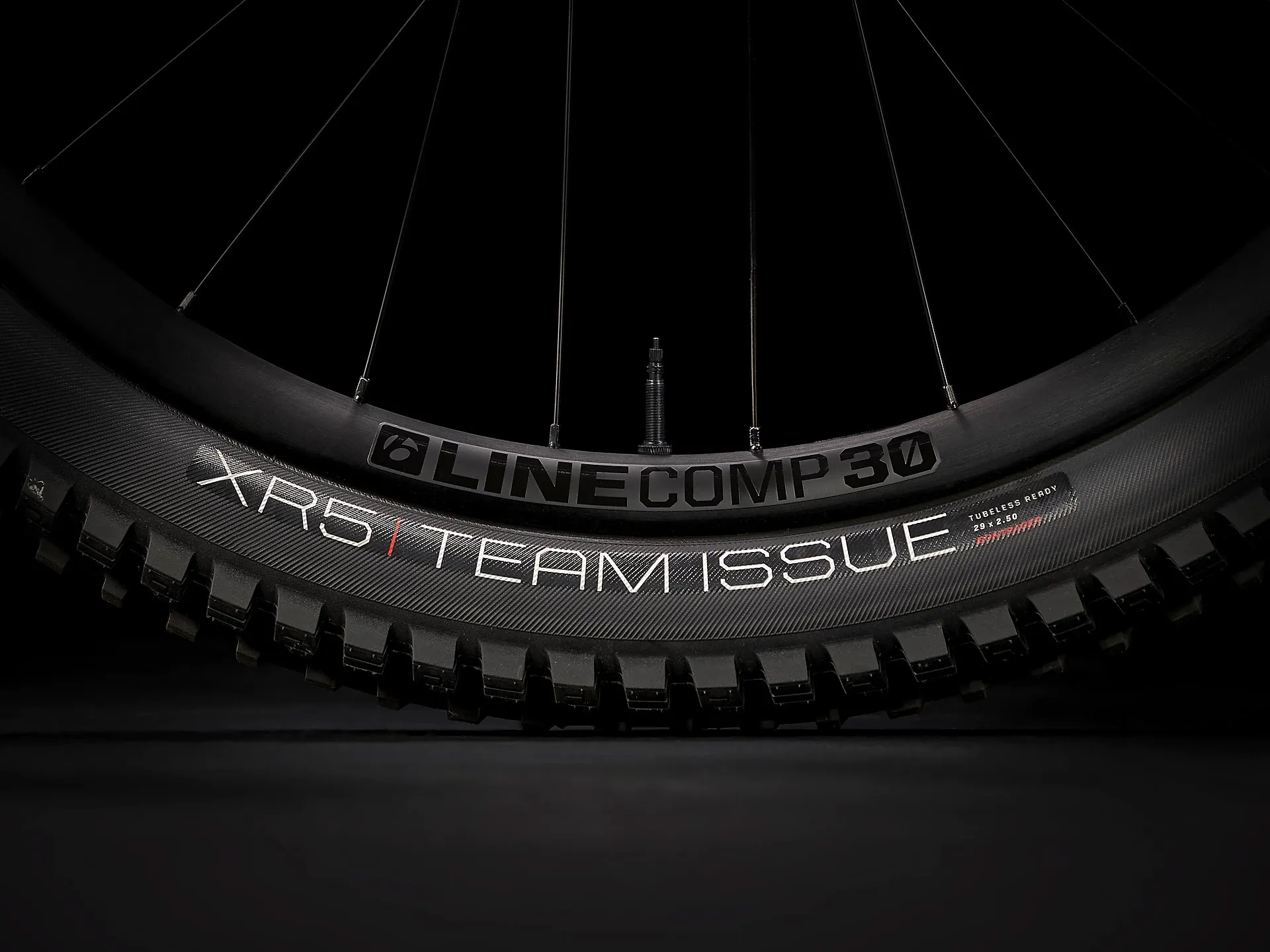

Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Max tyre size
Frame: 29x2.50" Fork: See manufacturer
Shifter
SRAM GX Eagle, 12-speed

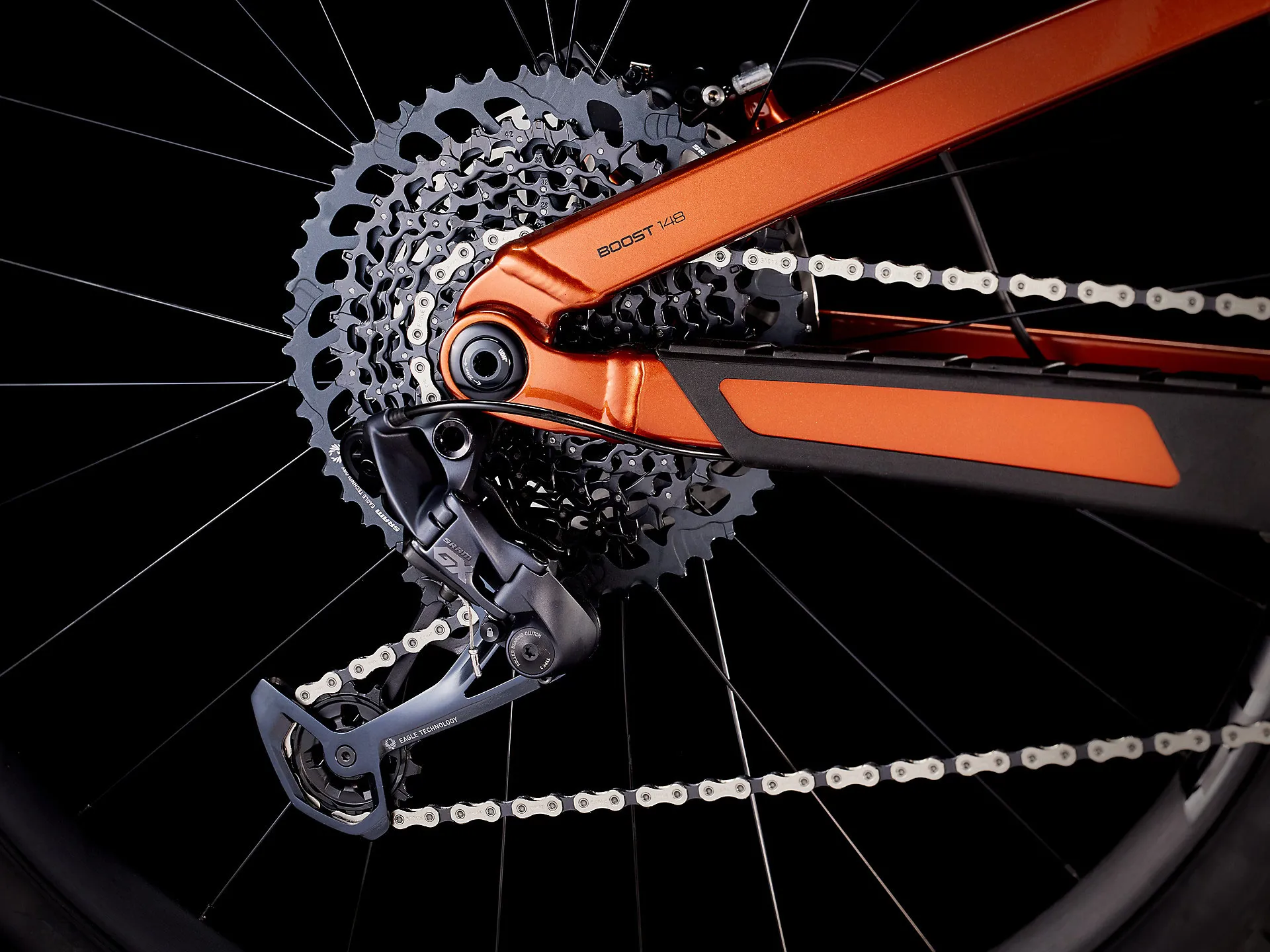

Rear derailleur
SRAM GX Eagle

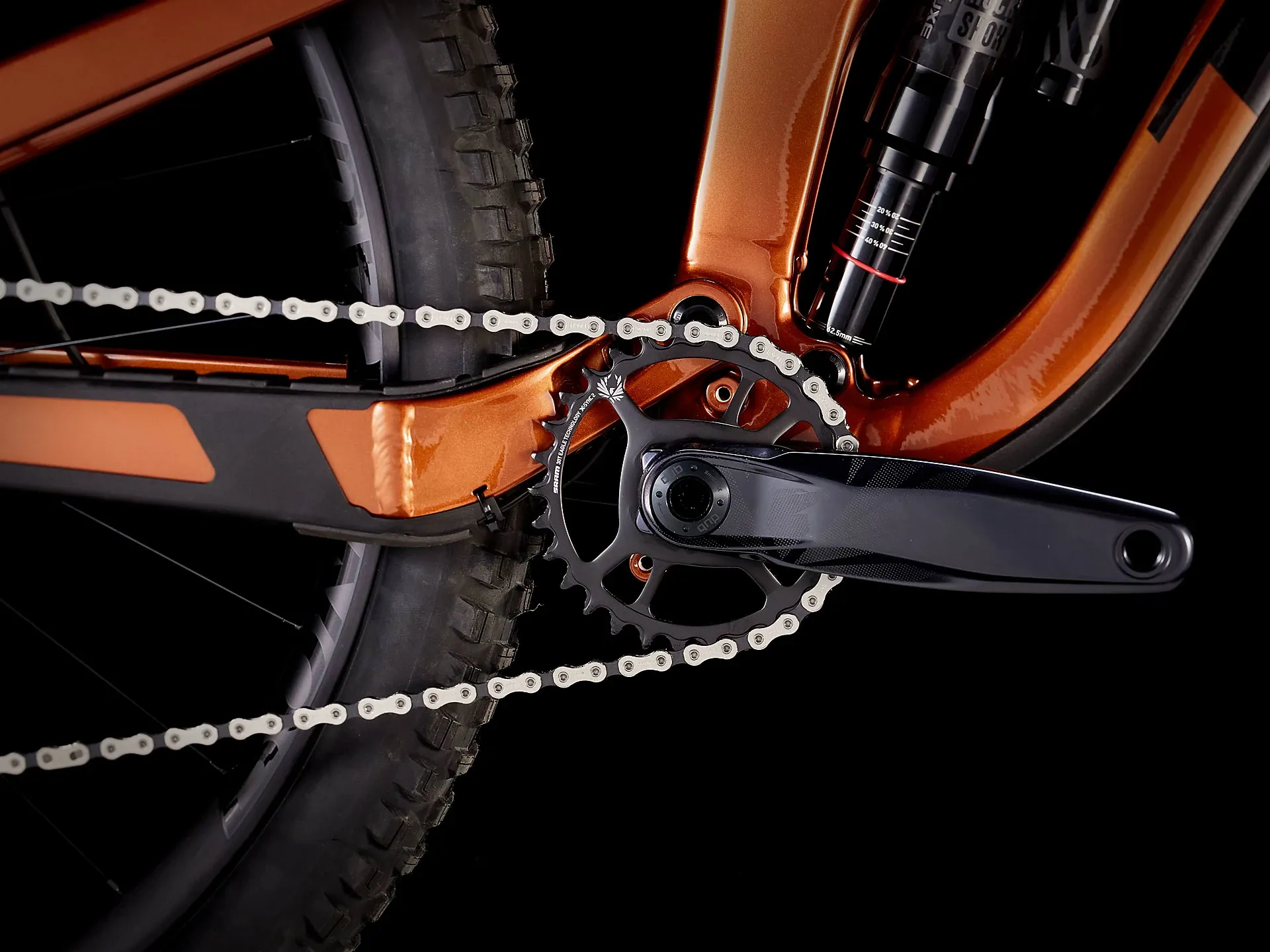

Crank
SRAM X1 Eagle, DUB MTB Wide, 30T steel ring, 55mm chainline, 170mm length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Max. chainring size
Max: 34T, Min 28T

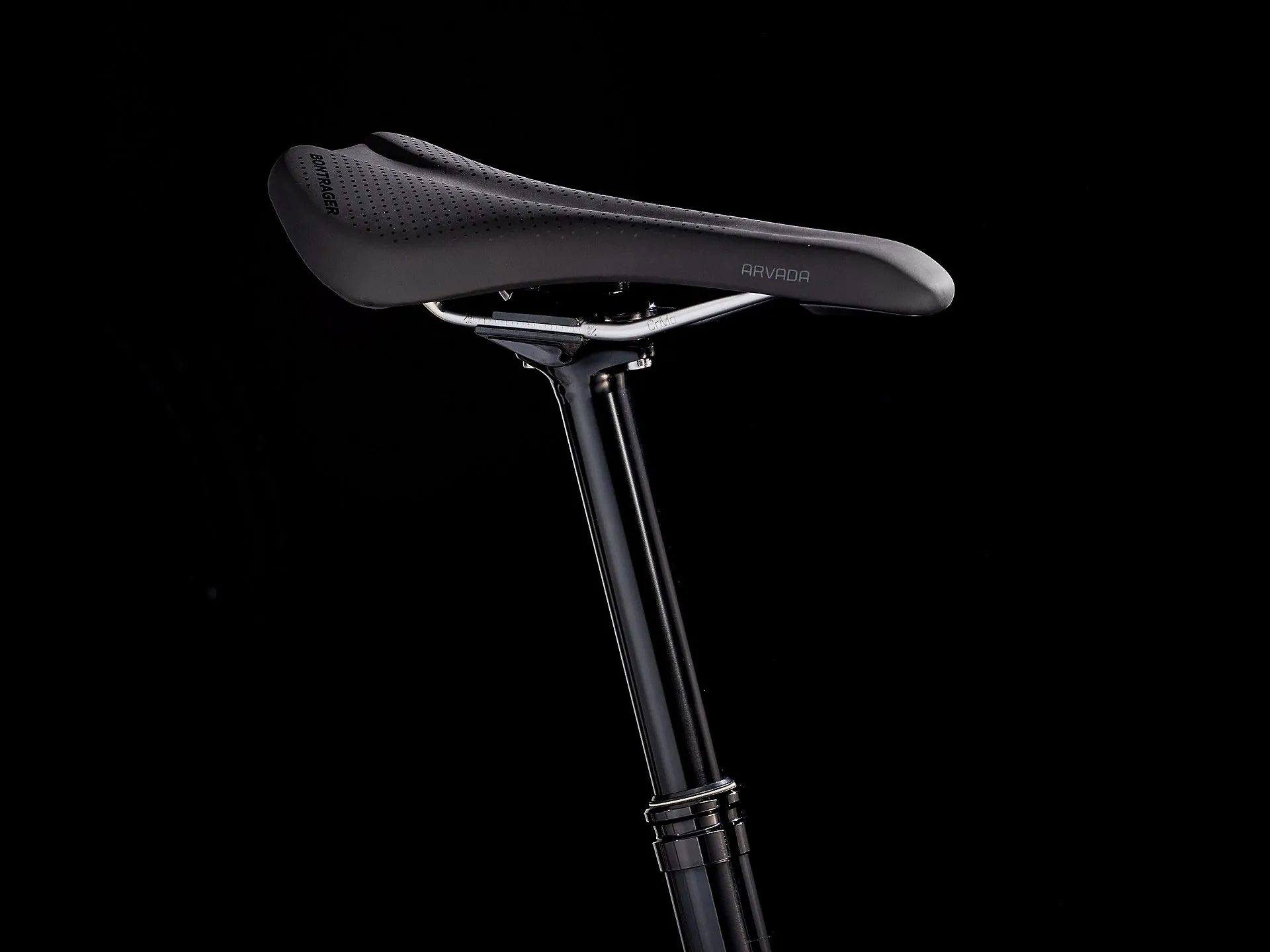

Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size:S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size:M , ML
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size:L , XL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
Grips
Bontrager XR Trail Pro, alloy lock-on

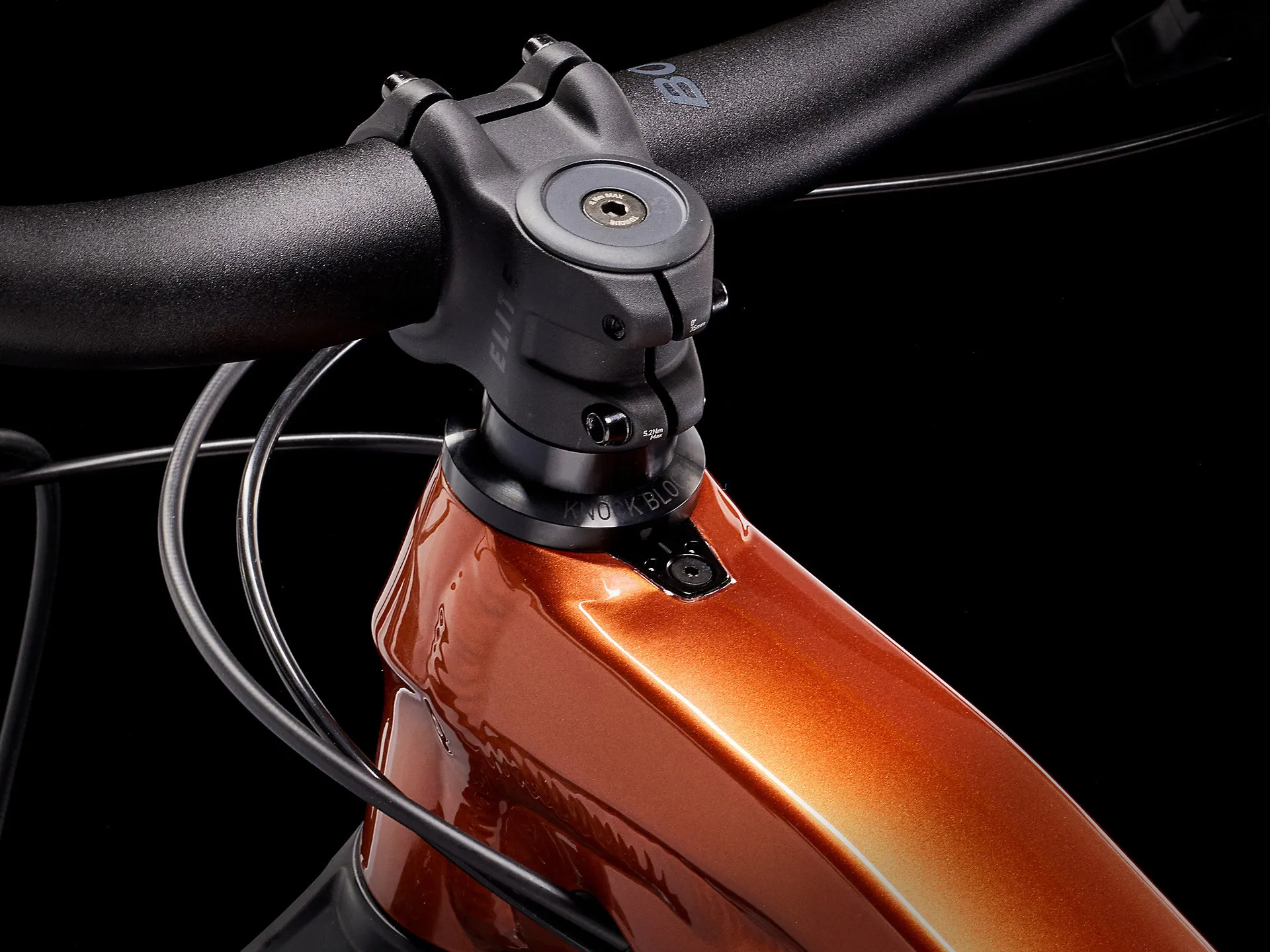

Stem
Bontrager Elite, 35 mm, 0-degree, 35 mm length

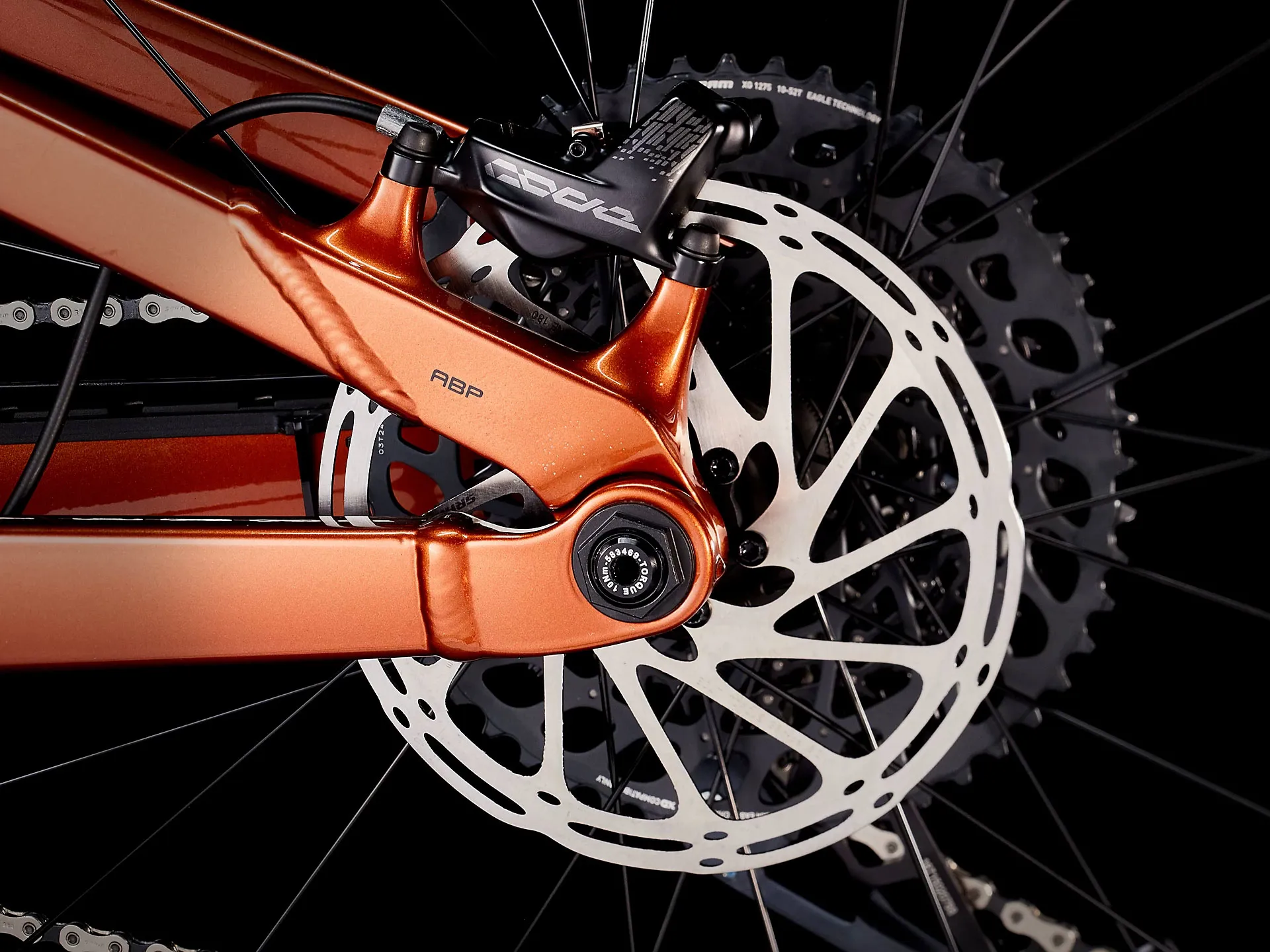

Brake
SRAM Code R 4-piston hydraulic disc
Brake rotor
Size: S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180 mm
Size:S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200 mm
Rotor size
Max brake rotor sizes: Front see fork manufacturer, rear 200 mm
Weight
M - 15.50 kg / 34.18 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
