Frame

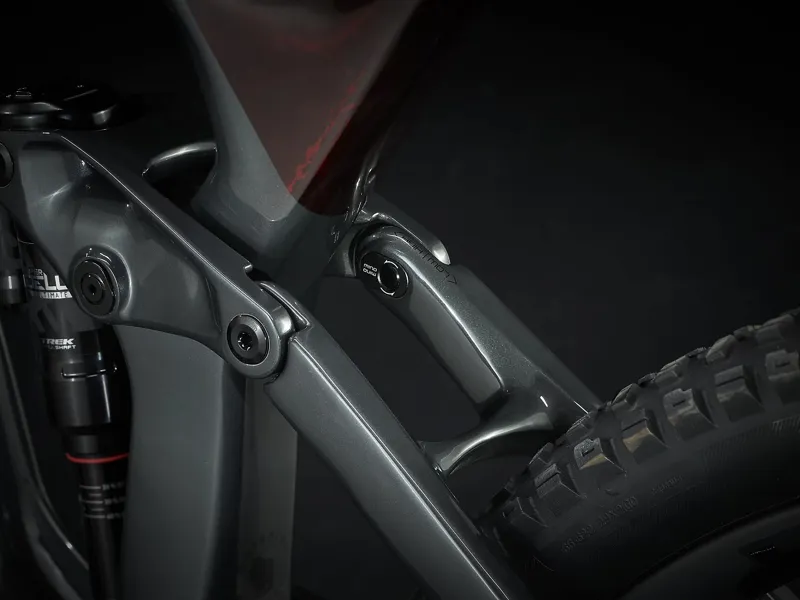

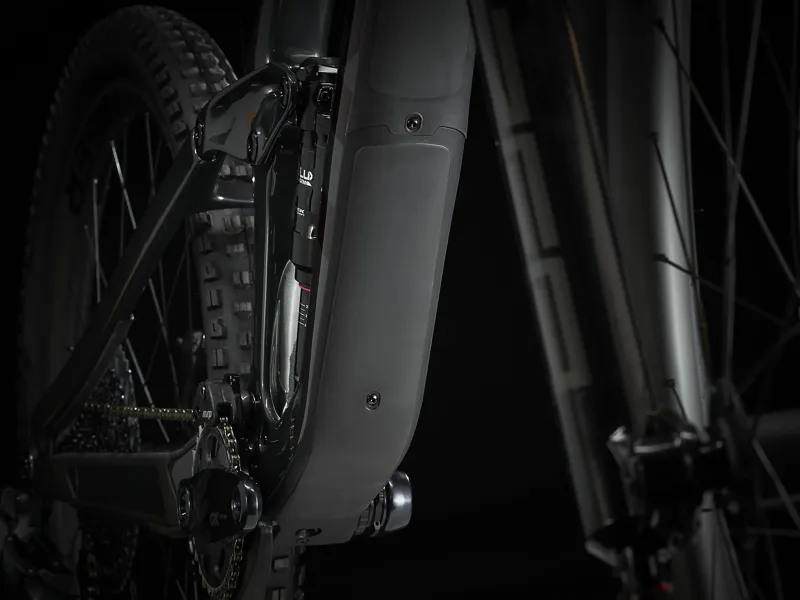

OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armour, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel
Fork
RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel
Shock

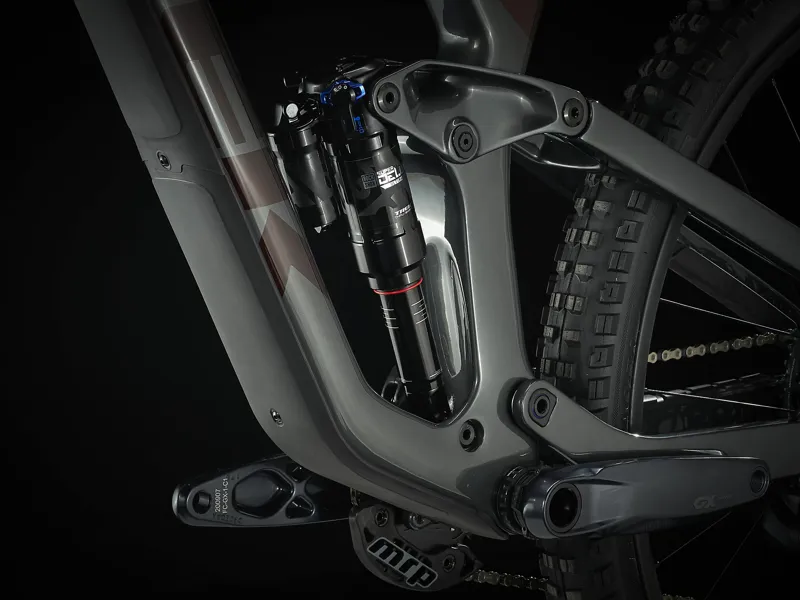

NEW RockShox Super Deluxe Ultimate, DebonAir spring, Thru Shaft 3-position damper, 230x62.5 mm
Max compatible fork travel
180mm (596mm axle-to-crown)
Wheel front
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Elite 30, Tubeless-Ready
Tyre
Size: S , M , ML , L , XL

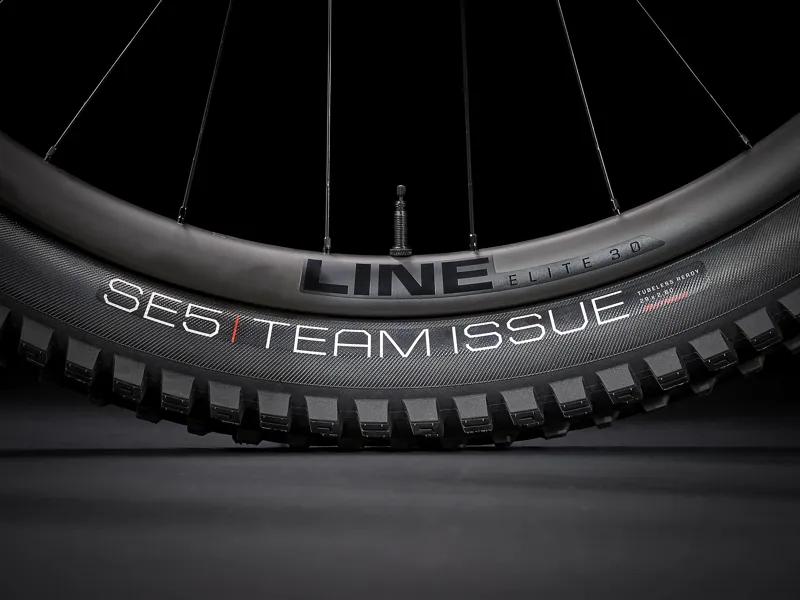

Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Size:S , M , ML , L , XL
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50" Fork: See manufacturer
Shifter
SRAM GX Eagle AXS, 12 speed
Rear derailleur

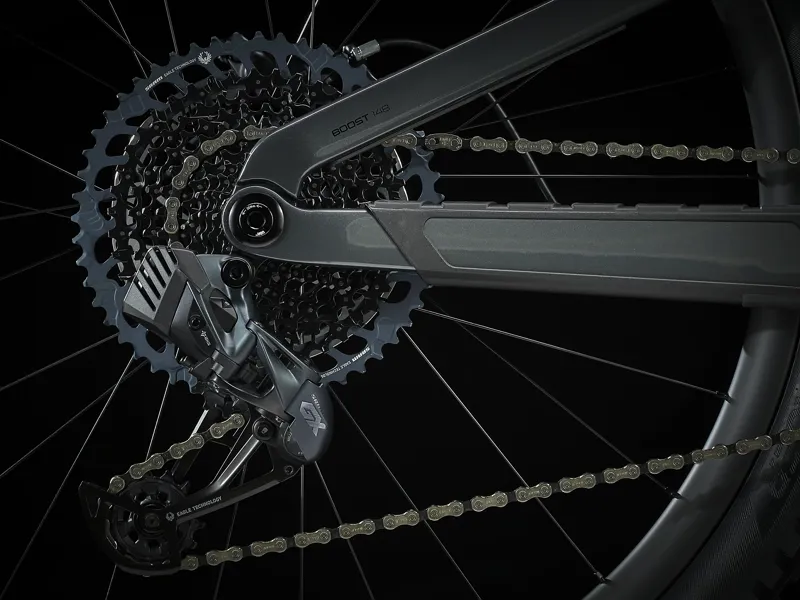

SRAM GX Eagle AXS
Crank

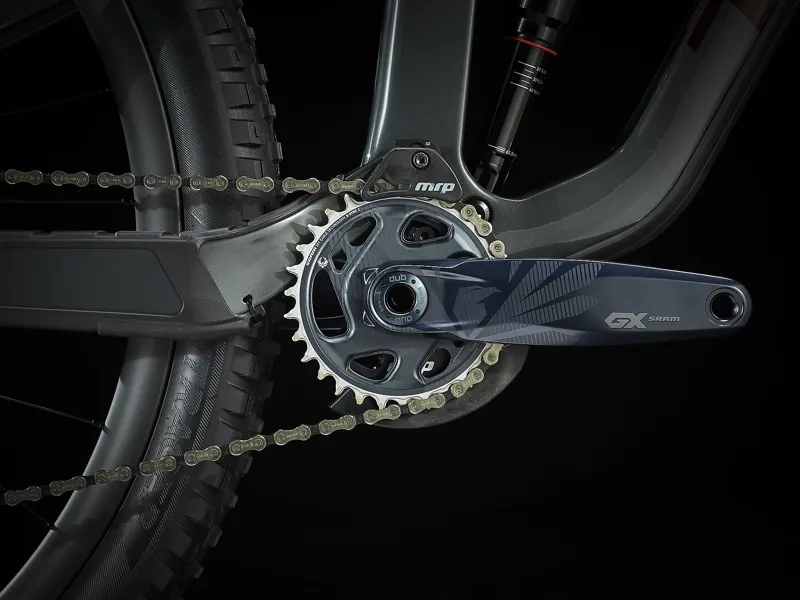

SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Max. chainring size
Max: 34T, Min 28T

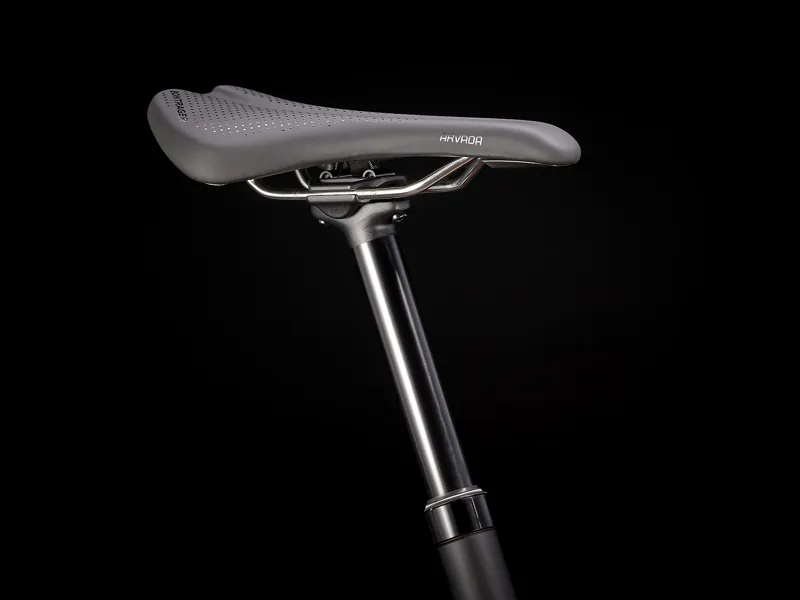

Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size:S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size:M , ML
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size:L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size:XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips
Bontrager XR Trail Pro, alloy lock-on
Head set

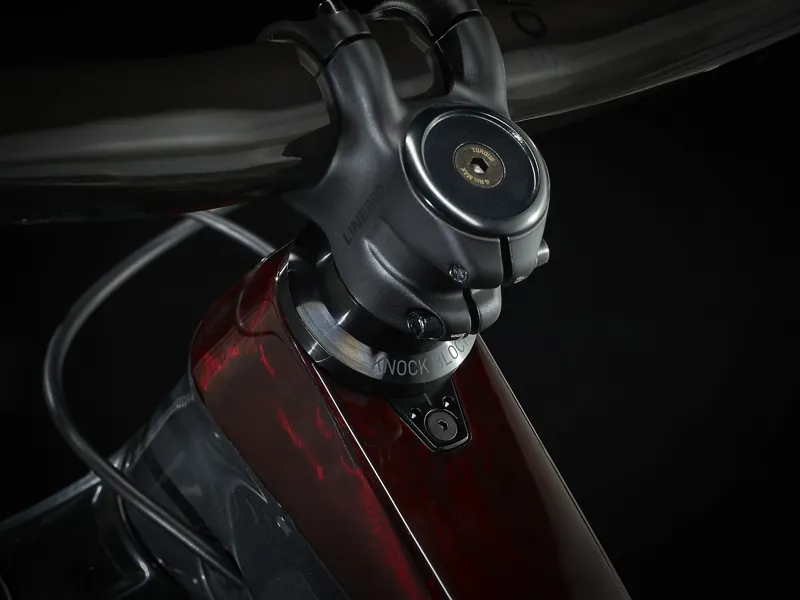

Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake

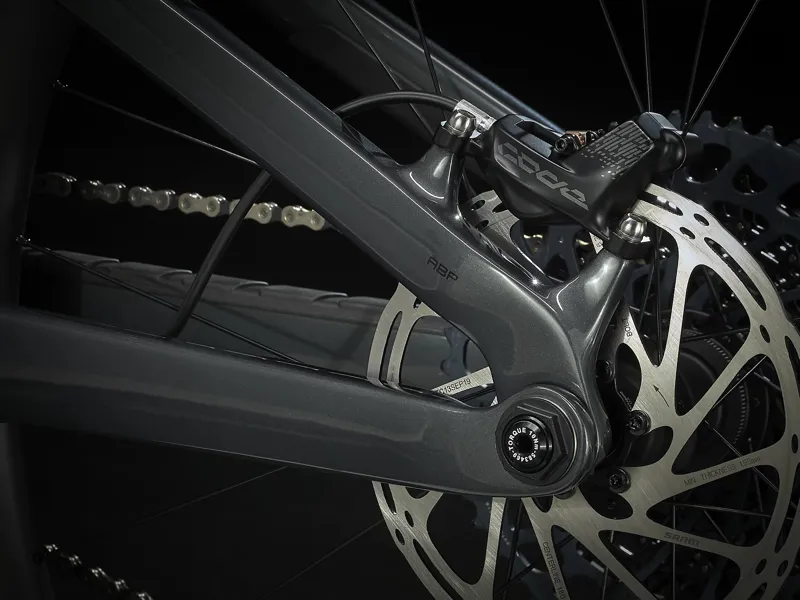

SRAM Code R 4-piston hydraulic disc
Brake rotor
Size: S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180 mm
Size:S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200 mm

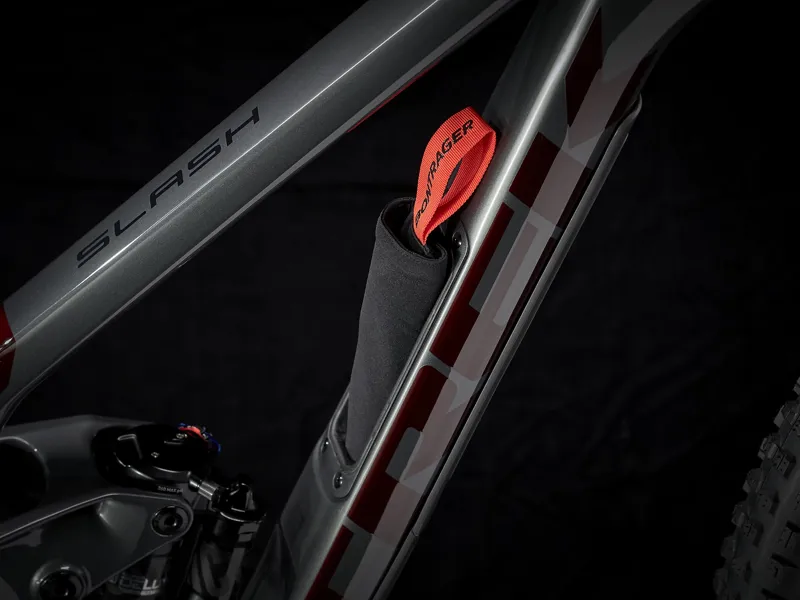

Bag
Bontrager BITS Internal Frame Storage Bag
Weight
M - 14.57 kg / 32.13 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
