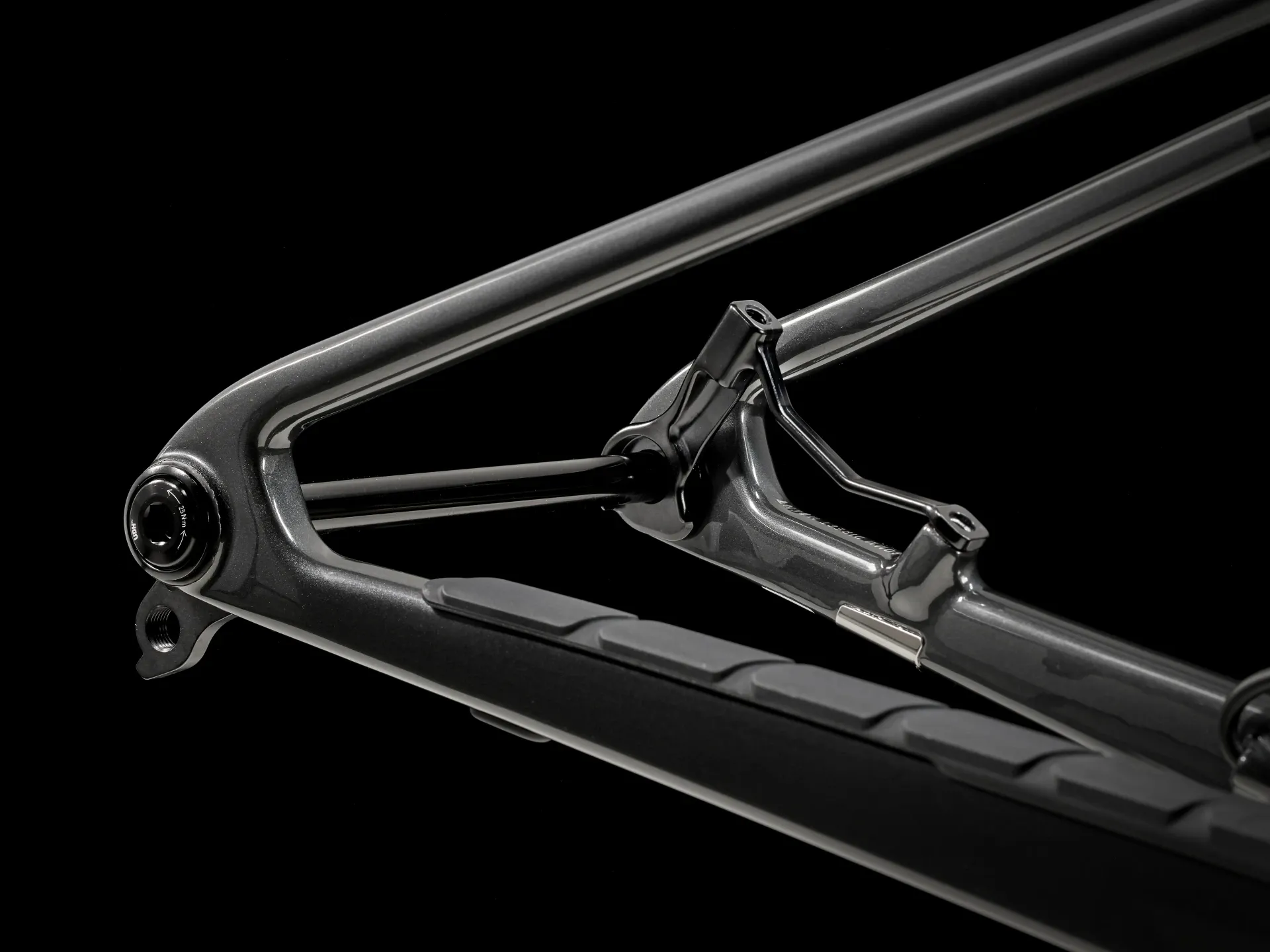

Frame
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Frame set
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
RockShox SID SL Ultimate, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44 mm offset, Boost110, 15mm Maxle Stealth, 110 mm travel

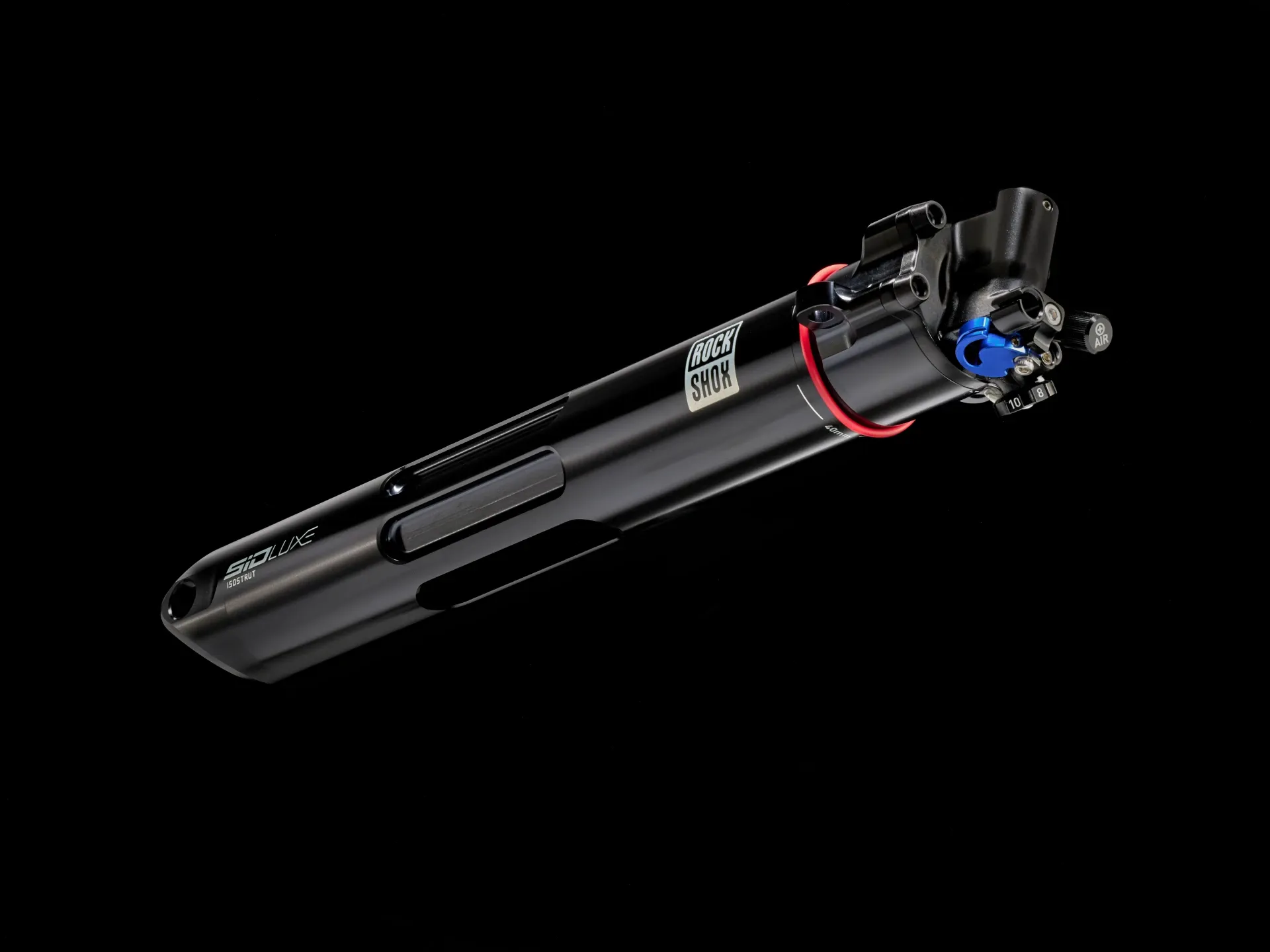

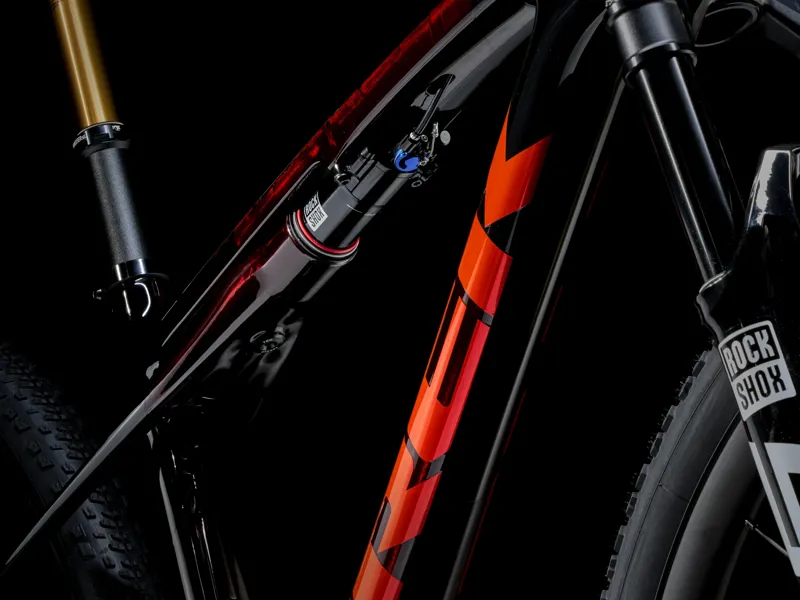

Shock
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Suspension lever
RockShox TwistLoc Ultimate
Max compatible fork travel
120 mm (533 mm axle-to-crown)

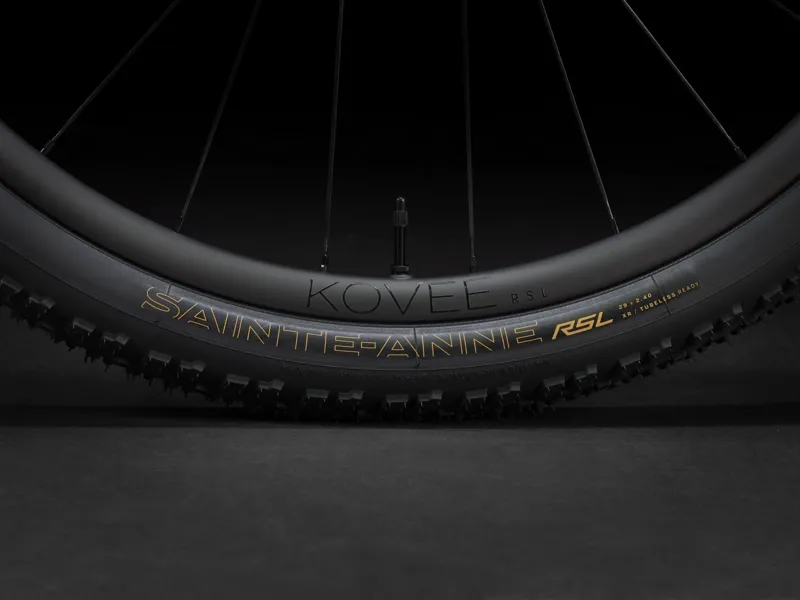

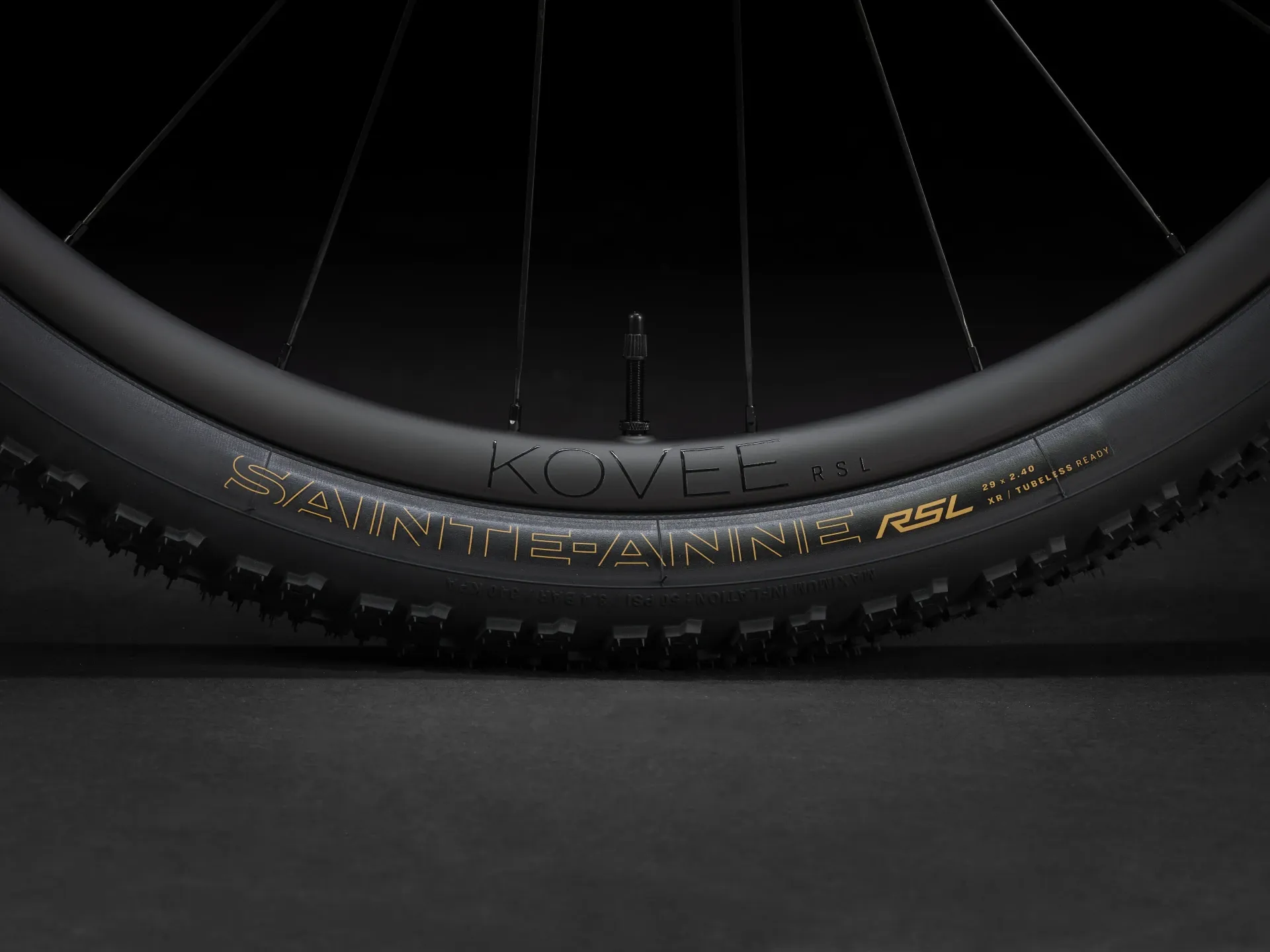

Wheel front
Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost110, 15 mm thru axle
Wheel rear
Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost148, 12 mm thru axle
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
SRAM AXS POD Ultimate

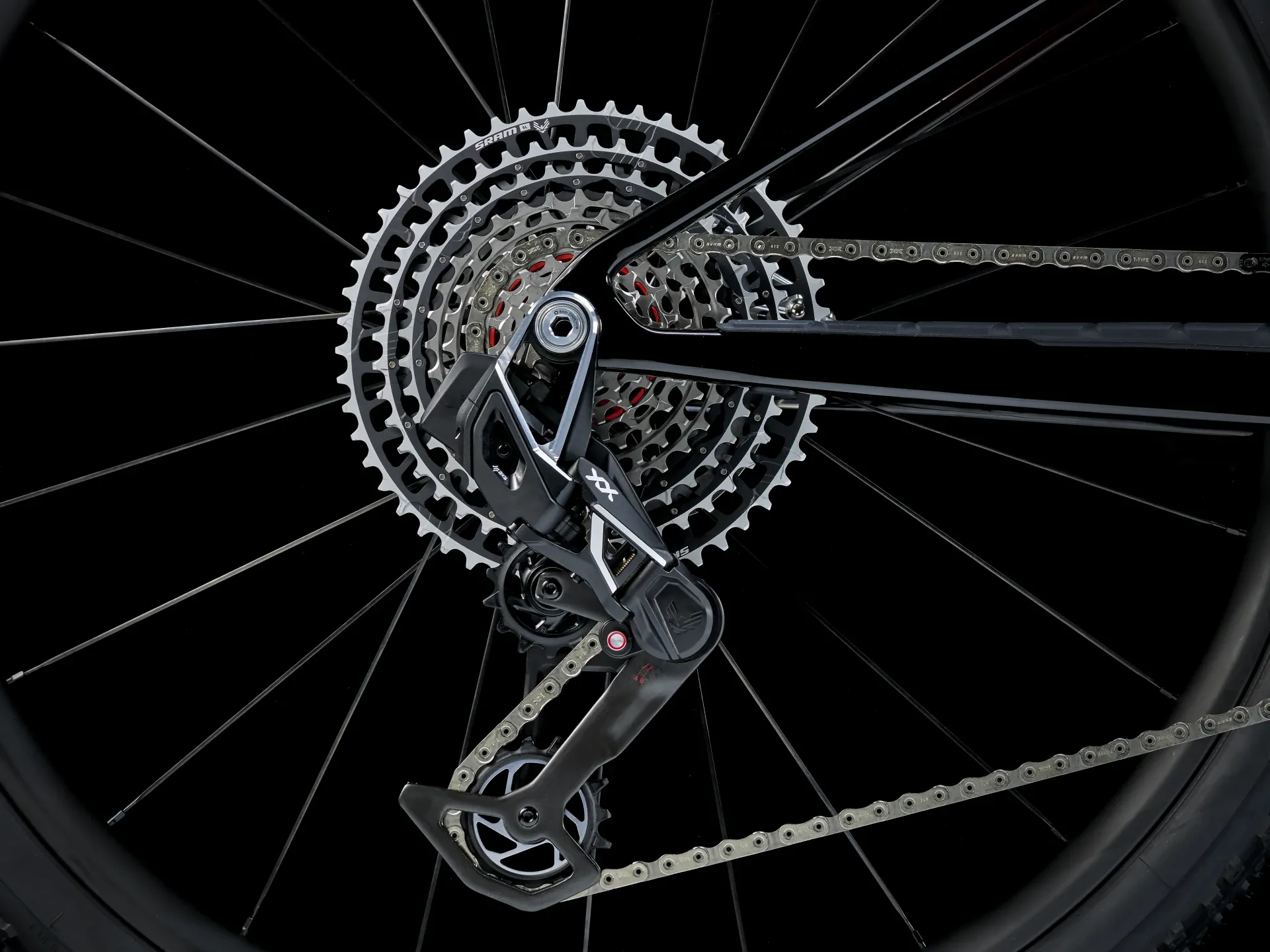

Rear derailleur
SRAM XX SL Eagle AXS, T-Type

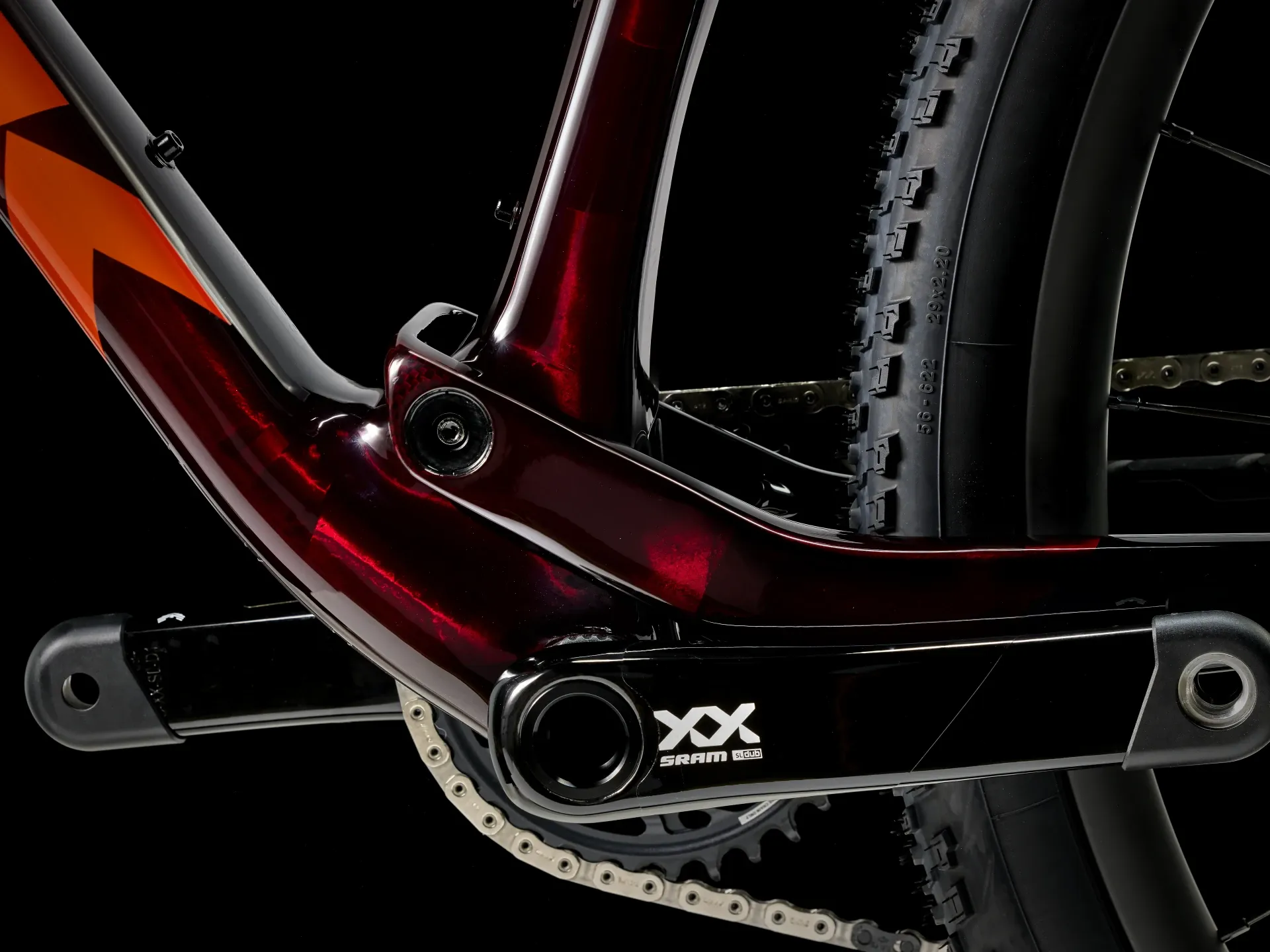

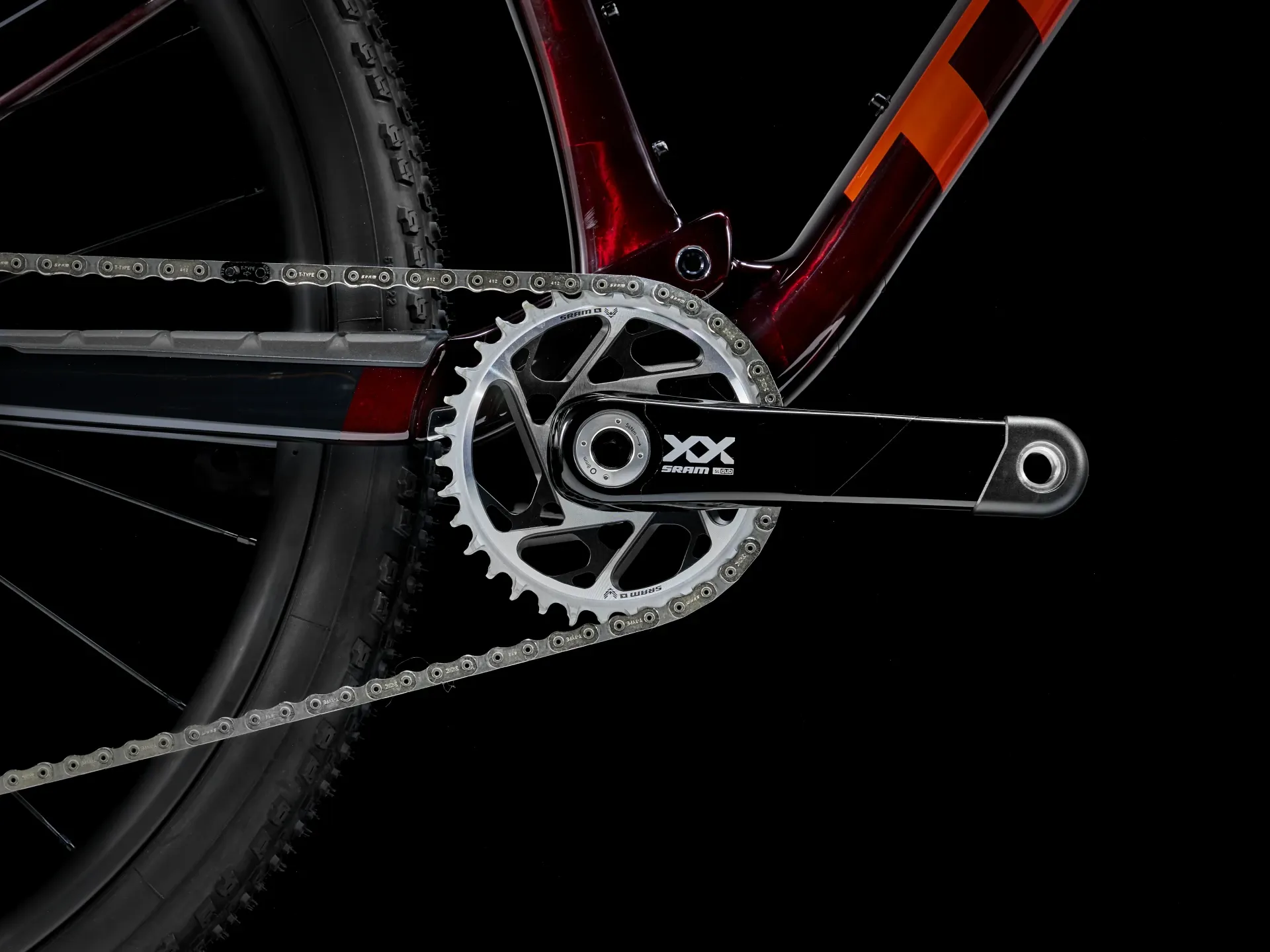

Crank
Size:S, M
SRAM XX SL Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 170 mm length
Size:M/L, L, XL
SRAM XX SL Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 175 mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM Eagle XS-1299, T-Type, 10-52, 12-speed
Chain
SRAM XX Eagle, T-Type, 12-speed
Max. chainring size
1x: 38T, min 30T
Saddle
Aeolus RSL, carbon rails, 145 mm width
Seatpost
Size:S, M
Fox Transfer SL, 100 mm travel, internal routing, 31.6 mm
Size:M/L, L
Fox Transfer SL, 125 mm travel, internal routing, 31.6 mm
Size:XL
Fox Transfer SL, 150 mm travel, internal routing, 31.6 mm

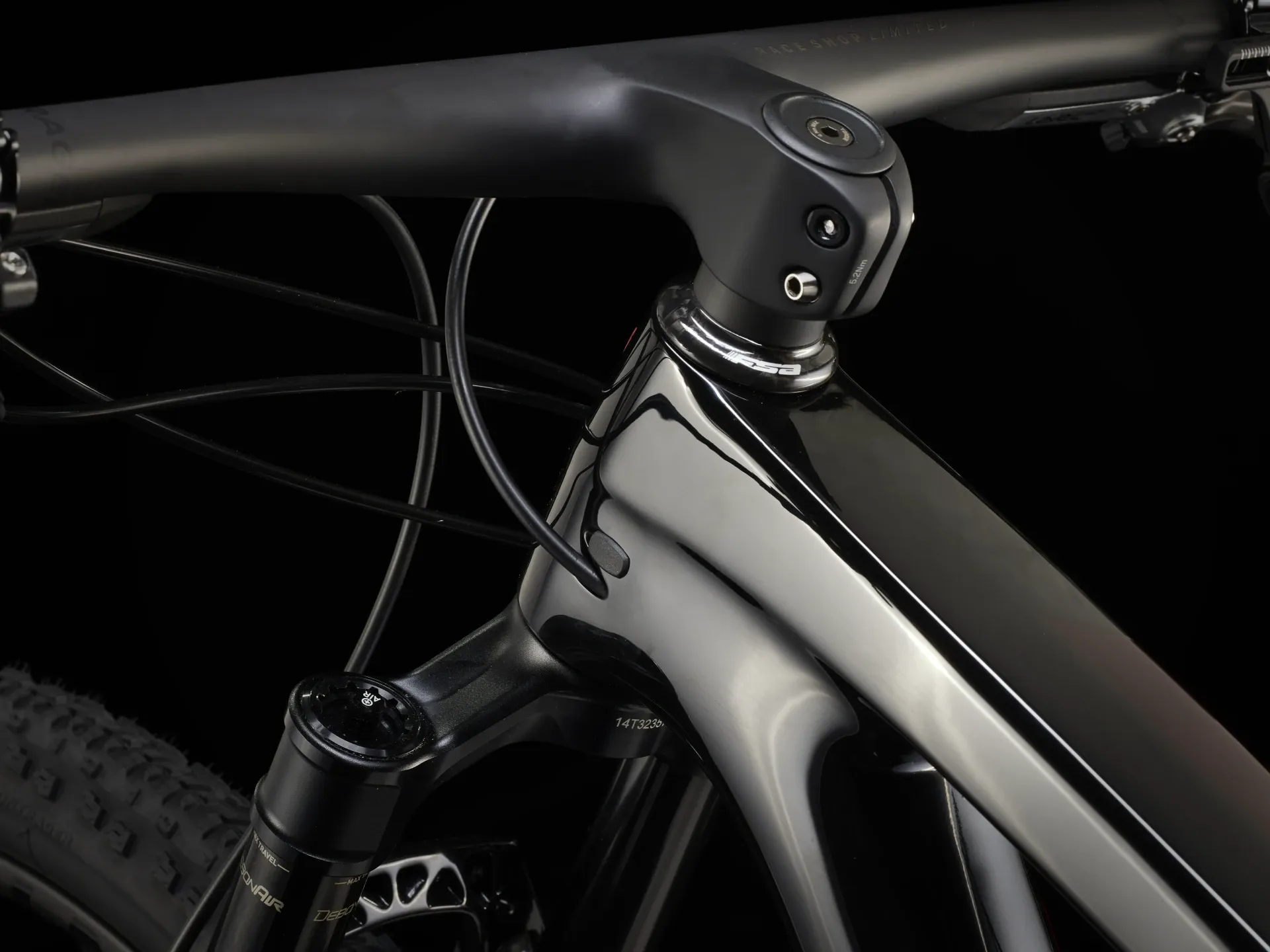

Handlebar/stem (integrated)
Size:S, M, M/L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
Size:L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length
Size:XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM Level Ultimate 4-piston hydraulic disc
Brake rotor
SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Battery
SRAM eTap battery pack (with charger)
Weight
M - 9.45 kg / 20.84 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
