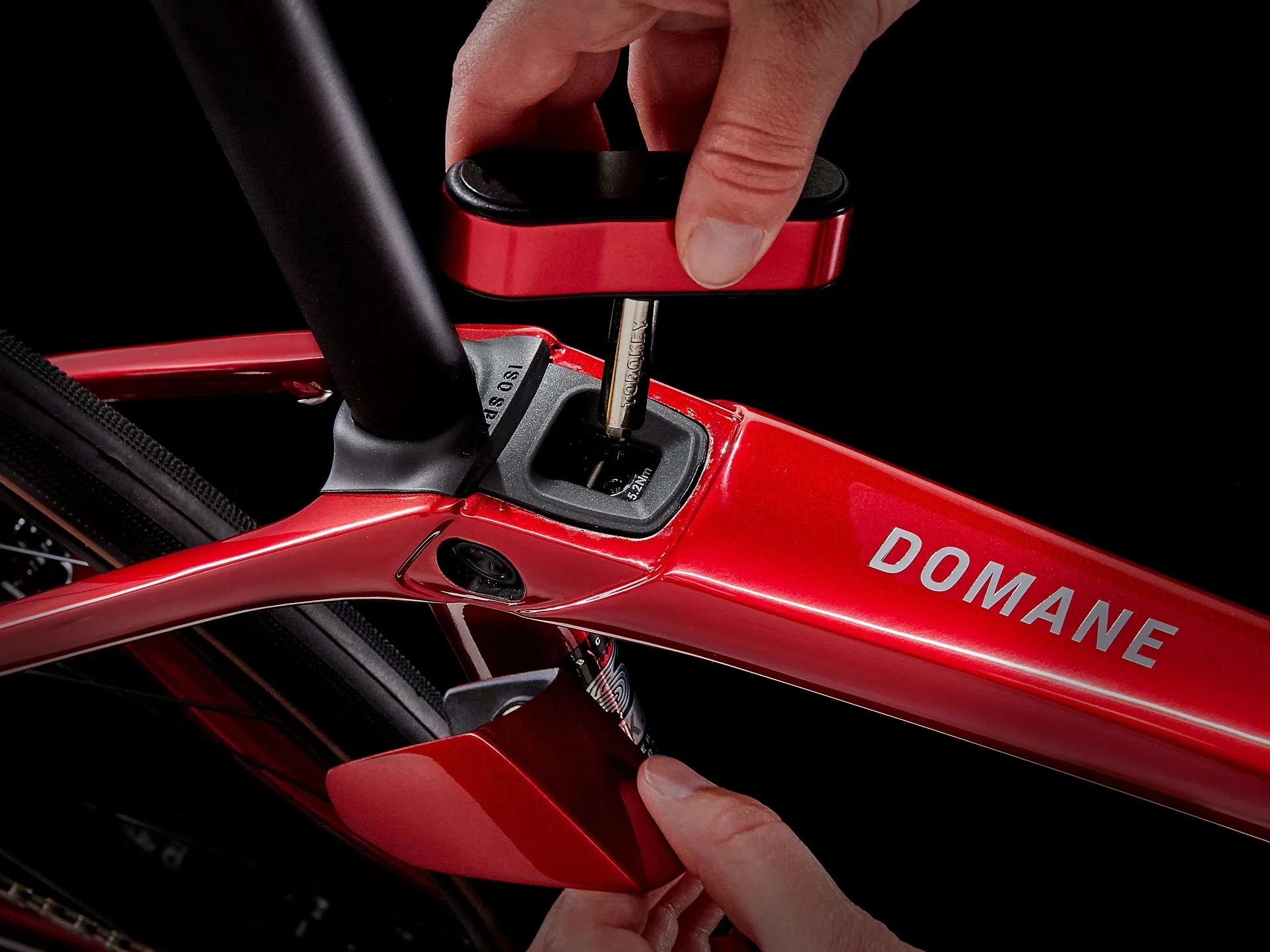

Frame

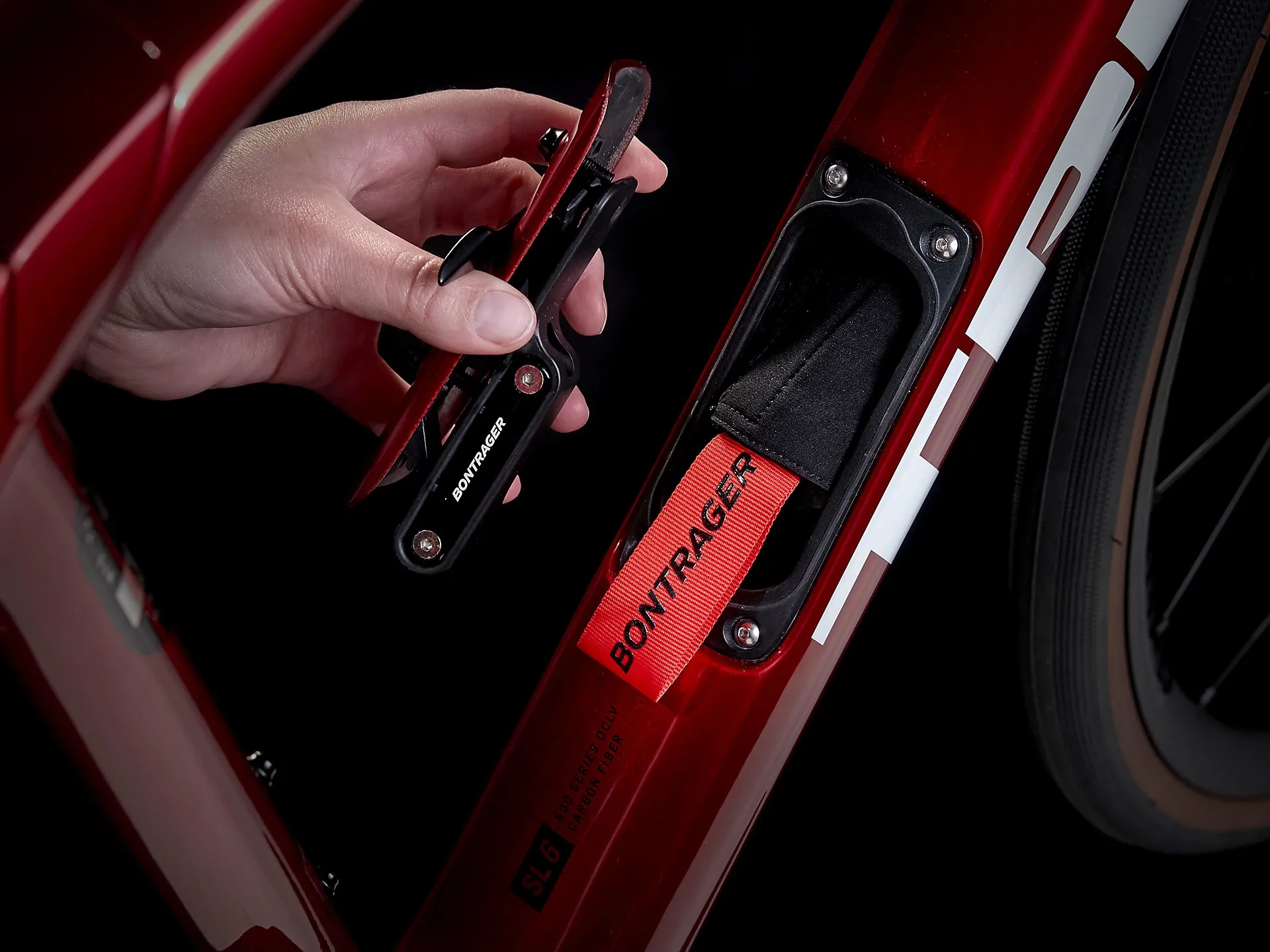

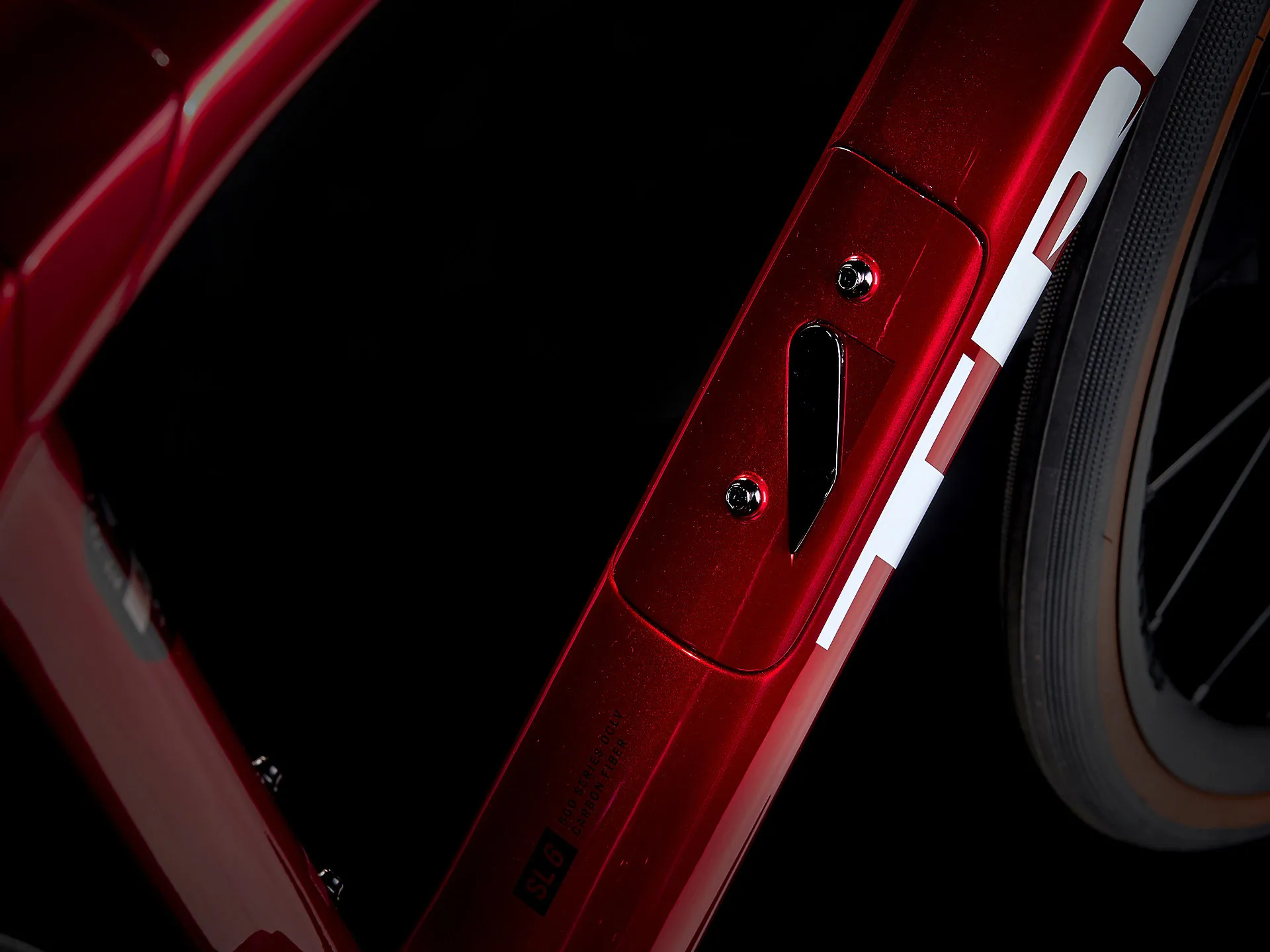

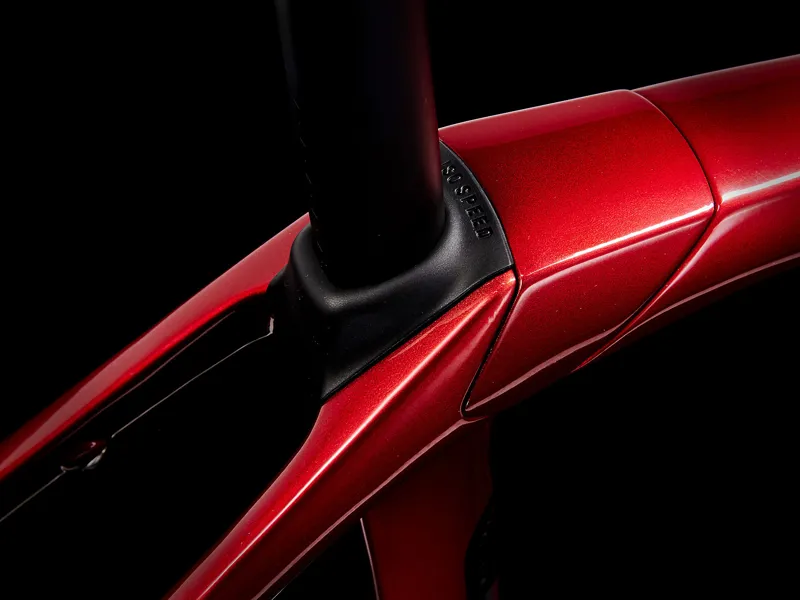

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Hub front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Hub rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R freehub, 142x12 thru axle
Rim
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
SRAM Rival eTap AXS, 12-speed
Front derailleur
SRAM Rival eTap AXS, braze-on
Rear derailleur
SRAM Rival eTap AXS

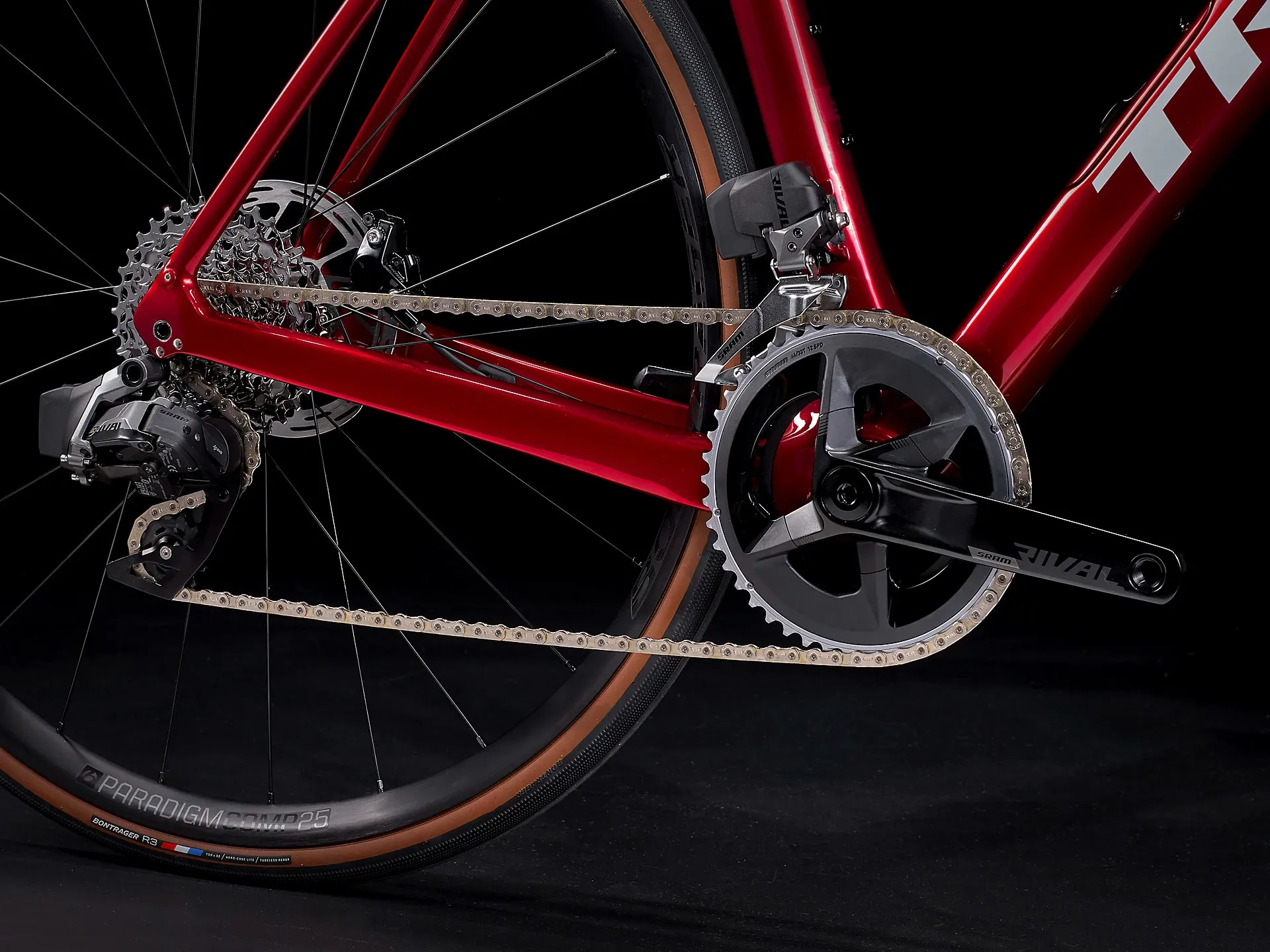

Crank
Size: 44, 47
SRAM Rival, 46/33, DUB, 165 mm length
Size:50, 52
SRAM Rival, 46/33, DUB, 170 mm length
Size:54, 56
SRAM Rival, 46/33, DUB, 172.5 mm length
Size:58, 60, 62
SRAM Rival, 46/33, DUB, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12 speed
Max. chainring size
2x: 52/36
Saddle
Size: 44, 47, 50, 52
Bontrager Verse Short Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Short Comp, steel rails, 145 mm width
Seatpost
Size: 44, 47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size:58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length

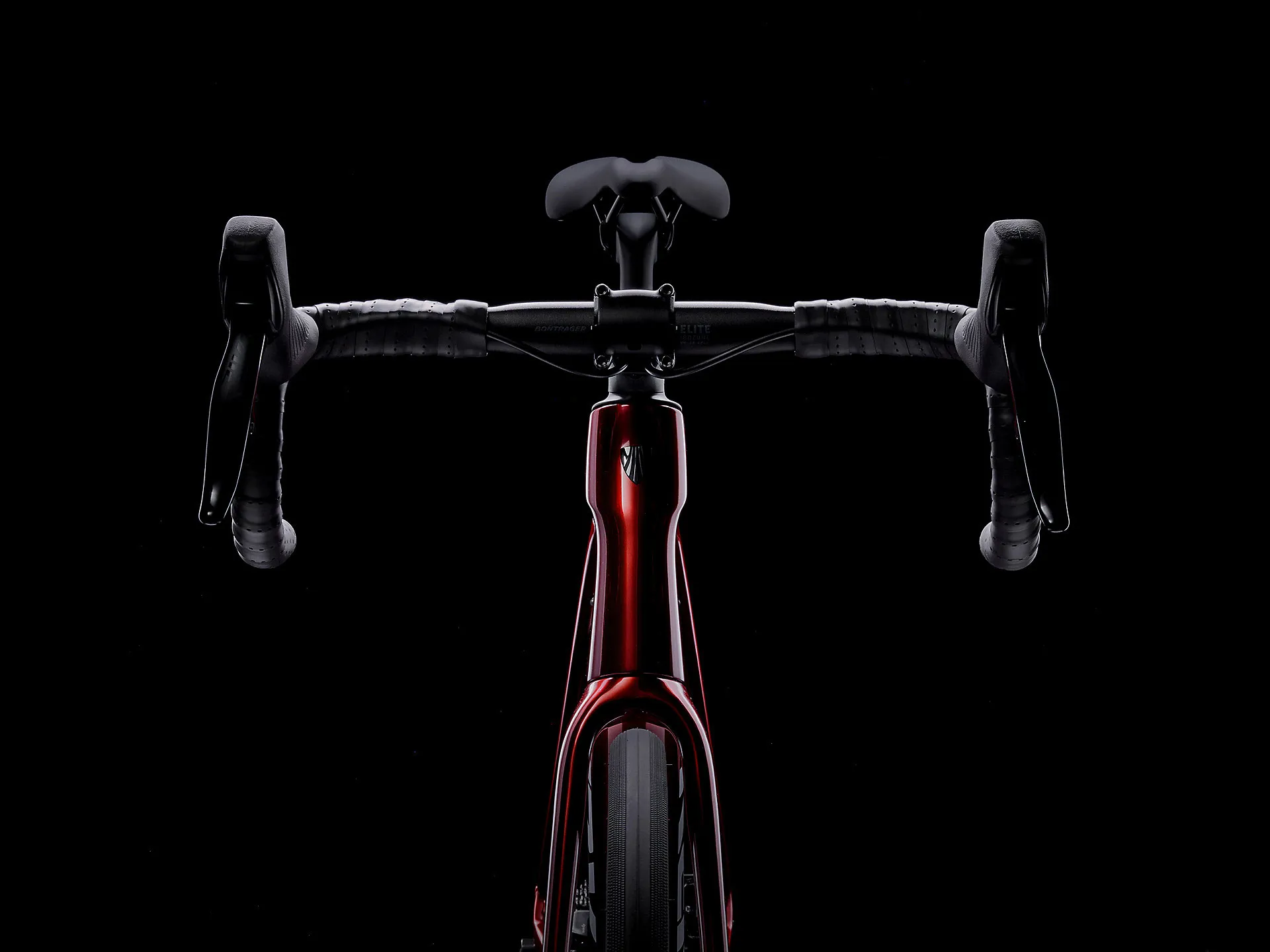

Handlebar
Size: 44, 47
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width
Size:50
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
Size:52
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
Size:54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
Size:58, 60, 62
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape

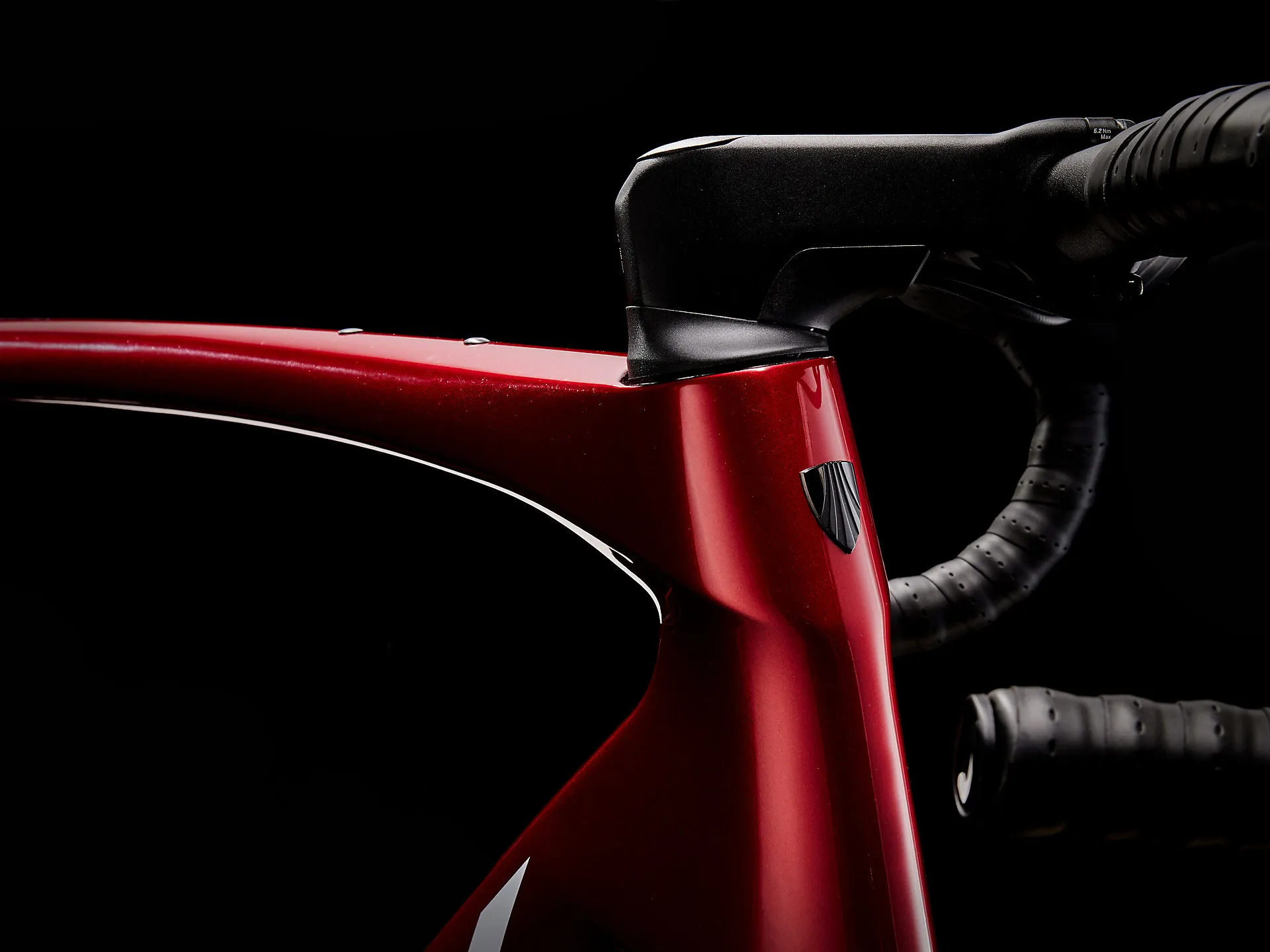

Stem
Size: 44
Bontrager RCS Pro, -7-degree, 60mm length
Size:47
Bontrager RCS Pro, -7-degree, 70mm length
Size:50
Bontrager RCS Pro, -7-degree, 80mm length
Size:52, 54
Bontrager RCS Pro, -7-degree, 90mm length
Size:56, 58
Bontrager RCS Pro, -7-degree, 100mm length
Size:60, 62
Bontrager RCS Pro, -7-degree, 110mm length

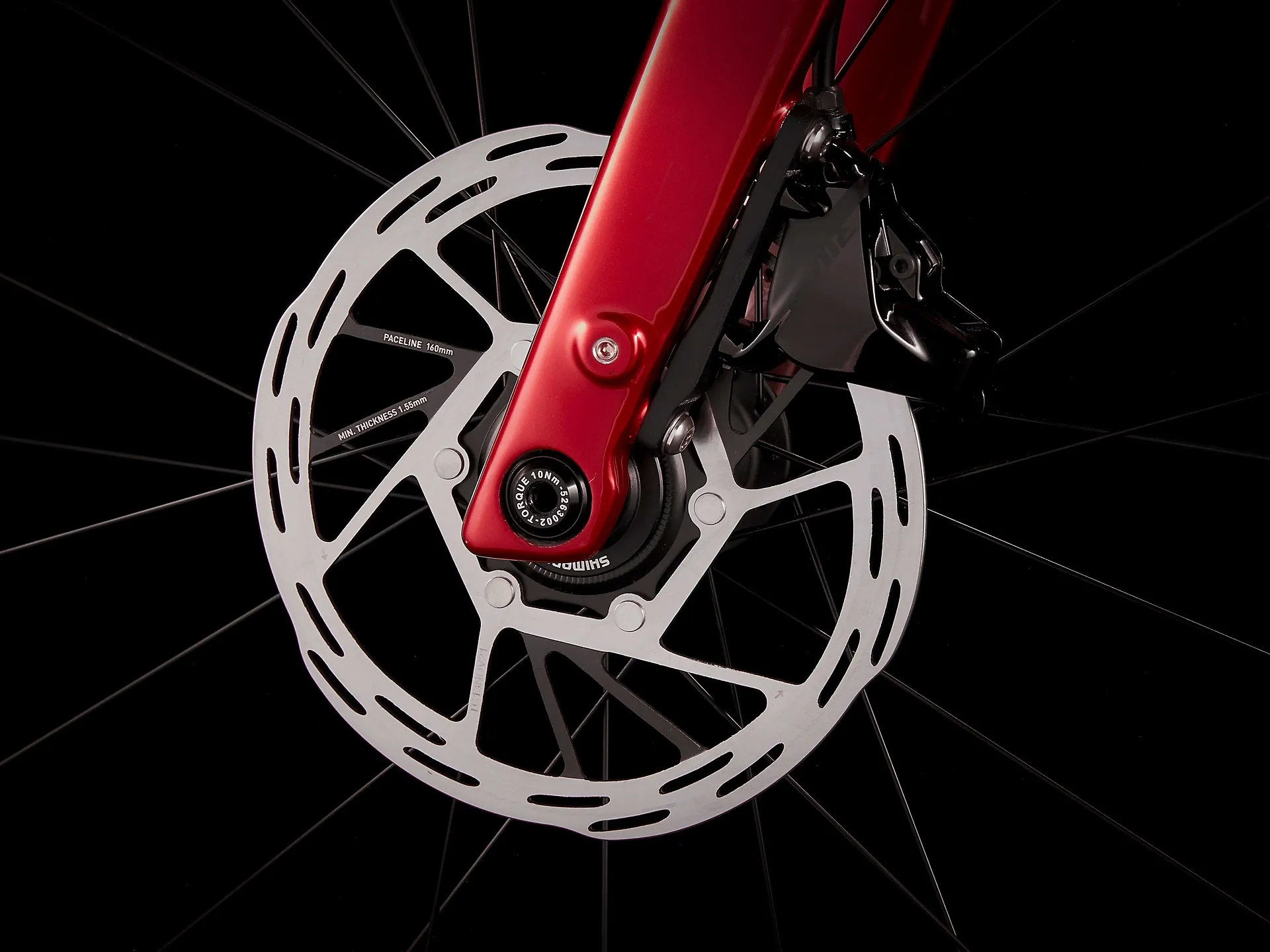

Brake rotor
SRAM Paceline, rounded, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)
Weight
56 - 8.89 kg/19.61 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
