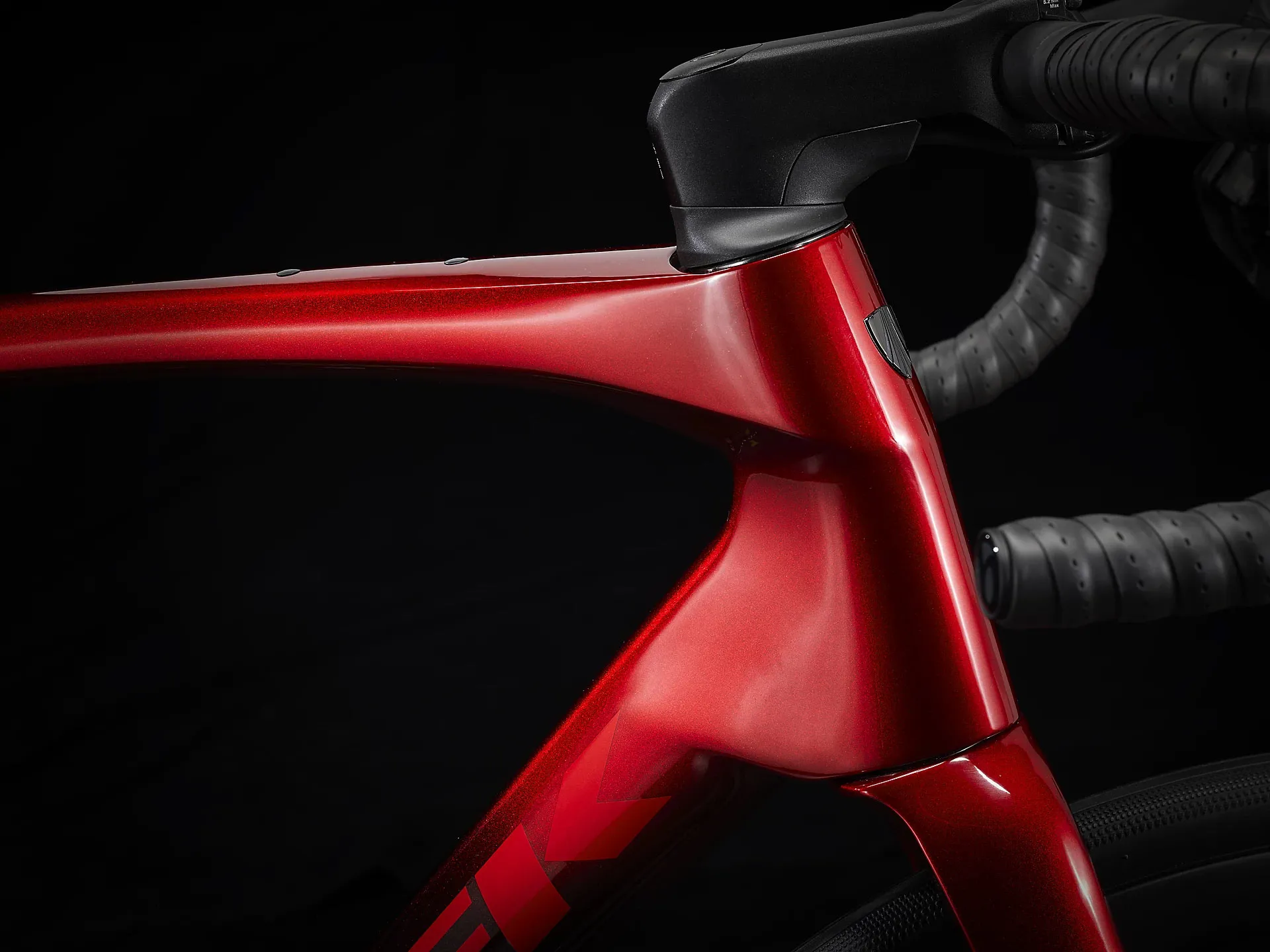

Frame

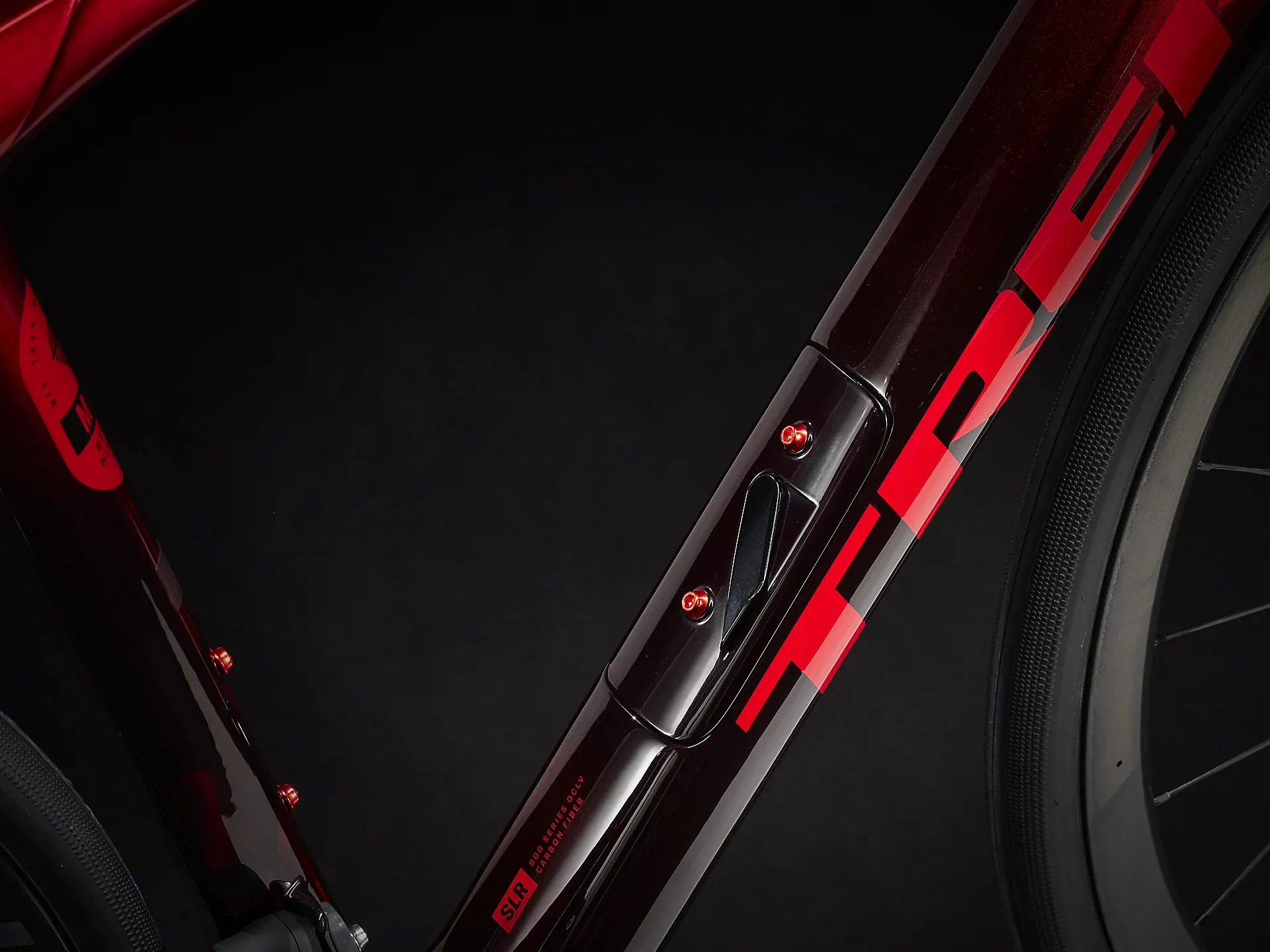

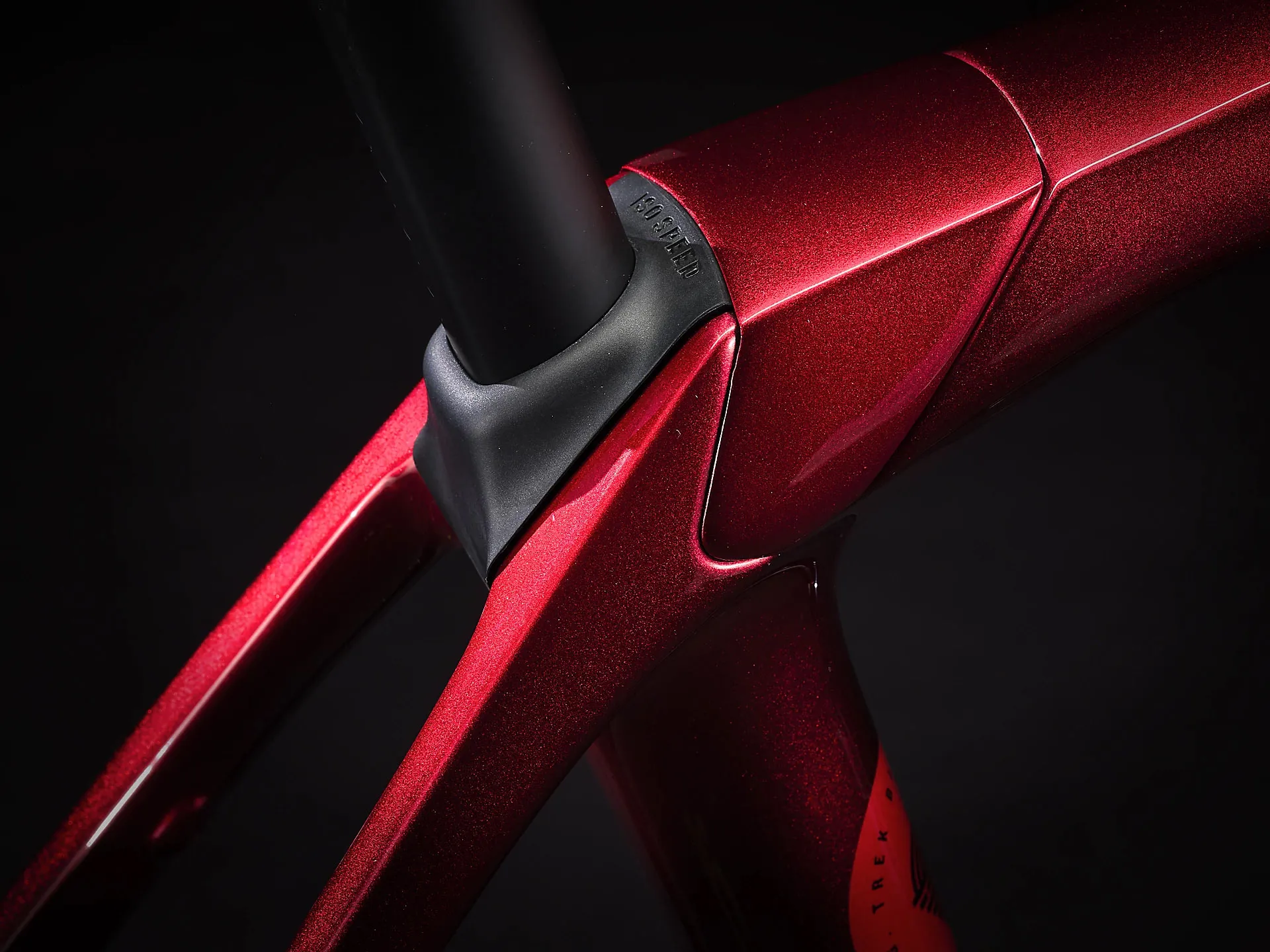

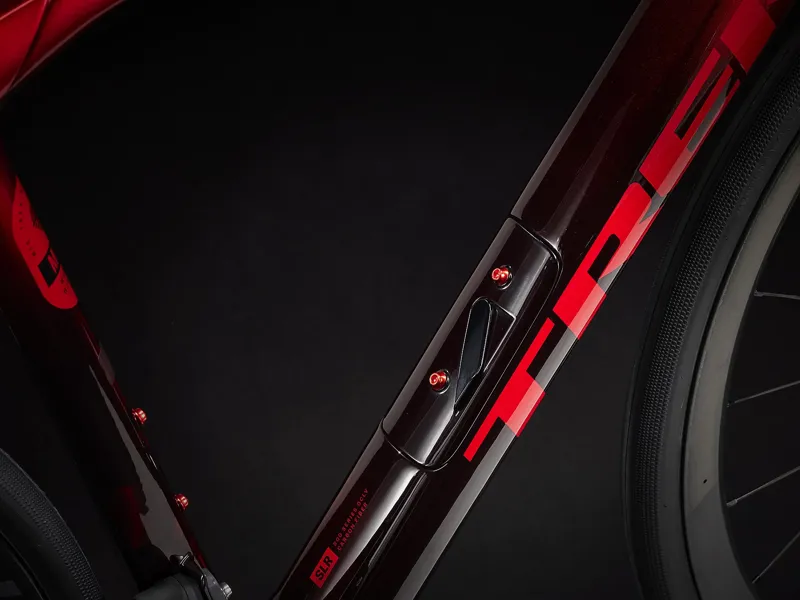

800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12mm thru axle
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager Aeolus XXX rim strip
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
SRAM Force eTap AXS, 12-speed
Front derailleur
SRAM Force eTap AXS, braze-on
Rear derailleur
SRAM Force eTap AXS, 36T max cog

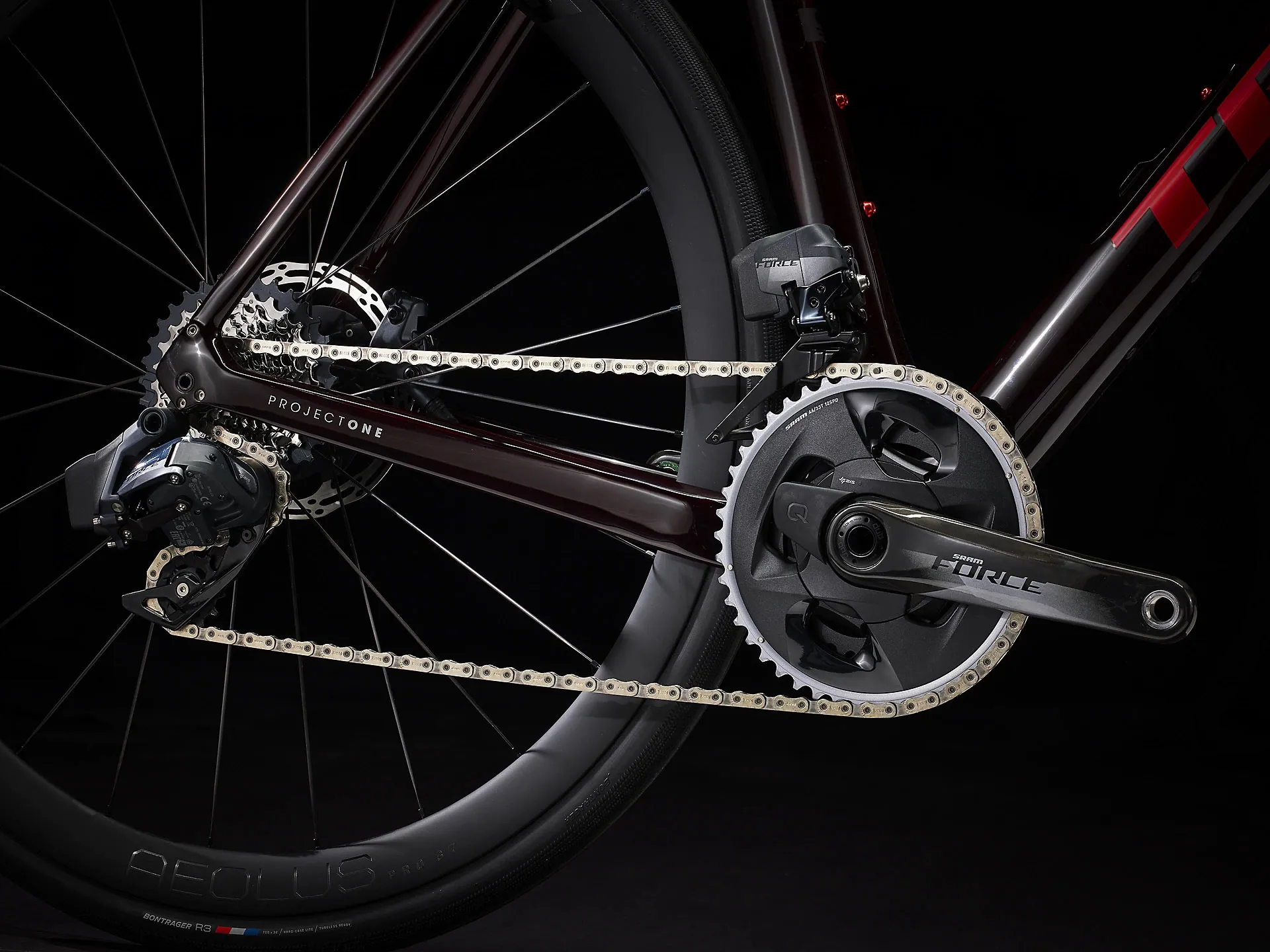

Crank
Size: 47
SRAM Force AXS Power Meter, 46/33, DUB, 165mm length
Size:50, 52
SRAM Force AXS Power Meter, 46/33, DUB, 170mm length
Size:54, 56
SRAM Force AXS Power Meter, 46/33, DUB, 172.5mm length
Size:58, 60, 62
SRAM Force AXS Power Meter, 46/33, DUB, 175mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Chain
SRAM Force, 12 speed
Max. chainring size
2x: 52/36
Saddle
Size: 47, 50, 52
Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Short Elite, hollow stainless steel rails, 145 mm width

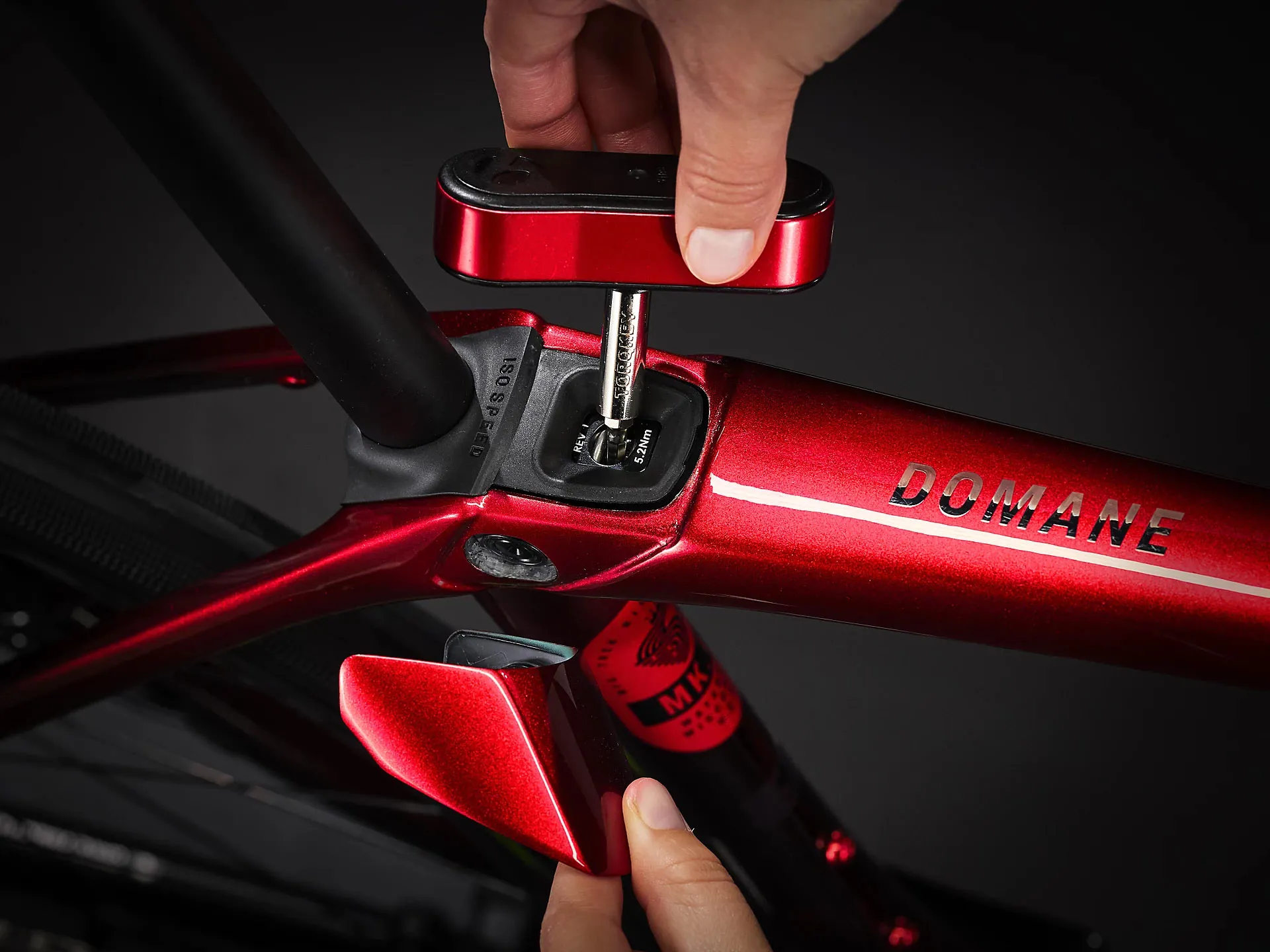

Seatpost
Size:47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size:58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length

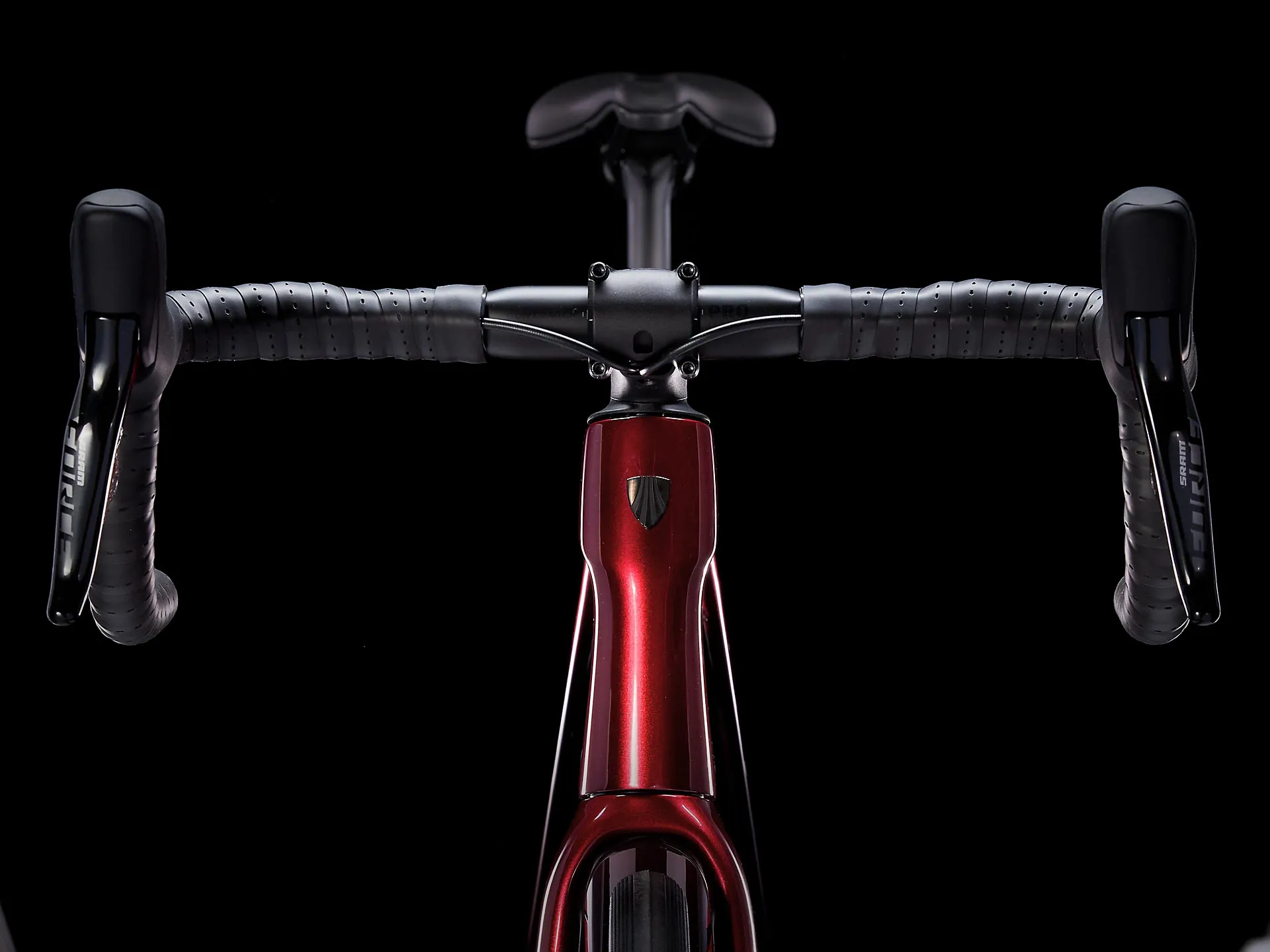

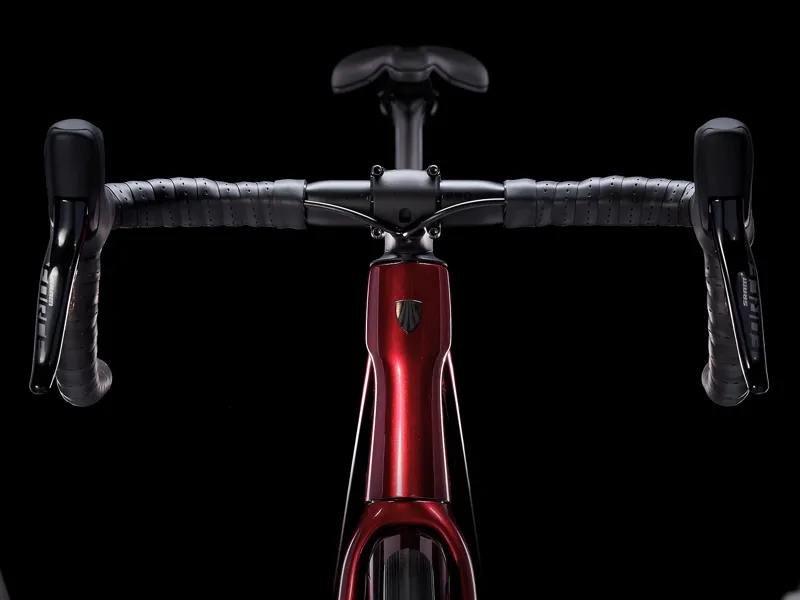

Handlebar
Size: 47
Bontrager Pro IsoCore VR-SF, 38cm
Size:50, 52
Bontrager Pro IsoCore VR-SF, 40cm
Size:54, 56
Bontrager Pro IsoCore VR-SF, 42cm
Size:58, 60, 62
Bontrager Pro IsoCore VR-SF, 44 cm
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 47
Bontrager RCS Pro, -7-degree, 70mm length
Size:50
Bontrager RCS Pro, -7-degree, 80mm length
Size:52, 54
Bontrager RCS Pro, -7-degree, 90mm length
Size:56, 58
Bontrager RCS Pro, -7-degree, 100mm length
Size:60, 62
Bontrager RCS Pro, -7-degree, 110mm length
Brake
SRAM Force eTap AXS hydraulic disc

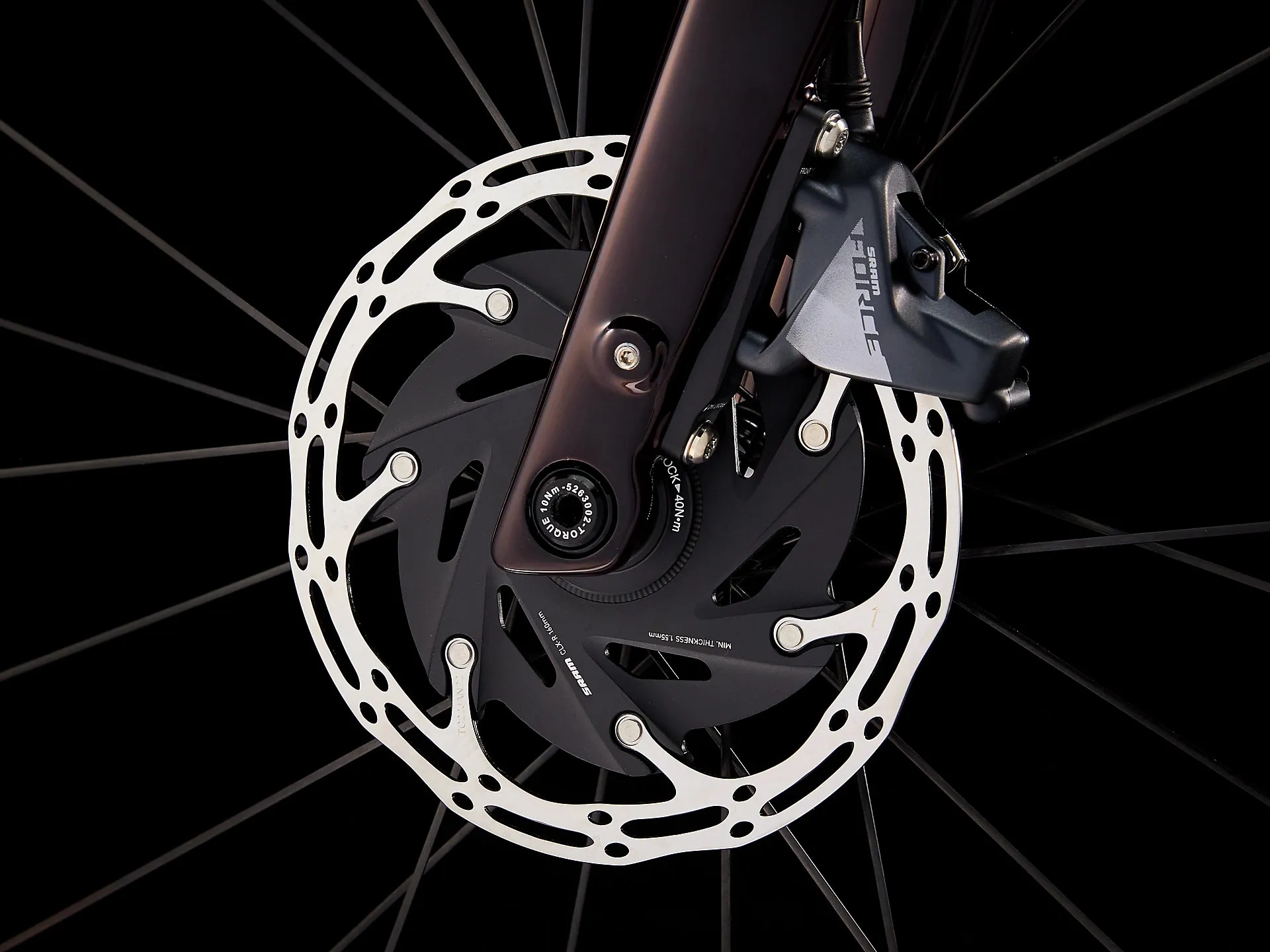

Brake rotor
SRAM CenterLine X, CenterLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)

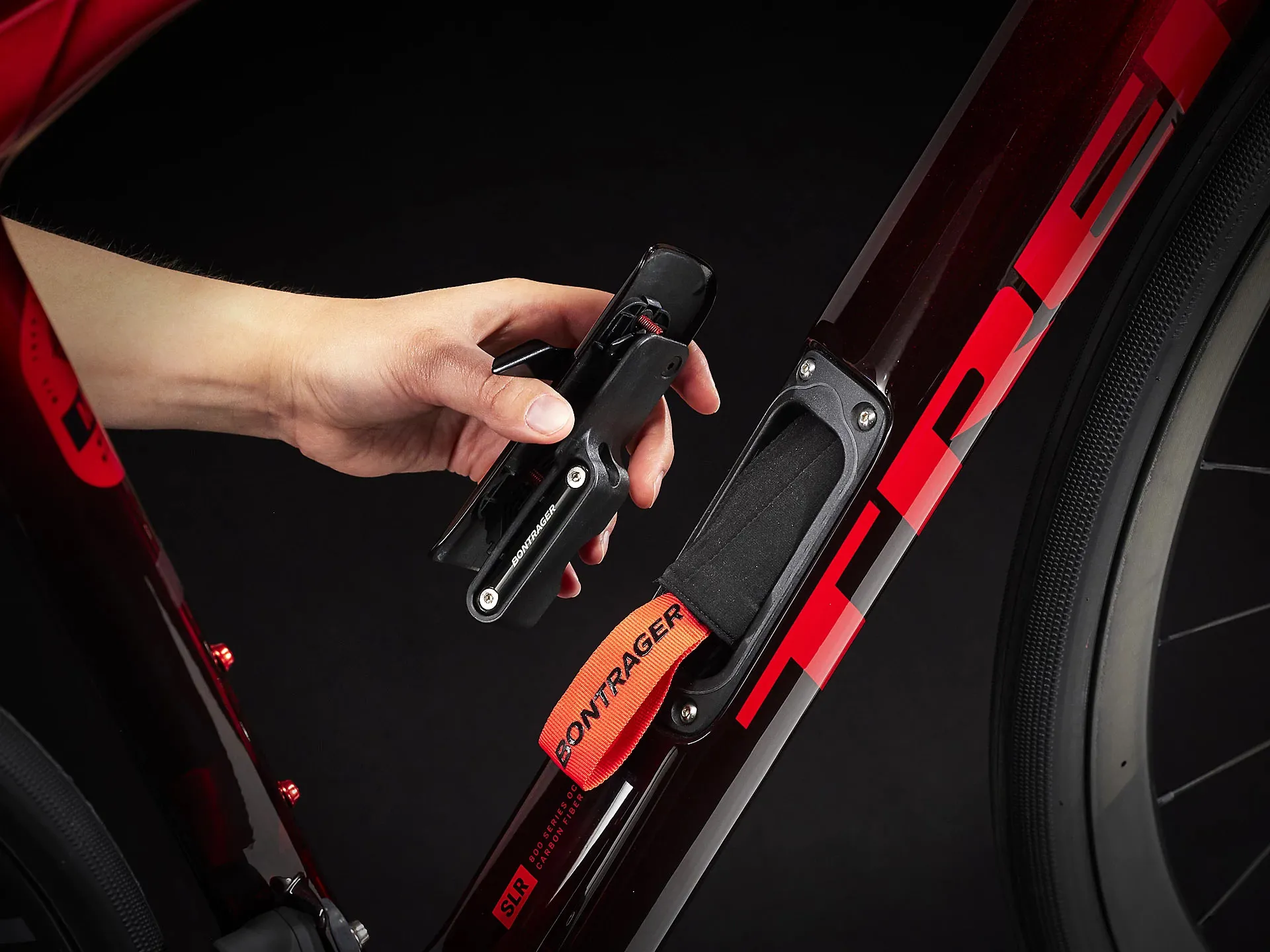

Bag
Bontrager BITS Internal Frame Storage Bag
Weight
56 - 8.38 kg / 18.48 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
