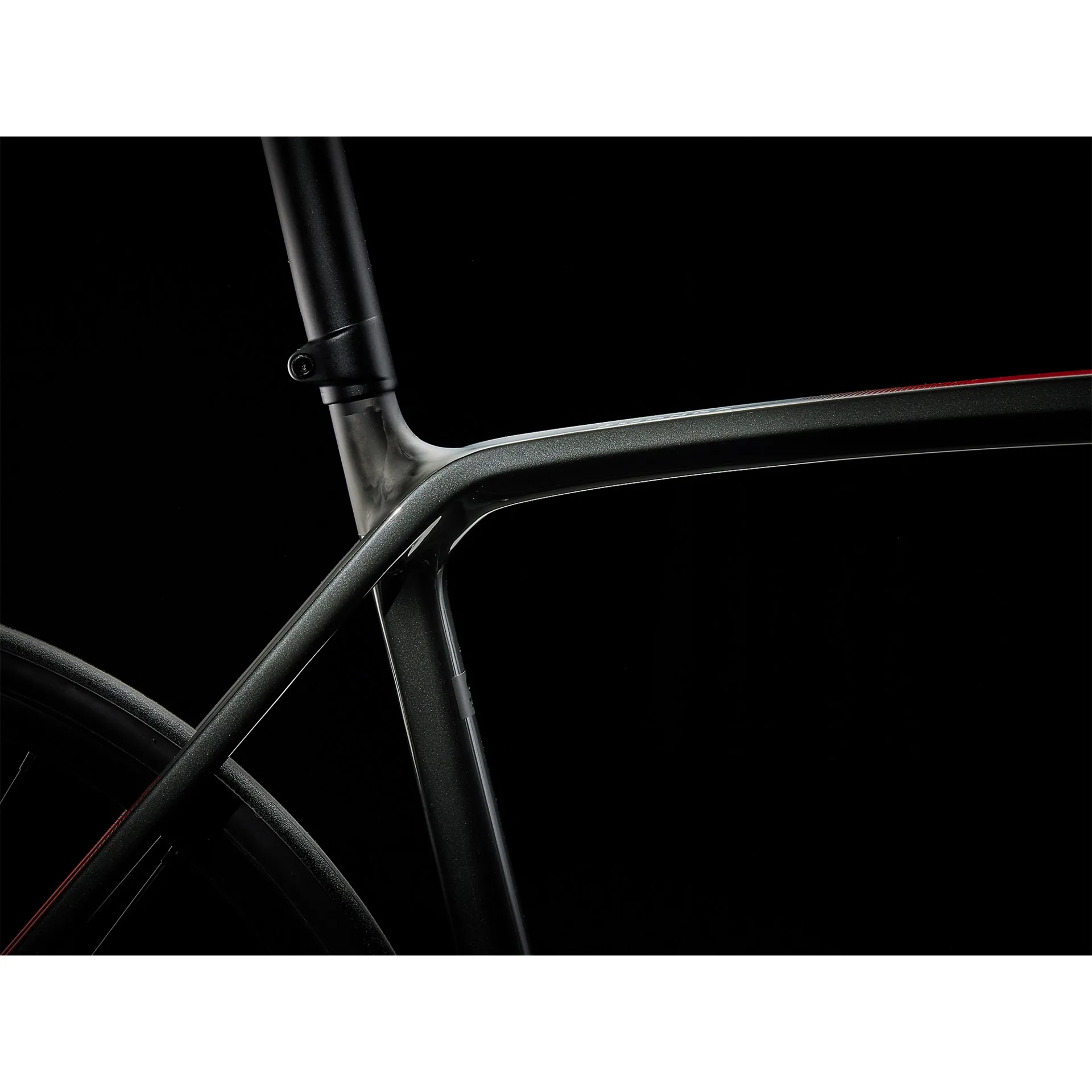

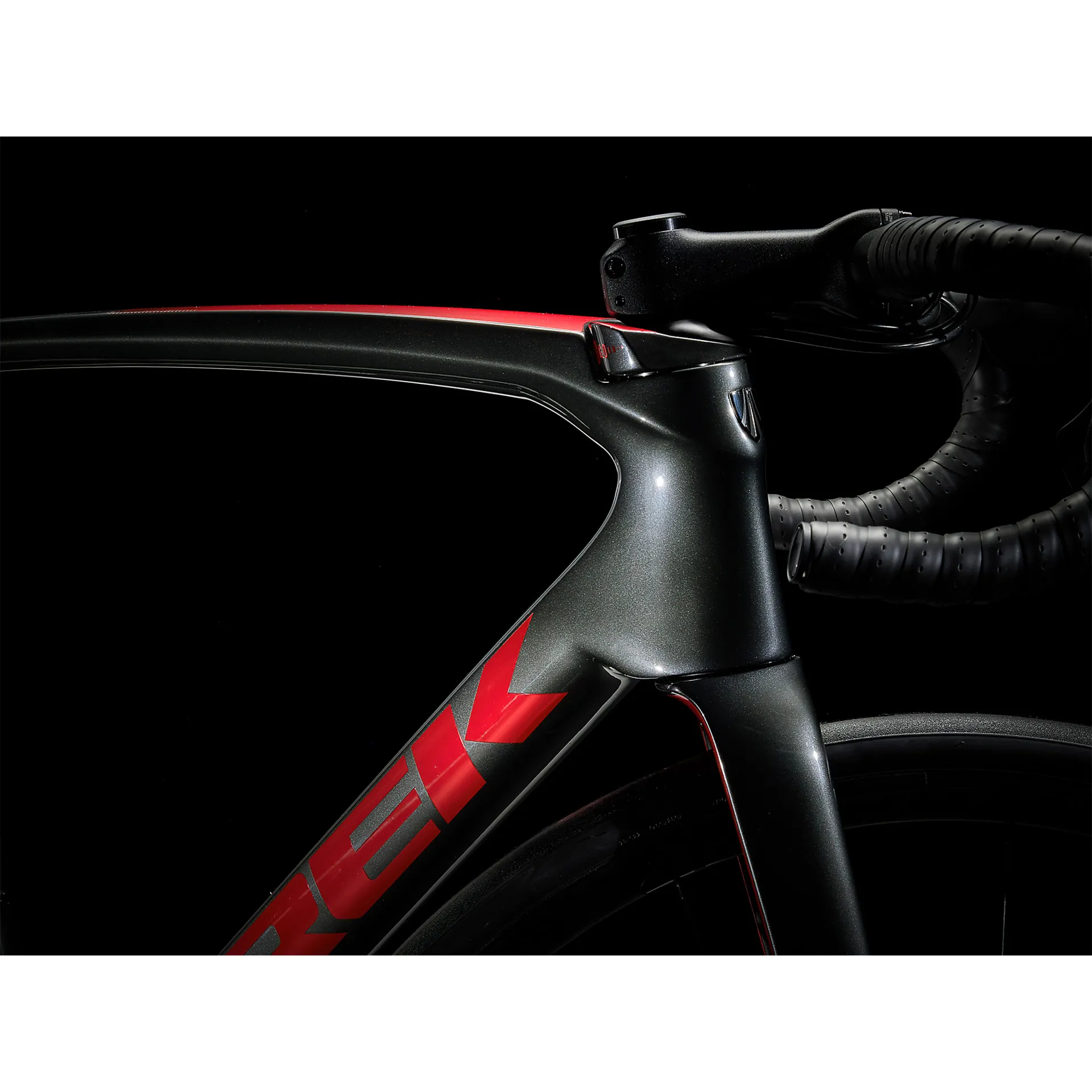

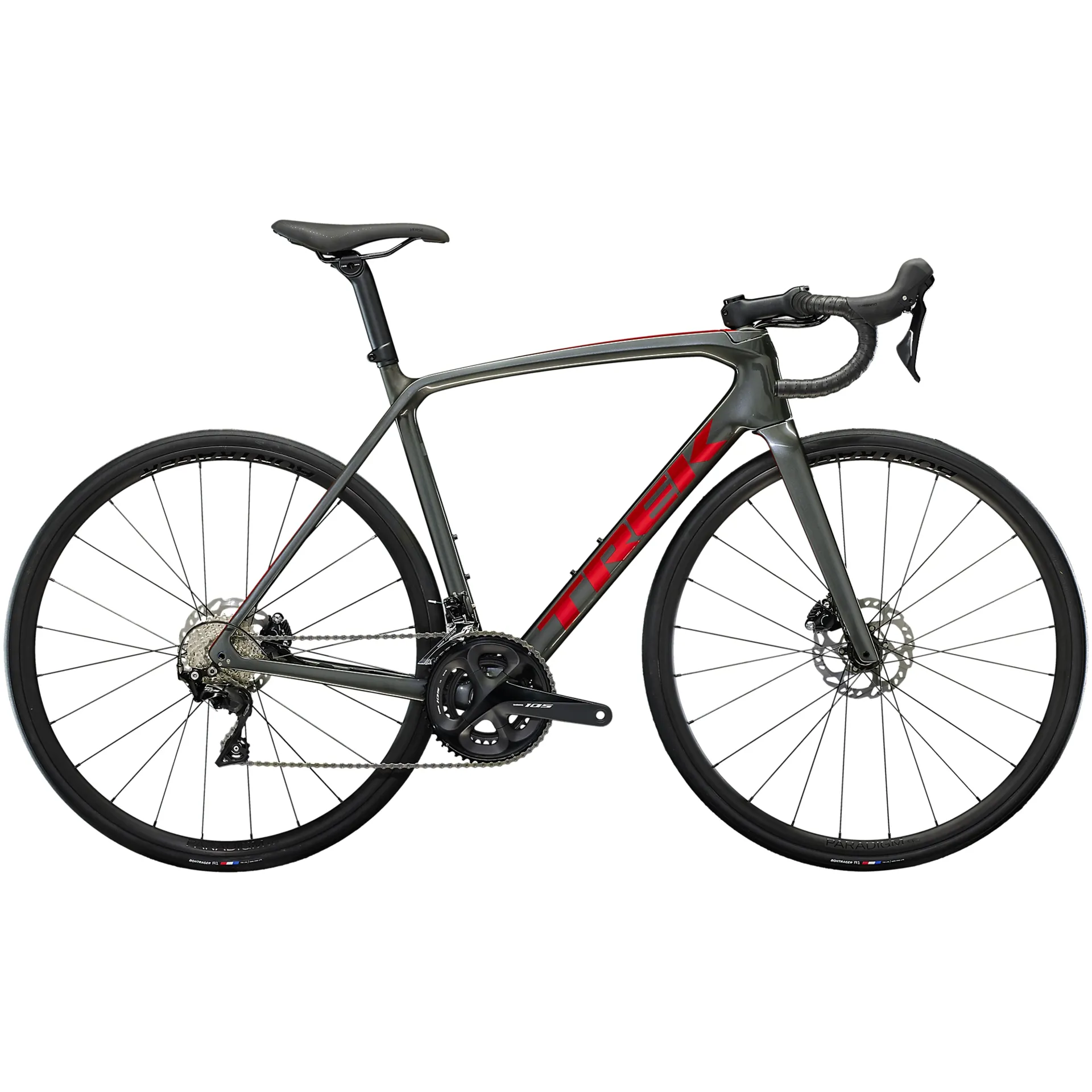

Frame
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Frame fit
H1.5 Race
Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 c
Max tyre size
28c
Shifter
Size: 47, 50, 52
Shimano 105 R7025, short-reach lever, 11-speed
Size:54, 56, 58, 60, 62
Shimano 105 R7020, 11-speed
Front derailleur
Shimano 105 R7000, braze-on

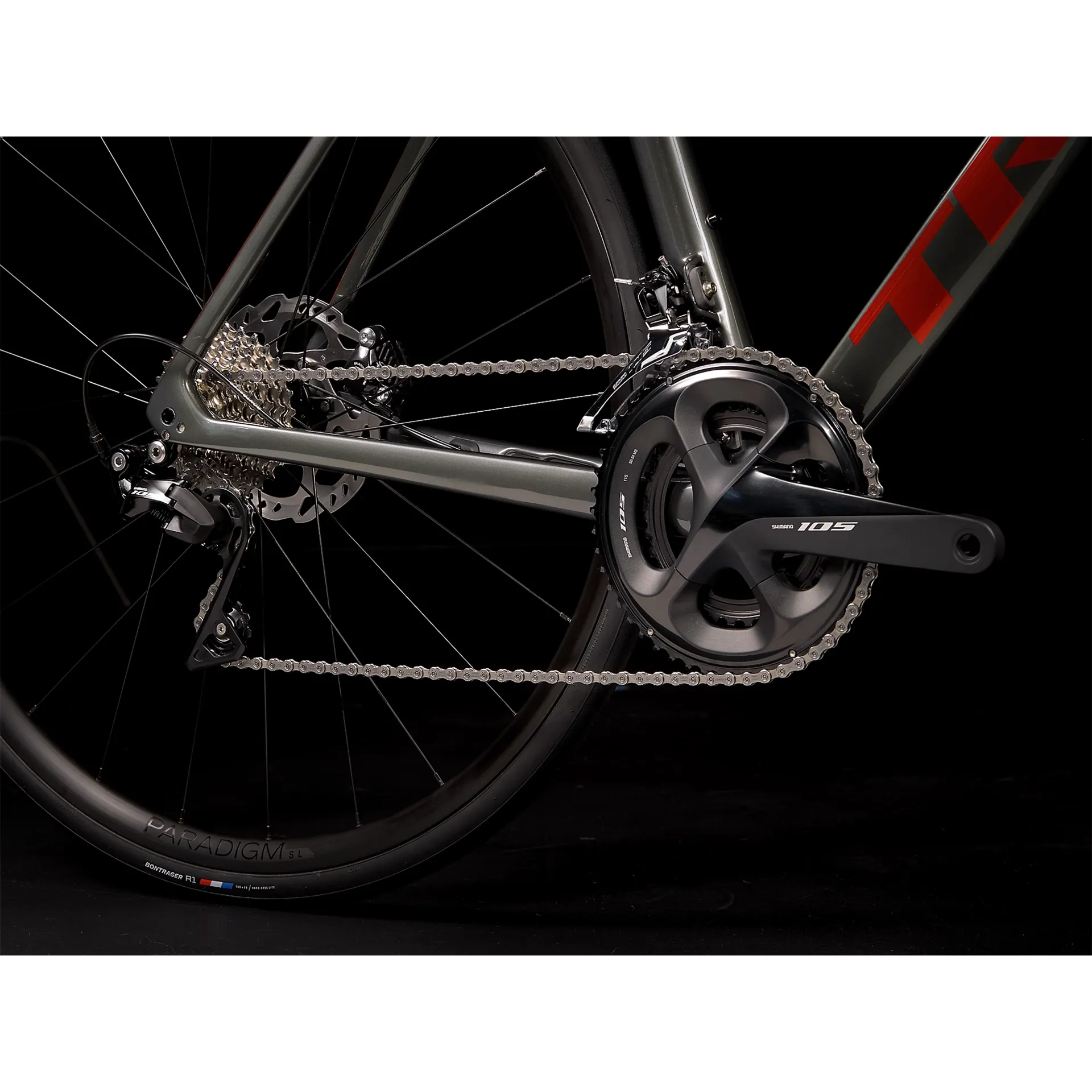

Rear derailleur
Shimano 105 R7000, short cage, 30T max cog
Crank
Size: 47
Shimano 105 R7000, 50/34 (compact), 165 mm length
Size:50, 52
Shimano 105 R7000, 50/34 (compact), 170 mm length
Size:54, 56, 58
Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Size:60, 62
Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 R7000, 11-30, 11 speed
Chain
Shimano 105 HG601, 11-speed
Max. chainring size
1x: 50T, 2x: 53/39
Saddle
Size: 47, 50, 52
Bontrager Verse Short Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Short Comp, steel rails, 145 mm width
Seatpost
Size:47, 50, 52, 54
Bontrager alloy seat mast cap, 10 mm offset, short length
Size:56, 58, 60, 62
Bontrager alloy seat mast cap, 10 mm offset, tall length

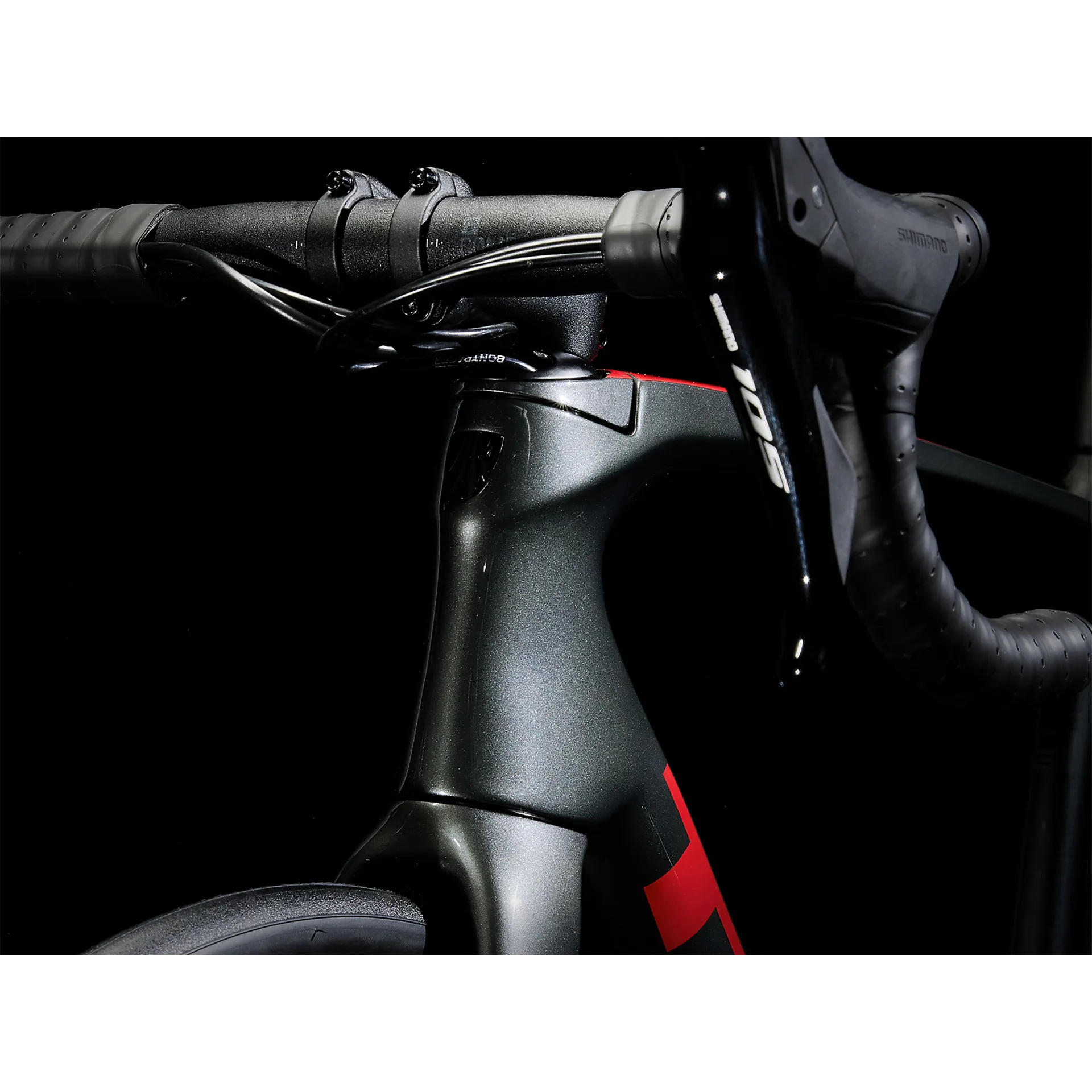

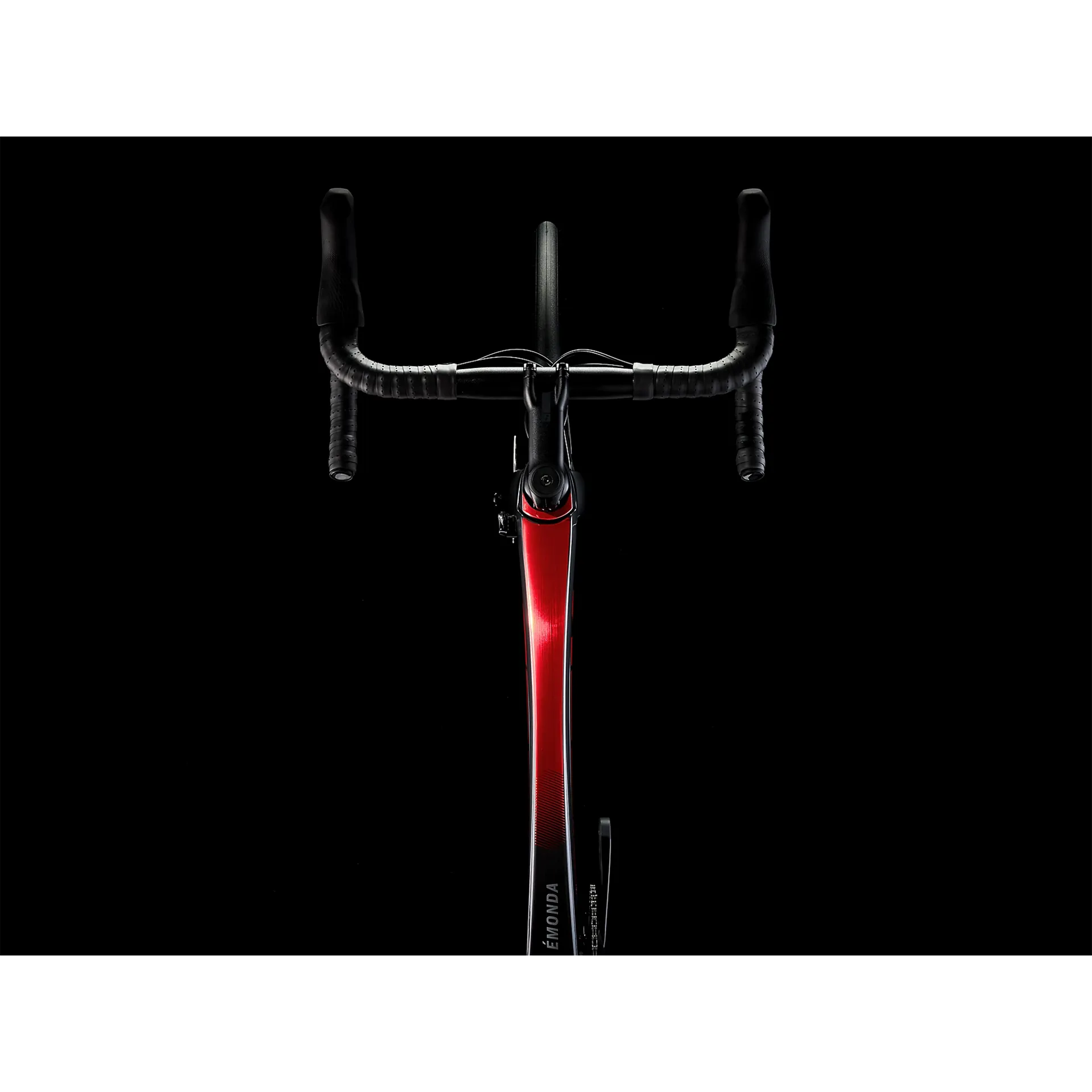

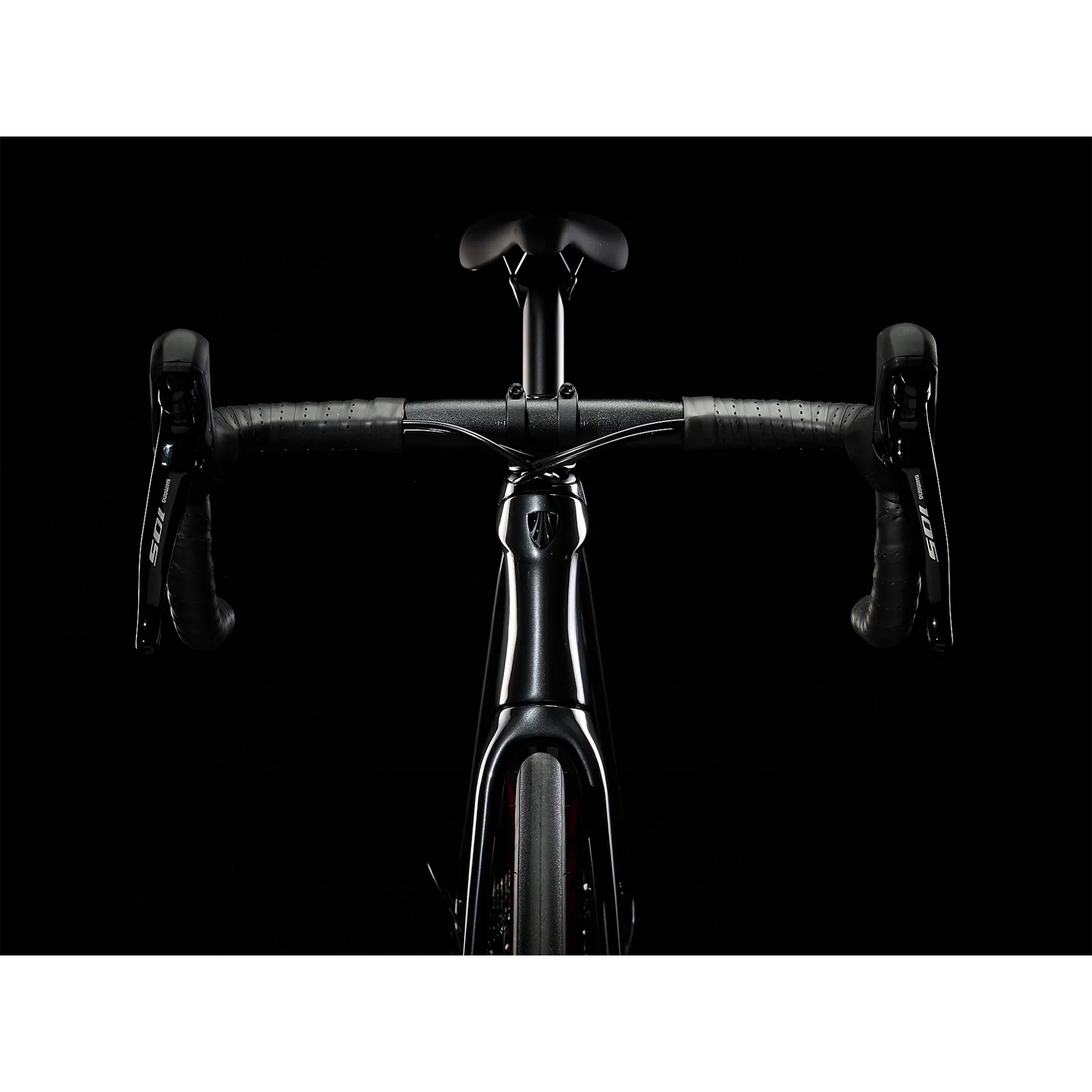

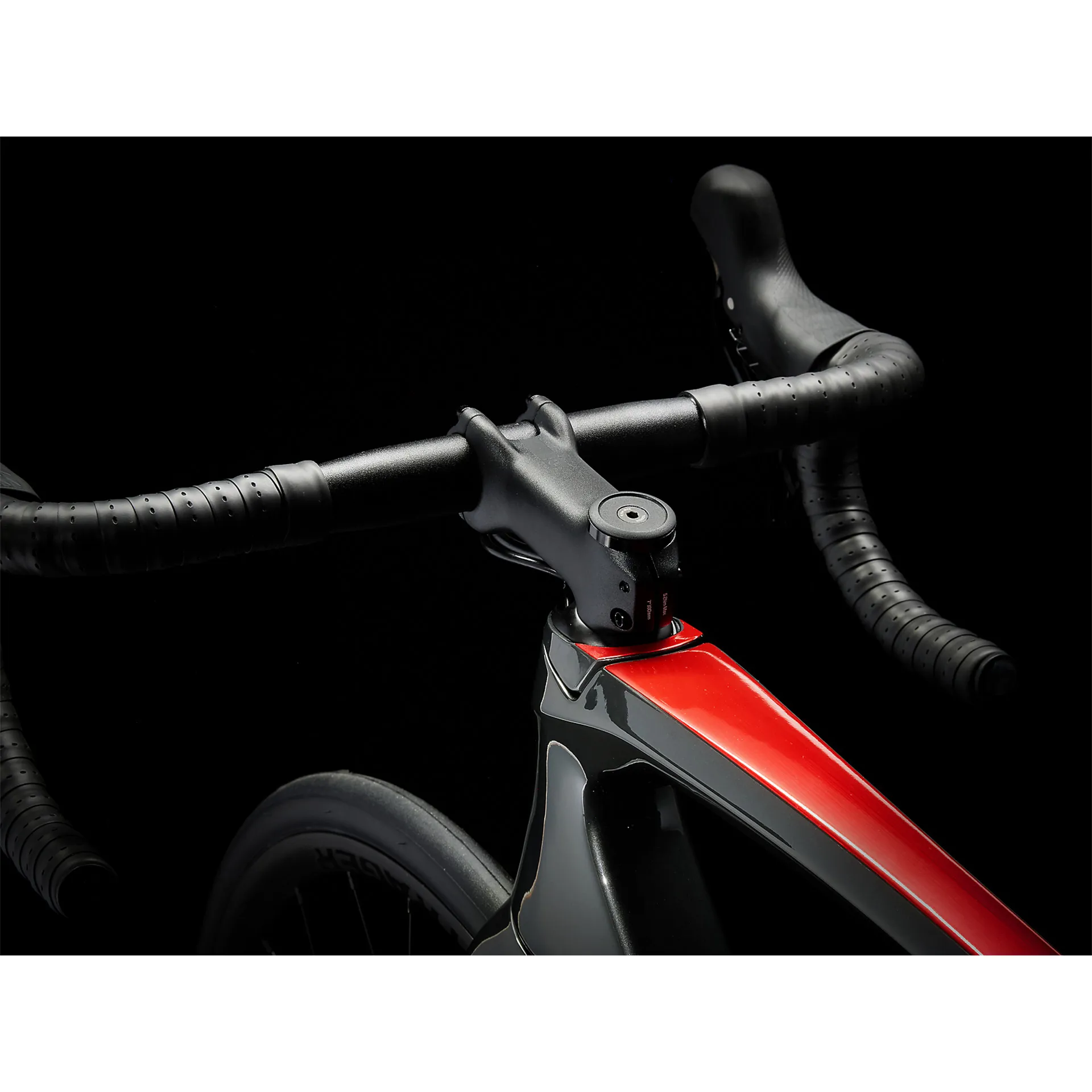

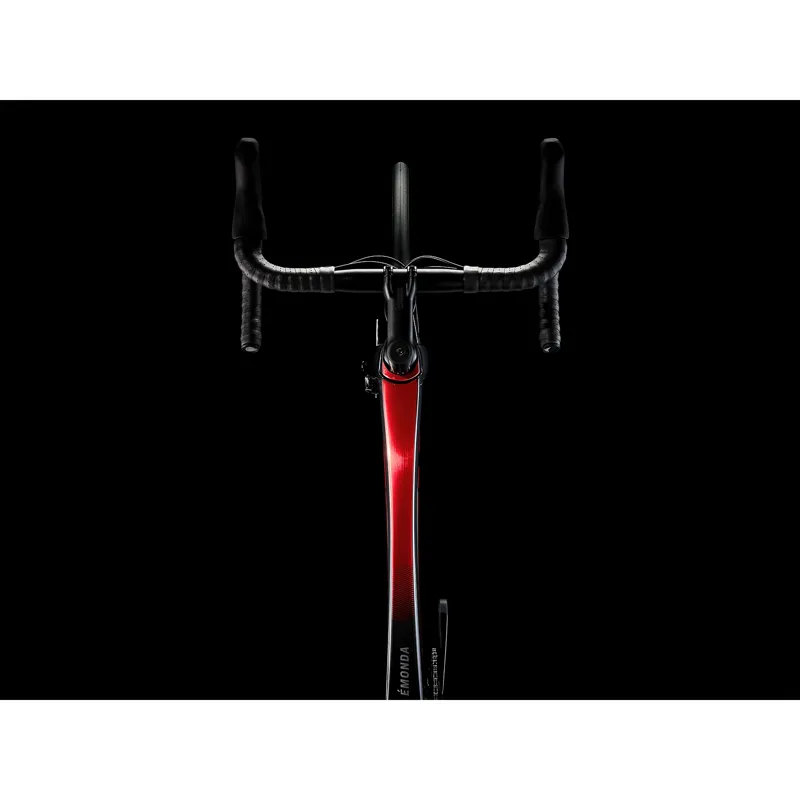

Handlebar
Size: 47, 50
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width
Size:52
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
Size:54, 56, 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size:60, 62
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 47
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:58, 60, 62
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

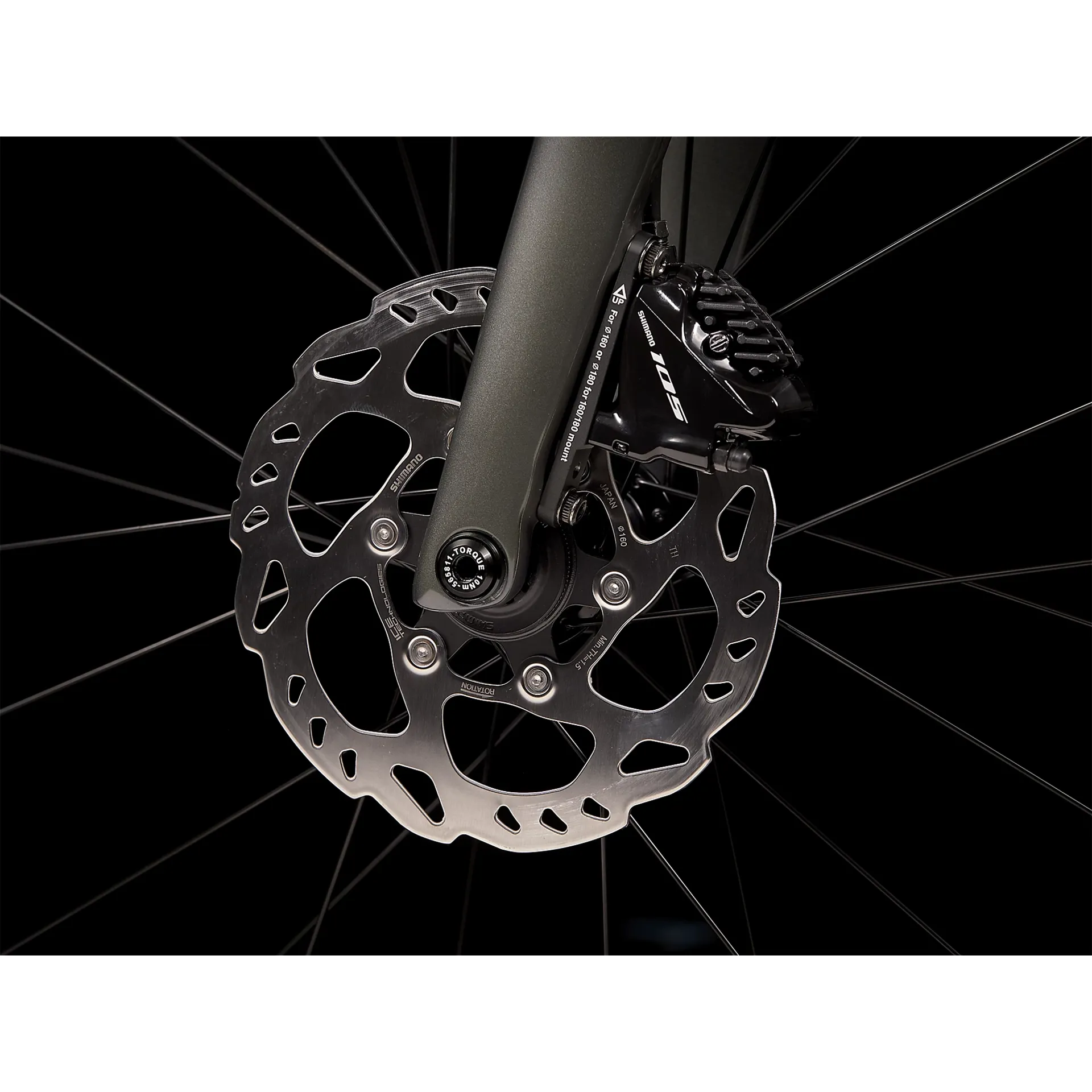

Brake rotor
Shimano SM-RT70, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Weight
56 8.87 kg / 19.55 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
