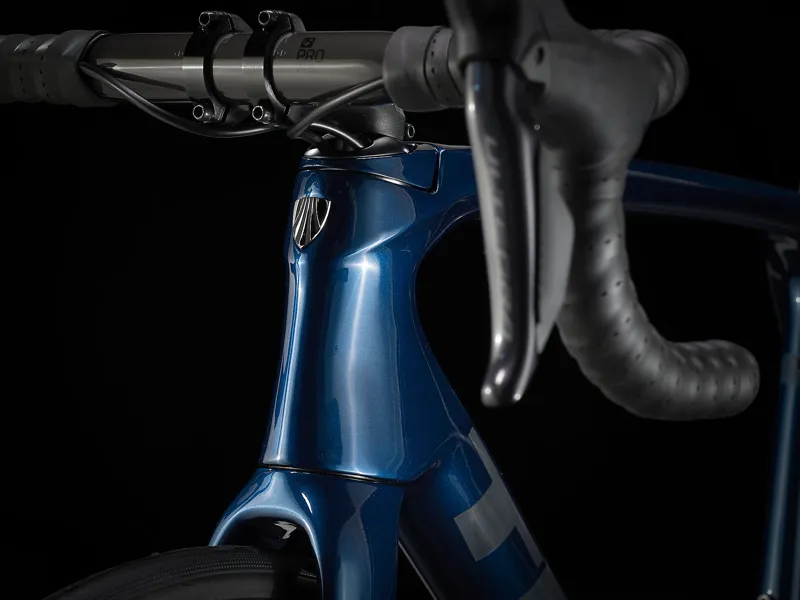

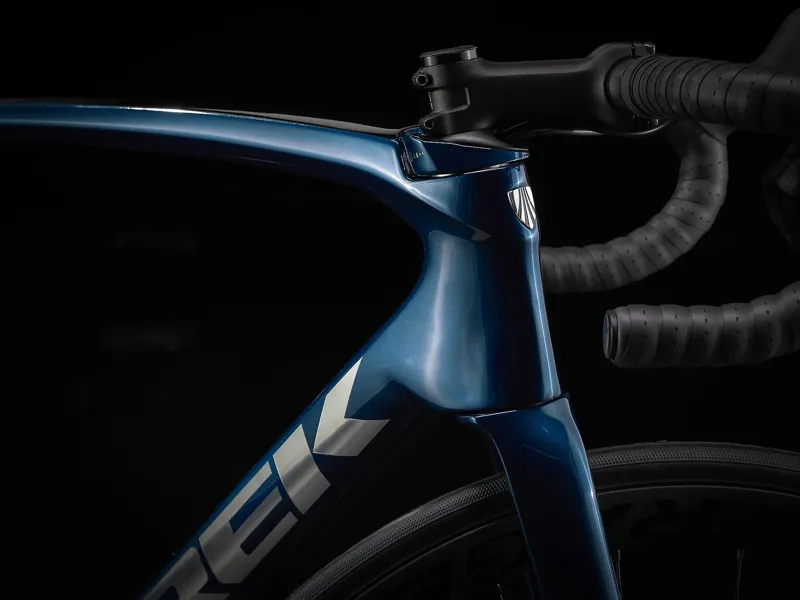

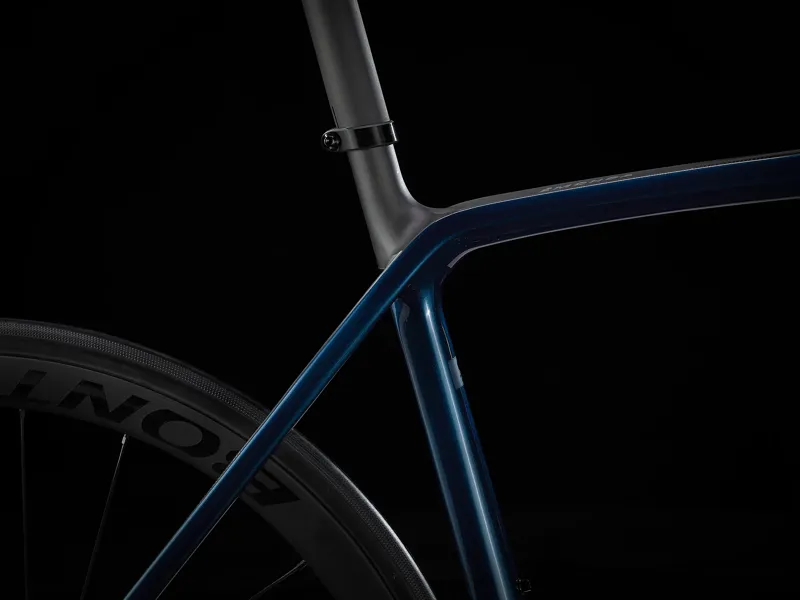

Frame
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork
Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
Frame fit
H1.5 Race
Wheel front
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25 c
Max tyre size
28c
Shifter
Shimano Ultegra R8170 Di2, 12-speed
Front derailleur
Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur
Shimano Ultegra R8150 Di2

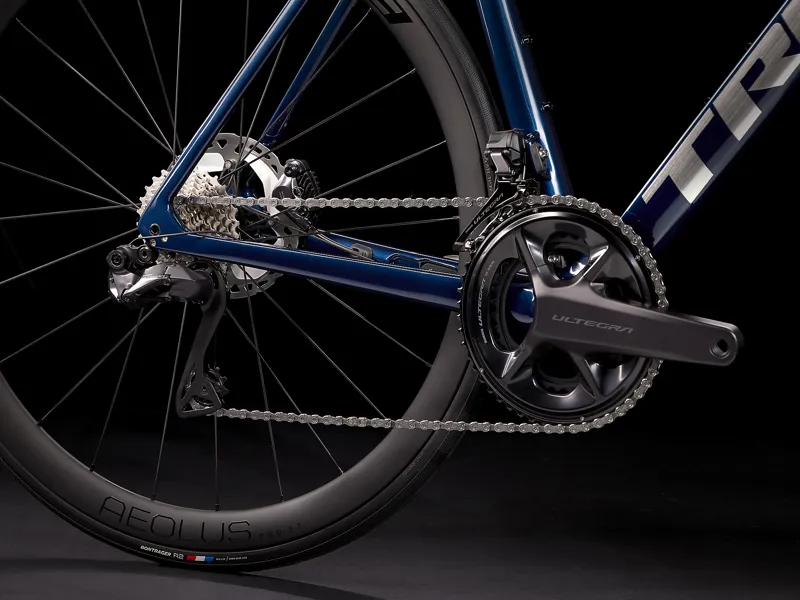

Crank
Size: 47
Shimano Ultegra R8100, 52/36, 165 mm length
Size:50, 52
Shimano Ultegra R8100, 52/36, 170 mm length
Size:54, 56, 58
Shimano Ultegra R8100, 52/36, 172.5 mm length
Size:60, 62
Shimano Ultegra R8100, 52/36, 175 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Ultegra R8100, 11-30, 12 speed
Chain
Shimano XT M8100, 12-speed
Max. chainring size
1x: 50T, 2x: 53/39
Saddle
Bontrager Aeolus Comp, steel rails, 145 mm width
Seatpost
Size: 47, 50, 52, 54
Bontrager carbon seat mast cap, 20 mm offset, short length
Size:56, 58, 60, 62
Bontrager carbon seat mast cap, 20 mm offset, tall length

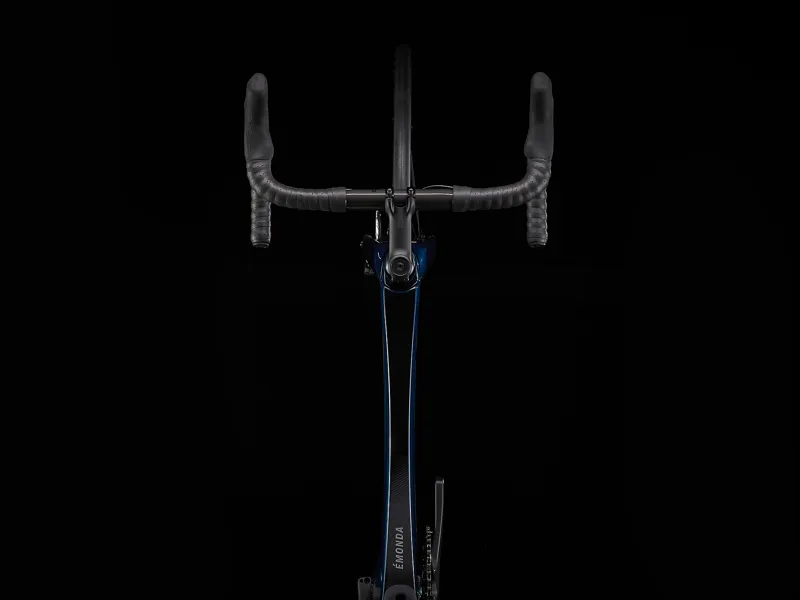

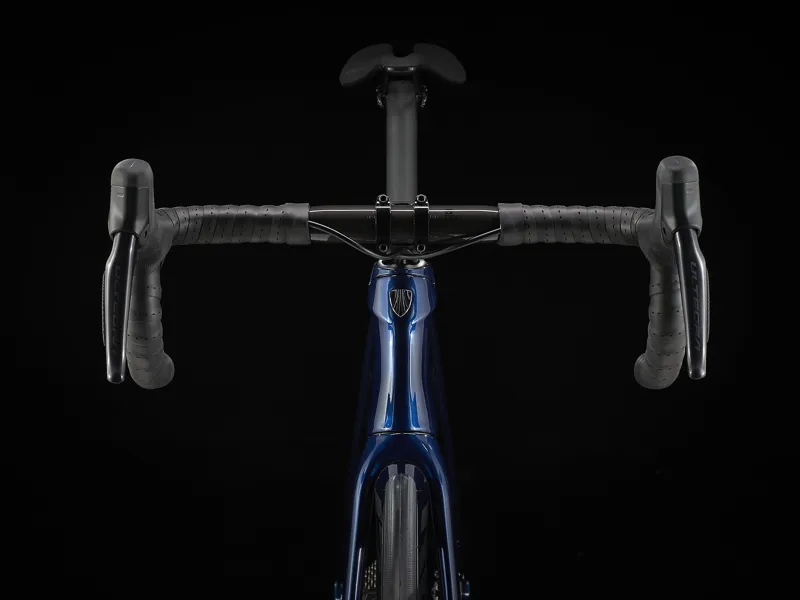

Handlebar
Size: 47, 50
Bontrager Pro VR-C, OCLV Carbon, 31.8 mm, Di2 routing, 100 mm reach, 124 mm drop, 38 cm width
Size:52
Bontrager Pro VR-C, OCLV Carbon, 31.8 mm, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width
Size:54, 56, 58
Bontrager Pro VR-C, OCLV Carbon, 31.8 mm, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width
Size:54, 56, 58
Bontrager Pro IsoCore VR-SF, 42cm
Size:60, 62
Bontrager Pro VR-C, OCLV Carbon, 31.8 mm, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width
Size:60, 62
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape
Bontrager Supertack Perf tape

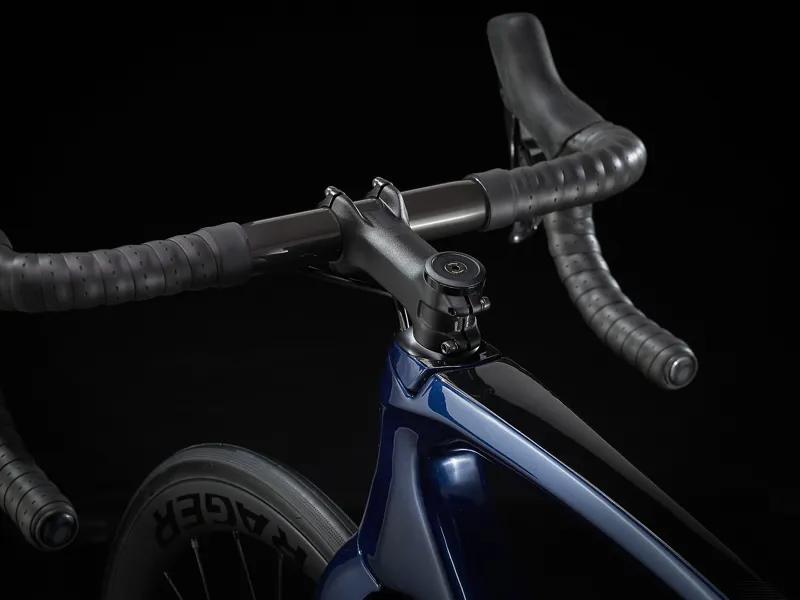

Stem
Size: 47
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:50
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52, 54
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:58, 60, 62
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

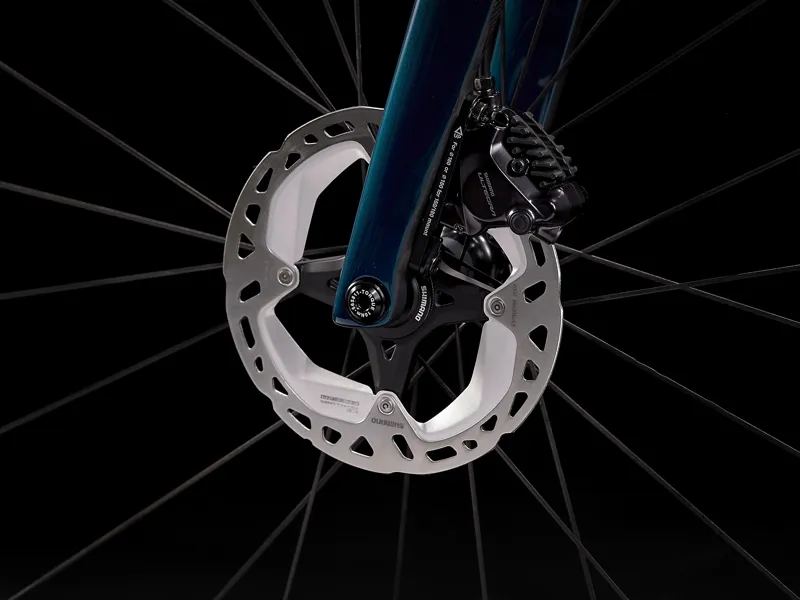

Brake rotor
Shimano MT800, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Charger
Charging cable included
Weight
56 - 7.80 kg / 17.2 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
