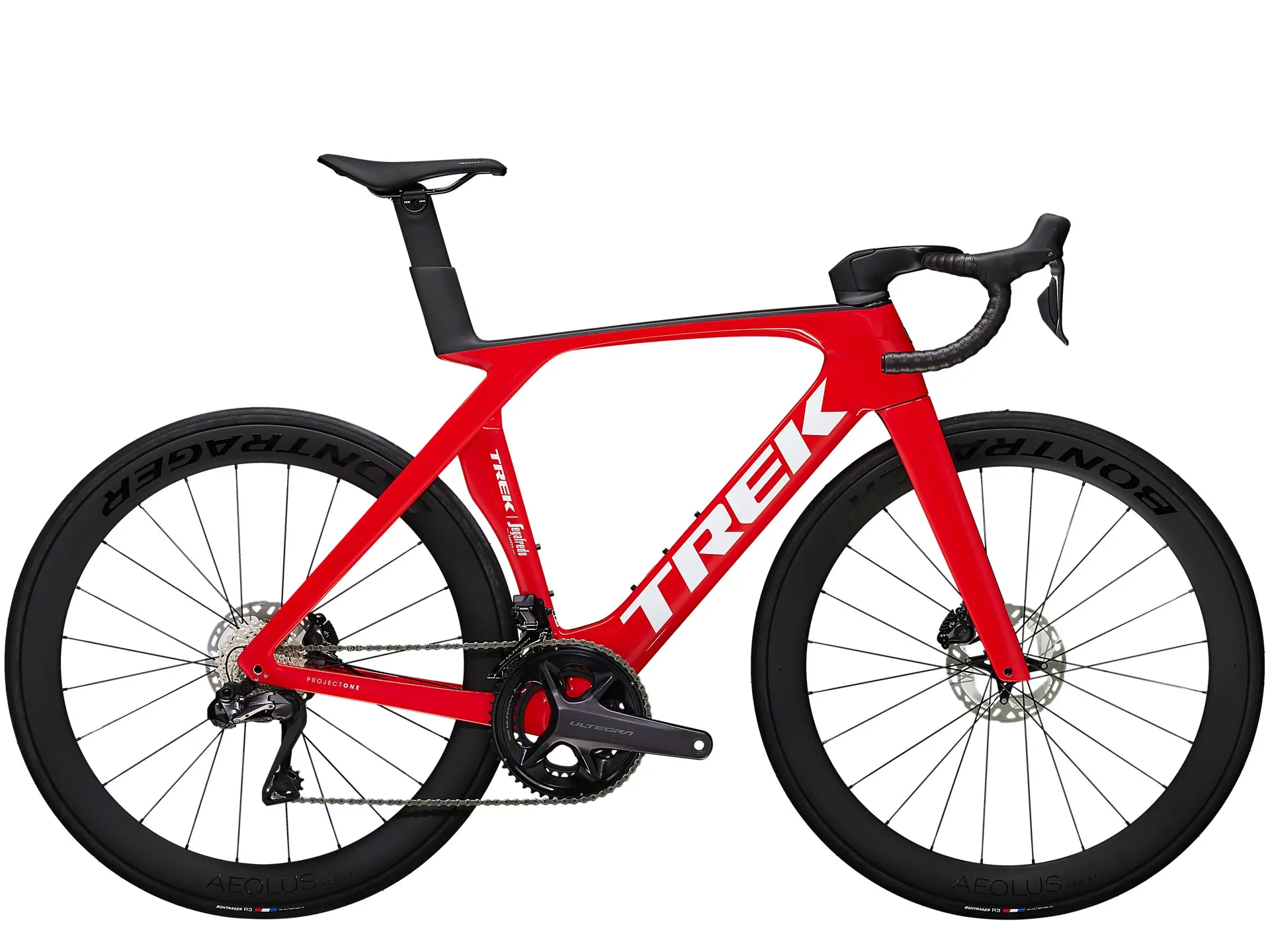

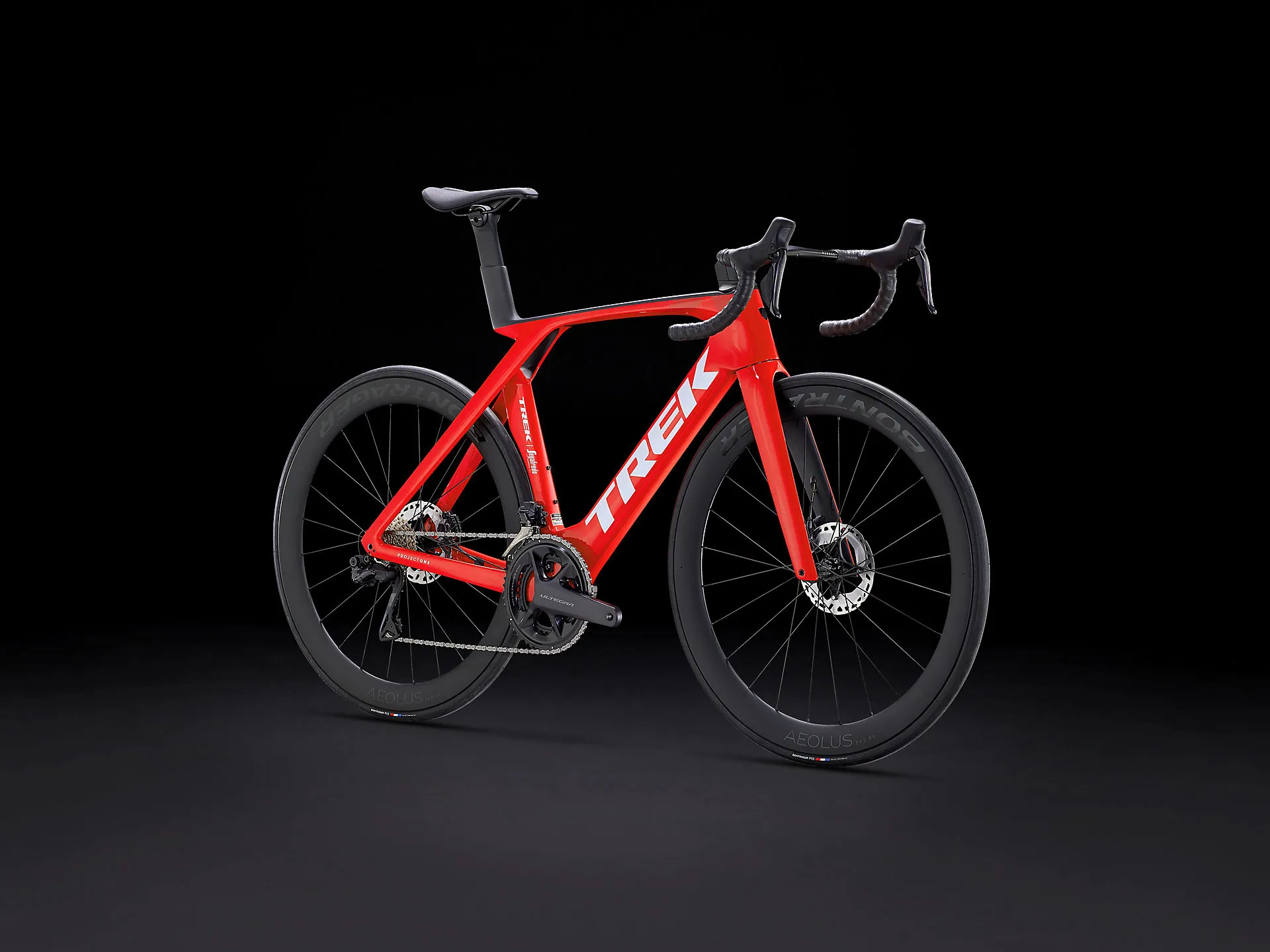

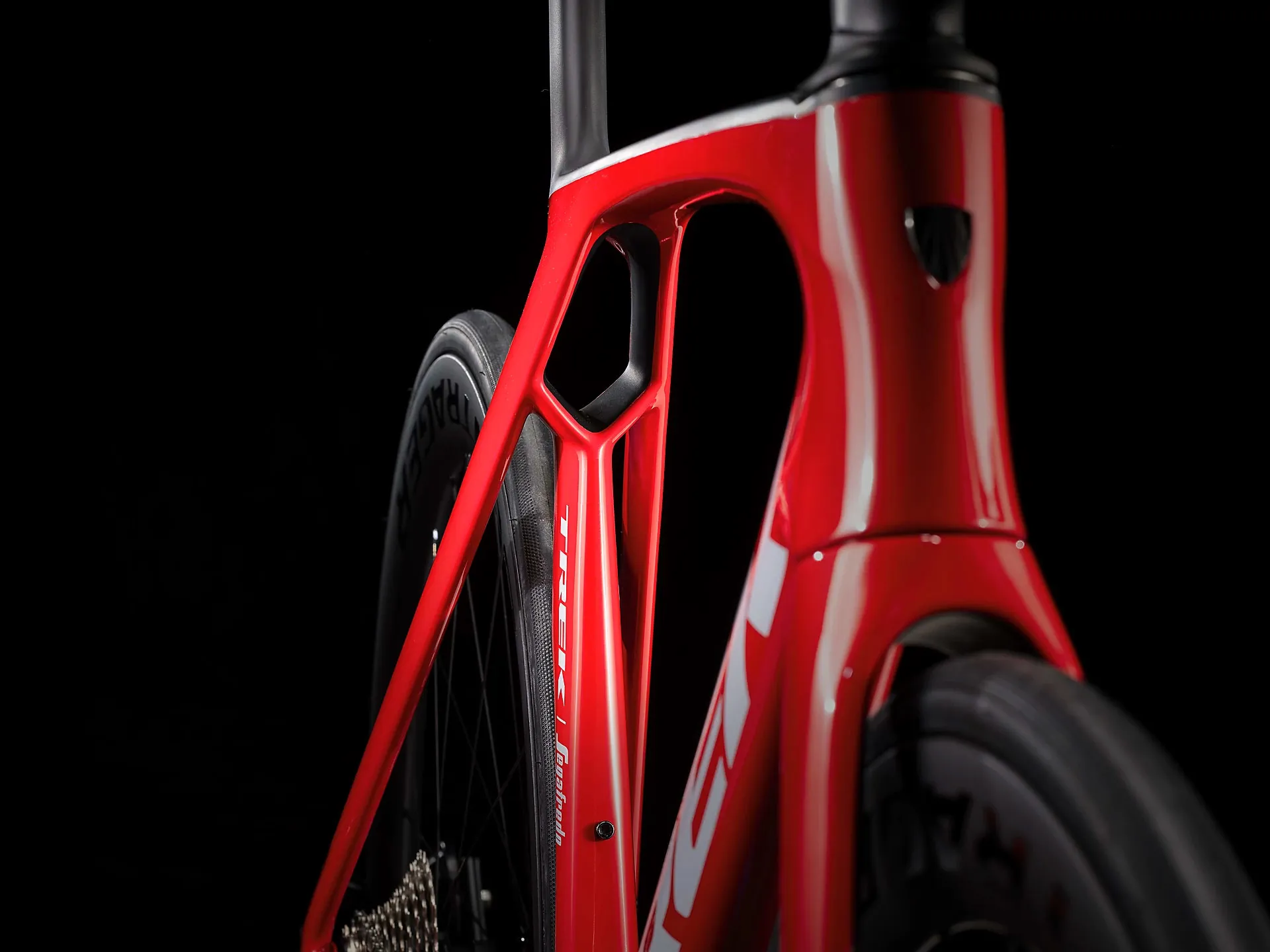

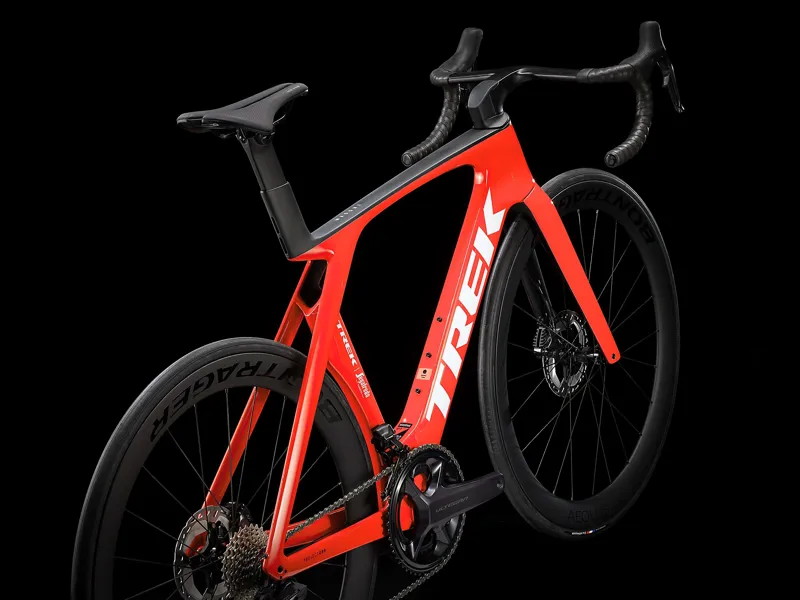

800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
H1.5 Race
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
Bontrager Switch thru-axle, removable lever
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
28c
Shifter

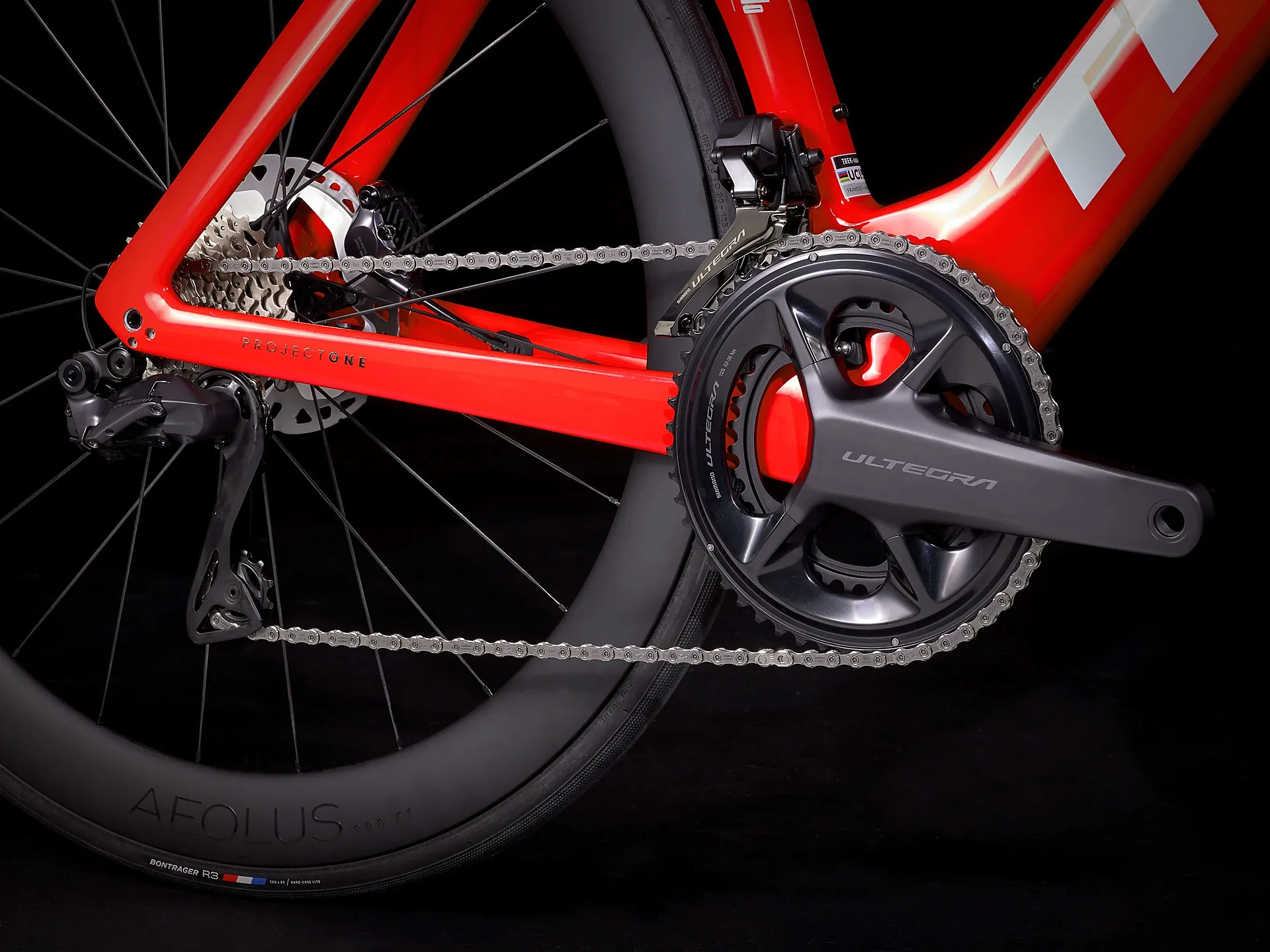

Shimano Ultegra R8170 Di2, 12-speed
Shimano Ultegra R8150 Di2, braze-on, down swing
Shimano Ultegra R8150 Di2
Size:47
Shimano Ultegra R8100, 52/36, 165 mm
Size:50, 52
Shimano Ultegra R8100, 52/36, 170 mm
Size:54, 56, 58
Shimano Ultegra R8100, 52/36, 172.5 mm
Size:60, 62
Shimano Ultegra R8100, 52/36, 175 mm
Praxis, T47 threaded, internal bearing
Shimano Ultegra R8100, 11-30, 12-speed
Shimano Ultegra/XT M8100, 12-speed
1x: 50T, 2x: 54/40
SaddleSize:47, 50, 52
Bontrager Aeolus P2 Elite, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Aeolus Elite, austenite rails, 145 mm width
Size:47, 50, 52, 54
Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
Size:56, 58, 60, 62
Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length

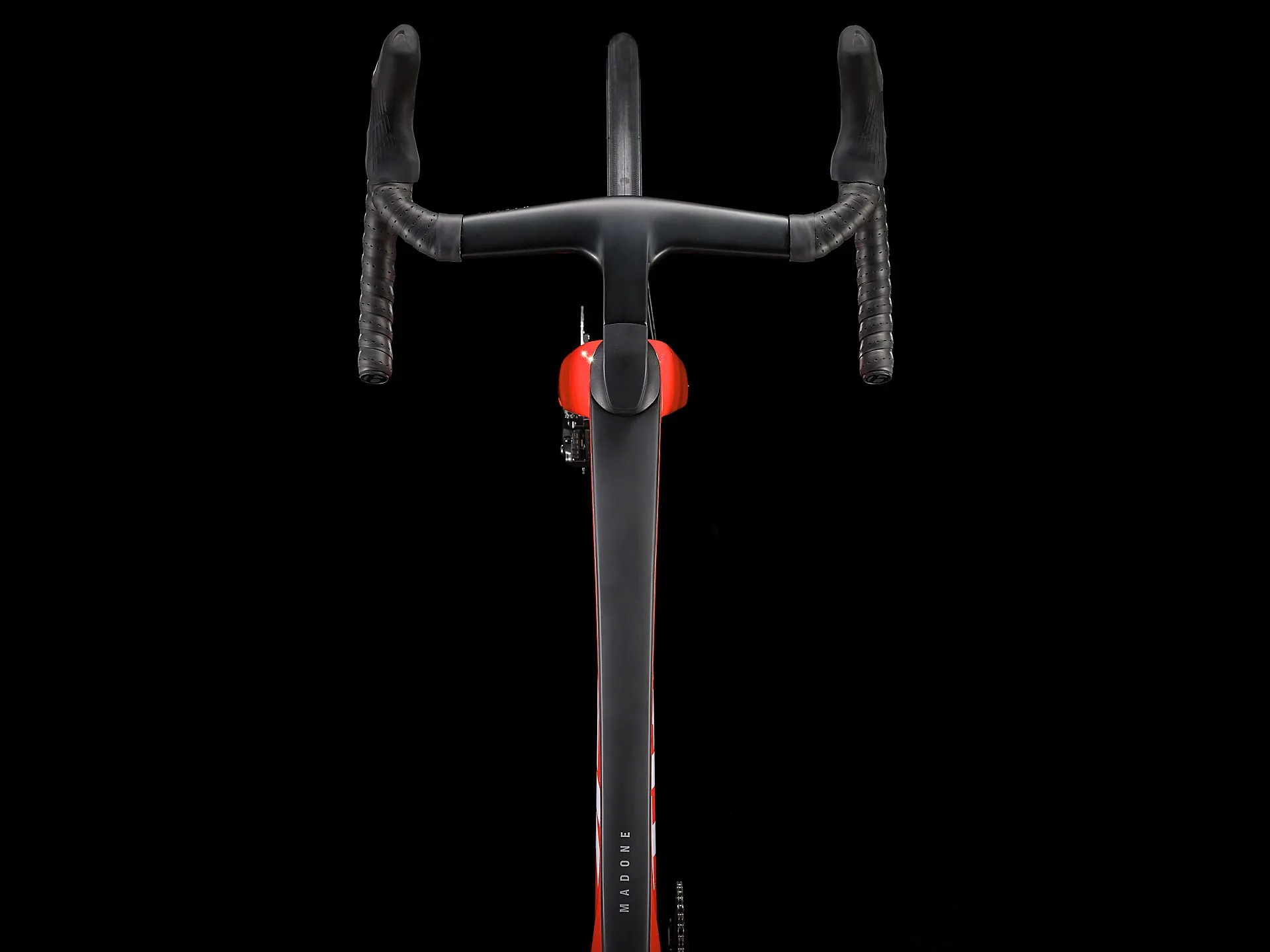

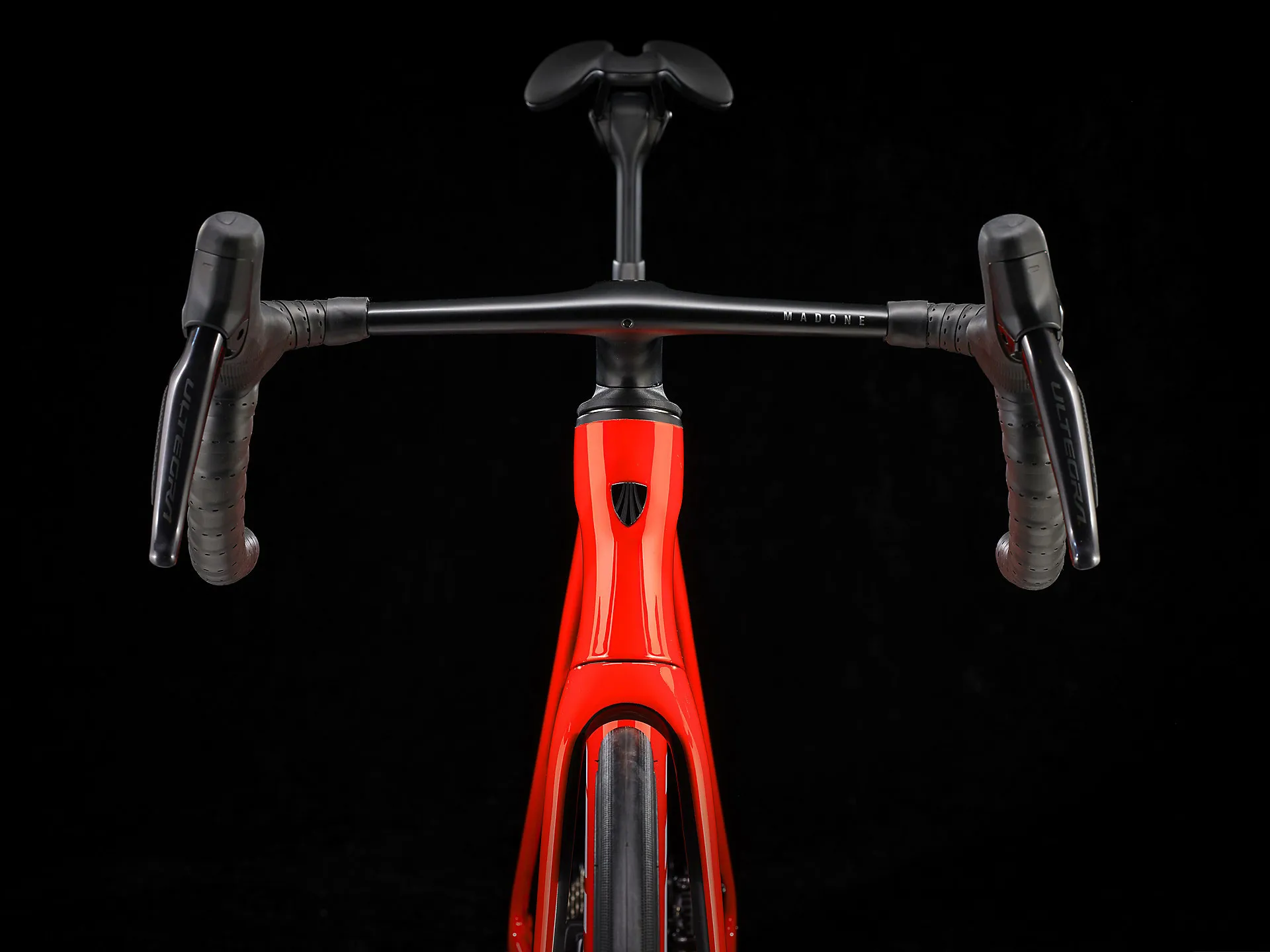

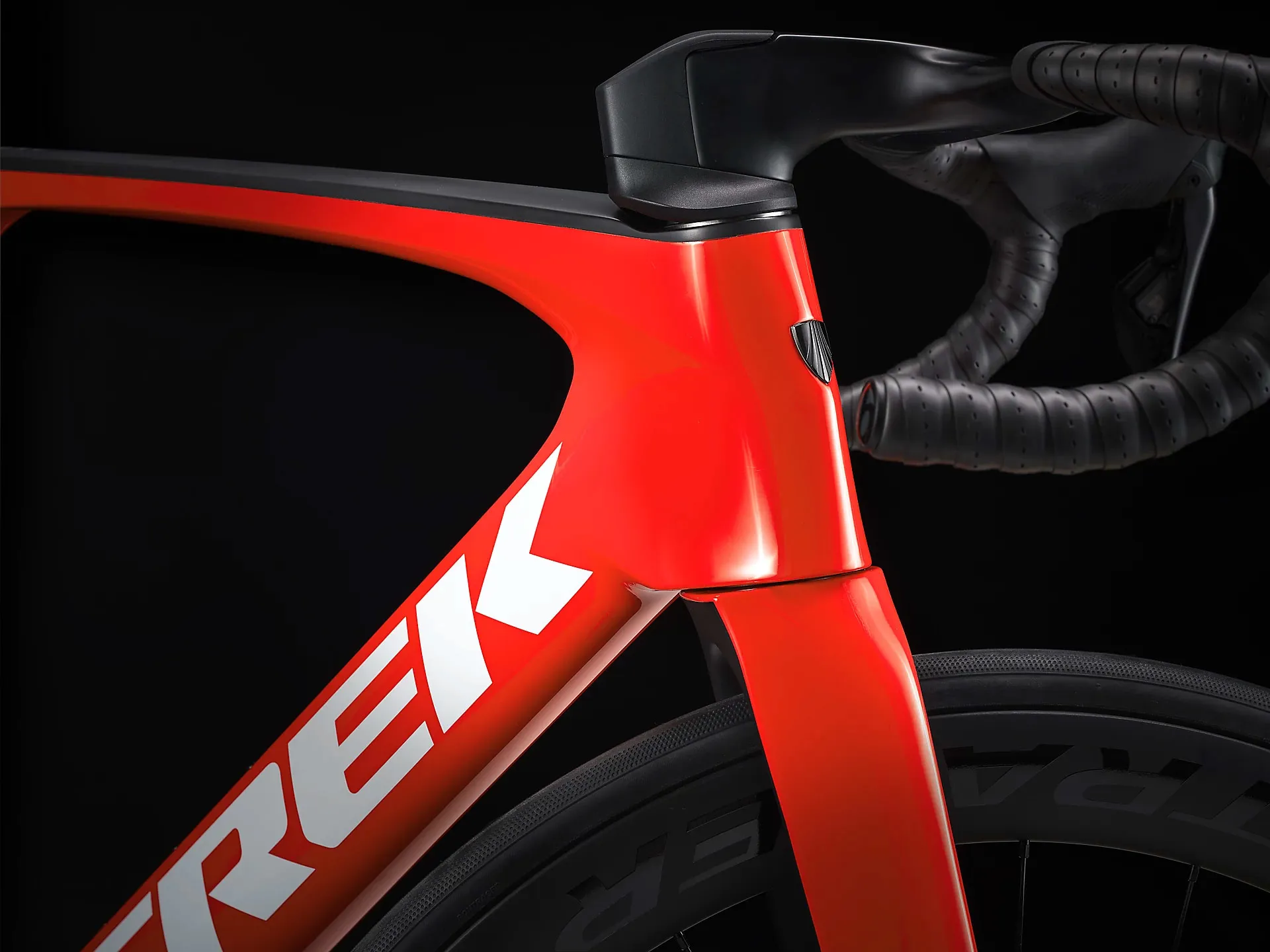

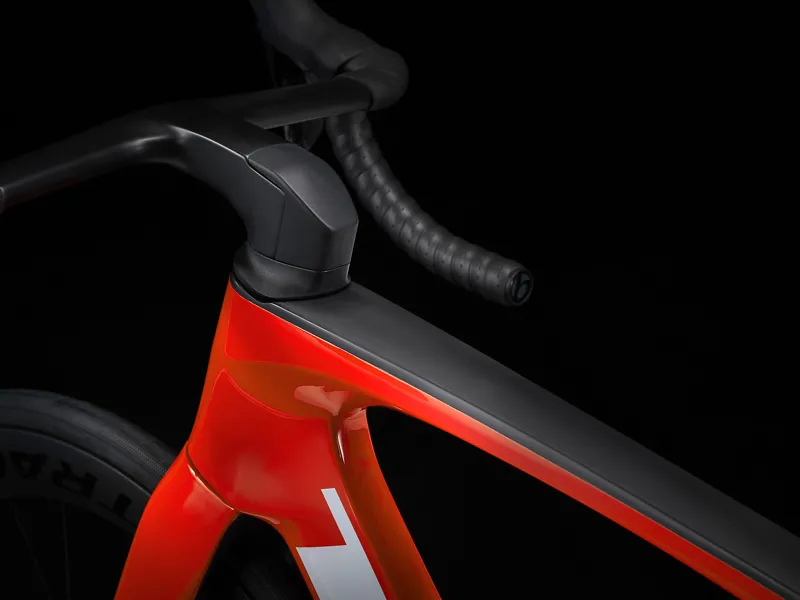

Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
Size:50, 52
Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
Size:54
Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
Size:56, 58
Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
Size:60, 62
Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
Bontrager Supertack Perf tape

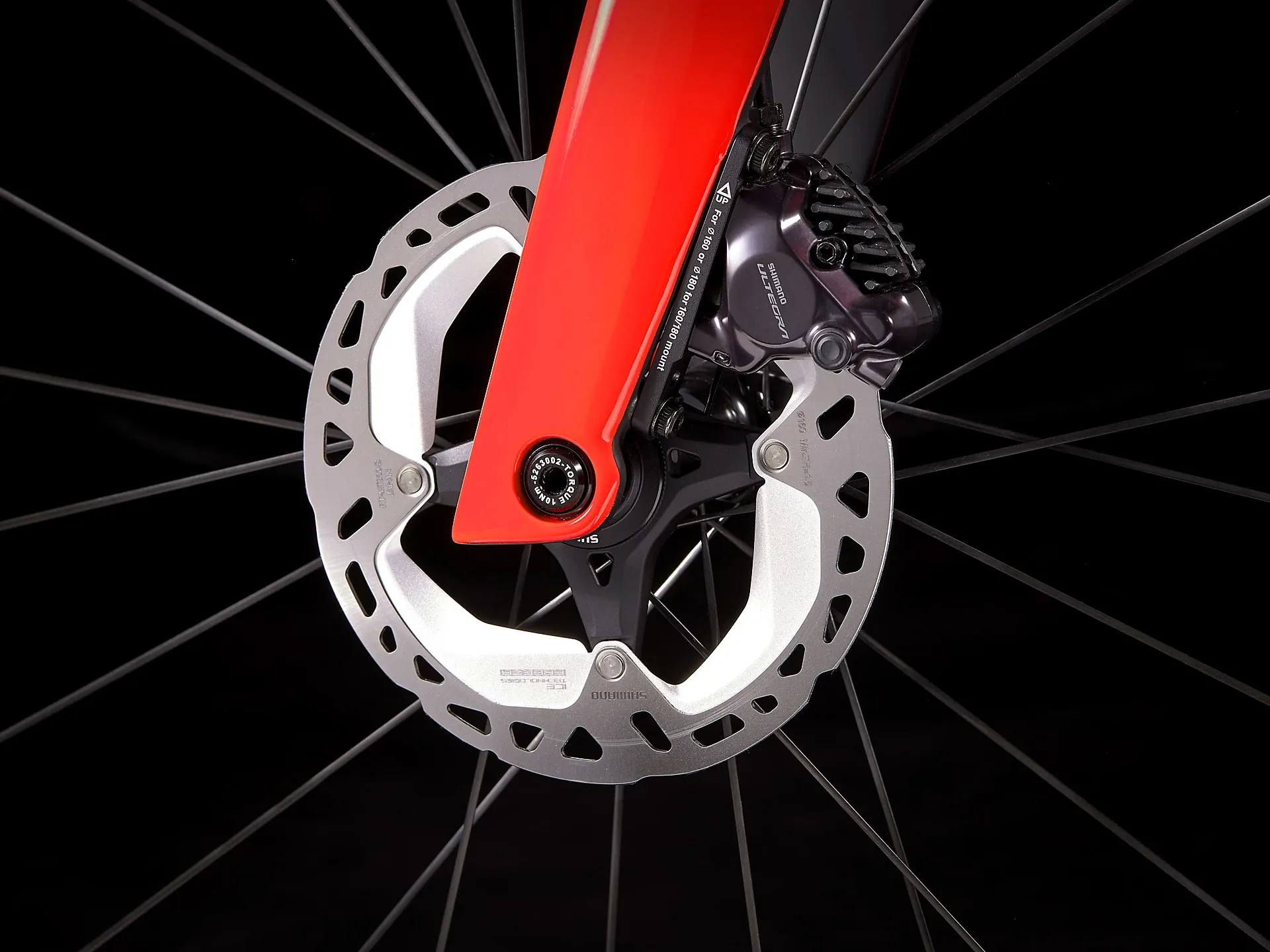

Shimano MT800, CenterLock, 160 mm
Max brake rotor sizes: 160 mm front and rear
56 - 7.48 kg / 16.51 lbs
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
