Frame

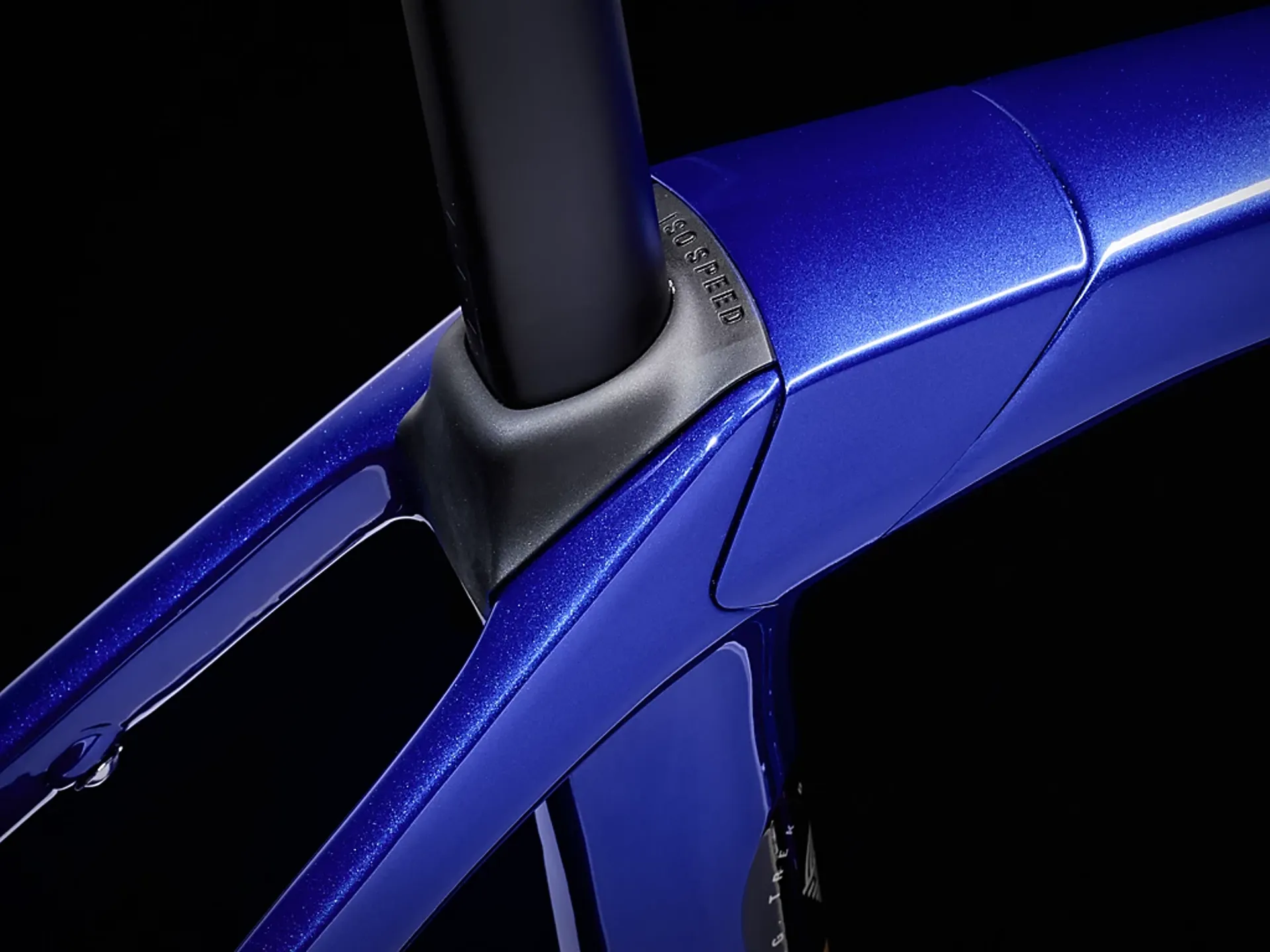

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Hub front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Hub rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
Shimano 105 R7170, 12-speed
Crank
Size: 44, 47
Shimano 105 R7100, 50/34, 165mm length
Size:50, 52
Shimano 105 R7100, 50/34, 170mm length
Size:54, 56
Shimano 105 R7100, 50/34, 172.5mm length
Size:58, 60, 62
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7100, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
2x: 52/36
Saddle
Size: 44, 47, 50, 52
Bontrager Verse Short Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Short Comp, steel rails, 145 mm width
Seatpost
Size:44, 47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size:58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length
Handlebar
Size: 44, 47
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width
Size:50
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
Size:52
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
Size:54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
Size:58, 60, 62
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 44
Bontrager RCS Pro, -7-degree, 60mm length
Size:47
Bontrager RCS Pro, -7-degree, 70mm length
Size:50
Bontrager RCS Pro, -7-degree, 80mm length
Size:52, 54
Bontrager RCS Pro, -7-degree, 90mm length
Size:56, 58
Bontrager RCS Pro, -7-degree, 100mm length
Size:60, 62
Bontrager RCS Pro, -7-degree, 110mm length
Brake rotor
Shimano SM-RT70, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Charger
Charging cable included
Bag

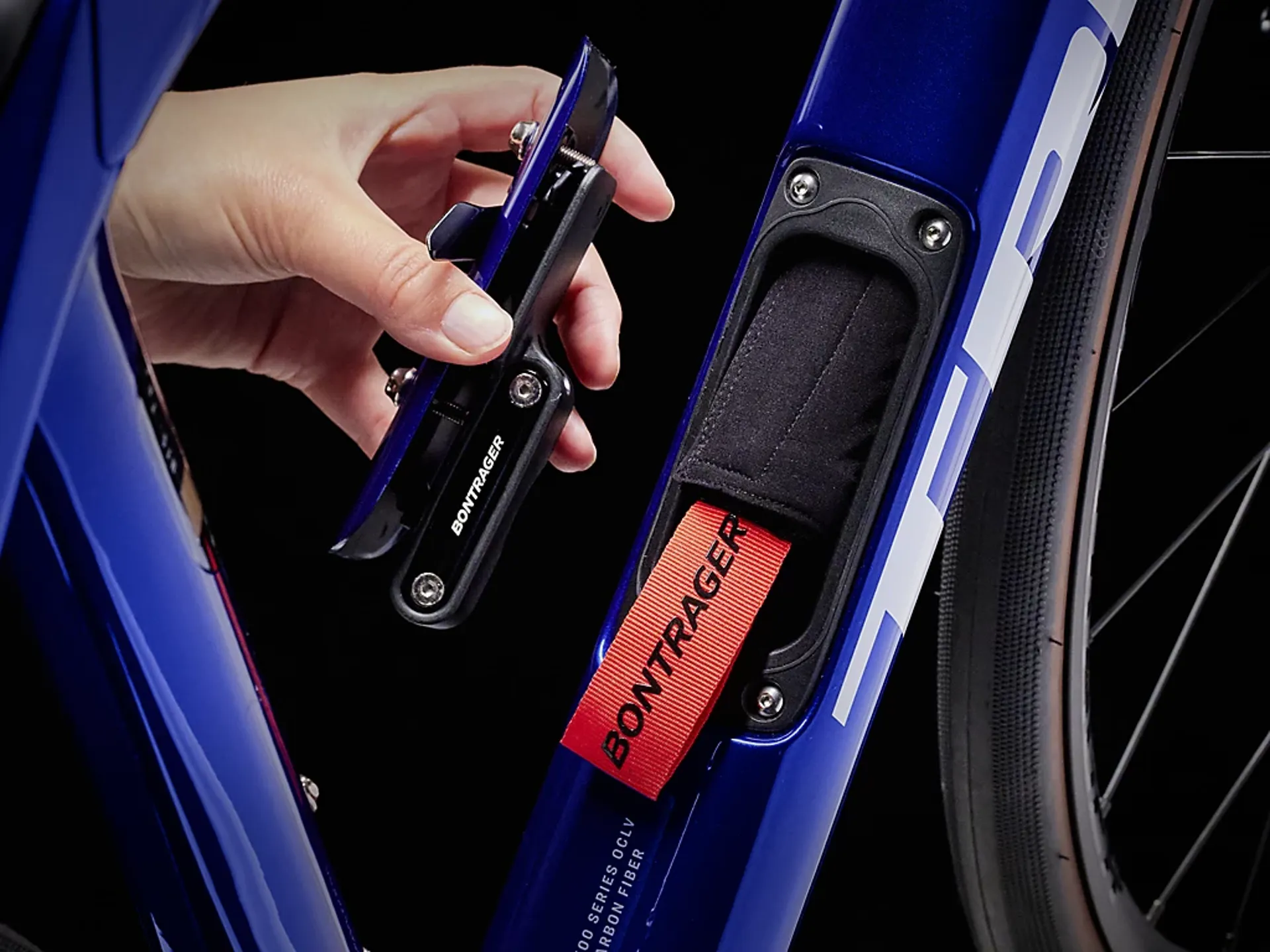

Bontrager BITS Internal Frame Storage Bag
Weight
56 - 8.90 kg/19.63 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
