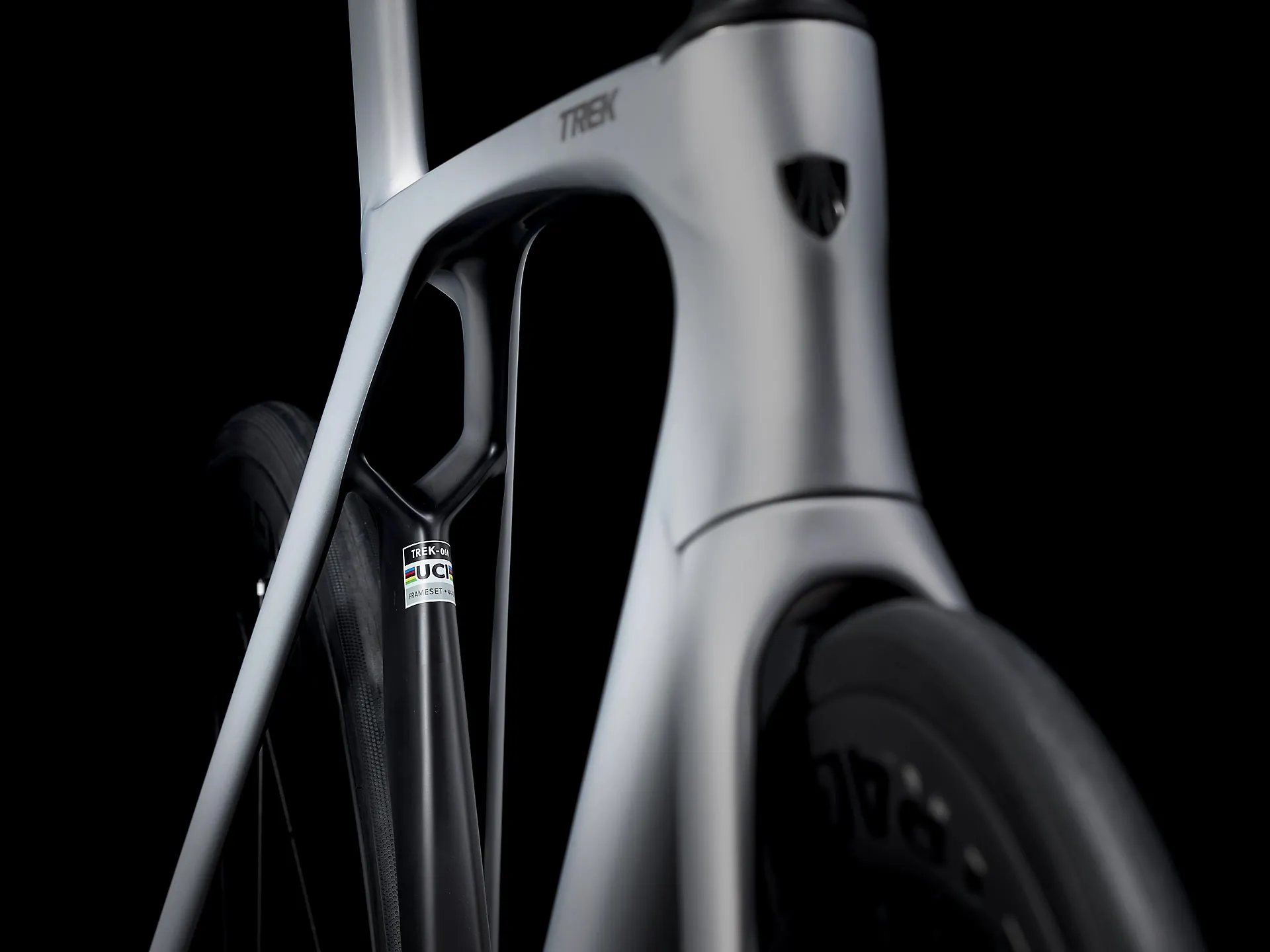

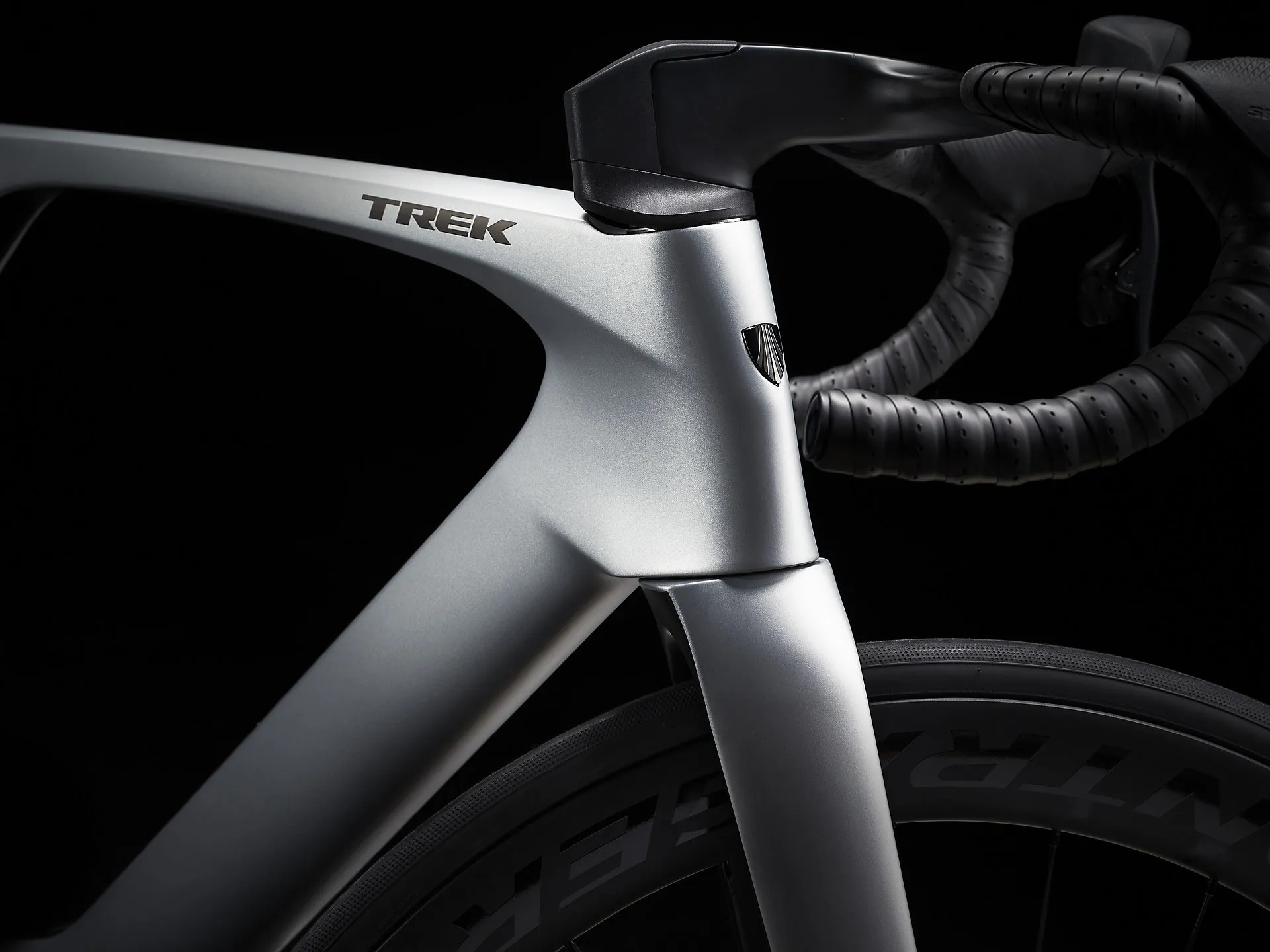

Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Fork
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit
H1.5 Race
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready
Tyre
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Max tyre size
28c
Shifter
SRAM Force eTap AXS, 12-speed
Front derailleur
SRAM Force eTap AXS, braze-on
Rear derailleur
SRAM Force eTap AXS, 36T max cog
Crank
Size: 47
SRAM Force AXS Power Meter, 48/35, DUB, 165mm length
Size:50, 52
SRAM Force AXS Power Meter, 48/35, DUB, 170mm length
Size:54, 56, 58
SRAM Force AXS Power Meter, 48/35, DUB, 172.5mm length
Size:60, 62
SRAM Force AXS Power Meter, 48/35, DUB, 175mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Chain
SRAM Force, 12 speed
Max. chainring size
1x: 50T, 2x: 54/40
Saddle
Size: 47, 50, 52
Bontrager Aeolus P2 Elite, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost
Size:47, 50, 52, 54
Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
Size:56, 58, 60, 62
Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length

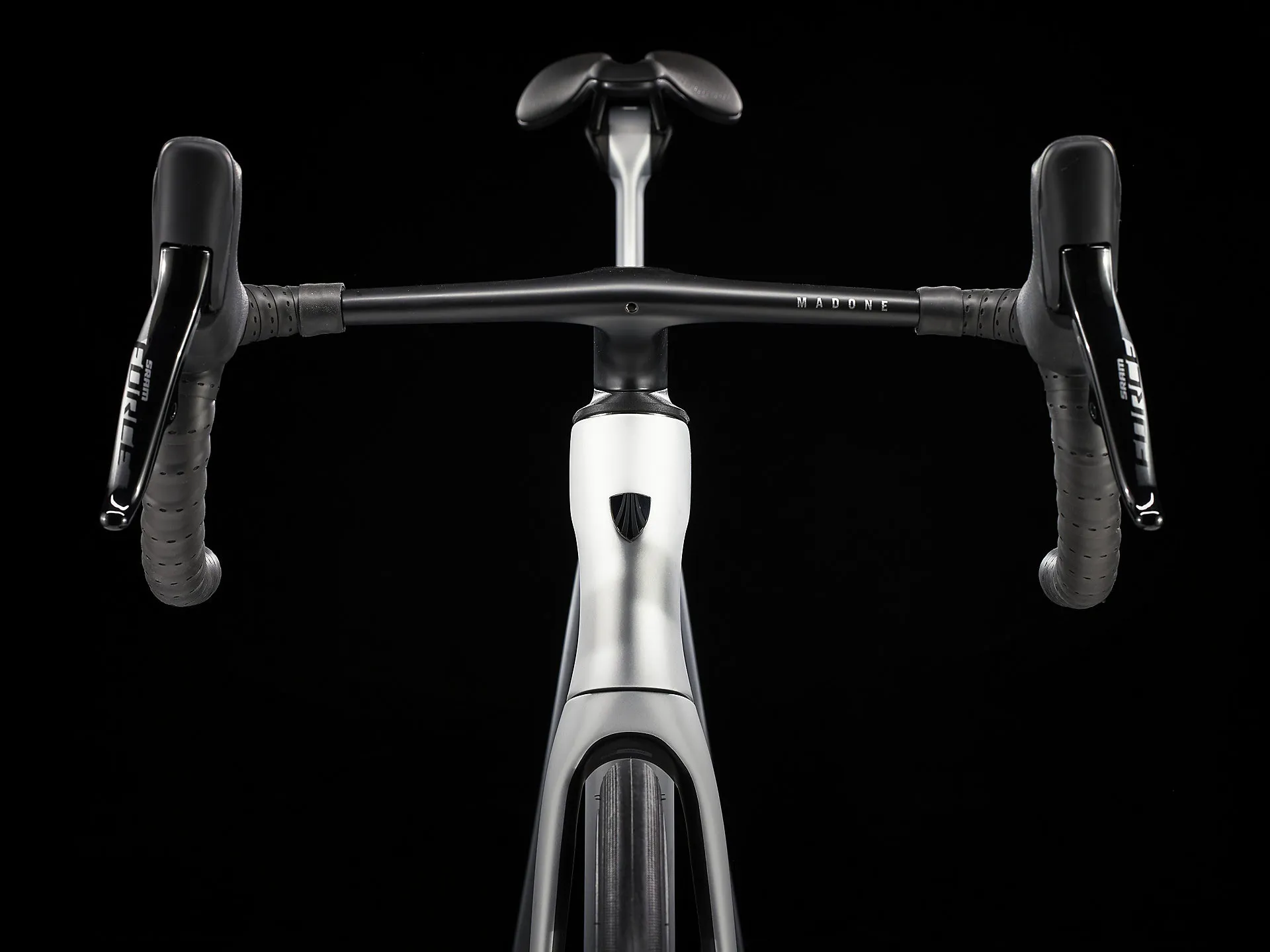

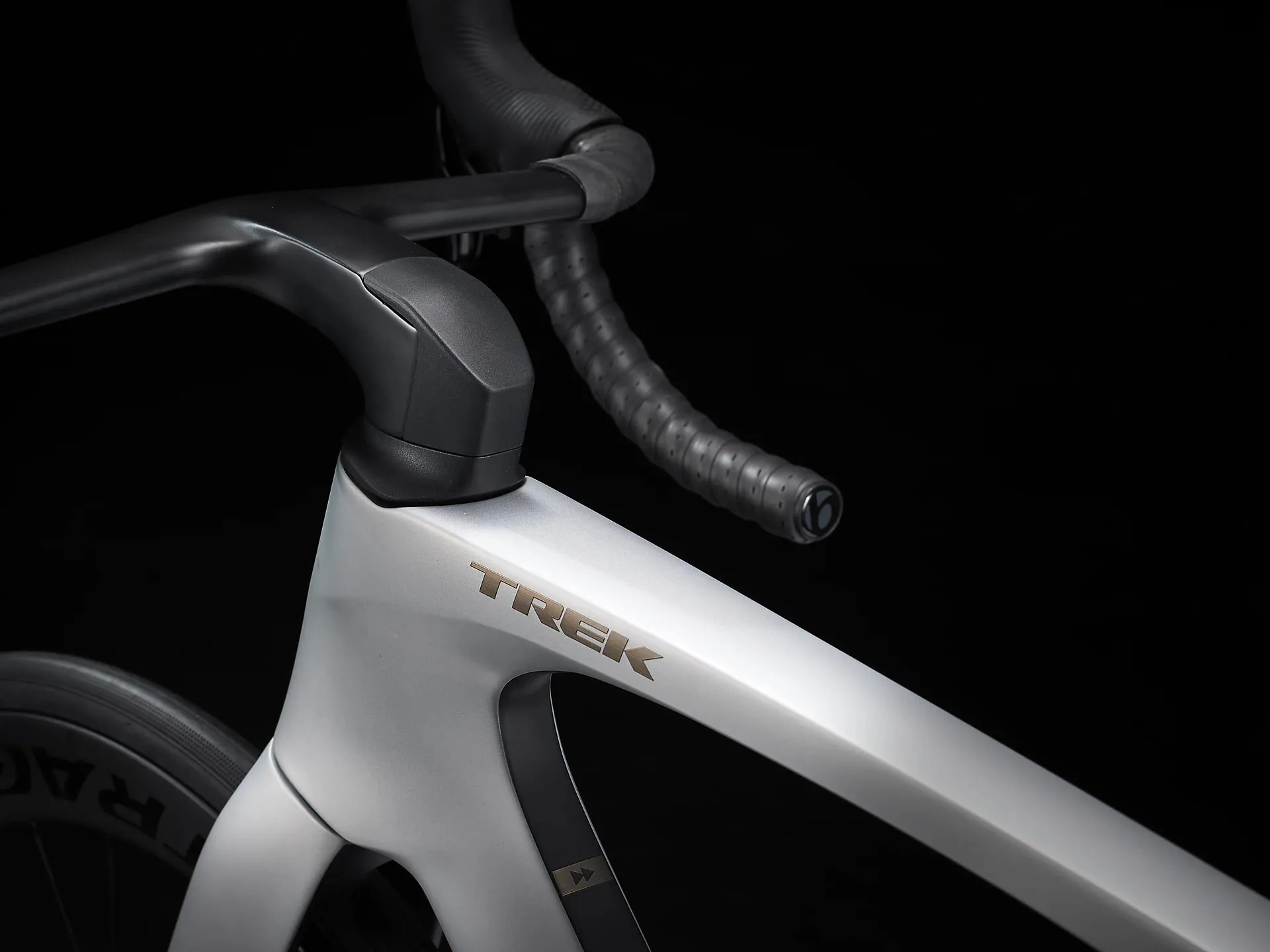

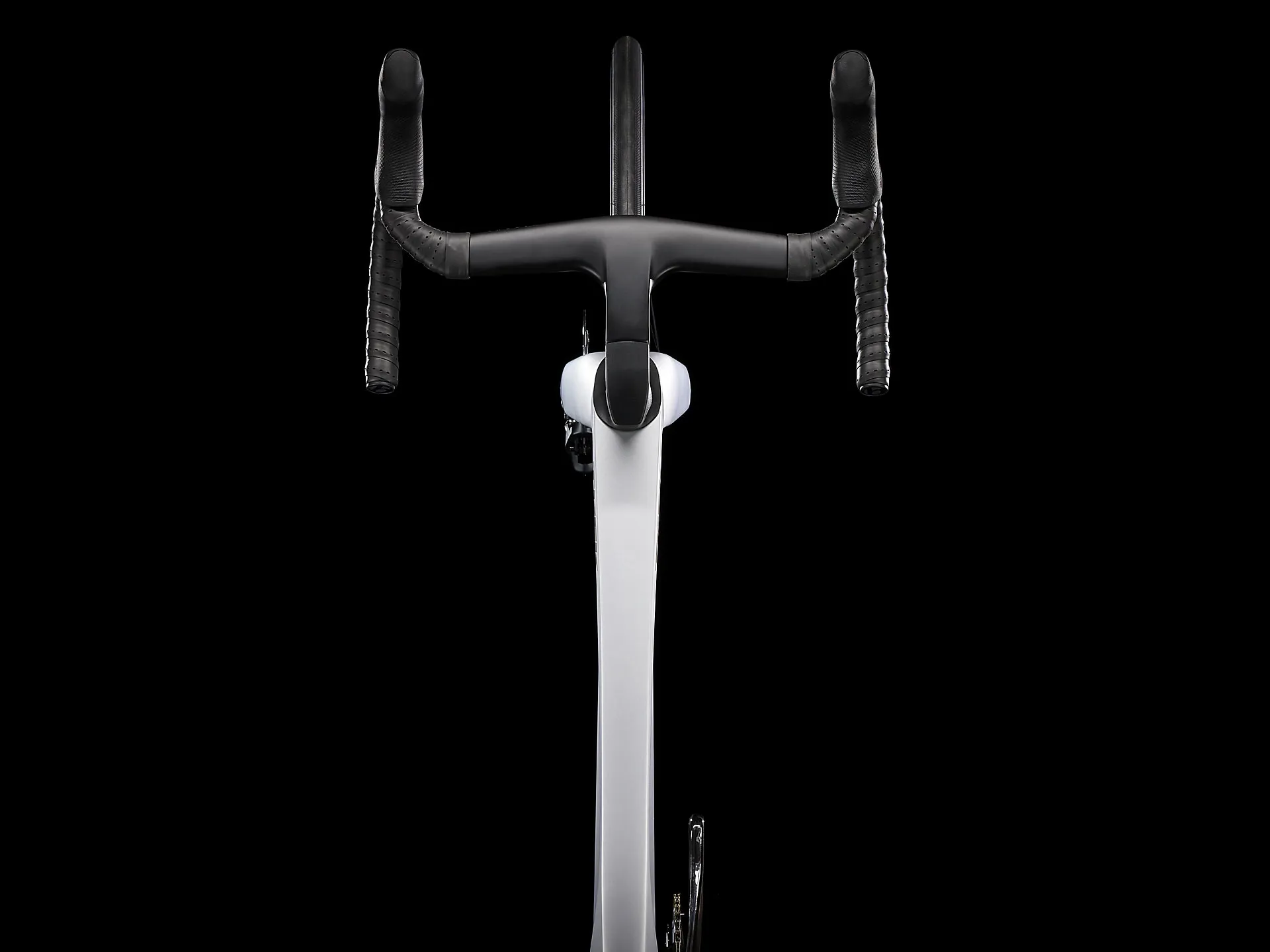

Handlebar/stem (integrated)
Size: 47
Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
Size:50, 52
Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
Size:54
Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
Size:56, 58
Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
Size:60, 62
Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
Handlebar tape
Bontrager Supertack Perf tape

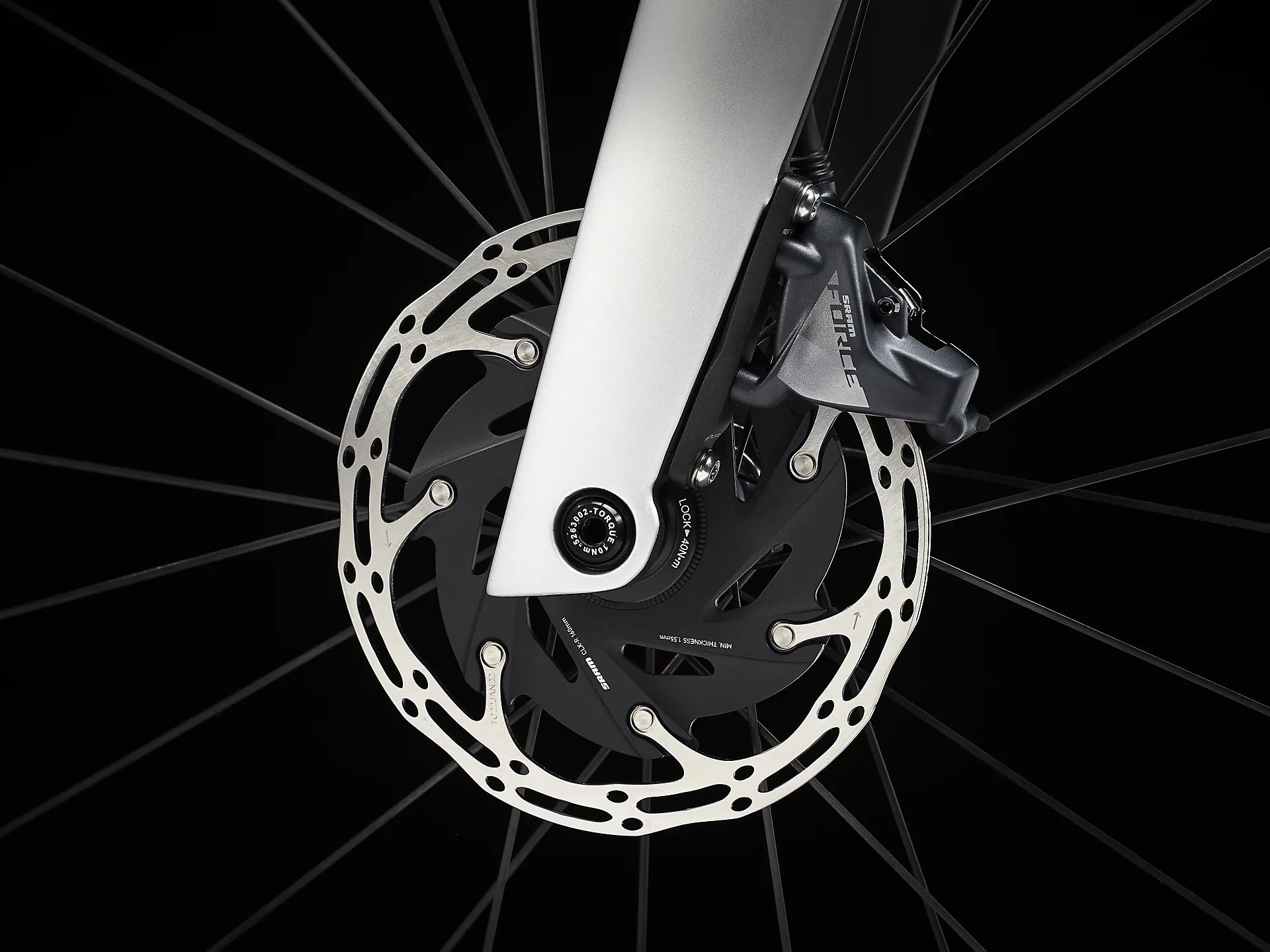

Brake
SRAM Force eTap AXS hydraulic disc
Brake rotor
SRAM CenterLine X, CenterLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)
Weight
56 – 7.76kg/17.11lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 275 pounds (125kg).
